Aerpro FP8356K - Double DIN Install Kit To Suit Suzuki Swift

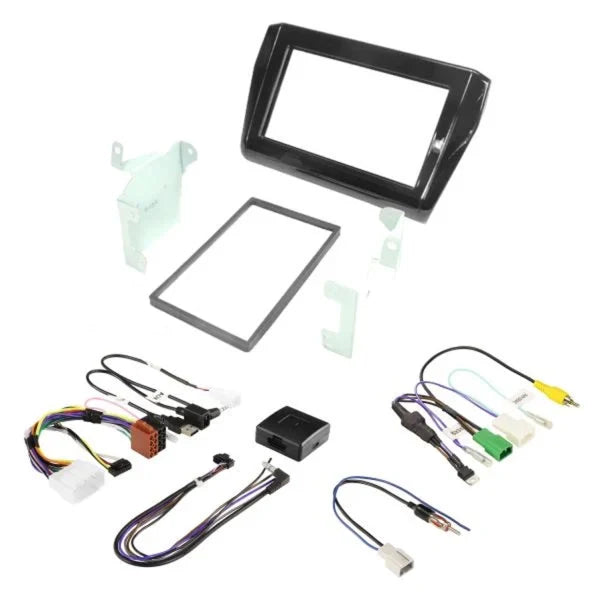

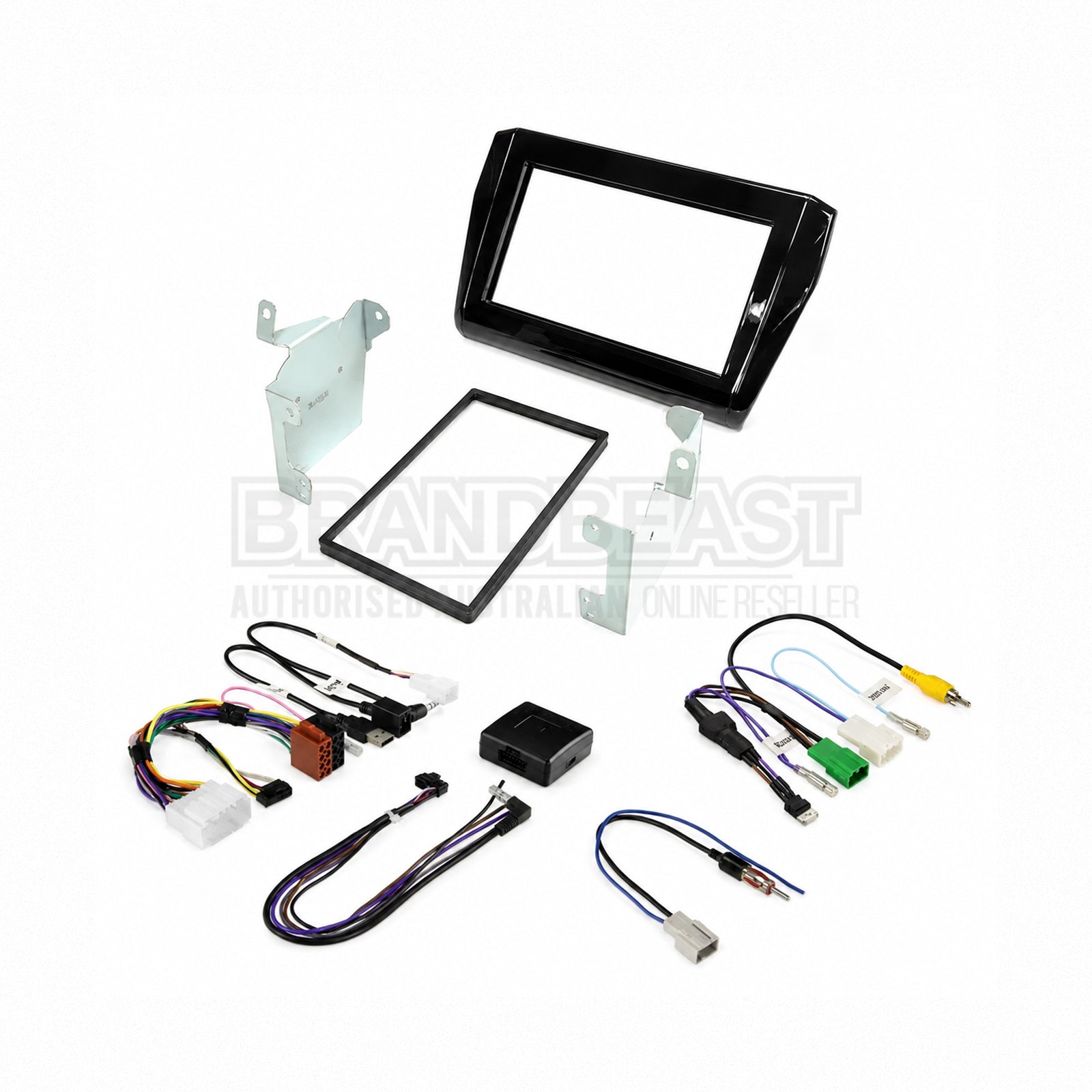

Complete vehicle-specific double DIN headunit installation kit for Suzuki Swift (2017-on) with matte black facia kit, mounting brackets, steering wheel control interface with USB/AUX retention, factory camera retention, antenna adapter, and universal patch lead for professional installations.
Product Overview
The Aerpro FP8356K Installation Kit provides everything needed for a complete aftermarket double DIN headunit installation in Suzuki Swift models from 2017 onwards. This comprehensive kit includes matte black facia kit with 178mm x 99mm trim dimensions matching the original dashboard styling, mounting brackets, steering wheel control interface with phone button retention, factory camera retention harness, OEM USB and AUX socket retention capability, antenna adapter, and universal steering wheel control patch lead. The kit maintains factory steering wheel control functionality and retains OEM features when connected to compatible aftermarket headunits. Compatible with Aerpro APP8 aftermarket headunit harness adapter for simplified installation.
Important Notes: OEM AUX and USB sockets retained when connected to compatible aftermarket headunits. For OEM reverse camera retention, use harness APVSZ01 (sold separately) when installing compatible aftermarket AV headunit.
Key Features
-
Complete Installation Solution - All components required for professional aftermarket double DIN headunit installation conveniently packaged in one comprehensive kit
-

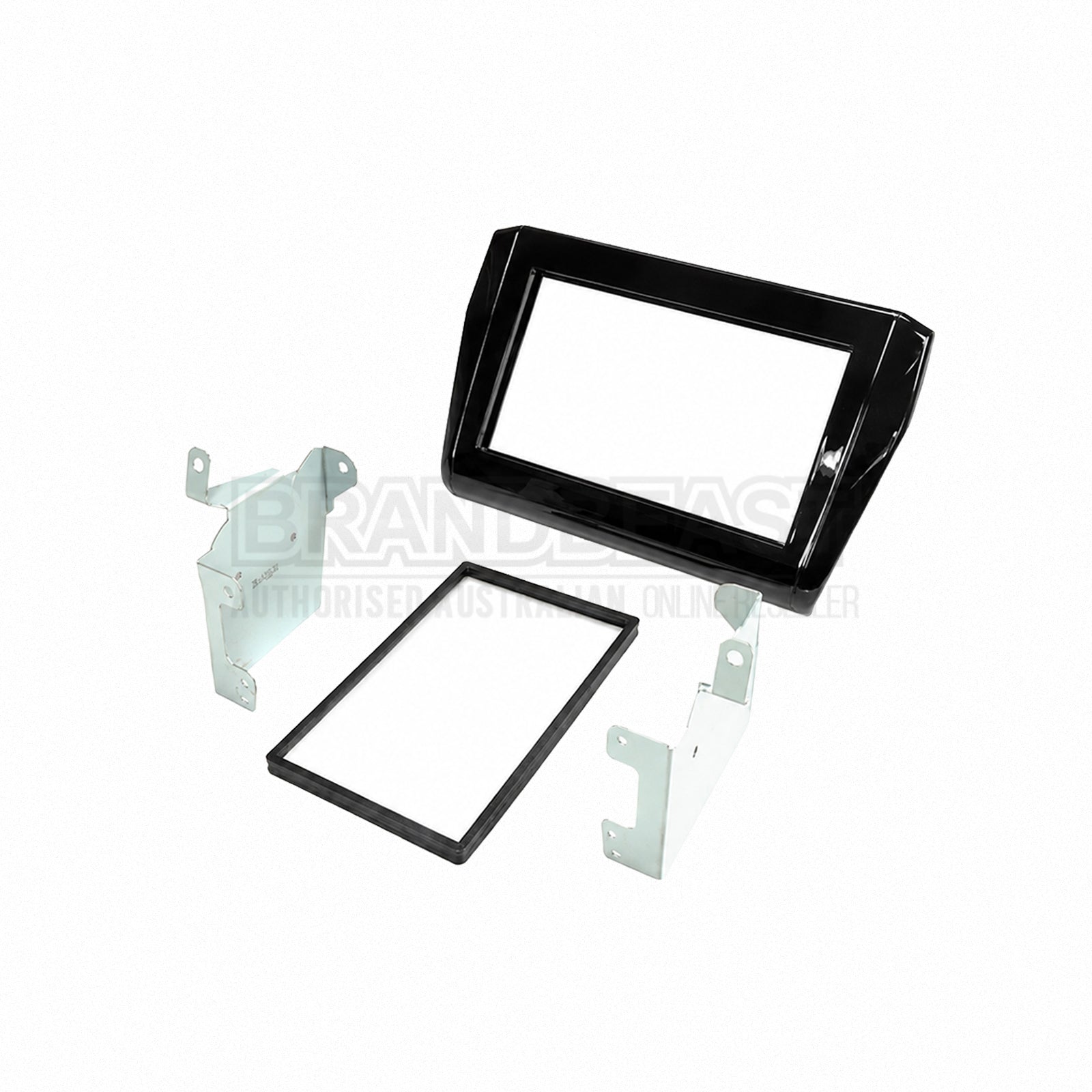

Matte Black Finish - Facia kit features high-quality matte black finish with 260mm top width, 225mm base width, and 167mm height matching original Suzuki Swift dashboard styling
-
Factory Feature Retention - Retains steering wheel controls including phone button, factory camera (if equipped), and OEM AUX/USB sockets with compatible aftermarket headunits
-

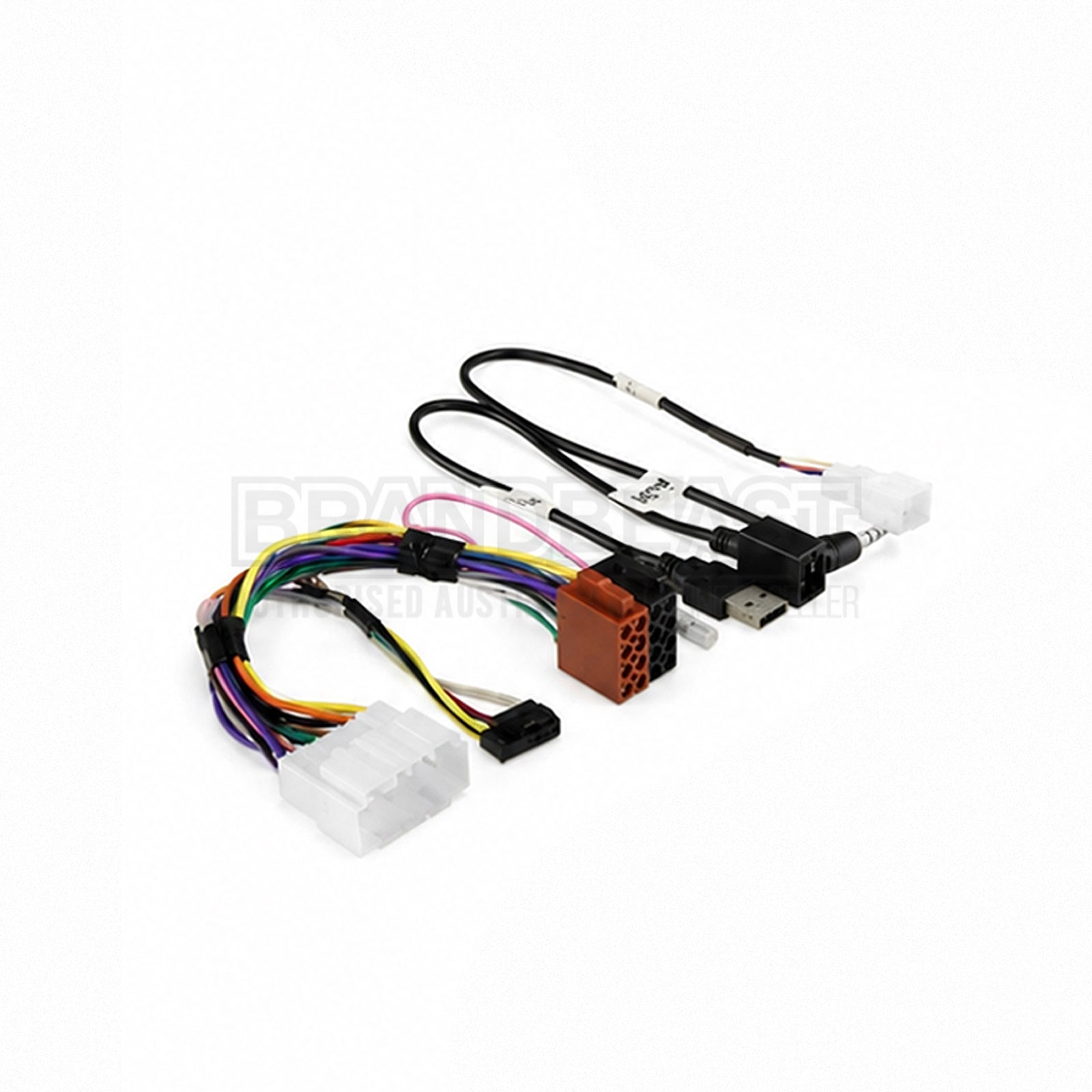

Simplified Installation - Compatible with Aerpro APP8 aftermarket headunit harness adapter for direct connection and streamlined installation process
-

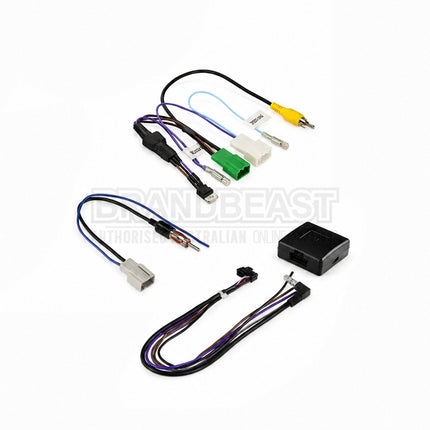

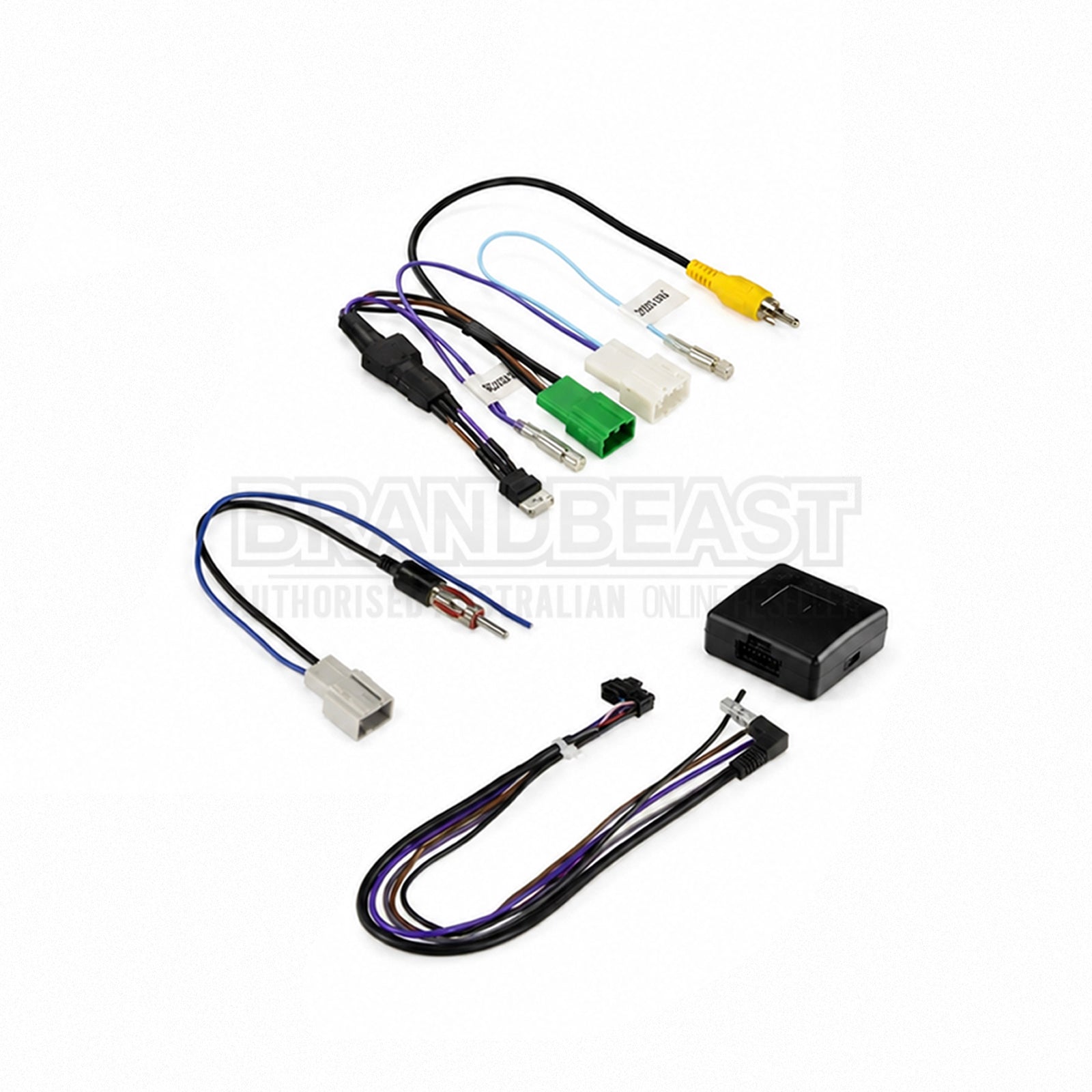

Comprehensive Component Package - Includes facia kit, mounting brackets, steering wheel control interface, camera retention, antenna adapter, and universal patch lead
-
Precise Fitment - 178mm x 99mm internal trim dimensions designed specifically for Suzuki Swift 2017 onwards double DIN installations
Technical Specifications
| Specification |
Details |
| Brand |
Aerpro |
| Model |
Double DIN Install Kit |
| SKU |
FP8356K |
| Vehicle Compatibility |
Suzuki Swift (2017-on) |
| Application |
Double DIN |
| Colour |
Matte Black |
| Internal Dimensions (Trim) |
178mm W x 99mm H |
| External Dimensions |
260mm W (Top) / 225mm W (Base) x 167mm H |
| Inclusions |
Facia Kit, Mounting Brackets, Steering Wheel Control Interface, Camera Retention, Antenna Adapter, Universal Patch Lead |
| Steering Wheel Controls |
Retained (Including Phone Button) |
| Factory Camera |
Retained (If Equipped) |
| OEM AUX/USB |
Retained (With Compatible Headunit) |
| APP8 Compatibility |
Yes |
| Camera Retention Harness |
APVSZ01 Required (Sold Separately) |
| Weight |
1.00kg |
Frequently Asked Questions
Q: Which Suzuki Swift models does this installation kit fit? A: This kit fits Suzuki Swift models from 2017 onwards, covering the current-generation Swift with compatible dashboard designs and double DIN installation requirements.
Q: Will my factory reversing camera still work after installation? A: Yes, the kit includes camera retention components. However, for OEM reverse camera retention you must use harness APVSZ01 (sold separately) when installing a compatible aftermarket AV headunit.
Q: Will my steering wheel controls still work after installation? A: Yes, the kit includes a steering wheel control interface that retains factory steering wheel control functionality including the phone button with universal patch lead provided.
Q: Can I keep using my factory AUX and USB sockets? A: Yes, the kit retains OEM AUX and USB sockets when connected to compatible aftermarket headunits. The aftermarket headunit must support this feature to maintain functionality.
Q: What additional parts do I need to complete the installation? A: For simplified installation, consider adding an Aerpro APP8 aftermarket headunit harness adapter. For reverse camera retention, you will need harness APVSZ01 (sold separately).
