Aerpro G2000T Handheld Thermal Imaging Camera 32 x 32 Sensor 9Hz -10C to 1000C Measurement Range Thermal Fusion Overlay Four Colour Palettes 2.8 Inch LCD 1GB Internal Storage Micro SD Up to 128GB USB Type-C 4 x AA Batteries Not Included
The Aerpro G2000T is a handheld thermal imaging camera with a 32 x 32 pixel thermal sensor refreshing at 9Hz, a 2.8-inch colour LCD display, and a measurement range of -10C to 1000C. Thermal Fusion blends the thermal image with the 480P visible camera for accurate overlay of heat sources onto the real world view. Four colour palettes, adjustable emissivity from 0.01 to 1.0, 1GB internal storage, Micro SD expansion up to 128GB, and USB Type-C data transfer. Powered by 4 x AA alkaline batteries (not included). Suited to electrical fault finding, insulation checks, plumbing, automotive troubleshooting, and heating and cooling diagnostics.
Product overview
The G2000T turns temperature differences into a clear colour picture on a 2.8-inch LCD screen. The 32 x 32 thermal sensor refreshes at 9Hz, giving enough detail to locate heat sources quickly while scanning walls, switchboards, or engine bays in one pass. The 480P visible light camera pairs with the thermal image via Thermal Fusion, aligning hot and cold spots with the actual component or surface causing them. Fusion distance can be set to 15cm, 50cm, 1m, or 2m fixed positions, or aligned manually for distances in between.
Measurement runs from -10C to 1000C with an accuracy of plus or minus 3C or plus or minus 3% of reading, covering draughts and cold bridging at the low end through to exhaust, brake, and heating equipment temperatures at the high end. Emissivity is adjustable from 0.01 to 1.0 for reliable readings across shiny metal, painted surfaces, timber, glass, and masonry. A reference emissivity table is included in the manual.

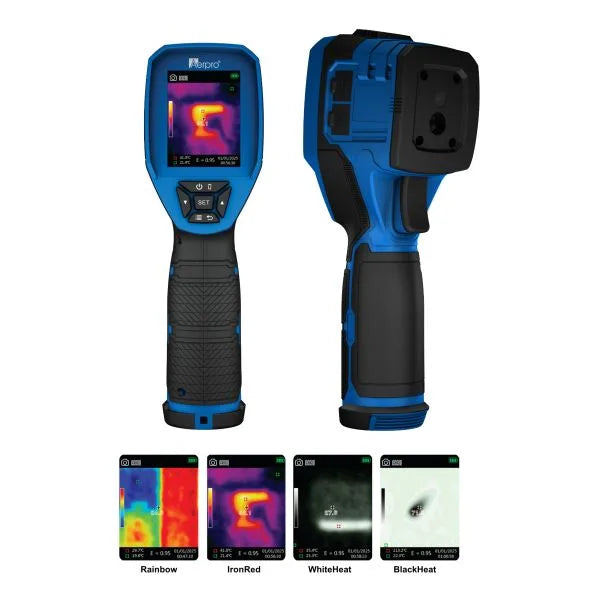

Four colour palettes are available: RainBow for general scanning, IronRed for high-contrast thermal viewing, WhiteHeat and BlackHeat for greyscale detail. High and low temperature alarms are configurable from the on-screen menu.
Photos are saved as 640 x 480 JPG and video as MP4 to 1GB of internal storage or a Micro SD card up to 128GB (FAT32, not included). Files transfer to a computer via the included USB Type-C cable. Power is provided by 4 x AA alkaline batteries (not included), so replacements are available anywhere and there is no waiting on a charge.
What's in the box
- 1 x G2000T handheld thermal camera
- 1 x USB Type-C cable (data transfer only)
- 1 x Lanyard
- 1 x Protective soft bag
- 1 x User manual
Features and benefits
32 x 32 thermal sensor at 9Hz: Locates heat sources quickly with a smooth enough refresh rate to scan in one pass.
-10C to 1000C measurement range: Covers cold bridging and electrical faults at the low end through to exhaust and heating equipment at the high end.
Thermal Fusion overlay: Blends the 480P visible camera image with the thermal image so heat sources align with the actual component.
Adjustable emissivity (0.01 to 1.0): Accurate readings across metal, paint, timber, glass, and masonry surfaces.
Four colour palettes: RainBow, IronRed, WhiteHeat, and BlackHeat, selectable from the menu.
High and low temperature alarms: On-screen flag when temperature thresholds are reached.
Photo and video recording: 640 x 480 JPG stills and MP4 video.
1GB internal storage plus Micro SD expansion up to 128GB (FAT32, not included).
USB Type-C data transfer: Move files to a computer directly.
Powered by 4 x AA alkaline batteries (not included): No charging wait, replacements available anywhere.
Technical specs
| Specification |
Detail |
| SKU |
G2000T |
| Brand |
Aerpro |
| Thermal Detector Resolution |
32 x 32 pixels |
| Refresh Rate |
9Hz |
| Thermal Sensitivity (NETD) |
254mK |
| Field of View |
33 x 33 degrees |
| Focus |
Fixed: 15cm, 50cm, 1m, 2m; user-defined fusion alignment |
| Temperature Range |
-10C to 1000C |
| Measurement Accuracy |
Plus or minus 3C or plus or minus 3% of reading (whichever is greater, tested at 25C) |
| Emissivity |
Adjustable, 0.01 to 1.0 |
| Temperature Units |
C / F |
| Temperature Markers |
Centre spot, highest spot, lowest spot, high and low alarm |
| Colour Palettes |
RainBow, IronRed, WhiteHeat, BlackHeat |
| Image Modes |
Thermal Fusion overlay with adjustable blend level |
| Visible Camera Resolution |
640 x 480 (480P) CMOS |
| Display |
2.8 inch colour LCD, 240 x 320 |
| Internal Storage |
1GB |
| Expandable Storage |
Micro SD up to 128GB, FAT32 (not included) |
| Photo / Video Resolution |
640 x 480 |
| Image / Video Format |
JPG / MP4 |
| Interface |
USB Type-C (data transfer only) |
| Power Supply |
4 x AA 1.5V alkaline batteries (not included) |
| Operating Temperature |
0C to 45C |
| Storage Temperature |
0C to 45C |
| Packaged Dimensions |
140mm W x 235mm H x 88mm D |
Frequently asked questions
What is Thermal Fusion and how does it work? Thermal Fusion overlays the thermal image onto the 480P visible camera image, aligning hot and cold spots with the actual component or surface causing them. Focus distance can be set to fixed positions of 15cm, 50cm, 1m, or 2m, or aligned manually for other distances.
What surfaces can the G2000T measure accurately? Adjustable emissivity from 0.01 to 1.0 allows accurate readings across a wide range of surfaces including shiny metal, painted surfaces, timber, glass, and masonry. A reference emissivity table is included in the manual.
Does the G2000T record video as well as photos? Yes. The G2000T records 640 x 480 JPG stills and MP4 video to internal storage or a Micro SD card. Files transfer to a computer via the included USB Type-C cable.
What batteries does the G2000T use? The G2000T is powered by 4 x AA 1.5V alkaline batteries, which are not included. Standard AA batteries are available anywhere, so there is no waiting on a proprietary charge.
What is the temperature measurement range of the G2000T? The G2000T measures from -10C to 1000C with an accuracy of plus or minus 3C or plus or minus 3% of reading, whichever is greater (tested at 25C ambient).
