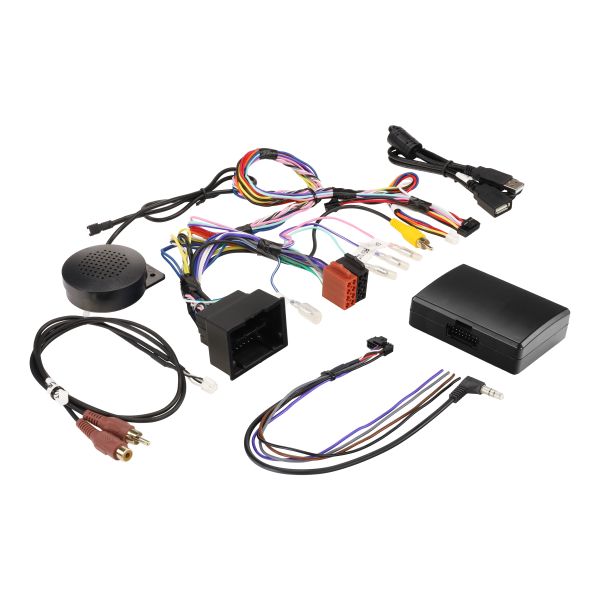

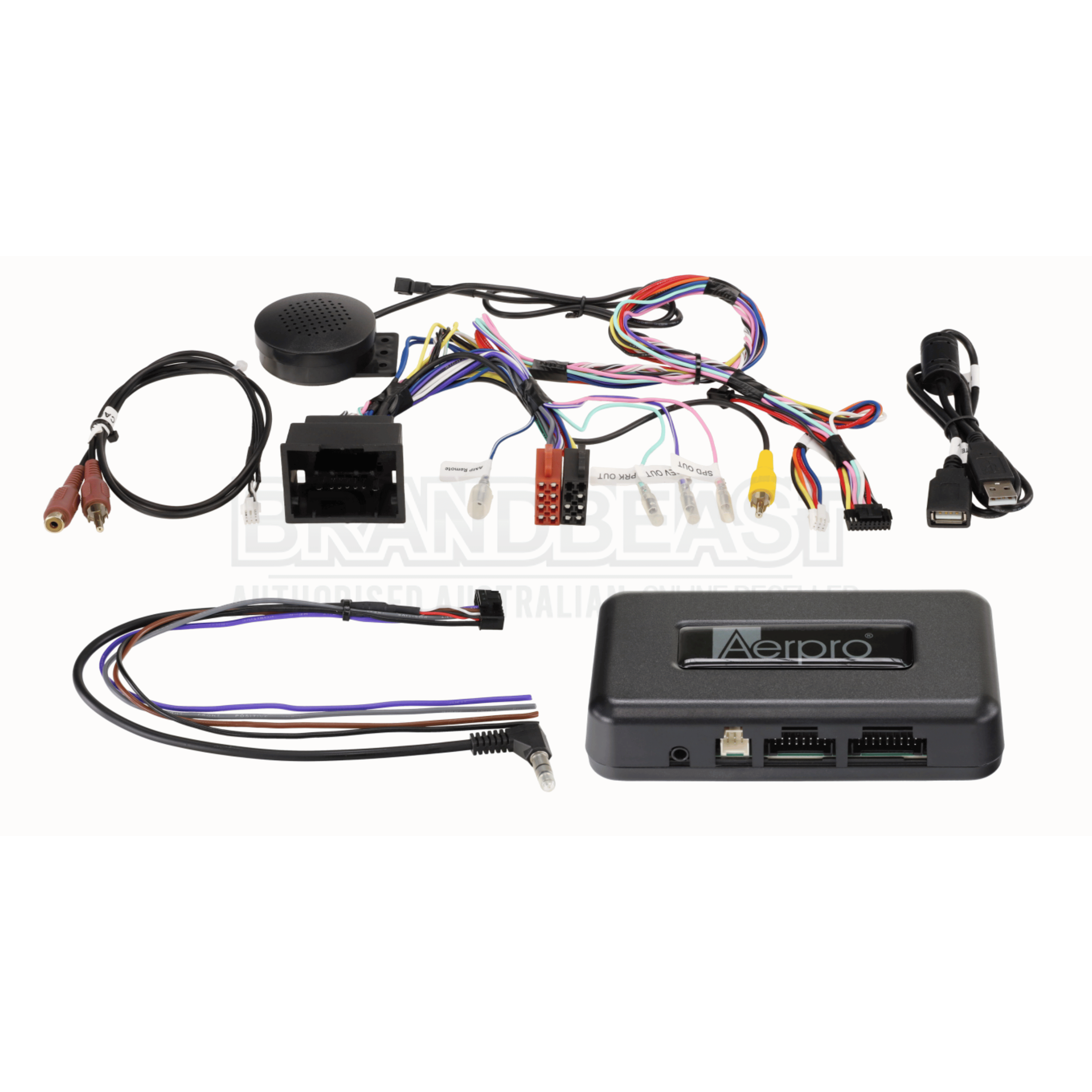

Aerpro SAGM01 Infolink Adapter Interface Holden
A CANBUS Infolink adapter interface for Holden vehicles, the SAGM01 retains factory steering wheel controls, provides on-screen access to climate control, parking sensors, and vehicle menus on the aftermarket head unit, supports factory reverse camera display (excluding Holden Cruze), and provides reverse trigger, park brake, speed pulse, illumination, and amp remote outputs.
Product Overview
The Aerpro SAGM01 is a CANBUS Infolink adapter interface designed for Holden vehicles. It goes beyond a standard steering wheel control interface by retaining factory SWC functions and providing on-screen access to vehicle information that would otherwise be lost when the factory radio is replaced. This includes climate control visualisation and adjustment, parking sensor monitoring, and access to key system menus directly from the aftermarket head unit display. Multi-language support covers English, German, Spanish, Italian, and French.
The SAGM01 is compatible with SW-type patch leads, supports the OEM phone button and Voice Assistant button, and provides reverse trigger (purple/white), park brake (green), speed pulse (pink), illumination, and amp remote outputs. Factory reverse camera display is supported (excluding Holden Cruze); the aftermarket head unit must have a rear camera input. Auto-detection of reverse camera input signal (PAL/NTSC) simplifies setup. Selectable dipswitches allow precise configuration for the specific vehicle and head unit combination. Software updates are supported for long-term compatibility. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase.
Features & Benefits
CANBUS Infolink Interface - Beyond Standard SWC Retention: The SAGM01 uses CANBUS integration to access and relay vehicle information beyond standard steering wheel control signals, enabling on-screen climate control visualisation, parking sensor display, and vehicle menu access on the aftermarket head unit display without requiring the factory radio.
On-Screen HVAC Visualisation and Climate Control Access: Climate control settings including temperature and fan speed can be viewed and adjusted via the aftermarket head unit display through the SAGM01, retaining the HVAC interface functionality that would otherwise be lost with the factory radio removed.
Parking Sensor Monitoring on Aftermarket Head Unit: Factory parking sensor information is displayed on the aftermarket head unit via the SAGM01, maintaining the on-screen parking sensor visualisation feature after the factory radio is replaced.
Vehicle Menu Access: Key system menus accessible through the factory radio are retained and accessible from the aftermarket head unit display through the SAGM01 interface.
Factory Reverse Camera Display - Excluding Holden Cruze: The SAGM01 supports factory reverse camera display when connected to a compatible aftermarket head unit with a rear camera input. OEM reverse camera retention does not apply to Holden Cruze models.
Auto-Detection of Reverse Camera Signal (PAL/NTSC): The SAGM01 automatically detects whether the factory reverse camera signal is PAL or NTSC, simplifying setup without requiring manual signal type selection.
Phone Button and Voice Assistant Support: The SAGM01 supports the OEM phone button and Voice Assistant button on the steering wheel when connected to a compatible aftermarket head unit.

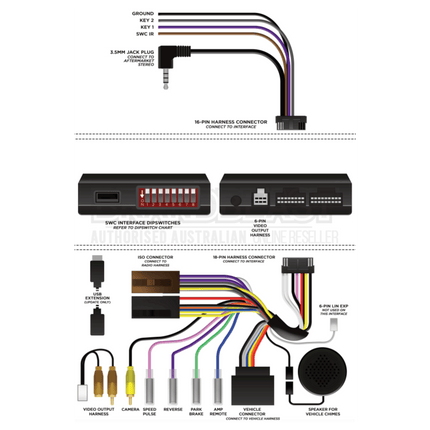

Selectable Dipswitch Configuration: Onboard dipswitches allow precise configuration of the SAGM01 for the specific Holden vehicle and aftermarket head unit combination, providing installation flexibility across the supported vehicle range.

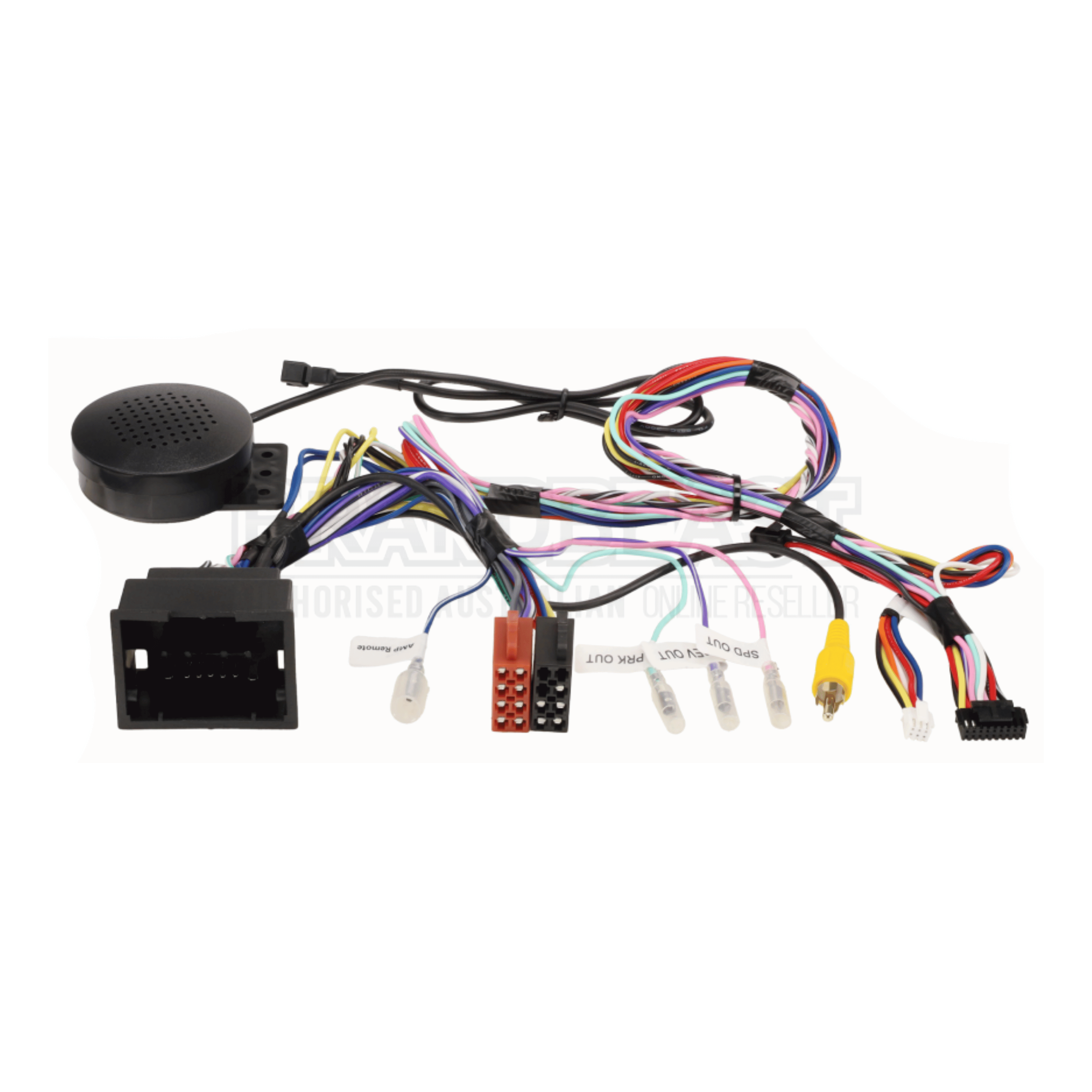

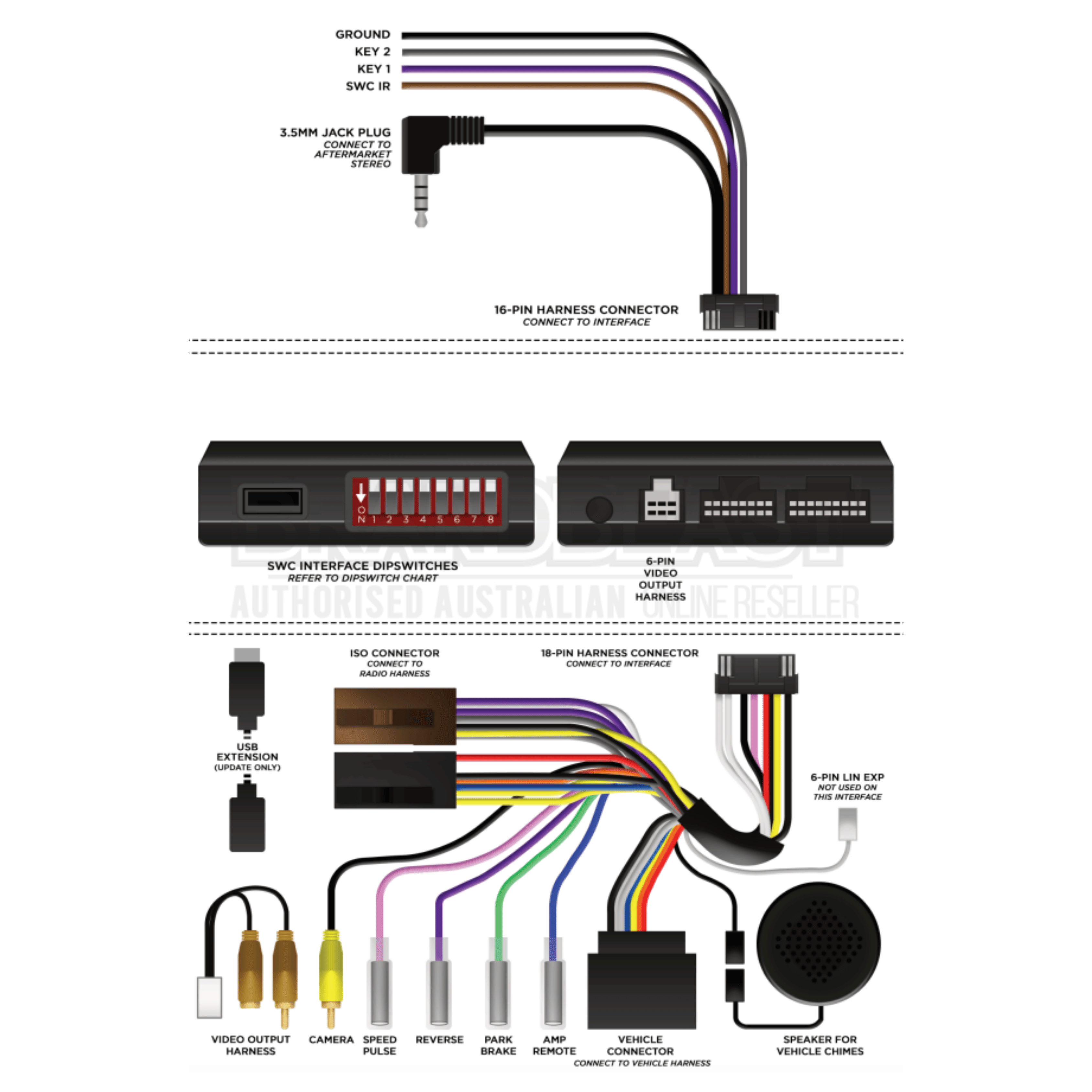

Reverse Trigger, Park Brake, Speed Pulse, Illumination, and Amp Remote Outputs: The SAGM01 provides a full suite of output signals including reverse trigger (purple/white), park brake (green), speed pulse (pink), illumination, and amp remote for complete aftermarket head unit and system integration.
Multi-Language Support: On-screen menus and vehicle information are displayed in English, German, Spanish, Italian, and French, with language selectable to suit the user preference.
Software Updateable: The SAGM01 supports software updates for long-term compatibility with new vehicle applications and head unit firmware revisions.
Technical Specs
| Specification |
Detail |
| SKU |
SAGM01 |
| Brand |
Aerpro |
| Compatible Vehicles |
Holden Various Models (excluding Holden Cruze for camera retention) |
| Interface Type |
CANBUS |
| Patch Lead Type |
SW |
| Phone Button Compatibility |
Yes |
| Voice Assistant Support |
Yes |
| OEM HVAC Visualisation |
Yes |
| Parking Sensor Display |
Yes |
| Vehicle Menu Access |
Yes |
| OEM Reverse Camera Retention |
Yes (excludes Holden Cruze; aftermarket head unit requires rear camera input) |
| Camera Signal Auto-Detection |
Yes (PAL/NTSC) |
| Reverse Trigger Output |
Yes (Purple/White) |
| Park Brake Output |
Yes (Green) |
| Speed Pulse Output |
Yes (Pink) |
| Illumination Output |
Yes |
| Amp Remote Output |
Yes |
| Telephone Mute Output |
No |
| OEM Amplifier Retention |
No |
| Configuration |
Selectable Dipswitches |
| Multi-Language Support |
English, German, Spanish, Italian, French |
| Software Updateable |
Yes |
Compatible With
The SAGM01 is designed for Holden vehicles. Factory reverse camera retention applies only to models originally fitted with a factory reverse camera, excluding Holden Cruze. The aftermarket head unit must have a rear camera input for reverse camera and Infolink visual output to function. The aftermarket head unit must be SWC compatible and steering wheel control functions may vary from OEM functions. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase.
Frequently Asked Questions
Does the SAGM01 retain the factory Holden climate control interface?
Yes. The SAGM01 provides on-screen climate control visualisation and adjustment on the aftermarket head unit display, retaining HVAC interface access after the factory radio is removed.
Does the SAGM01 retain the factory reverse camera on all Holden models?
The SAGM01 supports factory reverse camera display on compatible Holden models but does not retain the factory reverse camera on Holden Cruze. The aftermarket head unit must have a rear camera input for camera display to function.
What do the dipswitches on the SAGM01 do?
The selectable dipswitches allow precise configuration of the SAGM01 for the specific Holden vehicle and aftermarket head unit being installed. Different dipswitch settings enable compatibility across the range of supported Holden vehicles and head unit types within the supported range.
Is a SWC patch lead included with the SAGM01?
The source data does not specify whether a SWC patch lead is included. Confirm hardware inclusions with your supplier before purchase. Use the Aerpro Vehicle Selector to confirm the correct patch lead for your vehicle.
Does the SAGM01 support software updates?
Yes. The SAGM01 supports software updates, allowing the interface to remain compatible with new vehicle applications and aftermarket head unit firmware revisions over time.
