Description
Designed to Connect Directly Into the Existing Wiring in the Vehicle With Ease!
Steering Wheel Control Interface (SWC)

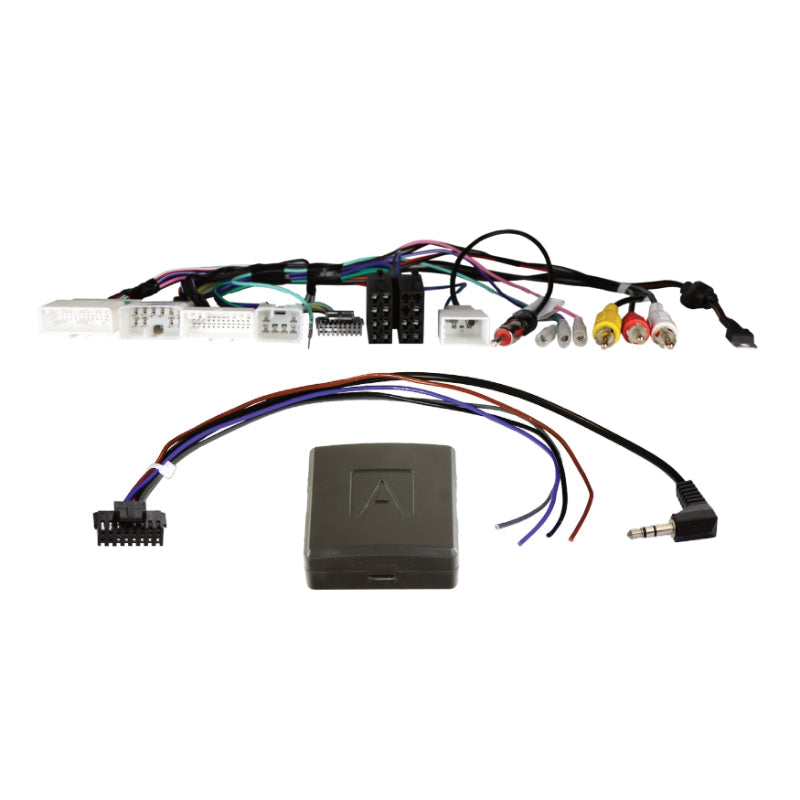

The Aerpro SWTO15C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit various Toyota vehicles with 28 pin connector, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.
This interface also includes an antenna adaptor, reverse camera retention adaptor and USB retention lead. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP8 Headunit Secondary ISO Harness, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface retains the Factory Antenna, AUX Input and Reverse Camera when connected to compatible aftermarket headunits. It also provides outputs for Reverse Trigger, Park Brake and Speed Pulse.
Please Note:
- Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
Aftermarket headunit must be SWC compatible and Steering Wheel Control
- Functions may vary from the OEM Functions.
- Retains USB and AUX if originally fitted in the vehicle, aftermarket headunit requires rear USB and AUX (RCA) inputs.
- Retains factory reverse camera if originally fitted to the vehicle, aftermarket headunit requires RCA reverse camera input (includes 24,16 and 4 pin adapters).
- Compatible with listed vehicles that have 28 pin connector.
- Not compatible with factory premium, OEM amplified or factory upgraded systems.
Features:
- Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls.
- Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road.
- Supports OEM Phone Button when connected to compatible aftermarket bluetooth headunits.
- Retains AUX if originally fitted in the vehicle, aftermarket headunit requires rear AUX (RCA) inputs.
- Retains factory reverse camera if originally fitted to the vehicle, aftermarket headunit requires RCA reverse camera input (includes 24,16 and 4 pin adapters).
- Includes an antenna adapter that converts the vehicle antenna plug into a universal din plug suitable for aftermarket radios.
- Provides output feed for reverse trigger, park brake and speed pulse.
- Fitted with a vehicle specific plug, no cutting of wires required.
- Recommended to be installed with an Aerpro APP8 Headunit Secondary ISO Harness (Sold Separately).
-
Custom button remapping available, requires USB-C cable (sold separately) click here for remapping instructions.
Specifications:
- Interface Type: Analogue
- Patch Lead Type: SW
- Phone Button Compatibility: Yes
- Voice Assistant Button Support: No
- Outputs:
- Reverse Trigger: Yes (Purple/White)
- Park Brake: Yes (Green)
- Speed Pulse: Yes (Pink)
- Illumination: No
- Amp Remote: No
- Telephone Mute: No
- Other Retention:
- OEM Amplifier: No
- OEM Reverse Camera: Yes
- OEM AUX Input: Yes
- OEM USB Input: No
- OEM Antenna: Yes
Vehicle Compatibility:
- Toyota Camry (2012 – 2018)
- Toyota Aurion (2012 – 2017)
- Toyota Corolla Hatch & Sedan (2012 – 2019)
- Toyota Hilux (2012 – 2020)
- Toyota Kluger (2014 – 2019)
- Toyota RAV4 (2013 – 2018)
- Toyota Tundra (2012 – )
- Toyota LandCruiser 200 Series (2012 – 2021)
- Toyota Prius C (2012 – )
- Toyota HiAce (2012 – 2019)
- Toyota Prado 150 Series (2014 – 2017)
- Toyota Fortuner (2015 – 2020)
- Toyota 86 (2016 – )
- Toyota C-HR (2016 – 2019)
- Toyota Yaris (2012 – 2019)
- Toyota Prius V (2012 – 2019)
