Description

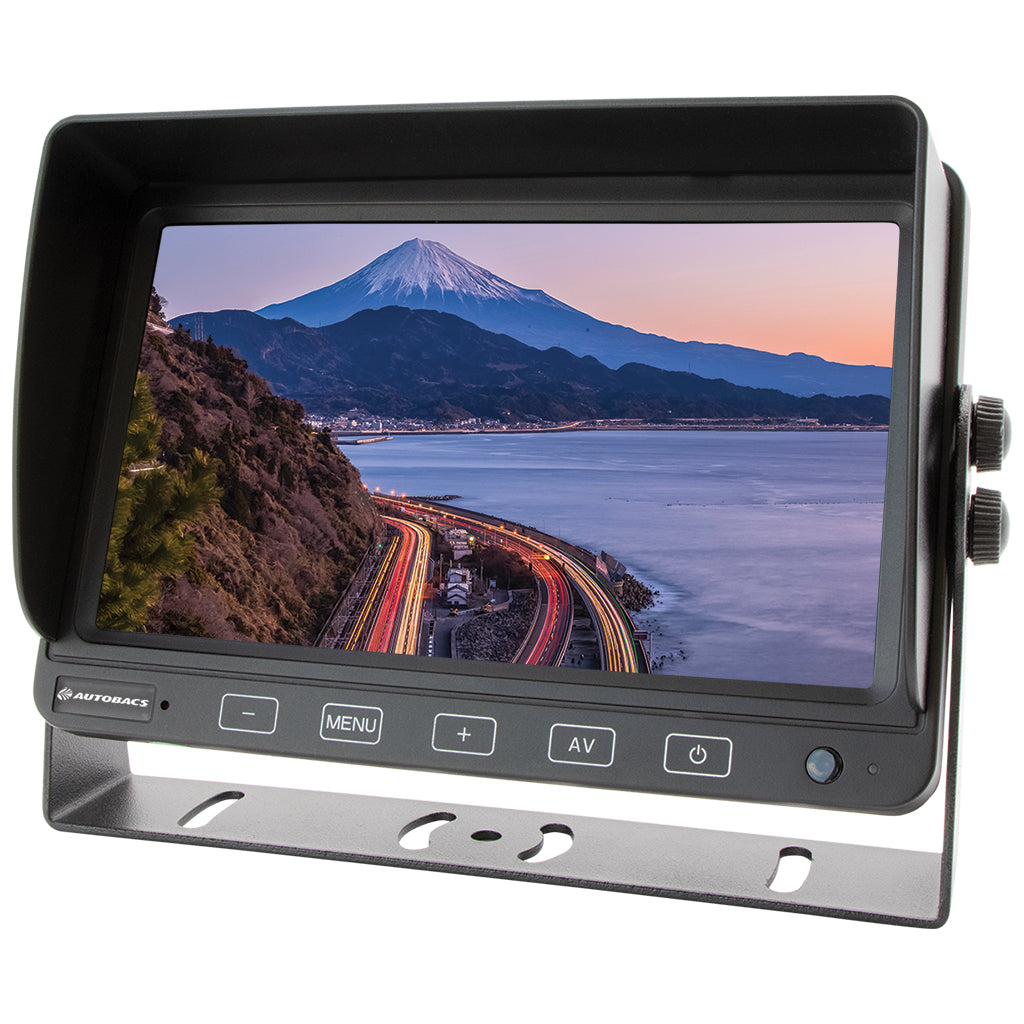

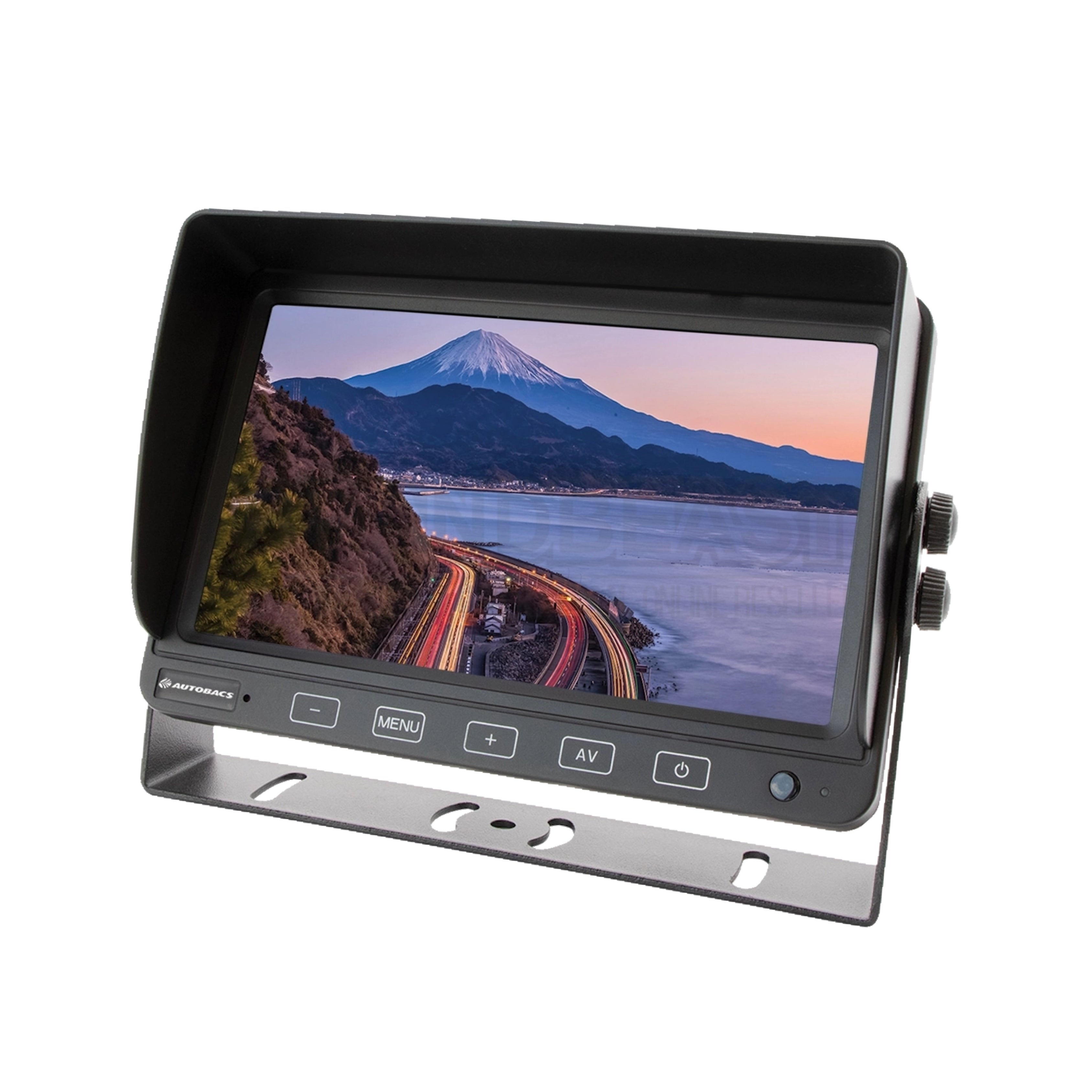

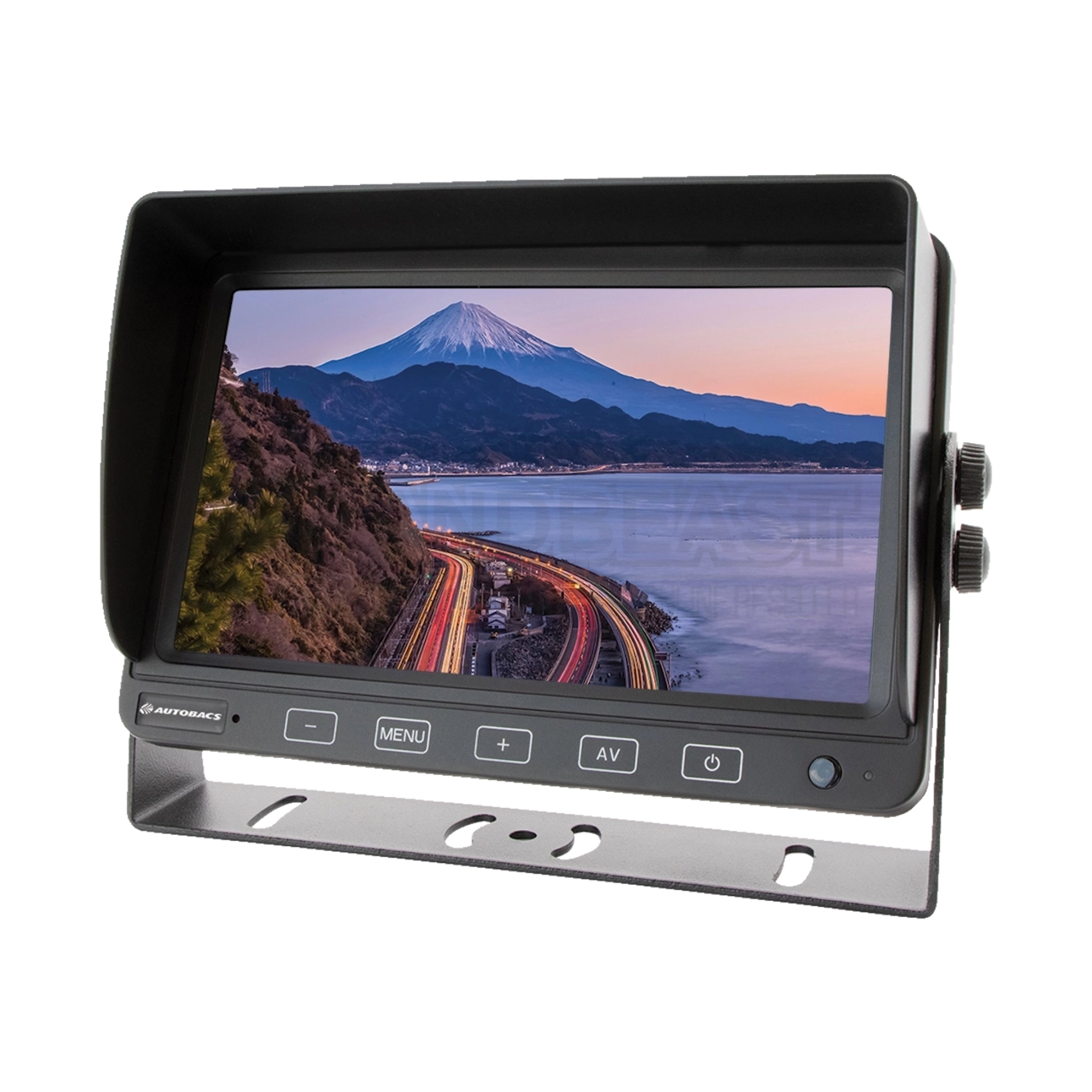

AUTOBACS HD7130 - 7 Inch High Res Monitor
High-resolution 7-inch monitor featuring 1024 x 600 resolution, Grade A TFT LCD panel, 3 camera inputs, 10-32V DC power compatibility, touch-sensitive controls, and heavy-duty construction for trucks, machinery, and vehicles.
Product Overview
The AUTOBACS HD7130 is a high-resolution 12/24V monitor offering clear image quality and enhanced view when reversing. Its heavy-duty construction makes it suitable for trucks, machinery, and vehicles. The HD7130 provides the added flexibility of connecting up to 3 cameras for comprehensive vehicle monitoring coverage. This professional-grade monitor features a new Grade A TFT LCD panel with 178mm diagonal 7-inch screen size displaying 1024 x 600 resolution in 16:9 format with less than 500 CD/M2 brightness for crisp visibility. The 70° viewing angles in all directions ensure clear visibility from various operator positions. The monitor automatically selects PAL/NTSC video systems and connects through 3 x 4-pin male universal standard configuration for compatibility with standard and high-resolution cameras. Touch-sensitive button controls provide intuitive operation without mechanical button wear. Advanced features include 3 camera triggers for automatic switching, selectable normal/mirror/flip/mirror-flip image orientation, selectable guidelines on camera 2 input, and audio support on camera 3 input. The comprehensive main menu provides adjustment for brightness, contrast, colour, photosensitive dimmer, language selection, default settings, volume control, screen orientation, VCOM exposure adjustment, ruler guideline settings, and AccTime configuration. Operating across -20°C to +70°C temperature range with 10-32V DC power input supporting both 12V and 24V systems through negative ground configuration, the monitor measures 176mm width x 122mm height x 28mm depth excluding bracket and visor. The package includes U-bracket mounting hardware and sunshade visor for glare reduction.
Key Features
High-Resolution Grade A Display - Premium new Grade A TFT LCD panel delivering 1024 x 600 resolution on 178mm diagonal 7-inch screen in 16:9 format with less than 500 CD/M2 brightness, providing crisp clear image quality and enhanced view for reversing and vehicle monitoring applications with 70° viewing angles in all directions for visibility from various operator positions.
3 Camera Input Flexibility - Versatile 3 camera input capability with individual camera triggers enabling comprehensive vehicle monitoring coverage including rear reversing camera, side blind spot camera, and front approach camera connections, providing complete perimeter visibility for trucks, machinery, and commercial vehicles through automatic camera switching based on operational requirements.
12V/24V Power Compatibility - Universal 10-32V DC power input supporting both 12V systems common in cars and light commercial vehicles, and 24V systems typical in trucks and heavy machinery, eliminating the need for voltage converters or specific monitor variants, simplifying installation across diverse vehicle fleets with varying electrical system specifications.
Touch-Sensitive Controls - Intuitive touch-sensitive button interface providing easy operation without mechanical button wear typical of traditional push-button designs, delivering responsive control access to comprehensive main menu settings including brightness, contrast, colour, photosensitive dimmer, language, screen orientation, guidelines, volume, and exposure adjustments.
Heavy-Duty Construction - Robust design engineered for demanding truck, machinery, and commercial vehicle applications, operating across -20°C to +70°C temperature range for reliable performance in extreme Australian climates, with compact 176mm x 122mm x 28mm dimensions excluding bracket providing flexible mounting options in various vehicle cabin configurations.
Comprehensive Camera Features - Advanced functionality including automatic PAL/NTSC video system selection, selectable normal/mirror/flip/mirror-flip image orientation for various camera mounting positions, selectable on/off guidelines on camera 2 input for reversing alignment assistance, and audio support on camera 3 input for complete audio-visual monitoring capabilities.
Technical Specifications
Display
- TFT Panel: New Grade A LCD
- LCD Size: 178mm (7-inch) Diagonal
- Display Format: 16:9
- Resolution: 1024 x 600
- Brightness: <500 CD/M2
- Viewing Angles: 70° Left/Right/Up/Down
Video System
- Video System: Auto PAL/NTSC Select
- Video Connect: 3 x 4-Pin (Male)
- Compatibility: Standard and High Resolution Cameras
- Connection Type: Universal Standard 4-Pin Configuration (Male)
- Camera Triggers: 3
Display Options
- Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
- Guidelines: Selectable On/Off (Camera 2 Input Only)
- Audio: Camera 3 Input Only
Controls
Main Menu Features
- Brightness: Adjustable
- Contrast: Adjustable
- Colour: Adjustable
- Photosensitive: Dimmer function
- Language: Selectable
- Default Setting: Yes
- Volume: Adjustable
- Screen Orientation: Adjustable
- VCOM: Exposure adjustment
- Ruler Setting: Guidelines adjustment
- AccTime: Configurable
- Version: Display
Environmental Specifications
- Operating Temperature: -20°C to +70°C
Electrical Specifications
- Power Input: 10-32V DC (Negative Ground)
Physical Specifications
- Dimensions: 176mm (W) x 122mm (H) x 28mm (D)
- Note: Dimensions exclude bracket and visor
Included Accessories
- U-Bracket: Yes
- Sunshade: Yes
Frequently Asked Questions
Can I connect different types of cameras to the 3 inputs?
Yes, the HD7130's 3 camera inputs support both standard and high-resolution cameras with automatic PAL/NTSC selection. You can connect a rear reversing camera on input 1, side blind spot camera on input 2 (with guidelines), and front approach camera on input 3 (with audio), providing comprehensive perimeter monitoring. The monitor automatically switches between cameras based on the 3 camera triggers.
How does the 12V/24V compatibility work in practice?
The HD7130 features 10-32V DC power input with negative ground configuration, automatically adapting to your vehicle's electrical system voltage. Simply connect to your vehicle's power supply - whether 12V in light commercial vehicles or 24V in trucks and heavy machinery - without requiring voltage converters, step-down transformers, or voltage-specific monitor models.
What are the guidelines on camera 2 input used for?
The selectable on/off guidelines available on camera 2 input provide visual alignment assistance typically used for reversing operations, showing distance markers and trajectory lines overlaid on the camera image. These guidelines help operators judge distances to obstacles, align with loading docks, or position trailers accurately during coupling operations.
Why does only camera 3 input support audio?
Camera 3 input's audio support enables audio monitoring alongside visual observation, typically used for front-facing cameras monitoring loading operations, ground personnel communications, or equipment sounds. The volume-adjustable audio combined with camera 3's visual monitoring provides complete situational awareness for specific applications where audio context enhances safety or operational efficiency.
What is the photosensitive dimmer function?
The photosensitive dimmer automatically adjusts screen brightness based on ambient lighting conditions, reducing screen brightness during night-time operation to prevent driver distraction and glare, while increasing brightness during daytime operation for optimal visibility in bright sunlight. This automatic adjustment maintains optimal viewing comfort without manual brightness changes throughout the day.
