Description

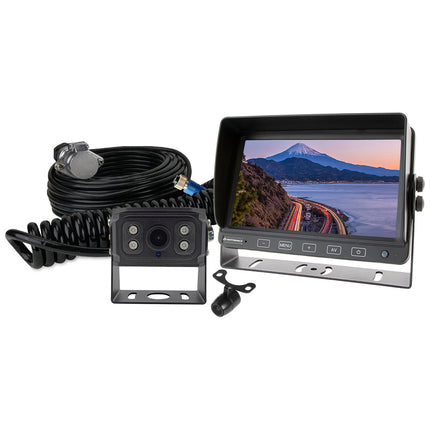

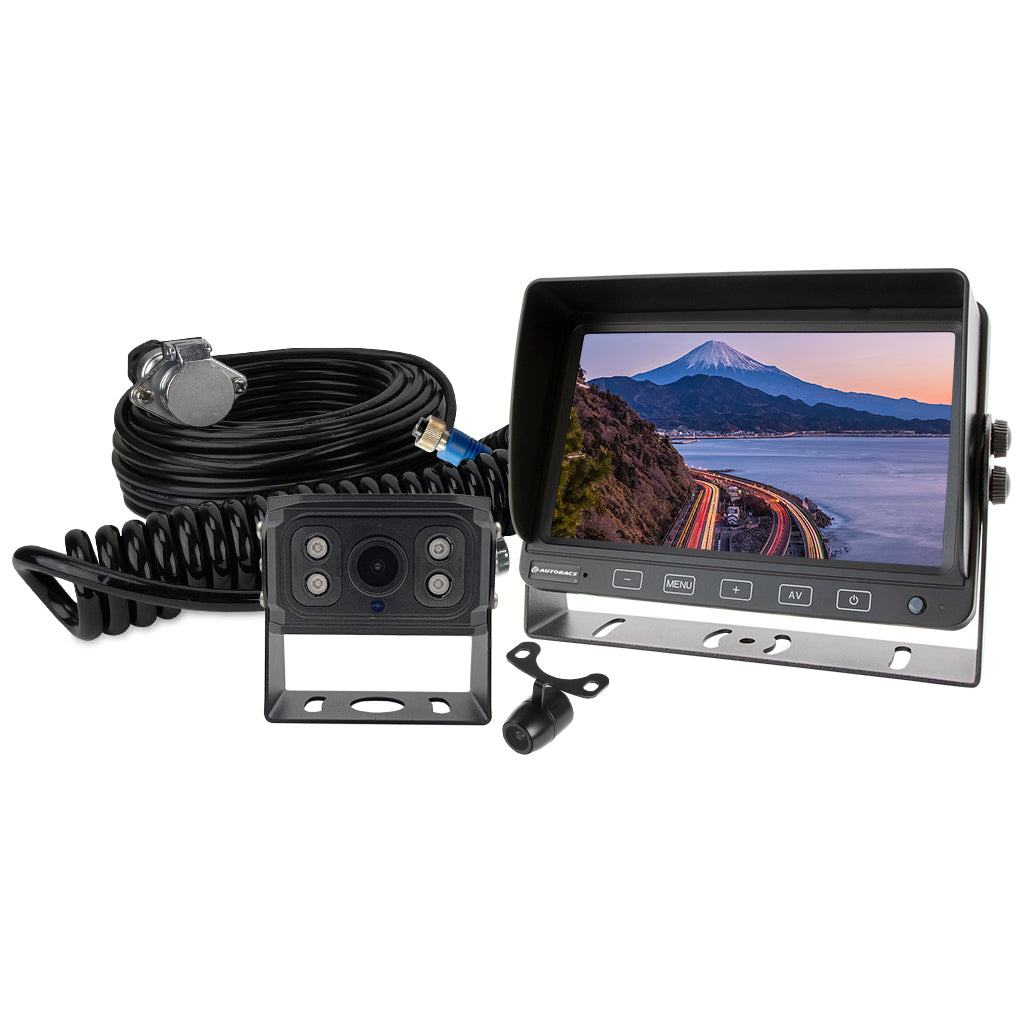

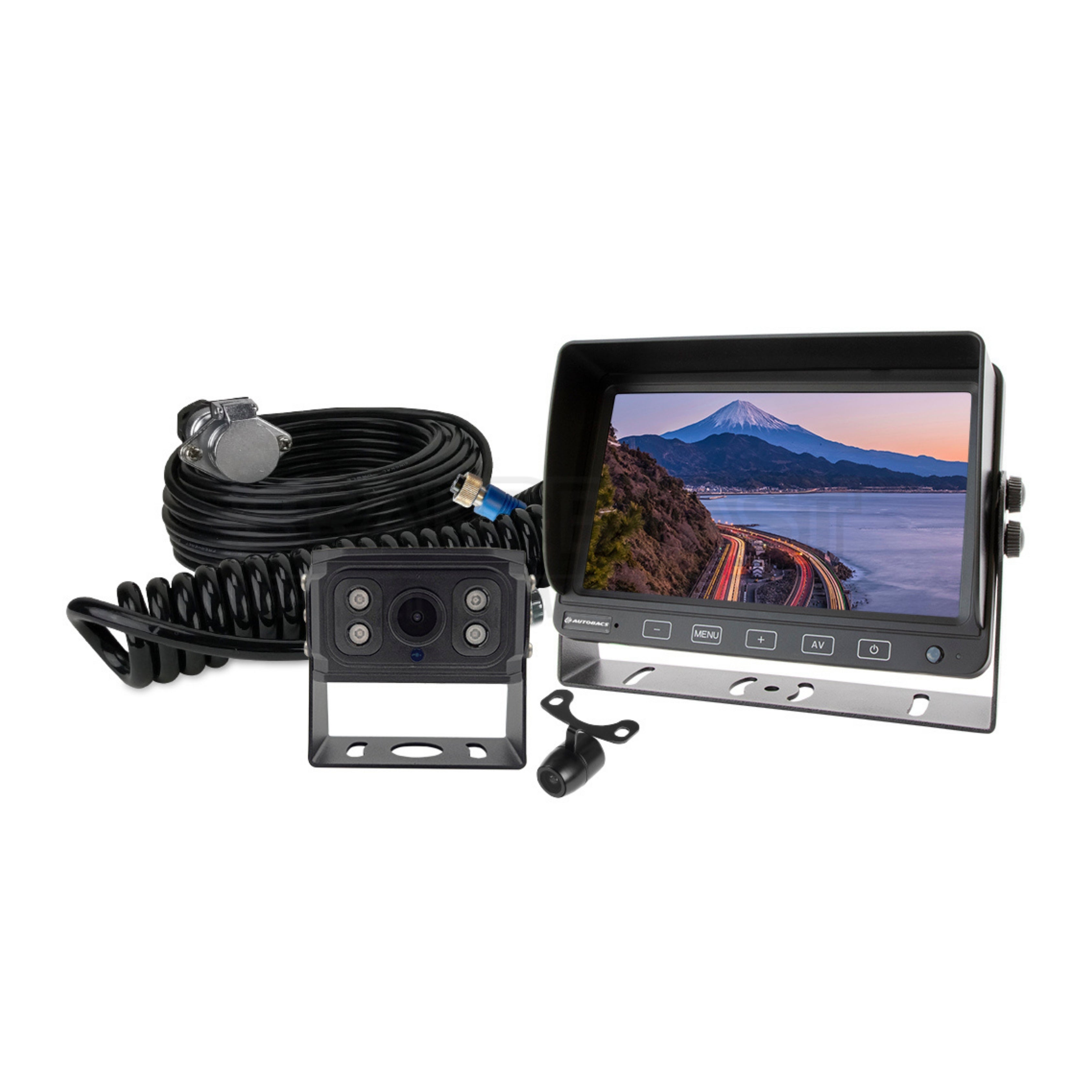

AUTOBACS HD7130CK - 7 Inch 2 Camera Caravan Kit
Advanced caravan camera kit featuring 7-inch high-resolution monitor, 720p heavy-duty camera, 480p dual mount camera, trailer quick connect system with curly cable, and complete installation hardware for hassle-free caravan and trailer setup.
Product Overview
The AUTOBACS HD7130CK is an advanced caravan camera kit offering high-resolution rear-view capabilities through a hassle-free system including all necessary components to seamlessly install a dependable camera and monitor setup for caravans and trailers. This comprehensive kit enables confident navigation with clear view of surroundings while reversing, providing peace of mind on the road ahead. The system includes a 7-inch Grade A TFT LCD monitor with 1024 x 600 resolution, Camera 1 heavy-duty 720p camera featuring IMX225LQR-C sensor with 140° diagonal viewing angle and IP69K rating, Camera 2 dual mount 480p camera with 165° ultra-wide viewing angle and 9-32V power compatibility, and trailer quick connect system with curly cable extending from 0.5m to 4.0m. The monitor features touch-sensitive controls, 3 camera inputs with individual triggers, auto PAL/NTSC selection, and 10-32V DC power supporting both 12V and 24V systems. Camera 1 delivers 1280 x 720 effective pixels with 18 infrared LEDs providing 0.001 Lux illumination, integrated microphone, and IP69K waterproof protection. Camera 2 provides 640 x 480 resolution with ultra-wide 165° diagonal coverage, selectable mirror/non-mirror orientation, and compact 16.5mm dimensions. The trailer quick connect system includes 5-pin metal plug with weather cover, metal mounting brackets, 10m monitor-side cable, 15m camera-side cable, and curly interconnect cable. Complete installation hardware includes U-bracket for monitor mounting and glass mount bracket for flexible installation options.
Key Features
Complete Caravan Camera System - Comprehensive hassle-free kit including 7-inch high-resolution monitor, two cameras with different viewing angles and capabilities, trailer quick connect system, and all necessary cables and mounting hardware for seamless installation, eliminating the need to source individual components or verify compatibility for complete caravan reversing solution.
7-Inch Grade A Monitor - Premium new Grade A TFT LCD panel delivering 1024 x 600 resolution on 7-inch diagonal screen in 16:9 format with less than 500 CD/M2 brightness, touch-sensitive controls, 70° viewing angles in all directions, selectable guidelines on camera 2 input, and 10-32V DC power compatibility supporting both 12V caravans and 24V applications.
Camera 1: 720p Heavy-Duty Performance - Professional IMX225LQR-C 1/3" sensor delivering 1280 x 720 effective pixels with 720p resolution, 140° diagonal viewing angle with 120° horizontal coverage, 18 infrared LEDs providing 0.001 Lux illumination, IP69K waterproof protection, integrated microphone for audio monitoring, and robust 98.3mm x 67.7mm x 68mm dimensions including bracket.
Camera 2: Ultra-Wide Dual Mount - Compact dual mount camera featuring ultra-wide 165° diagonal viewing angle with 120° horizontal coverage for expansive peripheral visibility, 640 x 480 resolution with 480p performance, selectable mirror/non-mirror orientation for various mounting positions, 9-32V DC power compatibility, IP67 protection, and ultra-compact 16.5mm x 16.5mm x 23mm dimensions.
Trailer Quick Connect System - Professional quick disconnect system featuring curly cable extending from 0.5m to 4.0m for vehicle-to-trailer connection, 5-pin male metal plug with weather cover for protection against elements, metal mounting brackets for secure installation, 10m terminated cable from trailer plug to monitor, and 15m terminated cable from camera to trailer plug for comprehensive coverage.
Comprehensive Installation Package - Complete mounting and cabling solution including U-bracket for monitor installation, glass mount bracket for windscreen or window mounting, all terminated cables with universal standard 4-pin configuration, and metal plug mounting brackets ensuring professional installation without requiring additional components or specialized tools.
Technical Specifications

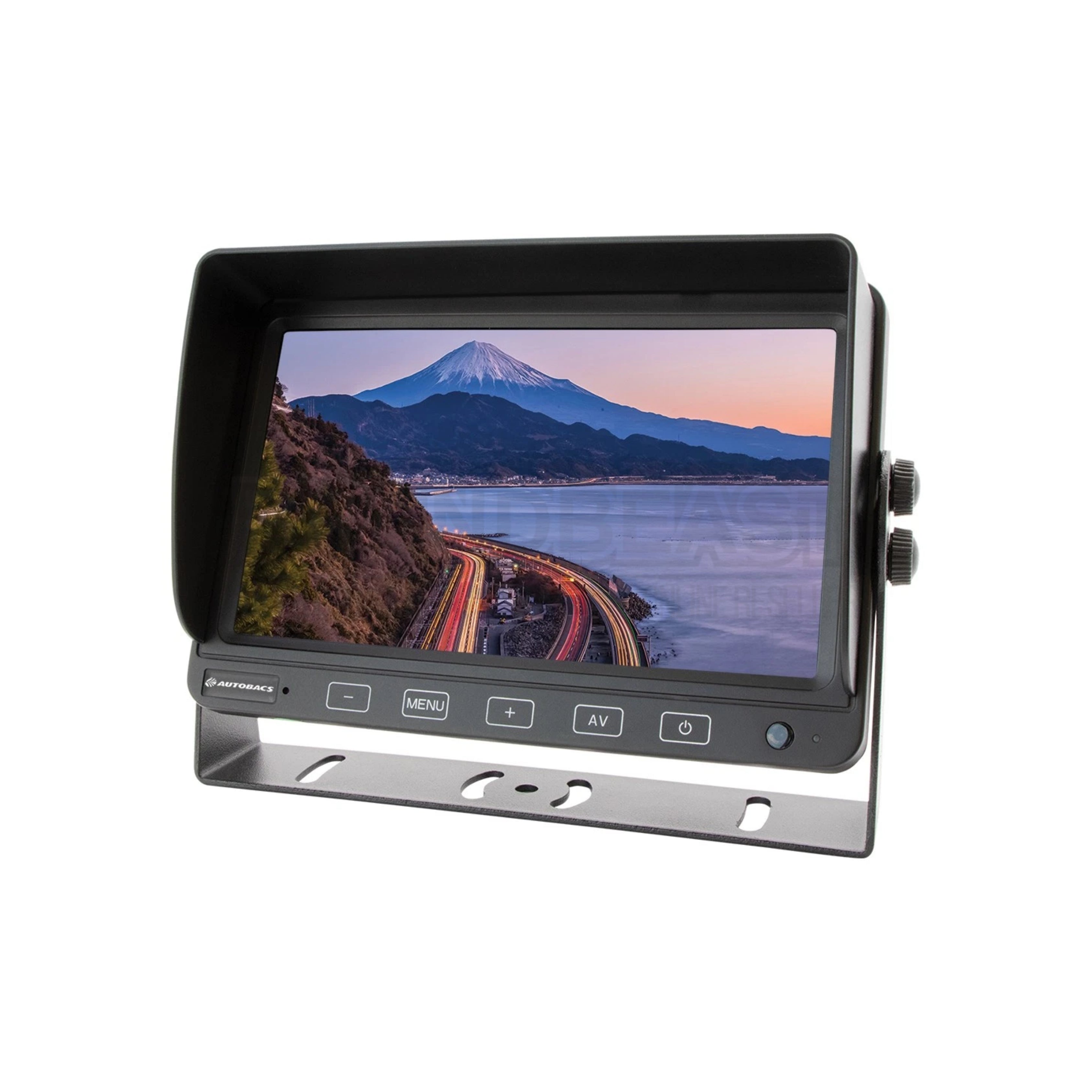

Monitor Specifications
- TFT Panel: New Grade A LCD
- LCD Size: 7-Inch (Diagonal)
- Display Format: 16:9
- Resolution: 1024 x 600
- Brightness: <500 CD/M2
- Viewing Angles: 70° Left/Right/Up/Down
- Video System: Auto PAL/NTSC Select
- Video Connect: 3 x 4-Pin (Male)
- Compatibility: Standard & High Resolution Cameras
- Connection Type: Universal Standard 4-Pin Configuration (Male)
- Buttons: Touch Sensitive
- Camera Triggers: 3
- Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
- Guidelines: Selectable On/Off (Camera 2 Input Only)
- Audio: Camera 3 Input Only
- Main Menu: Brightness/Contrast/Colour/Photosensitive (Dimmer), Language, Default Setting, Volume, RLUD, (Screen Orientation), VCOM (Exposure), Ruler Setting (Guidelines), AccTime, Version
- Operating Temperature: -20°C to +70°C
- Power Input: 10-32V DC (Negative Ground)
- Dimensions: 176mm (W) x 122mm (H) x 28mm (D) excluding bracket and visor

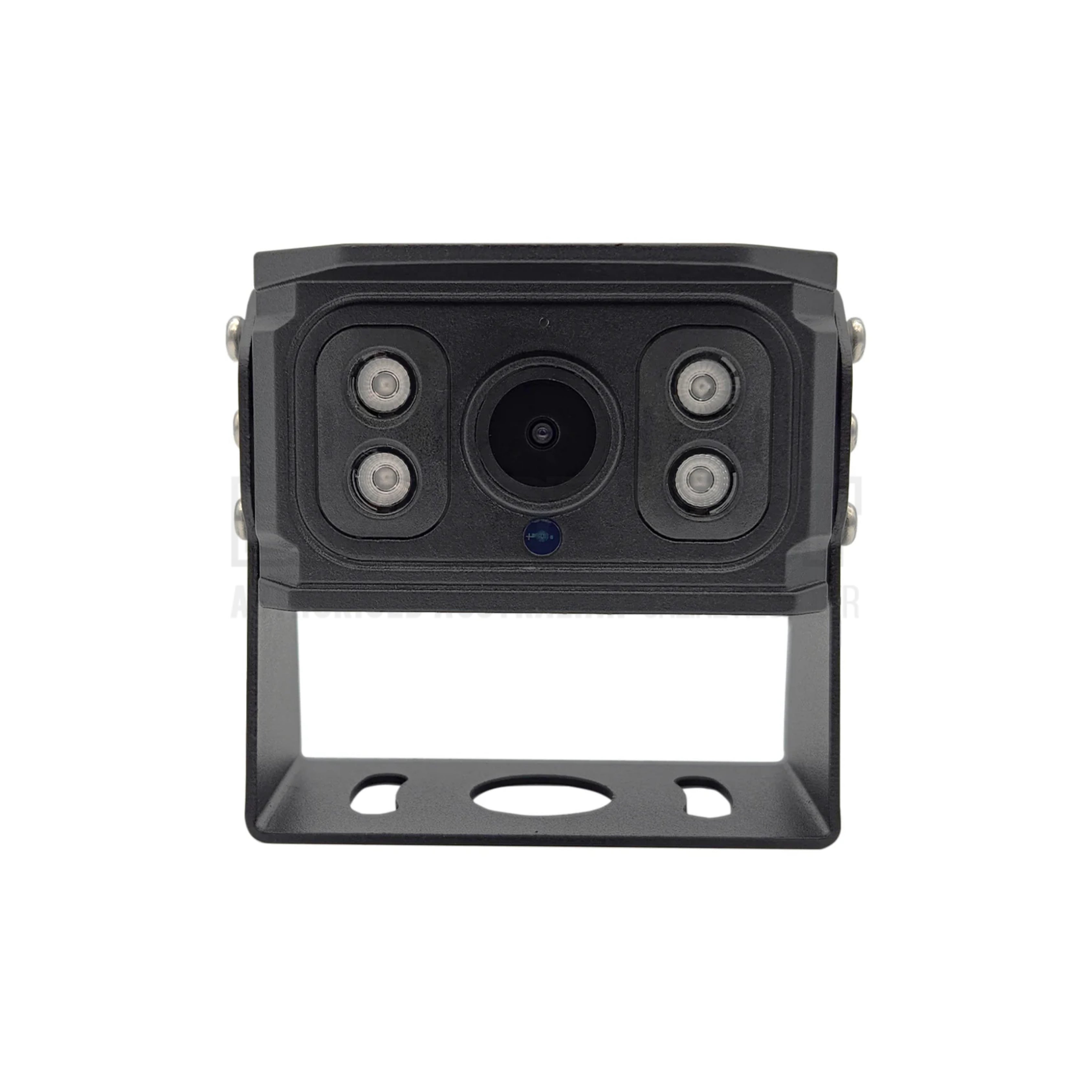

Camera 1: 12V Heavy Duty Camera
- Image Device: 1/3" IMX225LQR-C
- Diagonal Viewing Angle: 140°
- Horizontal Viewing Angle: 120°
- Signal System: PAL
- Effective Pixels: 1280 (H) x 720 (V)
- Resolution: 720p
- Orientation: Mirror Image
- Night Vision: 18 Infrared LEDs
- Illumination: 0.001 Lux with IR on
- Ingress Protection: IP69K
- Integrated Microphone: Yes
- Operating Temperature: -20°C to 70°C
- Power Consumption: 3W, 250mA
- Dimensions: 98.3mm (W) x 67.7mm (H) x 68mm (D) including bracket
- Connection Type: Universal Standard 4-Pin Female
- Power Supply: 12V DC

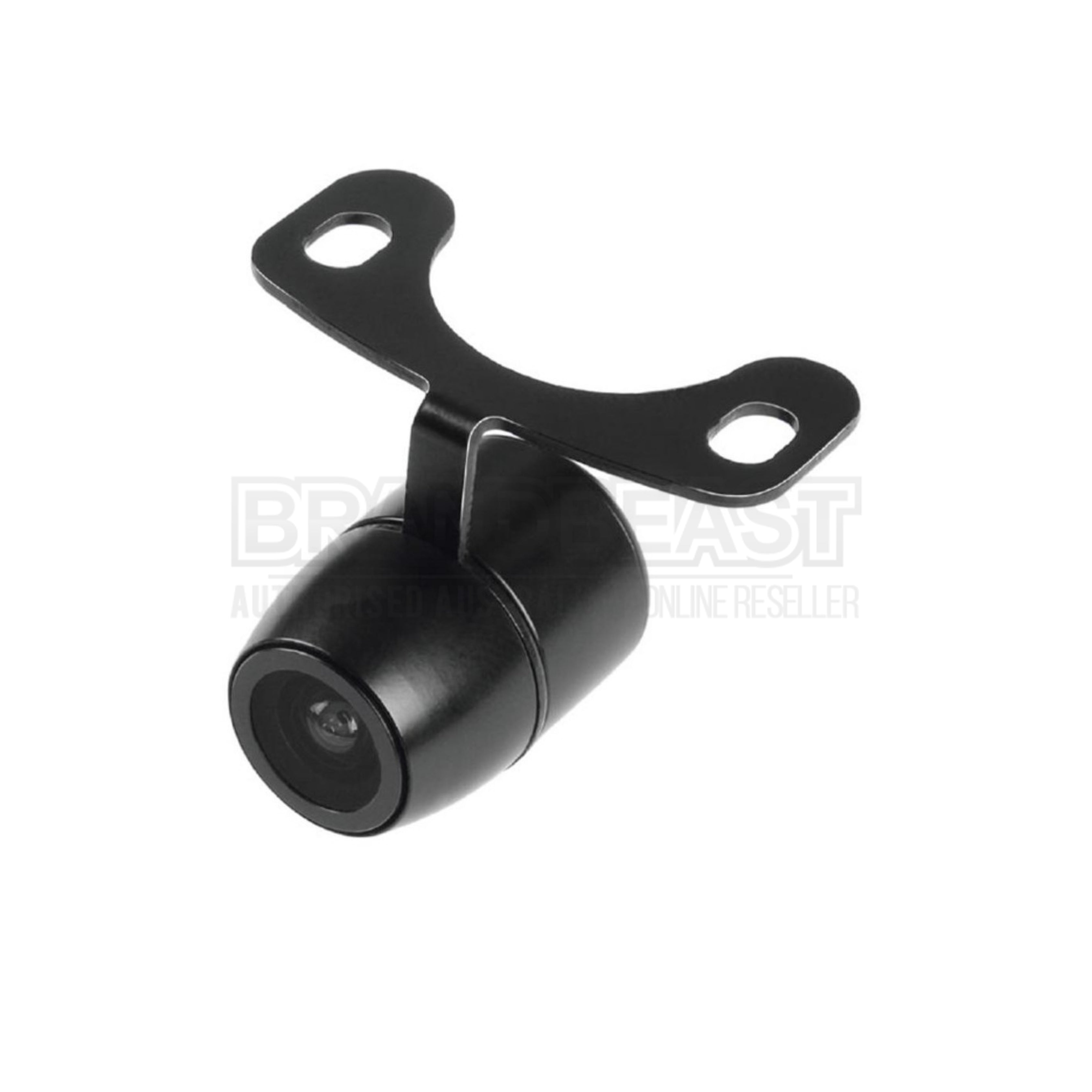

Camera 2: 12/24V Dual Mount Camera
- Image Device: 1/3" CMOS
- Diagonal Viewing Angle: 165°
- Horizontal Viewing Angle: 120°
- Signal System: PAL
- Effective Pixels: 640 x 480
- Resolution: 480p
- Orientation: Selectable Mirror/Non Mirror
- Night Vision: 0.2 Lux
- Illumination: 0.001 Lux with IR on
- Ingress Protection: IP67
- Integrated Microphone: No
- Operating Temperature: -20°C to 70°C
- Power Consumption: 90-300mA
- Dimensions: 16.5mm (W) x 16.5mm (H) x 23mm (D) excluding bracket
- Connection Type: Mini 4 Pin Terminated RCA (Male)
- Lead: 6m
- Power Supply: 9-32V DC
Trailer Quick Connect
- Curly Cable Length: 0.5m (Original State), 4.0m (Elongated)
- Mounting Plate: 5-Pin (Male) Metal Plug with Weather Cover
- Brackets: 2 x Metal Plug Mounting Brackets
- Cable (Monitor Side): 10m Terminated to 4-Pin (Trailer Plug to Monitor)
- Cable (Camera Side): 15m Terminated to 4-Pin (Camera to Trailer Plug)
Included Accessories
- U-Bracket
- Glass Mount Bracket
Frequently Asked Questions
Why does this kit include two different cameras?
Camera 1 is a premium 720p heavy-duty camera with IP69K rating, 18 infrared LEDs, and integrated microphone, ideal for primary rear-view mounting on caravans requiring maximum image quality and weatherproofing. Camera 2 is an ultra-compact 480p camera with ultra-wide 165° viewing angle and 9-32V compatibility, perfect for side-view or secondary mounting positions where space is limited and broader peripheral coverage is required.
How does the trailer quick connect system work?
The quick connect system uses a 5-pin metal plug with weather cover that mounts on your vehicle's tow bar area. The curly cable connects vehicle to trailer, extending from 0.5m to 4.0m when towing. Simply disconnect the plug when unhitching your caravan, eliminating permanent cable routing. The 10m monitor-side cable connects plug to cab, while the 15m camera-side cable connects cameras to plug.
Can Camera 2 be used on both 12V and 24V systems?
Yes, Camera 2 features 9-32V DC power supply compatibility, supporting both 12V caravan electrical systems and 24V commercial vehicle applications. This flexibility enables use across various towing vehicles without requiring voltage-specific camera variants, while the monitor's 10-32V compatibility ensures the entire system works across different voltage platforms.
What is the advantage of the selectable mirror/non-mirror orientation on Camera 2?
Selectable mirror/non-mirror orientation on Camera 2 allows correct image orientation regardless of camera mounting position. Mount the camera on either side of your caravan or in various positions, then select the appropriate orientation setting to ensure the displayed image appears correctly oriented rather than reversed, providing natural left-right directional reference for the driver.
Why does Camera 1 have IP69K while Camera 2 has IP67 protection?
Camera 1's IP69K rating provides maximum protection against high-pressure washing and steam cleaning, ideal for rear-mounting positions that experience direct water spray from road conditions and caravan washing. Camera 2's IP67 rating protects against dust and water immersion, suitable for side-mounting positions with less exposure to direct high-pressure water while maintaining weather resistance for Australian conditions.
