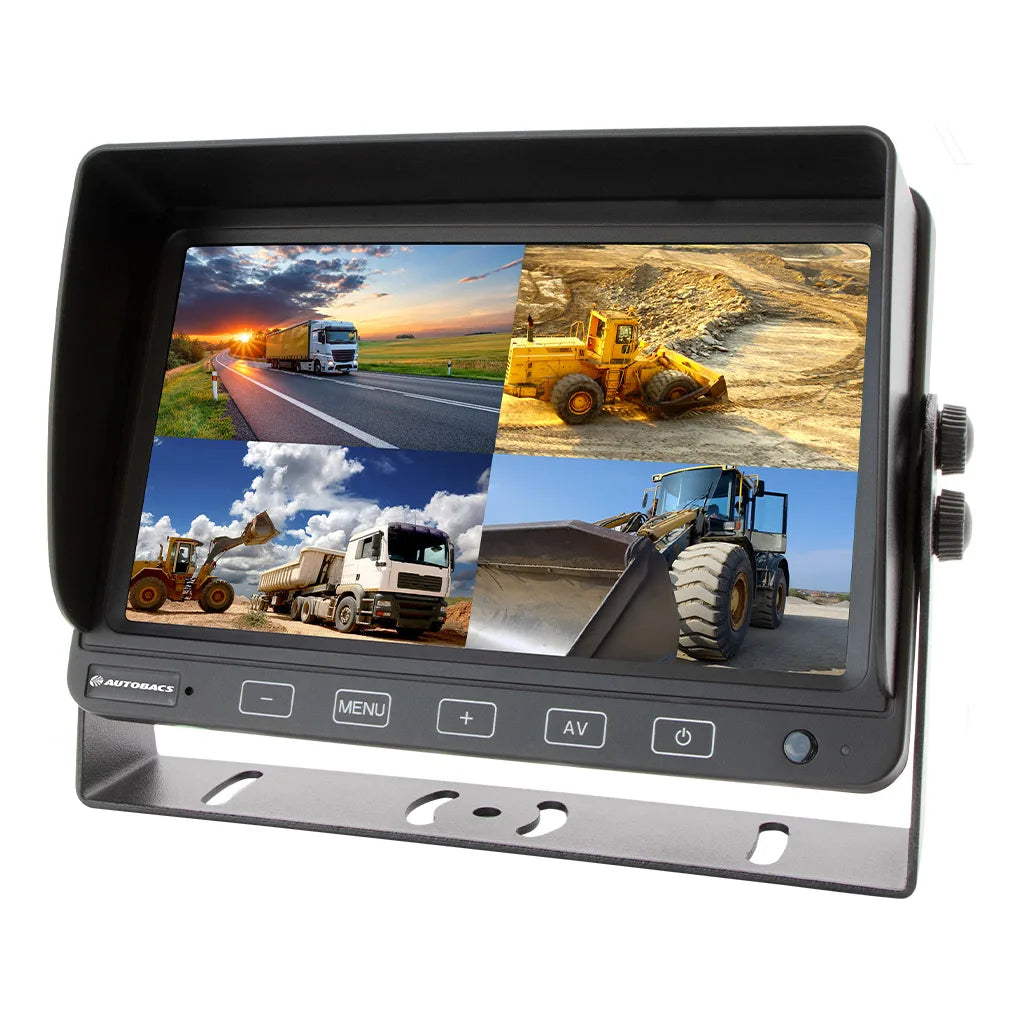

Autobacs HD7140 7 Inch High Resolution IPS Quad View Monitor for 12V and 24V Vehicles
The Autobacs HD7140 is a heavy-duty 7-inch IPS quad view monitor with 1024 x 600 resolution, supporting up to four camera inputs with AHD 1080P, AHD 720P, and standard definition compatibility. Seven selectable split screen modes, four camera triggers, and touch-sensitive controls make it suited to trucks, machinery, and commercial vehicles operating on 12V or 24V systems. A wiring harness, sunshade, and U-bracket are included.
Product overview
The HD7140 is designed for heavy-duty commercial vehicle applications where clear multi-camera monitoring is required for reversing, manoeuvring, and general situational awareness. The 7-inch IPS panel provides wide viewing angles of 75 degrees in all directions and a brightness of up to 500cd/m² for clear visibility in outdoor and high-ambient-light conditions. Seven split screen modes including single, dual, triplex, trefoil, Y-split, H-split, and quad configurations provide flexibility across different monitoring layouts and camera configurations.
Four 4-pin camera inputs with individual trigger channels allow automatic camera switching during reversing or other trigger events. The monitor is compatible with all standard definition cameras as well as AHD 720P and AHD 1080P cameras for higher resolution monitoring. Normal and mirror image modes are selectable per camera, and parking guidelines can be switched on or off. An onboard speaker is available on Camera 2 input for audio monitoring.
Features and benefits
7-inch IPS display: The 178mm IPS panel delivers wide 75-degree viewing angles in all directions and up to 500cd/m² brightness for clear visibility across a range of lighting conditions in commercial vehicle cabins.
7 selectable split screen modes: Single, dual, triplex, trefoil, Y-split, H-split, and quad configurations provide flexibility for different camera layouts and monitoring requirements across trucks, machinery, and commercial vehicles.
4 camera inputs with AHD 1080P support: Four 4-pin camera inputs accept standard definition, AHD 720P, and AHD 1080P cameras for flexible camera system configuration and upgrade paths.
4 individual camera triggers: Each of the four camera inputs has a dedicated trigger input for automatic camera switching during reversing or other trigger events.
Heavy-duty construction: Built for the demands of trucks, machinery, and commercial vehicle applications where vibration resistance and durability are essential.
12V and 24V compatibility: Operates across both 12V and 24V vehicle electrical systems, covering passenger vehicles, trucks, buses, and heavy machinery.
Touch-sensitive controls: Touch-sensitive front panel buttons provide responsive and intuitive control of split screen modes, camera selection, and display settings.
Normal and mirror image modes: Selectable normal and mirror image display modes per camera allow correct image orientation for different camera mounting positions and angles.
Onboard speaker on Camera 2: The built-in speaker on the Camera 2 input provides audio monitoring capability for cameras fitted with a microphone.
What's in the box
- 1 x HD7140 7-inch quad view monitor
- 1 x Wiring harness
- 1 x Sunshade
- 1 x U-bracket
Technical specs
| Specification |
Detail |
| SKU |
HD7140 |
| Brand |
Autobacs |
| LCD Panel |
IPS |
| Display Size |
178mm (7 inches) |
| Display Format |
16:9 |
| Resolution |
1024 x 600 |
| Brightness |
Up to 500cd/m² |
| Viewing Angles |
75 degrees left, right, up and down |
| Split Screen Modes |
Single, dual, triplex, trefoil, Y-split, H-split, quad |
| Video System |
Auto PAL/NTSC/AHD |
| Camera Inputs |
4 x 4-pin male |
| Camera Compatibility |
Standard definition, AHD 720P, AHD 1080P |
| Camera Triggers |
4 |
| Monitor View |
Normal and mirror image selectable |
| Guidelines |
Selectable on/off |
| Audio |
Onboard speaker (Camera 2 only) |
| Controls |
Touch sensitive |
| Operating Temperature |
-20 to +70 degrees C |
Frequently asked questions
How many cameras can the HD7140 display simultaneously?
The HD7140 accepts up to four camera inputs and supports quad split screen mode to display all four cameras simultaneously, along with six other split screen configuration options.
Is the HD7140 compatible with AHD cameras?
Yes. The HD7140 is compatible with AHD 720P and AHD 1080P cameras as well as all standard definition cameras, providing flexibility in camera selection and upgrade paths.
Is the HD7140 suitable for 24V truck applications?
Yes. The HD7140 operates across both 12V and 24V vehicle electrical systems, covering trucks, buses, and heavy machinery.
Does the HD7140 include parking guidelines?
Yes. Parking guidelines are included and can be switched on or off as required.
Is a mounting bracket included with the HD7140?
Yes. A U-bracket, sunshade, and wiring harness are all included in the box for a complete installation.
