Description

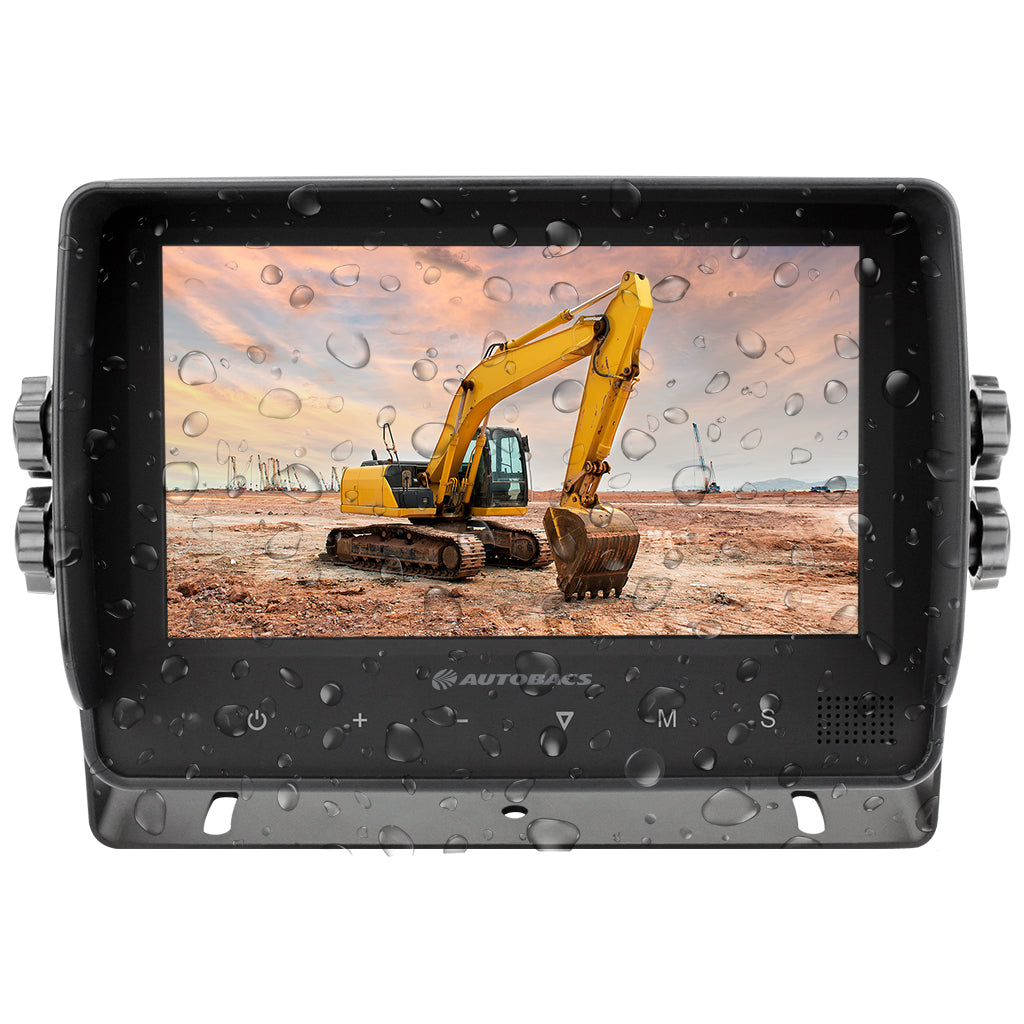

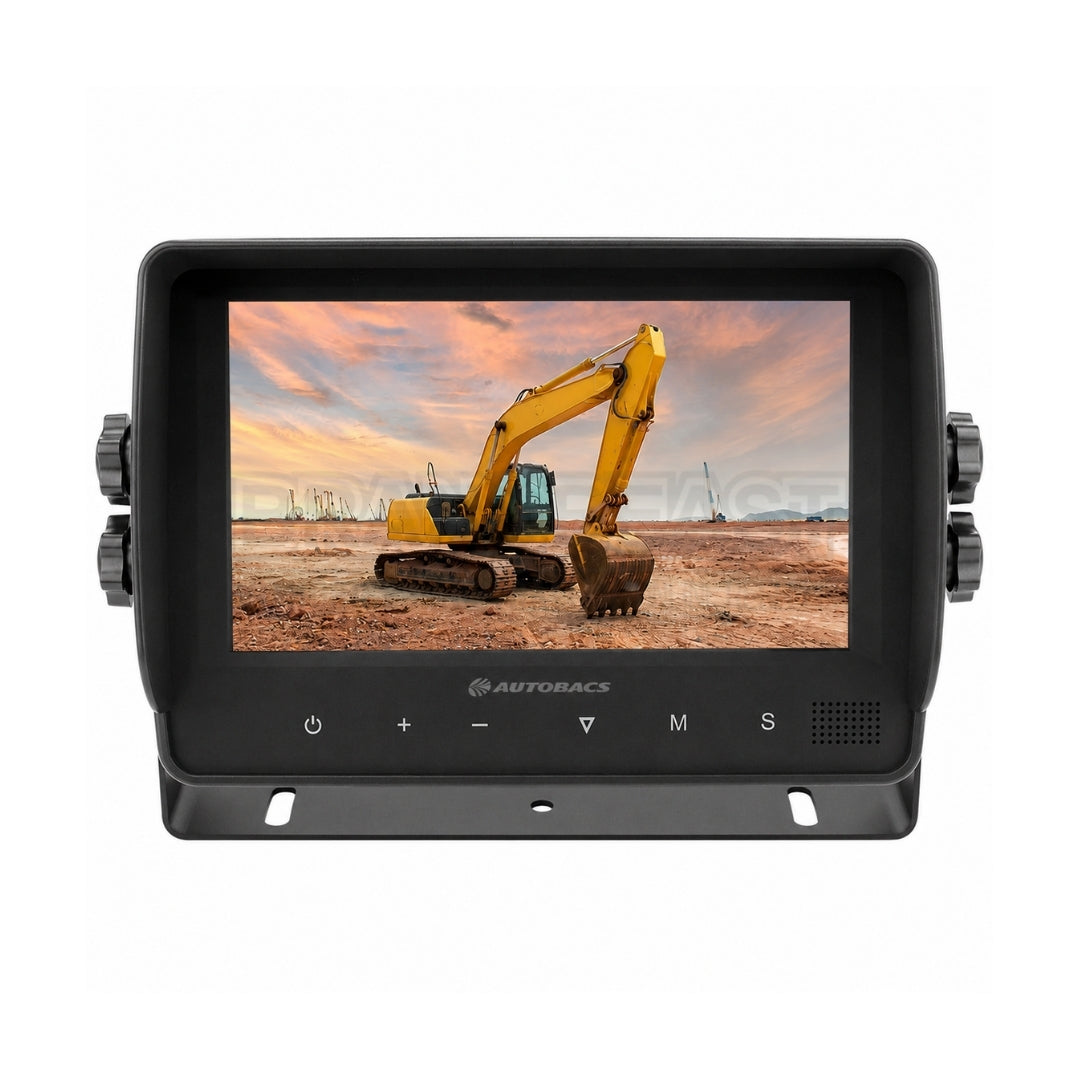

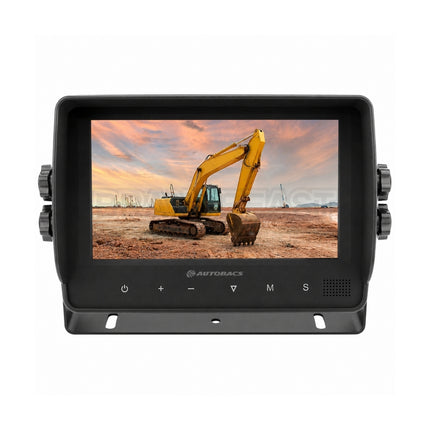

AUTOBACS HD73WP - 7 Inch High Res Waterproof Monitor
High-resolution 7-inch waterproof monitor featuring 1024 x 600 resolution, Grade A TFT LCD panel, IP66 waterproof rating, 3 camera inputs with automatic switching, 10-32V DC power compatibility, and touch-sensitive controls for machinery, industrial applications, and trucking.
Product Overview
The AUTOBACS HD73WP is a 7-inch monitor suitable for use in machinery, industrial applications, and trucking environments. Designed to be water and dust proof with IP66 rating, this professional-grade monitor operates with both 12V and 24V systems for versatile installation across various vehicle platforms. The monitor is equipped with automatic camera switching feature allowing up to three cameras to automatically switch when reversing, enhancing safety by ensuring complete view of surroundings. This high-resolution display features new Grade A TFT LCD panel with 178mm diagonal 7-inch screen delivering 1024 x 600 resolution in 16:9 format with 700:1 contrast ratio. The 85° viewing angles in all directions ensure clear visibility from various operator positions. The monitor supports AHD/PAL/NTSC/AUTO video systems and connects through 3 x 4-pin male universal standard configuration for compatibility with standard and high-resolution cameras. Touch-sensitive button controls provide intuitive operation without mechanical button wear. Advanced features include 3 camera triggers for automatic switching, selectable normal/mirror/flip/mirror-flip image orientation, and built-in 1W audio output. Operating across -20°C to +70°C temperature range with 90% relative humidity tolerance and -30°C to +80°C storage temperature with 90% humidity, the monitor operates on 10-32V DC power input supporting both 12V and 24V systems through negative ground configuration with approximately 10W power consumption. The monitor measures 197mm width x 132mm height x 34mm depth not including bracket, or 228mm width x 154mm height x 34mm depth including bracket. Complete package includes monitor sunshade for glare reduction, U-bracket for mounting, stand mount option, power and trigger cables, 4 thumb screws, and 4 nylon washers for professional installation.
Key Features

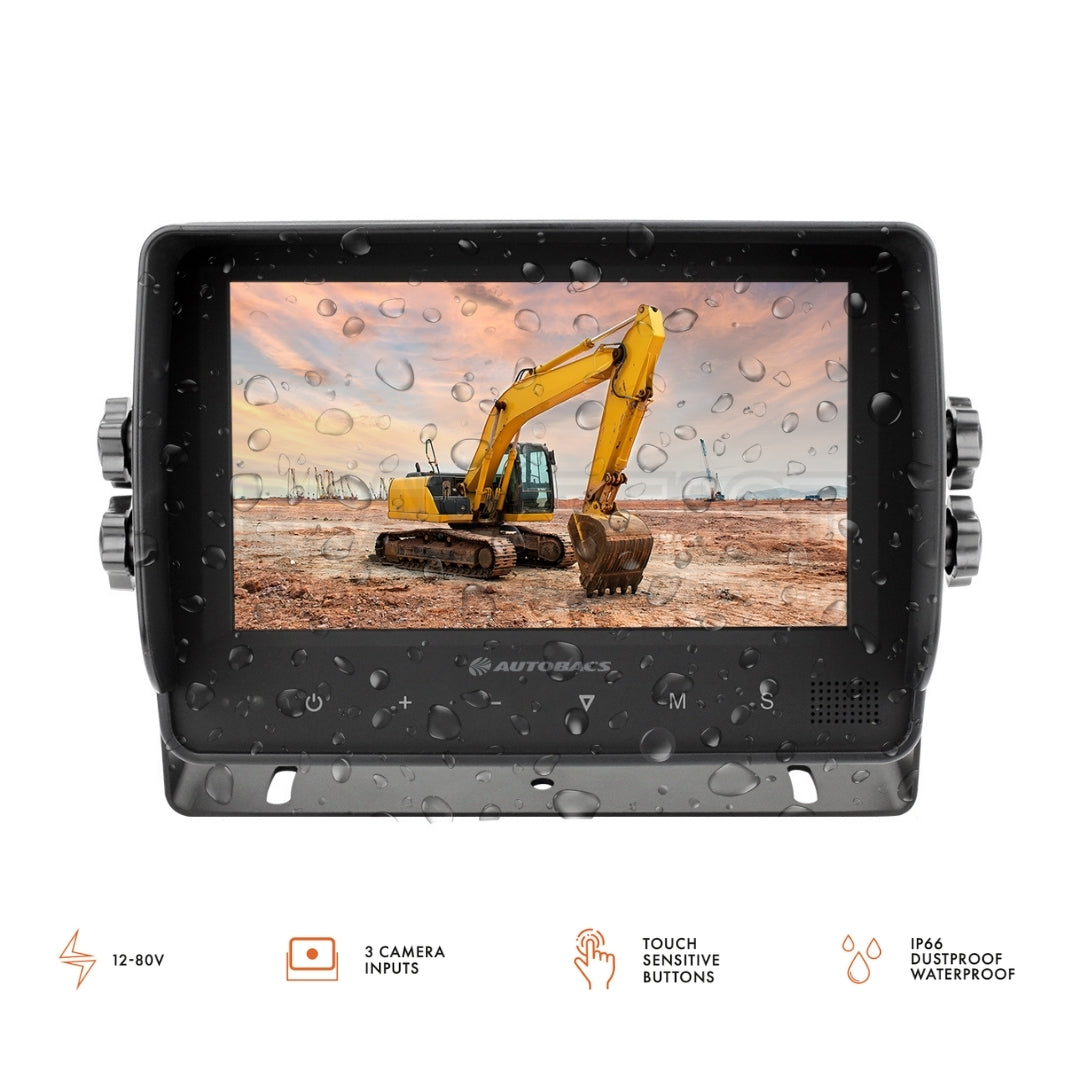

IP66 Waterproof Protection - Professional IP66 ingress protection rating providing water and dust proof construction suitable for demanding machinery, industrial applications, and trucking environments, ensuring reliable performance when exposed to rain, dust, high-pressure washing, and harsh operating conditions typical in construction, mining, agricultural, and commercial vehicle applications.
High-Resolution Grade A Display - Premium new Grade A TFT LCD panel delivering 1024 x 600 resolution on 178mm diagonal 7-inch screen in 16:9 format with 700:1 contrast ratio, providing crystal-clear visuals with enhanced safety and visibility through 85° viewing angles in all directions for clear monitoring from various operator positions in machinery cabs and truck cabins.
3 Camera Automatic Switching - Versatile 3 camera input capability with automatic switching feature triggered by reversing operation, enabling comprehensive vehicle monitoring coverage including rear reversing camera, side blind spot camera, and front approach camera connections, providing complete perimeter visibility with automatic camera selection based on operational requirements for enhanced safety.
12V/24V Power Compatibility - Universal 10-32V DC power input supporting both 12V systems common in light commercial vehicles and machinery, and 24V systems typical in trucks and heavy industrial equipment, consuming approximately 10W power through negative ground configuration, eliminating the need for voltage converters or specific monitor variants across diverse vehicle fleets.
Touch-Sensitive Controls - Intuitive touch-sensitive button interface providing easy operation without mechanical button wear typical of traditional push-button designs, delivering responsive control access to monitor settings including selectable normal/mirror/flip/mirror-flip image orientation for various camera mounting positions and video system selection across AHD/PAL/NTSC/AUTO formats.
Complete Installation Package - Comprehensive mounting and connectivity solution including monitor sunshade for glare reduction in bright conditions, U-bracket for versatile mounting options, stand mount for alternative installation configurations, power and trigger cables for electrical connections, 4 thumb screws and 4 nylon washers for secure professional installation without requiring additional hardware components.
Technical Specifications
Display
- TFT Panel: New Grade A LCD
- LCD Size: 178mm (7-Inch) Diagonal
- Display Format: 16:9
- Resolution: 1024 x 600
- Contrast: 700:1
- Viewing Angles: 85° Left/Right/Up/Down
Video System
- Video System: AHD/PAL/NTSC/AUTO
- Video Connect: 3 x 4-Pin (Male)
- Compatibility: Standard and High Resolution Cameras
- Connection Type: Universal Standard 4-Pin Configuration (Male)
- Camera Triggers: 3
Display Options
- Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
Controls & Audio
- Buttons: Touch Sensitive
- Audio Output: Built-in 1W
Construction & Protection
Environmental Specifications
- Operating Temperature: -20°C to +70°C, RH90%
- Storage Temperature: -30°C to +80°C, RH90%
Electrical Specifications
- Power Input: 10-32V DC (Negative Ground)
- Power Consumption: ~10W
Physical Specifications
- Dimensions (Not Including Bracket): 197mm (W) x 132mm (H) x 34mm (D)
- Dimensions (Including Bracket): 228mm (W) x 154mm (H) x 34mm (D)

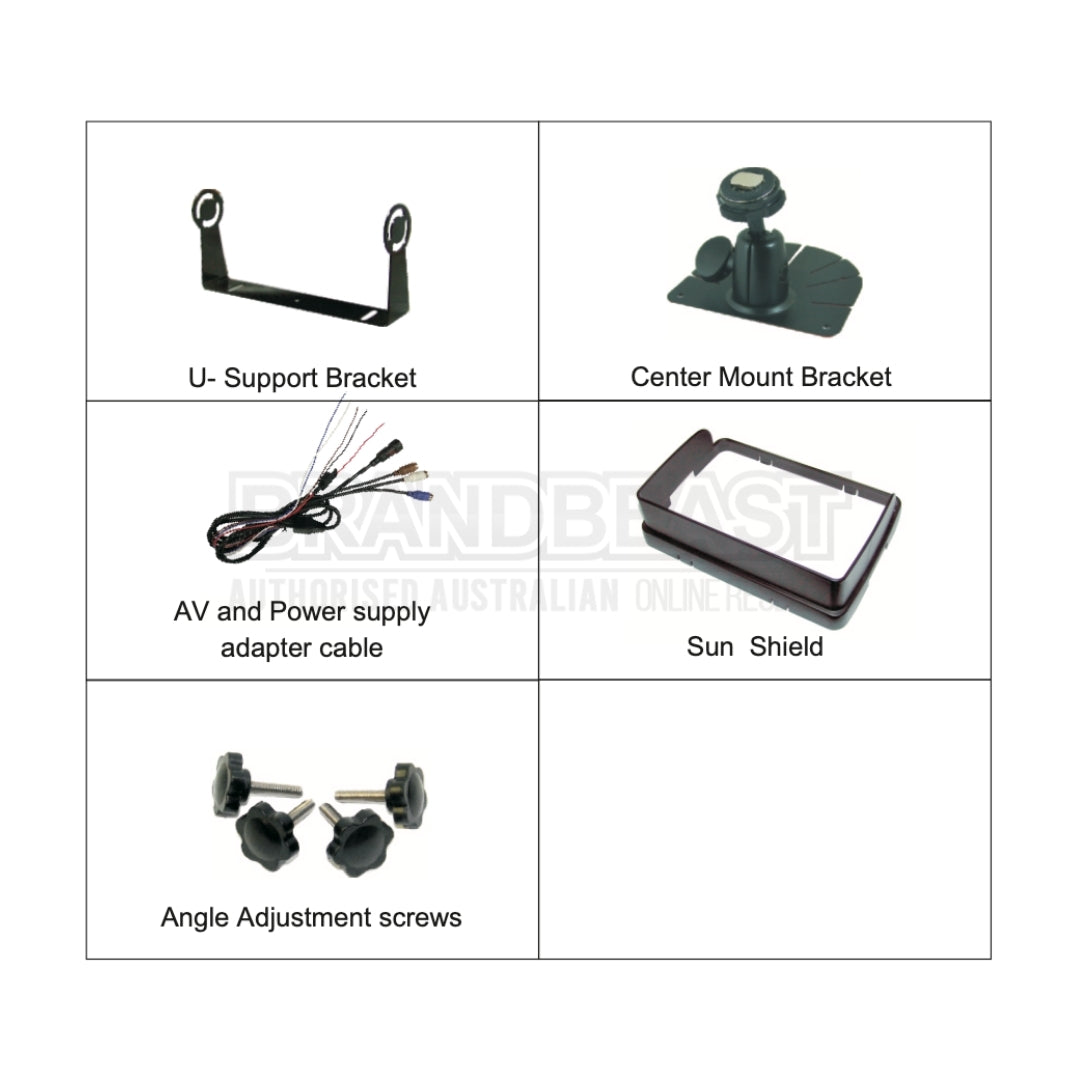

Included Accessories
- Monitor Sunshade
- U-Bracket
- Stand Mount
- Power & Trigger Cables
- Thumb Screws: 4
- Nylon Washers: 4
Frequently Asked Questions
What does IP66 waterproof rating mean for harsh environments?
IP66 rating provides complete protection against dust ingress and powerful water jets from any direction, making the HD73WP suitable for machinery, industrial applications, and trucking where monitors face rain, high-pressure washing, dust storms, and harsh operating conditions. While not submersible like IP68, IP66 handles typical automotive and industrial water exposure including heavy rain and wash-down operations.
How does automatic camera switching enhance safety?
The HD73WP's automatic camera switching feature activates specific cameras based on operation triggers - typically switching to rear camera when reversing gear is engaged, enabling hands-free monitoring without manual camera selection. This ensures operators always have appropriate views during reversing operations without distraction, with 3 camera triggers accommodating rear, side, and front camera configurations for complete perimeter visibility.
Can I connect both AHD and analog cameras simultaneously?
Yes, the HD73WP supports AHD/PAL/NTSC/AUTO video systems, enabling connection of modern AHD high-resolution cameras alongside traditional analog PAL/NTSC cameras. The monitor automatically detects video format from each camera input, allowing mixed camera types across the 3 inputs based on budget, availability, or specific application requirements without requiring format-specific monitors.
Why is 10-32V compatibility important for industrial applications?
Industrial machinery and commercial vehicles use various electrical system voltages - light equipment typically operates on 12V while heavy trucks and industrial machinery use 24V systems. The HD73WP's 10-32V DC compatibility eliminates voltage-specific monitor variants, simplifying inventory management and enabling use across diverse equipment fleets without voltage converters or compatibility concerns.
What are the touch-sensitive controls used for?
Touch-sensitive controls provide access to monitor settings including image orientation selection (normal/mirror/flip/mirror-flip) for proper display regardless of camera mounting position, video system format selection, and other configuration options. The touch-sensitive design eliminates mechanical button wear from frequent use in demanding industrial and commercial vehicle environments where traditional buttons would deteriorate.
