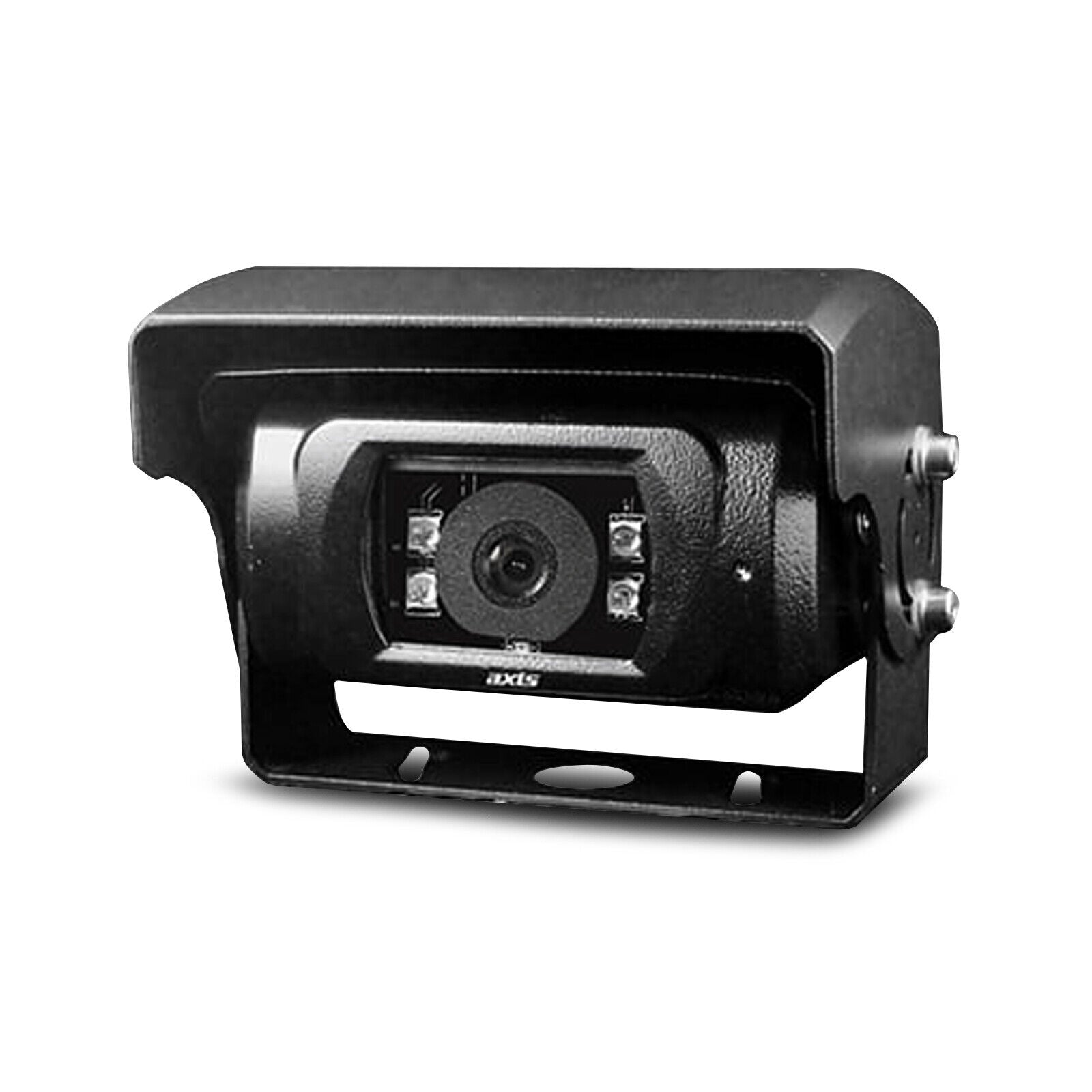

Axis CC70M 12/24v Heavy Duty 1/3" Camera With Shutter

Description

Axis 12/24v Heavy Duty 1/3” Camera With Shutter


The CC70M performs in rugged conditions and is suitable for 4WD, trucks and heavy duty applications in 12-24V vehicles. The motorised shutter protects and keeps the lens and camera window clean to retain high image quality. Shutter automatically opens when reverse gear is selected.
Axis CC70M Specifications:

  • Image Sensor: 1/3‚Äù Sharp Ccd

  • Signal System: Pal

  • Picture Resolution: 976 X 582 Pixels

  • Sensing Area: 4.9mm X 3.7mm

  • Sync System: Internal

  • Horizontal Resolution: 600 Tv Lines

  • Signal-to Noise Ratio: Better Than 48db

  • Audio Function: Yes

  • Backlight Compensation: Auto

  • White Balance: Auto

  • Image: Mirror / Normal Switchable

  • Video Output: 1.0vp-p, 75-ohm

  • Viewing Angle: 120¬∞

  • Ingress Protection: Ip69

  • Power Supply: Dc 10-32v

  • Current Consumption: 250ma

  • Operating Temperature: -20 ~ +70¬∞ C

  • Minimum Illumination: O Lux

  • Infrared Led Lamps: 4

  • Night Vision Distance: 10m (Approx)

  • Electronic Shutter: 1/50~1/10,000 Seconds


What's in the Box:

  • 15 Metre Extension Cable (4 Pin Locking Connectors)

  • 4-pin F ~ Rca M Adaptor Lead

  • Mounting Bracket

  • Visor


Legendary Products & Support From Authorized Dealers

When you choose Axis, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Axis dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Axis's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Axis dealer today!

Out of stock

Axis CC70M 12/24v Heavy Duty 1/3" Camera With Shutter

Product form

Axis 12/24v Heavy Duty 1/3” Camera With ShutterThe CC70M performs in rugged conditions and is suitable for 4WD, trucks and... Read more

SKU: CC70M

$286.99

Description

Axis 12/24v Heavy Duty 1/3” Camera With Shutter


The CC70M performs in rugged conditions and is suitable for 4WD, trucks and heavy duty applications in 12-24V vehicles. The motorised shutter protects and keeps the lens and camera window clean to retain high image quality. Shutter automatically opens when reverse gear is selected.
Axis CC70M Specifications:

  • Image Sensor: 1/3‚Äù Sharp Ccd

  • Signal System: Pal

  • Picture Resolution: 976 X 582 Pixels

  • Sensing Area: 4.9mm X 3.7mm

  • Sync System: Internal

  • Horizontal Resolution: 600 Tv Lines

  • Signal-to Noise Ratio: Better Than 48db

  • Audio Function: Yes

  • Backlight Compensation: Auto

  • White Balance: Auto

  • Image: Mirror / Normal Switchable

  • Video Output: 1.0vp-p, 75-ohm

  • Viewing Angle: 120¬∞

  • Ingress Protection: Ip69

  • Power Supply: Dc 10-32v

  • Current Consumption: 250ma

  • Operating Temperature: -20 ~ +70¬∞ C

  • Minimum Illumination: O Lux

  • Infrared Led Lamps: 4

  • Night Vision Distance: 10m (Approx)

  • Electronic Shutter: 1/50~1/10,000 Seconds


What's in the Box:

  • 15 Metre Extension Cable (4 Pin Locking Connectors)

  • 4-pin F ~ Rca M Adaptor Lead

  • Mounting Bracket

  • Visor


Legendary Products & Support From Authorized Dealers

When you choose Axis, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Axis dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Axis's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Axis dealer today!
