Description

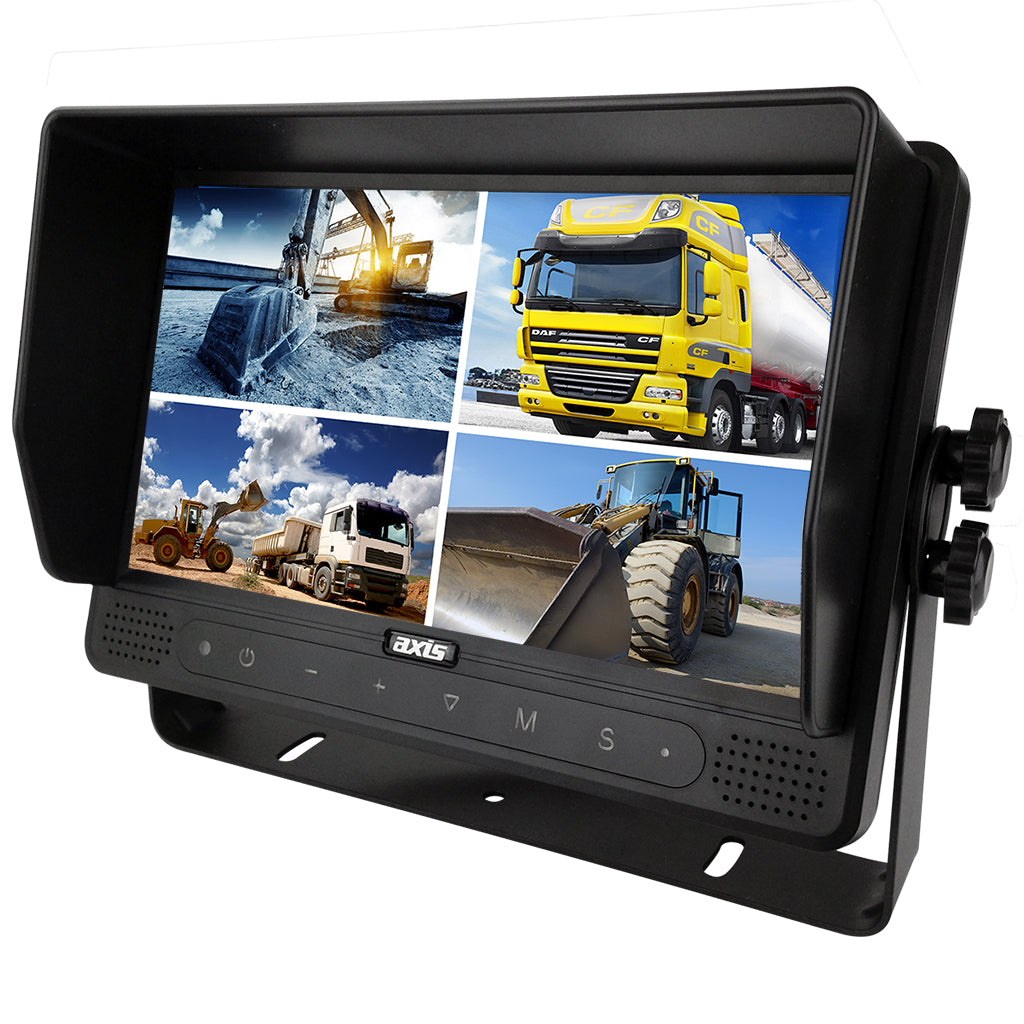

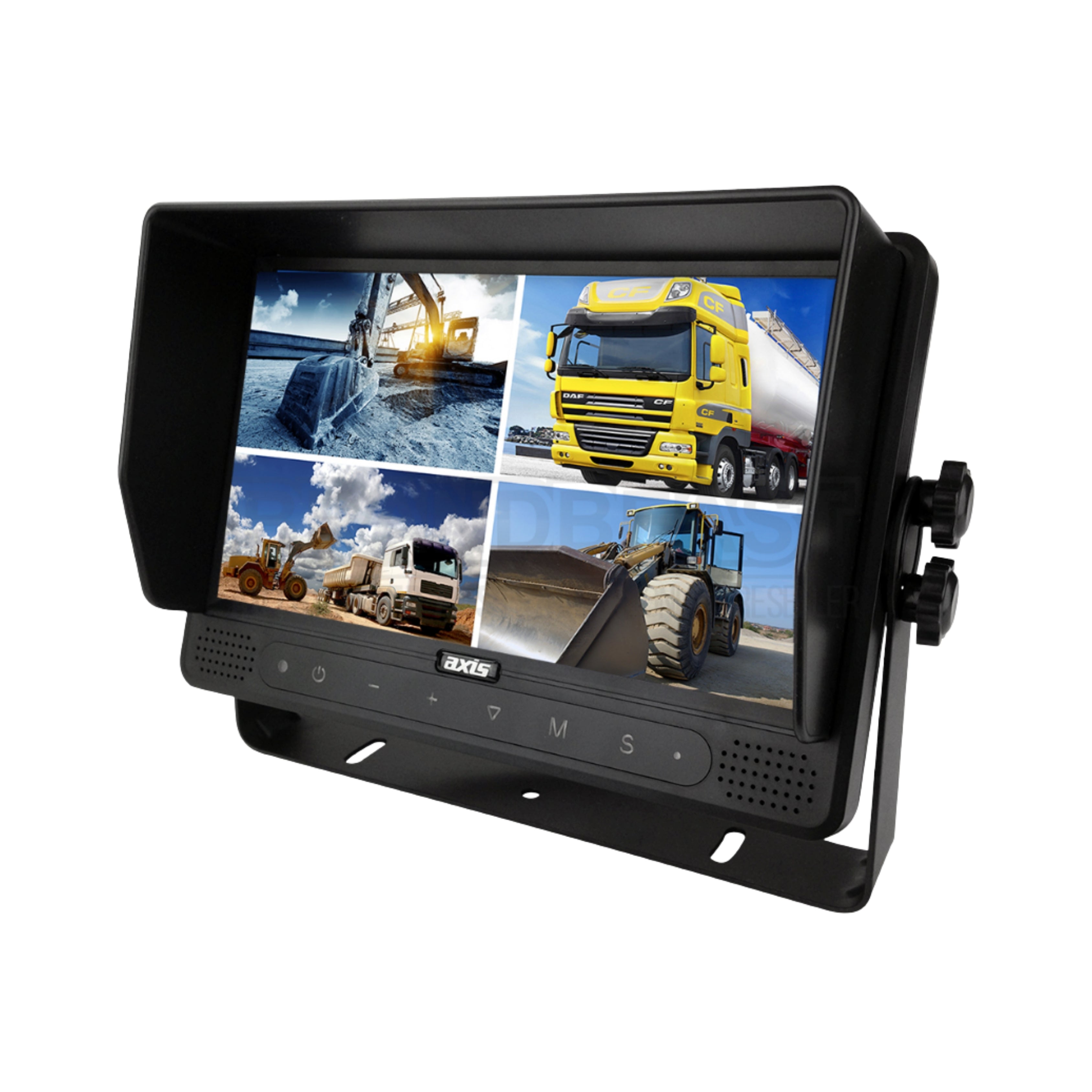

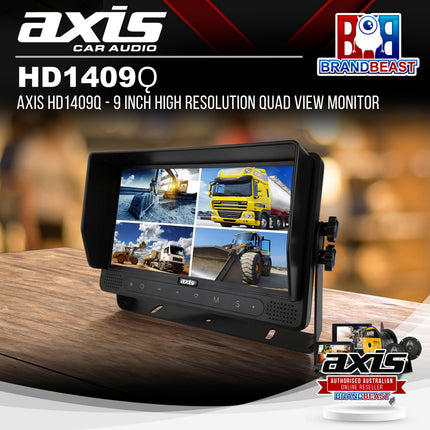

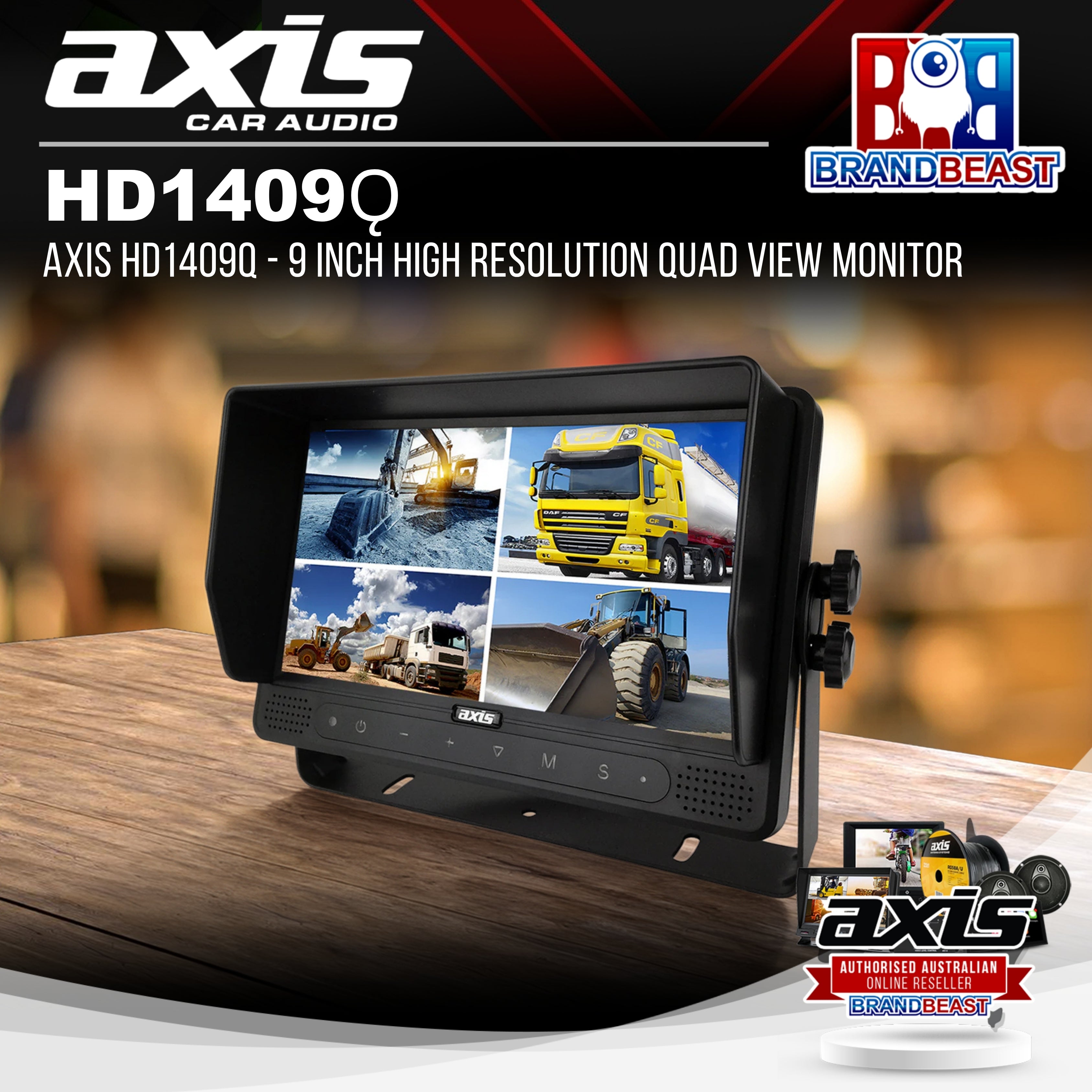

AXIS HD1409Q - 9 Inch High Resolution Quad View Monitor

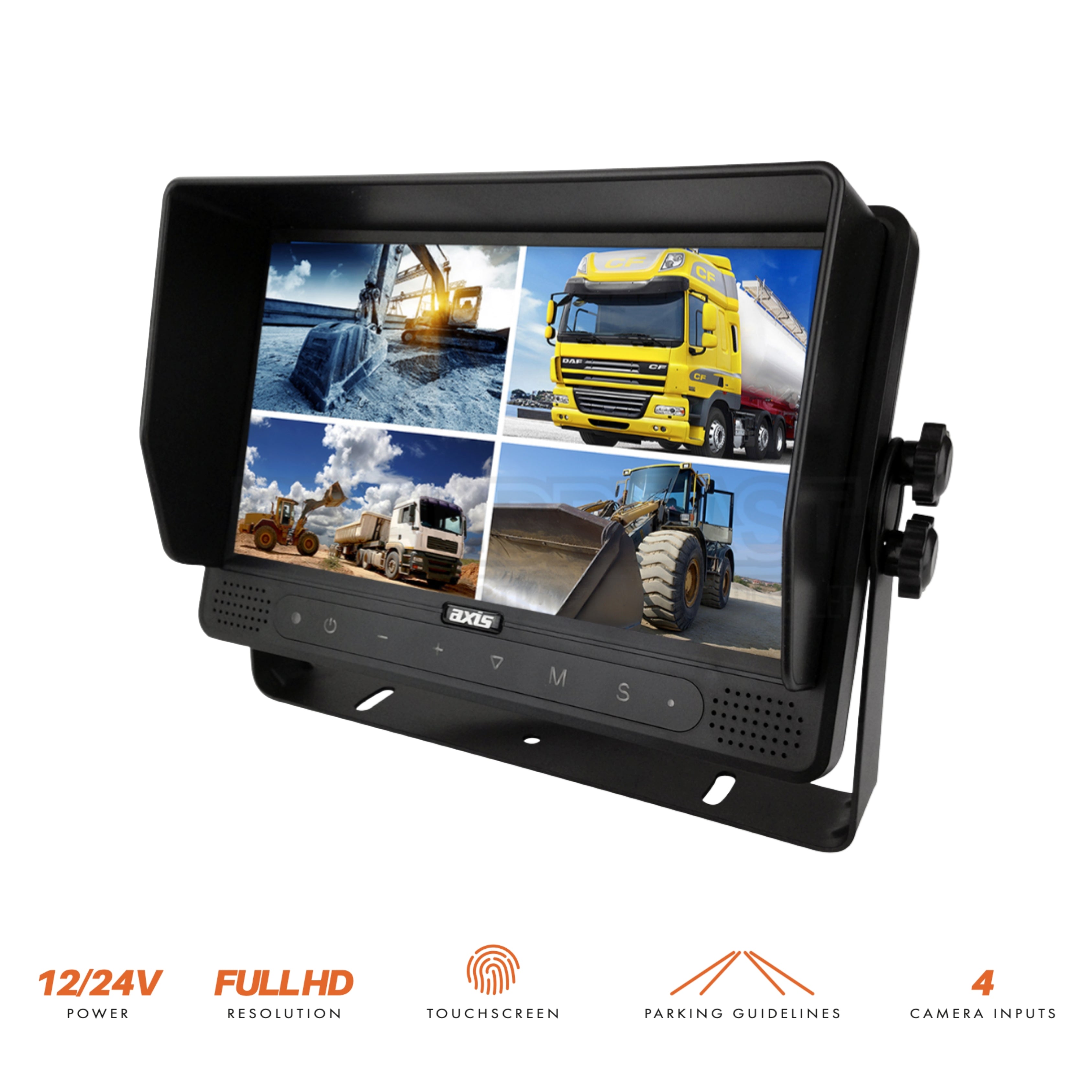

High resolution 9-inch quad view monitor featuring 1024x600 resolution, capacitive touchscreen, 8 split-screen modes, 4-camera connectivity via 4-pin aviation connectors, 650 cd/m² brightness, 85-degree viewing angles, auto PAL/NTSC/720P/1080P detection, 5 camera triggers, selectable guidelines, built-in speaker, 10-32V DC operation, -20°C to +70°C temperature range, and heavy-duty construction for trucks, machinery, and vehicle applications.

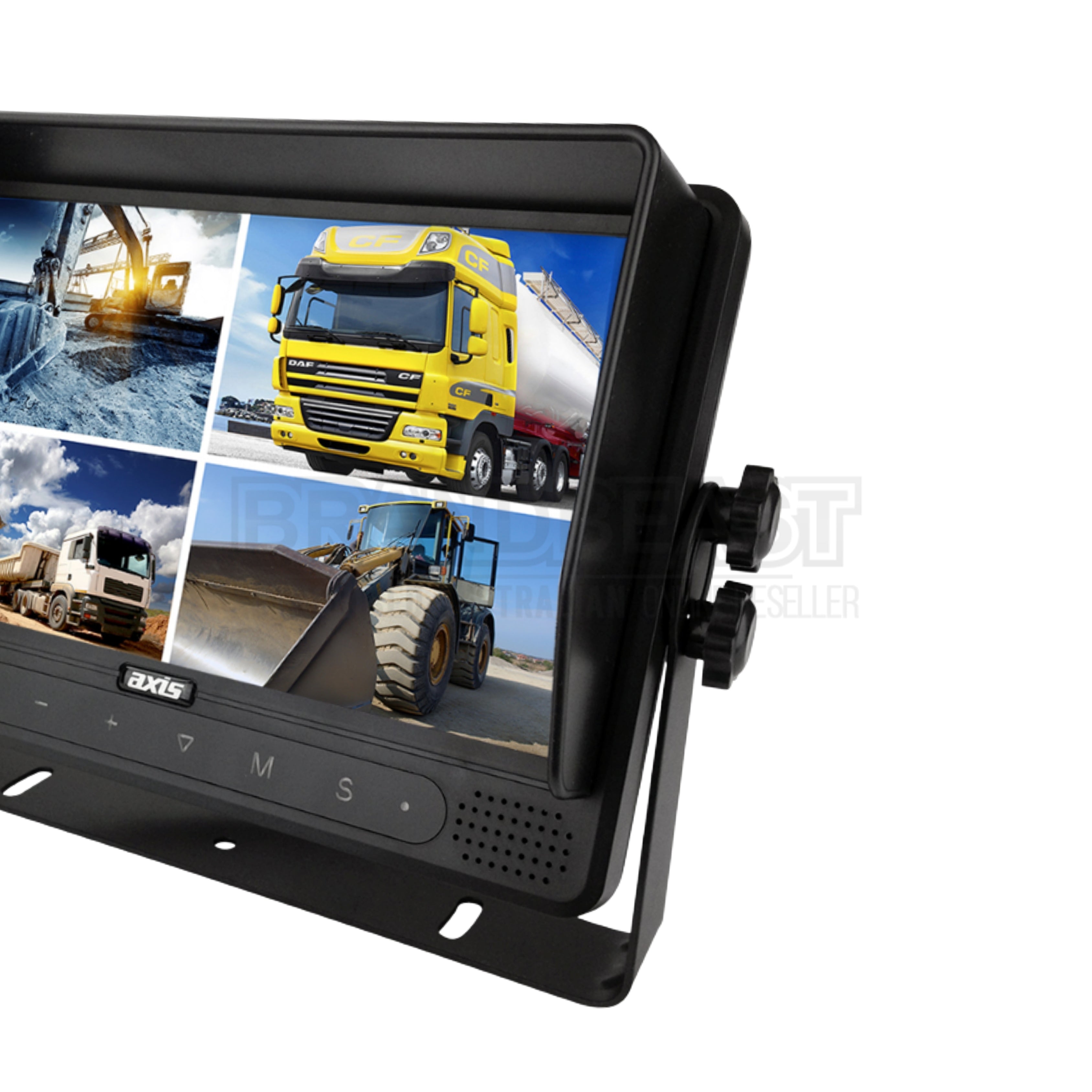

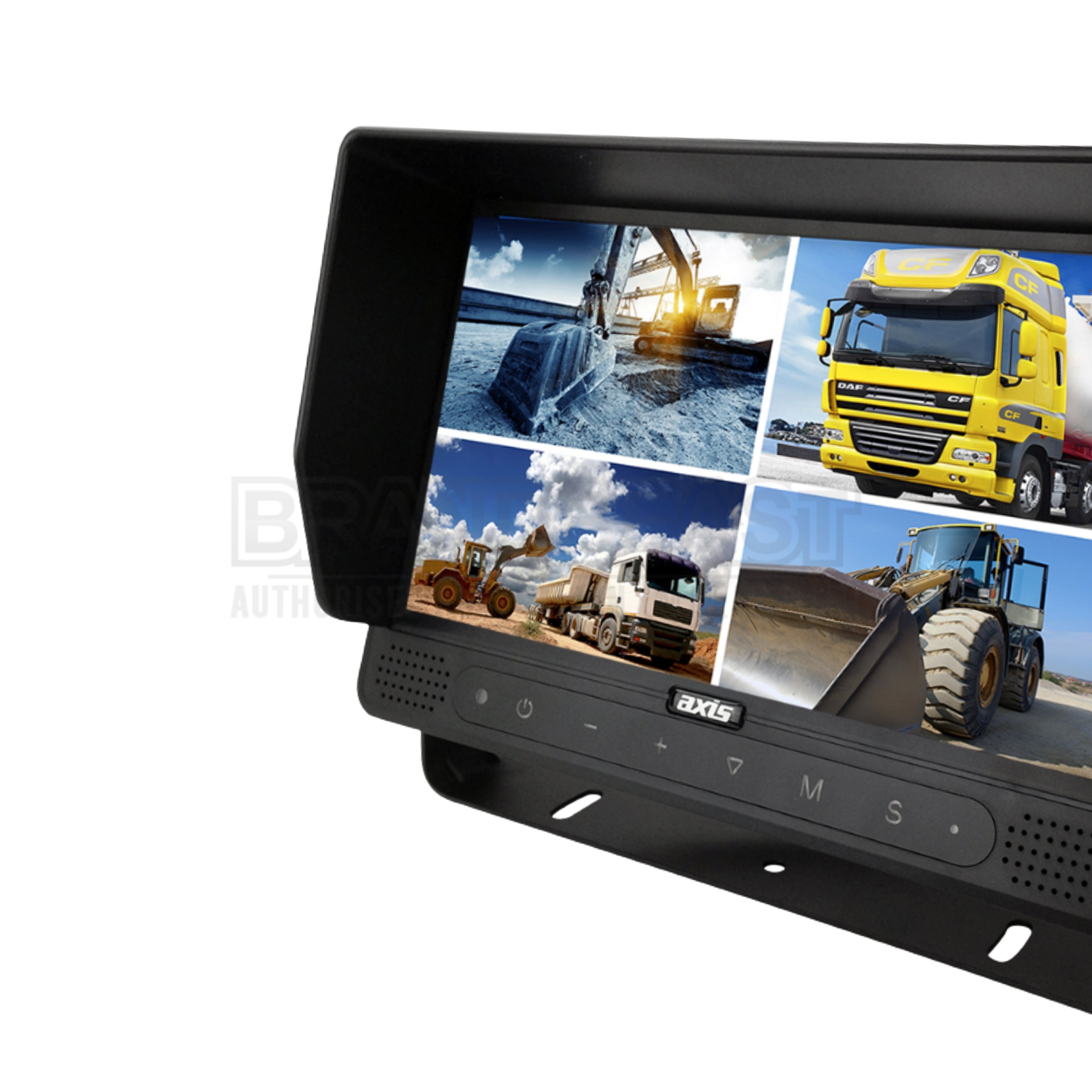

Product Overview
The AXIS HD1409Q is an exceptional high resolution 12/24V quad view monitor designed to provide crystal-clear image and enhanced viewing experience. With robust heavy duty construction, this monitor is perfect for trucks, machinery, and various vehicles. The HD1409Q offers the added advantage of connecting up to 4 cameras providing incredible flexibility for monitoring multiple angles simultaneously. The 9-inch LCD display features 16:9 widescreen format with 1024x600 pixel resolution delivering sharp detailed imagery essential for safe vehicle operation and reversing maneuvers in commercial and industrial environments. The 650 cd/m² brightness specification ensures excellent visibility even in direct sunlight conditions typical of outdoor work environments and Australian summer conditions. Wide 85-degree viewing angles in all directions (left, right, up, down) maintain image clarity from various operator seating positions eliminating need for constant monitor adjustment during operation. The capacitive touchscreen interface provides intuitive control enabling quick switching between camera views and split-screen configurations without physical buttons that can fail in harsh operating conditions. Eight versatile split-screen modes (Single, Dual, Triplex, Quad, Trefoil, Y-Split, H-Split, PIP) accommodate different monitoring scenarios from simple reversing to complex multi-angle surveillance during loading operations or tight maneuvering situations. Auto video system detection supporting PAL, NTSC, 720P, and 1080P formats ensures compatibility with various camera types from different manufacturers eliminating configuration complexity during installation. Four 4-pin aviation male connectors provide secure weatherproof camera connections resistant to vibration, moisture, and dust ingress typical in heavy equipment and commercial vehicle applications. Five independent camera triggers enable automatic view switching based on vehicle functions such as reverse gear engagement, turn signal activation, or brake application improving operator situational awareness without manual intervention. Selectable on/off guidelines assist with distance judgment and obstacle avoidance during reversing and parking operations with option to disable when not required. Built-in speaker delivers audio alerts and proximity warnings from compatible camera systems enhancing safety during blind-spot maneuvers. Wide 10-32V DC voltage input accommodates both 12V and 24V vehicle electrical systems common in light commercial vehicles through heavy trucks and machinery. Extended operating temperature range from -20°C to +70°C ensures reliable performance in extreme Australian climates from alpine winter conditions to desert summer heat. Compact 234mm width, 158mm height, and 39.75mm depth (excluding bracket and visor) dimensions facilitate installation in cramped dashboard locations typical of commercial vehicle cabins.
Features & Benefits
High Resolution 1024x600 Display The 9-inch LCD screen with 1024x600 resolution delivers crisp detailed imagery essential for identifying obstacles, reading signage, and monitoring surroundings during vehicle operation. This resolution significantly exceeds basic VGA displays providing clarity necessary for professional applications where accurate visual information affects safety and operational efficiency.
8 Flexible Split-Screen Modes Eight different viewing configurations (Single, Dual, Triplex, Quad, Trefoil, Y-Split, H-Split, Picture-in-Picture) accommodate diverse monitoring requirements. Operators can view single camera for detailed observation, multiple cameras simultaneously for comprehensive situational awareness, or prioritize one view while monitoring others in smaller windows adapting to different operational scenarios.
4-Camera Connectivity with Aviation Connectors Four independent camera inputs via rugged 4-pin aviation male connectors enable comprehensive vehicle coverage monitoring front, rear, and side blind spots simultaneously. Aviation-grade connectors provide superior vibration resistance, weatherproofing, and connection reliability compared to standard RCA or BNC connectors ensuring long-term durability in harsh operating environments.
Capacitive Touchscreen Control Intuitive touchscreen interface eliminates mechanical buttons prone to failure from dust, moisture, and repeated use in commercial applications. Operators switch between views and adjust settings with simple touch gestures maintaining focus on vehicle operation rather than searching for physical controls.
650 cd/m² High Brightness Panel High brightness specification ensures screen remains visible in direct sunlight typical of outdoor work environments and Australian conditions. Standard low-brightness monitors wash out in bright light requiring operators to shade screens or reposition vehicles compromising safety and productivity.
Wide 85° Viewing Angles Consistent image quality from 85-degree angles in all directions accommodates various operator seating positions and heights without requiring monitor adjustment. This wide viewing angle prevents image inversion or color shift typical of inferior displays when viewed off-axis ensuring multiple operators or passengers view clear imagery.
5 Independent Camera Triggers Five camera trigger inputs enable automatic view switching based on vehicle functions such as reverse gear, turn signals, brake application, or auxiliary switches. This automation improves safety by displaying relevant camera views without manual intervention allowing operators to maintain focus on vehicle controls during critical maneuvers.
Auto Video Format Detection Automatic recognition of PAL, NTSC, 720P, and 1080P video formats ensures compatibility with cameras from various manufacturers worldwide. This eliminates manual configuration requirements and prevents compatibility issues during installation or camera replacement simplifying system maintenance.
Selectable Parking Guidelines Distance reference lines assist with obstacle avoidance and parking precision with option to disable when not required. Operators judge distances accurately during reversing reducing property damage and improving safety in confined spaces typical of loading docks, construction sites, and urban deliveries.
Built-In Audio Speaker Integrated speaker delivers audio alerts and proximity warnings from compatible camera systems providing additional safety feedback beyond visual information. Audio warnings alert distracted operators to immediate hazards even when not actively monitoring screen improving overall situational awareness.
Wide Voltage Compatibility 10-32V DC input accommodates 12V light commercial vehicles, 24V heavy trucks, and machinery with varying electrical system voltages. This flexibility eliminates need for voltage converters or multiple monitor models simplifying inventory management and installation across diverse fleet compositions.
Extended Temperature Range Operating range from -20°C to +70°C ensures reliable performance in extreme climates from alpine construction sites to outback mining operations. Standard electronics fail in temperature extremes but this monitor maintains functionality throughout Australia's diverse climate zones.
Heavy Duty Construction Robust build quality withstands vibration, shock, and environmental exposure typical in commercial vehicles, construction equipment, and agricultural machinery. This durability reduces replacement frequency and maintenance costs compared to consumer-grade displays unsuitable for professional applications.
Technical Specifications
| Specification |
Details |
| Model |
AXIS HD1409Q |
| LCD Size |
9 Inches |
| Display Format |
16:9 Widescreen |
| Resolution |
1024 x 600 Pixels |
| Split Screen Modes |
Single/Dual/Triplex/Quad/Trefoil/Y-Split/H-Split/PIP (8 Modes) |
| Brightness |
650 cd/m² |
| Viewing Angles |
85° Left/Right/Up/Down |
| Touchscreen Type |
Capacitive Touch |
| Video System |
Auto PAL/NTSC/720P/1080P Select |
| Video Input Connectors |
4 x 4-Pin Aviation Male Connectors |
| Connection Standard |
Universal 4-Pin Configuration (Male) |
| Camera Triggers |
5 Independent Triggers |
| Parking Guidelines |
Selectable On/Off |
| Audio |
Built-In Speaker |
| Operating Temperature |
-20°C to +70°C |
| Voltage Input |
10-32V DC (Negative Ground) |
| Voltage Compatibility |
12V and 24V Systems |
| Dimensions (Monitor) |
234mm (W) x 158mm (H) x 39.75mm (D) |
| Dimensions Note |
Excluding Bracket & Visor |
| Barcode/EAN |
9321886017182 |
Installation & Compatibility
Camera Compatibility The HD1409Q accepts video input from backup cameras, side cameras, and forward-facing cameras utilizing 4-pin aviation connector standard. Compatible with most aftermarket vehicle cameras outputting PAL, NTSC, 720P, or 1080P video signals. The auto-detection feature automatically identifies camera video format eliminating manual configuration. Verify camera output connectors match 4-pin aviation male configuration or obtain appropriate adapter cables. Camera systems should operate within 10-32V DC range matching vehicle electrical system voltage.
Mounting Considerations Select mounting location providing optimal viewing angle from driver position while minimizing windshield obstruction or interference with vehicle controls. Dashboard mounting positions work well in commercial vehicles with flat dash surfaces. Consider sun visor attachment for managing screen glare in bright conditions. Ensure mounting position allows access to rear panel connectors for camera cable routing without excessive cable bending or strain.
Electrical Installation Connect monitor power supply to vehicle electrical system observing correct polarity (negative ground). The 10-32V DC input accommodates both 12V and 24V systems automatically without switches or jumpers. Route power cable away from high-current components, ignition systems, and radio frequency sources that may introduce electrical noise. Install inline fuse rated appropriately for monitor current draw protecting vehicle electrical system and monitor from short circuit damage.
Camera Connection Process Route camera cables from camera mounting locations to monitor position avoiding pinch points, moving components, and high-heat areas near engine or exhaust systems. Connect cameras to corresponding 4-pin aviation male connectors on monitor rear panel ensuring secure connection with connector locking mechanism engaged. Label camera cables during installation identifying camera location (front, rear, left side, right side) simplifying future troubleshooting and maintenance.
Trigger Wire Configuration Connect camera trigger wires to appropriate vehicle circuits for automatic view switching. Common trigger sources include reverse light circuit for rear camera activation, turn signal circuits for side camera activation, and brake circuit for front camera activation. The five independent triggers accommodate complex installations with multiple automatic switching requirements. Verify trigger voltage levels match monitor input specifications preventing damage to trigger circuitry.
System Testing After installation completion, test all camera views individually confirming clear video display without interference, distortion, or color abnormalities. Verify automatic view switching via trigger inputs functions correctly when engaging reverse gear or activating turn signals. Test touchscreen responsiveness and split-screen mode transitions. Adjust parking guidelines positioning matching specific vehicle dimensions and camera mounting angles for accurate distance reference.
Frequently Asked Questions
Can this monitor display all 4 cameras simultaneously?
Yes, the HD1409Q supports Quad split-screen mode displaying all four camera inputs simultaneously in equal-sized quadrants. Additionally, seven other split-screen configurations provide flexibility for different monitoring scenarios. Single mode displays one camera full-screen for detailed observation. Dual mode splits screen between two cameras. Triplex mode shows three cameras simultaneously. Trefoil, Y-Split, and H-Split modes offer alternative three-camera arrangements. Picture-in-Picture (PIP) mode displays one camera large with smaller overlay windows showing other cameras. Switch between modes using capacitive touchscreen interface selecting optimal configuration for current operation whether reversing, maneuvering in tight spaces, or highway driving requiring blind-spot monitoring.
Will this work with my existing backup cameras?
The HD1409Q is compatible with most aftermarket backup cameras using 4-pin aviation connector configuration and outputting PAL, NTSC, 720P, or 1080P video signals. The auto video format detection automatically identifies camera signal type eliminating manual configuration. If existing cameras use different connectors (RCA, BNC, etc.), adapter cables are available to convert to 4-pin aviation male connectors required by this monitor. Verify existing camera operating voltage matches monitor's 10-32V DC range ensuring compatibility with 12V or 24V vehicle electrical systems. Cameras must provide composite video or AHD (Analog High Definition) signals within supported resolution specifications.
How does the automatic camera switching work?
The HD1409Q features five independent trigger inputs that automatically switch camera views based on vehicle functions. Connect trigger wires to appropriate vehicle circuits such as reverse light positive wire for rear camera activation, turn signal wires for side camera activation, or brake circuit for front camera activation. When trigger input receives voltage signal, monitor automatically switches to corresponding camera view. For example, engaging reverse gear energizes reverse lights sending signal to trigger input causing monitor to display rear camera automatically. This hands-free operation improves safety by displaying relevant camera views during critical maneuvers without requiring operator to manually switch views using touchscreen controls. Multiple simultaneous triggers can activate split-screen modes showing combined views.
