Description

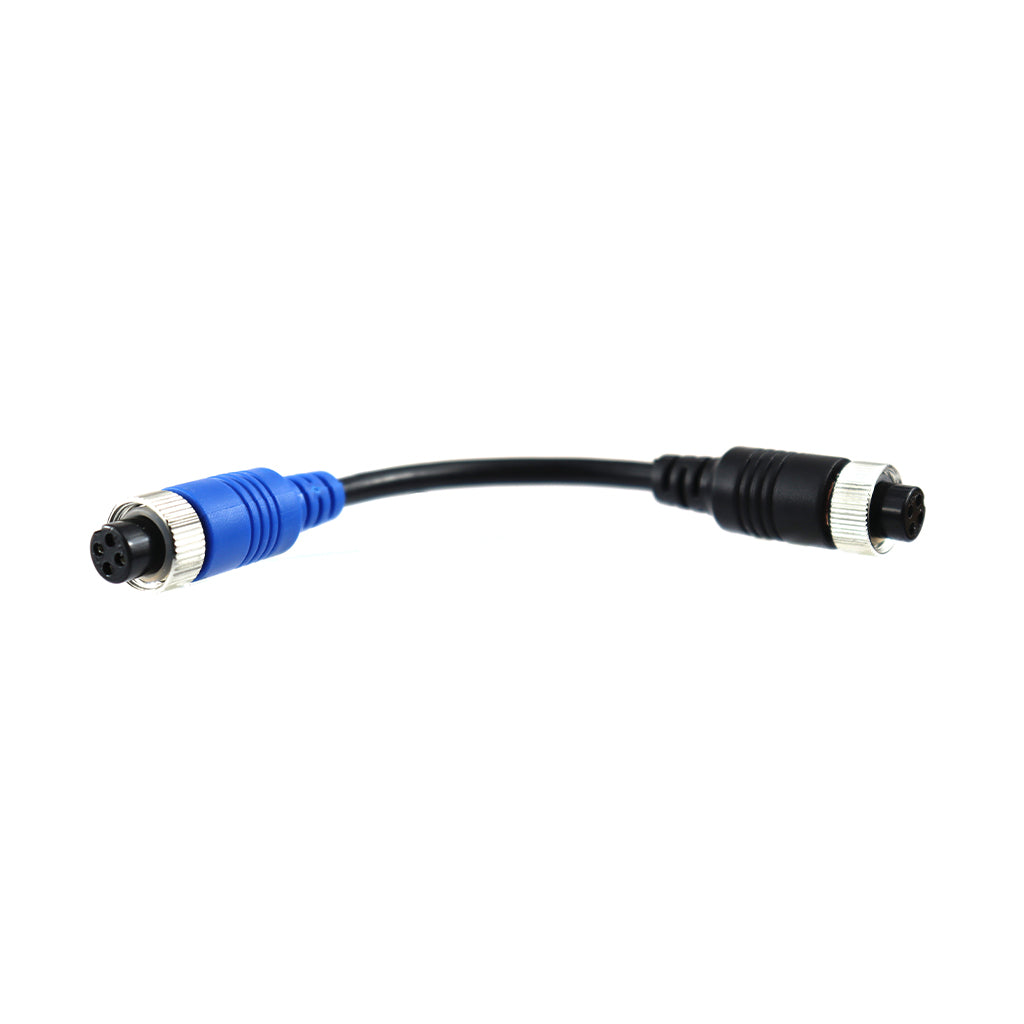

AXIS HDC/AX-F - 4-Pin (F) to Universal 4-Pin (F) Converter
Pin configuration converter cable featuring AXIS 4-pin female to Universal 4-pin female aviation connector compatibility, flexible pin arrangement conversion, camera-to-monitor signal adaptation, weatherproof aviation-grade construction, and compatibility bridge enabling AXIS proprietary pinout devices to connect with universal standard 4-pin equipment in vehicle camera and monitoring systems.
Product Overview
The AXIS HDC/AX-F allows for flexible pin configuration offering the ability to switch from AXIS type to Universal type. This converter cable solves compatibility challenges between AXIS proprietary 4-pin pinout configuration and universal standard 4-pin pinout used by various camera and monitor manufacturers. The 4-pin aviation connector format maintains weatherproof sealing and vibration resistance essential for vehicle applications while converting signal pin arrangement between incompatible standards. AXIS brand cameras, monitors, and extension cables utilize specific pin configuration placing power, ground, and video signals on designated pins within 4-pin aviation connector. Universal standard equipment from other manufacturers uses different pin arrangement placing identical signals on different pin positions within physically identical 4-pin aviation connector. Without this converter, physically compatible connectors fail to establish proper electrical connection because power may connect to video pin, ground to power pin, or other incorrect pin mapping causing equipment malfunction or damage. This adapter cable features AXIS 4-pin female connector on one end accepting male connectors from AXIS equipment such as cameras or extension cables. The opposite end features Universal 4-pin female connector accepting male connectors from universal standard equipment such as monitors or recorders utilizing industry-standard pinout. Internal wiring within converter cable routes signals from AXIS pin positions to corresponding universal pin positions ensuring proper power, ground, and video signal connections. The female-to-female configuration enables inline installation between existing male-terminated camera cables and male-terminated monitor input cables without requiring connector removal or cable modification. Aviation-grade connector construction provides IP67-rated weatherproof sealing protecting internal connections from moisture ingress, dust contamination, and corrosive salt spray typical in marine, agricultural, and mining vehicle applications. Threaded coupling nuts on both connectors ensure secure mechanical connection resistant to vibration, shock, and cable tension preventing accidental disconnection during vehicle operation. Gold-plated contact pins minimize electrical resistance and prevent corrosion ensuring reliable signal transmission and power delivery over extended service life in harsh environmental conditions. Compact inline design minimizes additional cable bulk and maintains installation flexibility in confined spaces typical of vehicle wiring harnesses and equipment mounting locations.
Features & Benefits
AXIS to Universal Pin Conversion Bridges compatibility gap between AXIS proprietary 4-pin pinout and universal standard 4-pin configuration enabling equipment from different manufacturers to interconnect properly. This compatibility eliminates need to replace entire camera systems or monitors when upgrading or mixing equipment brands reducing total system cost.
Female-to-Female Configuration Both ends feature female connectors accepting male plugs from cameras and monitors enabling inline installation without cutting cables or removing existing connectors. This preserves original equipment cables maintaining manufacturer warranties and simplifying future equipment changes or troubleshooting.
Aviation-Grade Weatherproof Construction IP67-rated sealing protects electrical connections from moisture, dust, and environmental contamination typical in outdoor vehicle applications. This weatherproofing ensures reliable operation in rain, dust storms, vehicle washing, and extreme humidity conditions preventing corrosion-related failures.
Threaded Locking Mechanism Coupling nuts on both connectors provide secure mechanical connection resistant to vibration and accidental disconnection. This positive locking prevents intermittent connections or complete disconnection during vehicle operation over rough terrain maintaining continuous monitoring capability.
Gold-Plated Contact Pins Gold plating on electrical contacts minimizes contact resistance and prevents oxidation ensuring long-term signal integrity and power delivery reliability. Standard tin or nickel contacts corrode over time increasing resistance and causing video signal degradation or intermittent power delivery.
Compact Inline Design Minimal additional cable length and compact connector housings maintain wiring harness flexibility and enable installation in tight spaces. Bulky adapters or conversion boxes consume valuable mounting space and create cable management challenges in cramped vehicle installations.
Plug-and-Play Installation Simple connection between existing cables requires no tools, soldering, or technical expertise enabling quick field installation or system reconfiguration. This simplicity reduces installation labor costs and allows operators to perform equipment changes without specialized technical support.
Signal Integrity Preservation Quality internal wiring and proper shielding maintain video signal quality without introducing noise, interference, or voltage drop. Inferior adapters use inadequate wire gauge or poor shielding causing video distortion, power supply problems, or electromagnetic interference affecting camera and monitor performance.
Technical Specifications
| Specification |
Details |
| Model |
AXIS HDC/AX-F |
| Connector Type |
4-Pin Aviation |
| End 1 Configuration |
AXIS 4-Pin Female |
| End 2 Configuration |
Universal 4-Pin Female |
| Pin Conversion |
AXIS Pinout to Universal Standard Pinout |
| Gender |
Female to Female (F-F) |
| Weatherproof Rating |
IP67 Sealed |
| Coupling Method |
Threaded Locking Nuts |
| Contact Plating |
Gold-Plated Pins |
| Compatible Equipment |
Camera Systems, Monitors, Extension Cables |
| Application |
Vehicle Camera/Monitor Systems |
| Barcode/EAN |
9321886015508 |
Installation & Compatibility
Equipment Compatibility The HDC/AX-F converter enables connection between AXIS proprietary pinout equipment and universal standard pinout equipment. AXIS-compatible equipment includes AXIS brand cameras, monitors, and extension cables utilizing AXIS-specific pin configuration. Universal-compatible equipment includes monitors and cameras from manufacturers using industry-standard 4-pin pinout configuration. Verify equipment pinout specifications before purchasing converter to confirm compatibility requirements. Incorrect converter selection results in continued incompatibility despite physical connector compatibility.

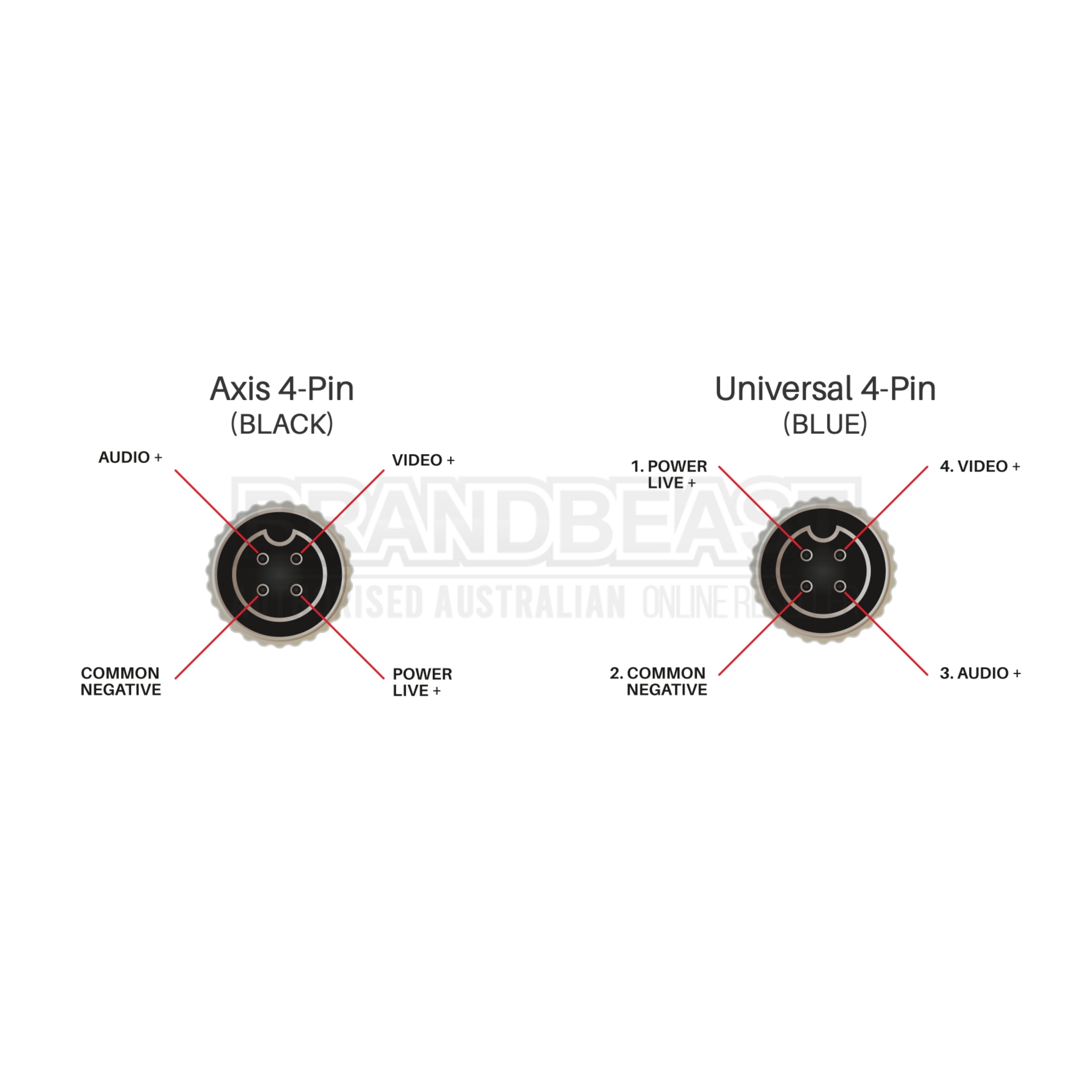

Pin Configuration Understanding 4-pin aviation connectors for camera systems typically carry power positive, ground negative, video signal positive, and video signal ground on four pins within connector. AXIS pinout assigns these signals to specific pin positions differing from universal standard pin position assignments. This converter internally routes signals from AXIS pin positions to universal pin positions enabling proper electrical connection. Understanding this distinction prevents damage from connecting incompatible equipment without appropriate converter.
Connection Process Connect AXIS 4-pin female end of converter to male connector from AXIS equipment such as camera cable or AXIS monitor input cable. Connect Universal 4-pin female end of converter to male connector from universal standard equipment such as camera cable or universal monitor input cable. Ensure threaded coupling nuts engage fully and tighten hand-tight preventing moisture ingress and securing mechanical connection. Verify correct converter orientation matching AXIS equipment to AXIS converter end and universal equipment to universal converter end.
System Testing After Installation After connecting converter between equipment, power system and verify video display appears on monitor confirming proper pin mapping and signal routing. Test image should show clear video without distortion, color abnormalities, or interference indicating successful conversion. If video fails to appear, verify converter orientation ensuring AXIS equipment connects to AXIS converter end and universal equipment connects to universal end. Check all coupling nuts tightened securely and inspect connectors for damaged pins or contamination.
Cable Management Position converter in accessible location enabling future disconnection for system maintenance or equipment replacement without disassembling surrounding components. Secure converter cable to vehicle structure using cable ties preventing excessive movement that could stress connectors or cause vibration-induced wear. Protect converter from sharp edges, moving components, and high-heat sources that could damage cable insulation or connector housings.
Multiple Converter Use In systems with multiple cameras, separate converter may be required for each camera connection if mixing AXIS and universal equipment. Label converters identifying which camera or monitor connection each serves simplifying future troubleshooting and maintenance. Alternatively, use consistent pinout standard throughout system avoiding need for multiple converters by selecting all AXIS or all universal equipment during initial purchase.
Frequently Asked Questions
How do I know if I need this converter?
You need the HDC/AX-F converter when connecting AXIS proprietary pinout equipment to universal standard pinout equipment in 4-pin aviation connector camera systems. If connecting AXIS camera to universal monitor (or vice versa) and video fails to display despite proper physical connection, incompatible pin configurations are likely cause. AXIS equipment and universal equipment use different pin position assignments for power, ground, and video signals within physically identical 4-pin aviation connectors. This converter bridges the gap by routing signals from AXIS pin positions to corresponding universal pin positions. Check equipment specifications or contact manufacturers to determine pinout standard used. If mixing equipment brands and experiencing connection issues, this converter typically resolves compatibility problems.
Can I use this converter in both directions?
Yes, the HDC/AX-F functions bidirectionally converting either AXIS-to-Universal or Universal-to-AXIS depending on connection orientation. Connect AXIS equipment to the AXIS female end and universal equipment to the Universal female end regardless of whether AXIS device is camera or monitor. For example, connecting AXIS camera to universal monitor requires AXIS camera male connector into AXIS converter female end and universal monitor male cable into universal converter female end. Conversely, connecting universal camera to AXIS monitor reverses orientation with universal camera connecting to universal converter end and AXIS monitor connecting to AXIS converter end. The converter simply routes signals between pin positions functioning equally well in either direction.
Will this converter affect video quality?
The HDC/AX-F maintains video signal integrity without introducing noticeable quality degradation when properly installed. Quality internal wiring and gold-plated contacts minimize resistance and signal loss preserving original video quality from camera to monitor. However, converter introduces additional connection points which could potentially affect signal if connectors become corroded or contaminated over time. Ensure coupling nuts tighten securely maintaining weatherproof seal and inspect connectors periodically for corrosion or damage. Proper maintenance preserves video quality throughout converter service life. Any video quality issues typically result from incompatible equipment or damaged cables rather than converter itself when converter selected correctly for application.
