Description

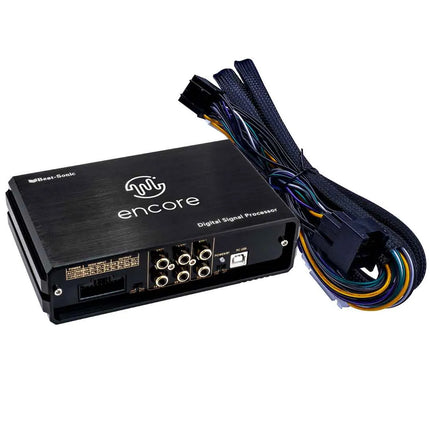

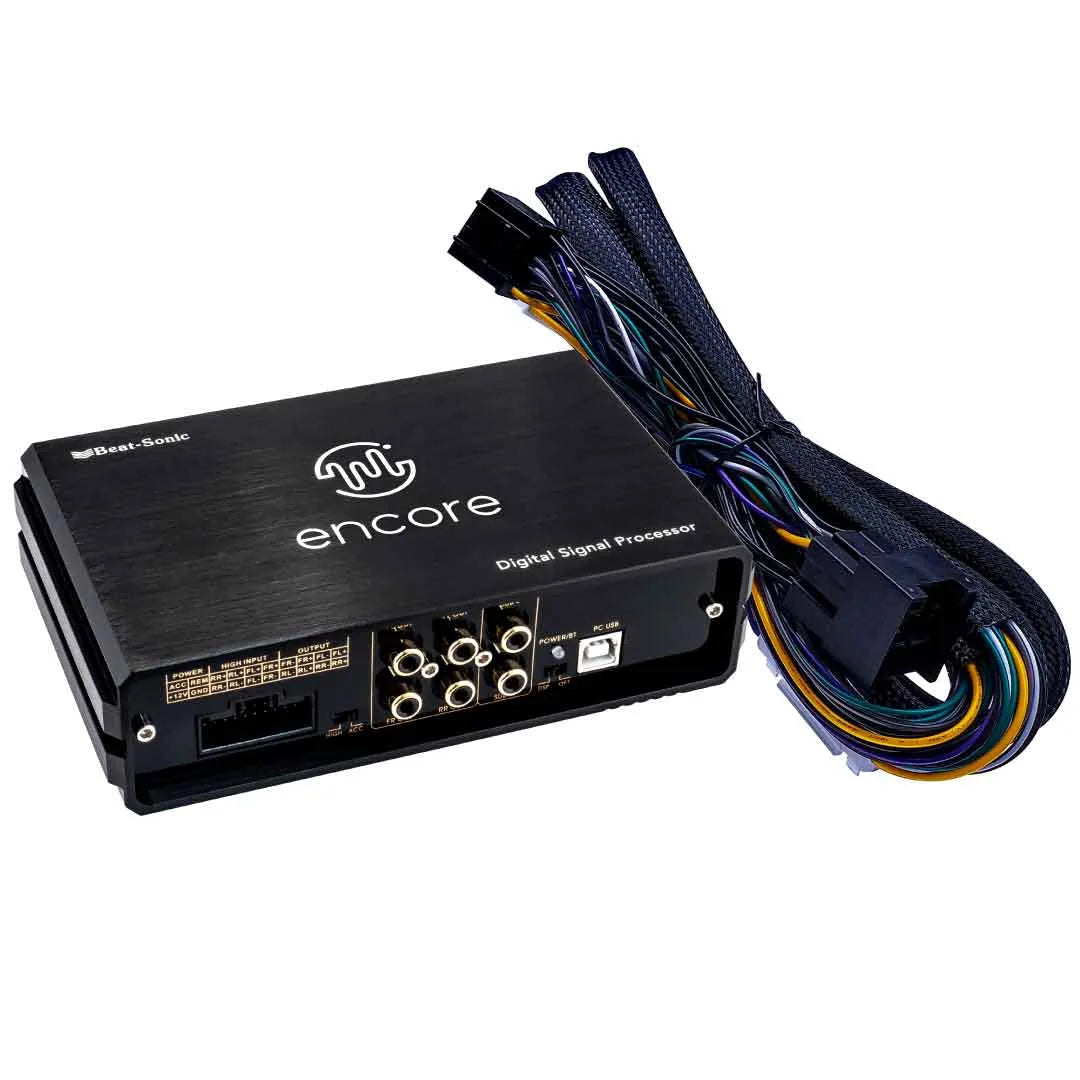

Beat-Sonic DSP-FO3 Encore X DSP Amplifier Suitable for Ford Ranger / VW Amarok
Transform the sound quality of your factory audio system with the Beat-Sonic DSP-FO3 Encore X DSP Amplifier — engineered specifically for the 2022+ Ford Ranger and 2023+ Volkswagen Amarok.
Your vehicle’s infotainment system is integral to its functionality, making head unit replacements impractical. However, improving audio performance is easy with the Encore X DSP amplifier. Designed by Beat-Sonic, this small-form factory upgrade delivers significantly louder output, improved clarity, and an enhanced overall sound experience all while retaining your factory head unit and speakers.
Featuring a 100% plug-and-play installation process, the Encore X DSP amplifier connects directly via the included T-Harness. No cutting, no splicing, and no factory wiring modifications required.
Key Features & Benefits:
-
100% Plug & Play Installation: No cutting, splicing, or additional harnesses required.
-
Custom DSP Audio Tuning: Preloaded DSP tune optimized for Ford Ranger (’22+) and VW Amarok (’23+).
-
Compact & Discreet Design: Ultra-compact amplifier installs seamlessly into your factory system.
-
Superior Sound Quality: Delivers more clarity and balanced power output across lows, mids, and highs.
-
Factory System Retention: Keep your OEM infotainment system, head unit, and factory speakers.
-
Future Upgrade Ready: Integrated RCA outputs for subwoofers or additional amplifiers.
-
Customizable DSP Settings: Adjustable tuning via downloadable Beat-Sonic software.
Technical Specifications:
-
Model: DSP-FO3
-
SKU: DSP-FO3
-
Brand: Beat-Sonic
-
Type: DSP Amplifier
-
Channels: 4-Channel Class AB Amplifier
-
Power Output: 45W x 4CH @ 4Ω
-
Speaker Impedance: 4Ω
-
Audio Inputs: 4 x Speaker High-Level Inputs
-
Audio Outputs: 4 x Speaker Outputs & 6 x RCA (2.2V P-P)
-
DSP Resolution: 24-Bit
-
Sampling Rate: 48kHz
-
Crossover Options: Bypass, Bandpass, Lowpass, High-Pass
-
Frequency Range: 20Hz - 22kHz (31 Bands)
-
THD: 0.01%
-
Operating Voltage: DC 10V - 15V
-
Quiescent Current: 350mA
-
Fuse: 15A
-
Dimensions: 170mm (W) x 103mm (D) x 45mm (H)
-
Weight: 625g (excluding T-Harness)
What's Included in the Kit:
- Beat-Sonic DSP-FO3 Encore X DSP Amplifier
- Vehicle-Specific Plug & Play T-Harness
- Installation Guide
Compatibility Notes:
- Compatible with the following vehicles without factory amplifiers:
-
Ford Ranger Next-Gen (2022+) — 12" or 10" Sync 4 systems with 6-speaker audio.
-
Volkswagen Amarok (2023+) — 12" or 10" infotainment systems with 6-speaker audio.
-
Not Compatible with vehicles equipped with factory B&O or Harman Kardon systems.
Installation Applications:
-
Ford Ranger Audio Upgrade: Enhance sound performance while retaining OEM integration.
-
Volkswagen Amarok Audio Upgrade: Achieve a premium sound experience without replacing the factory head unit.
-
Factory-Look Installation: Maintain a clean, OEM aesthetic with hidden amplifier placement.
Frequently Asked Questions
-
Do I need to replace my head unit?
No, the Encore X integrates seamlessly with your existing infotainment system.
-
Is installation plug-and-play?
Yes, the included T-Harness allows full integration without cutting or splicing wires.
-
Can I add a subwoofer later?
Yes, the built-in RCA outputs allow for future upgrades like subwoofers or additional amplifiers.
-
Does this work with factory B&O or Harman Kardon systems?
No, it is only compatible with non-amplified OEM systems.
-
Is tuning customizable?
Yes, DSP settings can be customized using downloadable Beat-Sonic software.
