Description

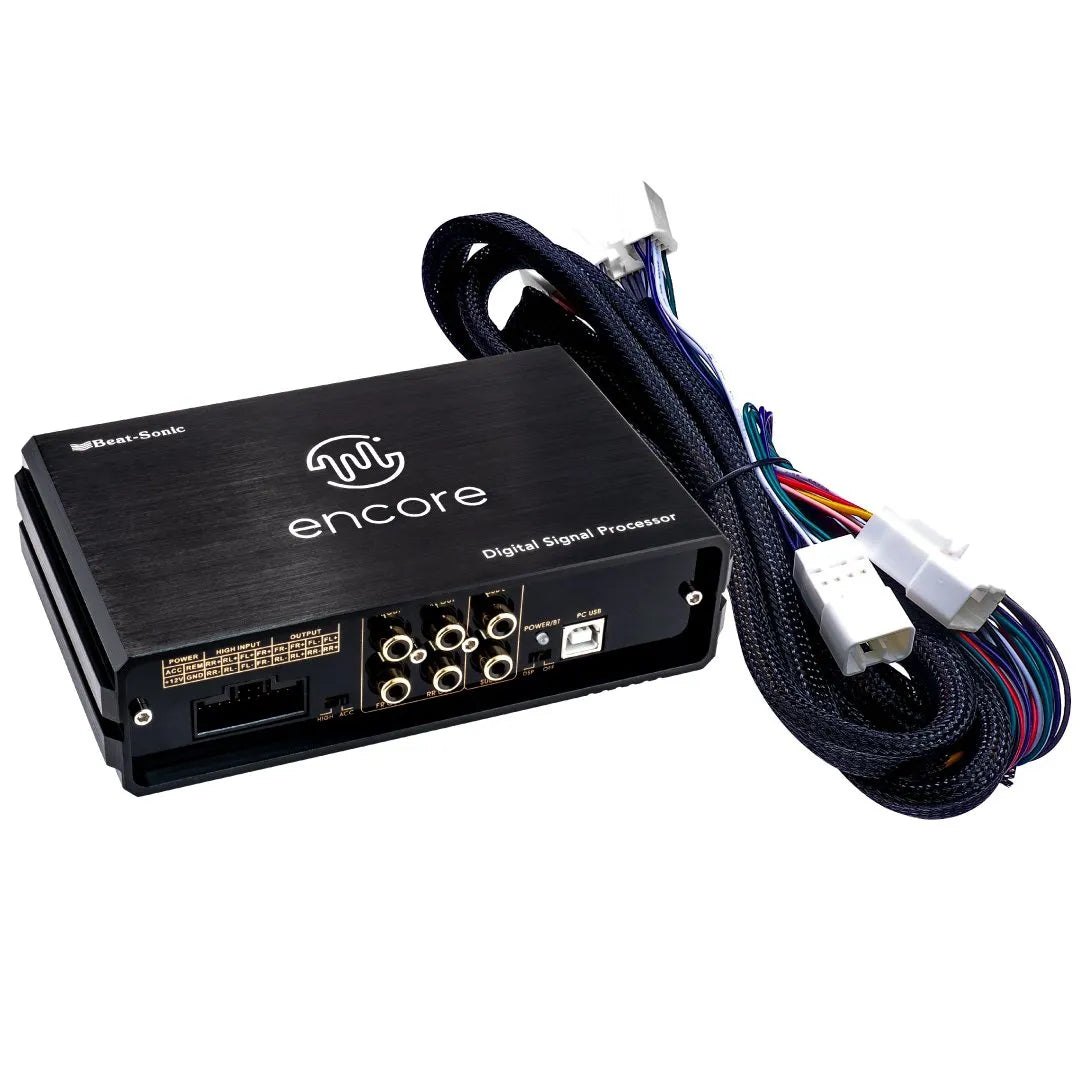

Beat-Sonic DSP-NI1 Encore X DSP Amplifier - Select Nissan Vehicles
Plug-and-play DSP amplifier system that transforms factory Nissan audio without speaker replacement
The Beat-Sonic DSP-NI1 Encore X DSP Amplifier delivers professional audio enhancement for select Nissan vehicles through compact, plug-and-play installation that integrates seamlessly with factory stereo systems. This ultra-compact Class AB amplifier features custom DSP tuning specifically engineered for Nissan factory speakers, providing 45W x 4 channels with 24-bit DSP processing and 48kHz sampling rate.
Designed exclusively for Nissan Navara 2020-2024 models with 8-inch factory screens (without factory amplifier), this system significantly improves sound quality across low, mid, and high frequency ranges while maintaining all factory functionality. The system includes high-level speaker inputs and additional RCA inputs for enhanced audio source quality.
Beat-Sonic DSP-NI1 Key Features & Benefits:
-
Factory Speaker Enhancement: Transforms existing speakers through custom DSP tuning without replacement
-
Plug-and-Play Installation: Direct integration with factory wiring harness requires no cutting or modification
-
Custom Nissan DSP Tune: Pre-configured audio processing optimized specifically for Nissan factory speaker characteristics
-
Ultra-Compact Design: 45mm height allows installation in tight factory spaces without modification
-
24-Bit DSP Processing: Professional-grade digital signal processing with 48kHz sampling rate
-
Dual Input Capability: Factory high-level inputs plus additional RCA inputs for source flexibility
Technical Specifications:
-
Model: Beat-Sonic DSP-NI1
-
SKU: DSP-NI1
-
Amplifier Type: Class AB, 4 channels
-
Power Output: 45W x 4CH (4 ohm)
-
Speaker Impedance: 4 ohm
-
Audio Inputs: 4x speaker high level, additional RCA high level
-
Audio Outputs: 4x speaker output, 6x RCA (2.2V P-P)
-
DSP Resolution: 24-bit processing
-
Sampling Rate: 48kHz
-
Crossover Options: Bypass, bandpass, lowpass, highpass
-
Frequency Range: 20Hz - 22kHz (31 bands)
-
THD: 0.01% (total harmonic distortion)
-
Operating Voltage: DC 10V - 15V
-
Quiescent Current: 350mA
-
Fuse Rating: 15A
-
Dimensions: 170mm W x 103mm D x 45mm H
-
Weight: 625g (excluding T-harness)
Vehicle Compatibility:
-
Nissan Navara: 2020-2024 models with 8-inch factory screen
-
Important Requirement: Vehicles without factory amplifier only
-
Factory Integration: Maintains all OEM functionality and appearance
Installation Applications:
-
Nissan Navara Upgrades: Audio enhancement for dual-cab utes without losing factory warranty
-
Commercial Fleet: Professional audio improvement for work vehicles
-
Family Vehicle Enhancement: Improved audio quality for daily driving and long trips
-
OEM-Plus Builds: Enthusiast installations maintaining factory appearance and functionality
Frequently Asked Questions
Will this work with my 2023 Nissan Navara? Yes, compatible with 2020-2024 Navara models with 8-inch factory screen (non-amplified systems only).
Do I need to replace my factory speakers? No, the custom DSP tune is specifically designed to enhance factory speaker performance.
Will this void my vehicle warranty? Plug-and-play installation maintains factory wiring integrity - consult dealer for warranty specifics.
Can I adjust the sound settings? System comes pre-tuned for optimal Nissan performance - professional adjustment may be available.
How does installation work? Direct plug-in to factory harness with custom T-harness - professional installation recommended.
