Description

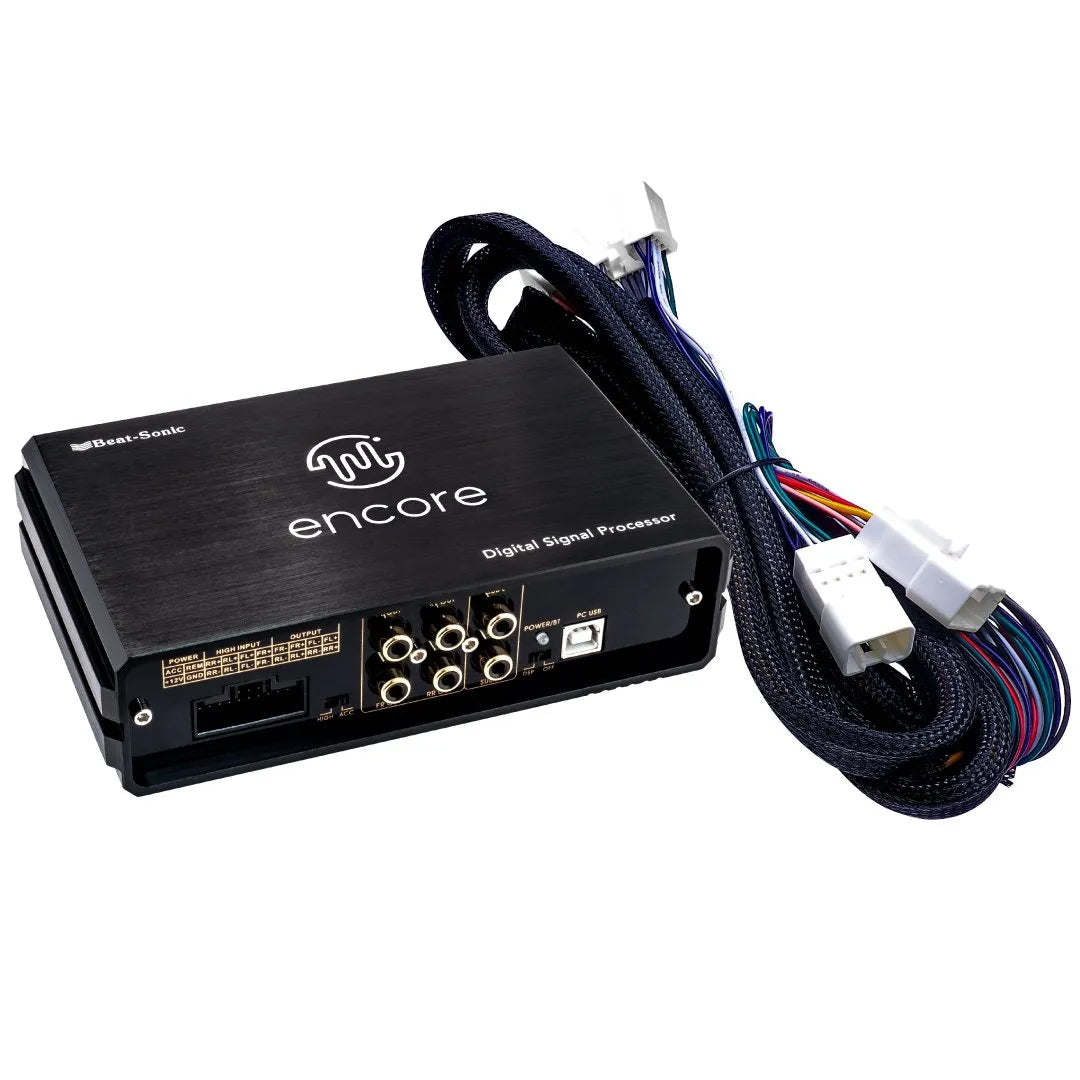

Beat-Sonic DSP-TO1 Encore X DSP Amplifier - Select Toyota Vehicles
Plug-and-play DSP amplifier system that transforms factory Toyota audio without speaker replacement
The Beat-Sonic DSP-TO1 Encore X DSP Amplifier delivers professional audio enhancement for select Toyota vehicles through compact, plug-and-play installation that integrates seamlessly with factory stereo systems. This ultra-compact Class AB amplifier features custom DSP tuning specifically engineered for Toyota factory speakers, providing 45W x 4 channels with 24-bit DSP processing and 48kHz sampling rate.
Designed exclusively for Toyota GR86 and Subaru BRZ 2023+ models with 6-speaker audio systems (without factory amplifier), this system significantly improves sound quality across low, mid, and high frequency ranges while maintaining all factory functionality. The system includes high-level speaker inputs and additional RCA inputs for enhanced audio source quality.
Beat-Sonic DSP-TO1 Key Features & Benefits:
-
Factory Speaker Enhancement: Transforms existing speakers through custom DSP tuning without replacement
-
Plug-and-Play Installation: Direct integration with factory wiring harness requires no cutting or modification
-
Custom Toyota DSP Tune: Pre-configured audio processing optimized specifically for Toyota factory speaker characteristics
-
Ultra-Compact Design: 45mm height allows installation in tight factory spaces without modification
-
24-Bit DSP Processing: Professional-grade digital signal processing with 48kHz sampling rate
-
Dual Input Capability: Factory high-level inputs plus additional RCA inputs for source flexibility
Technical Specifications:
-
Model: Beat-Sonic DSP-TO1
-
SKU: DSP-TO1
-
Amplifier Type: Class AB, 4 channels
-
Power Output: 45W x 4CH (4 ohm)
-
Speaker Impedance: 4 ohm
-
Audio Inputs: 4x speaker high level, additional RCA high level
-
Audio Outputs: 4x speaker output, 6x RCA (2.2V P-P)
-
DSP Resolution: 24-bit processing
-
Sampling Rate: 48kHz
-
Crossover Options: Bypass, bandpass, lowpass, highpass
-
Frequency Range: 20Hz - 22kHz (31 bands)
-
THD: 0.01% (total harmonic distortion)
-
Operating Voltage: DC 10V - 15V
-
Quiescent Current: 350mA
-
Fuse Rating: 15A
-
Dimensions: 170mm W x 103mm D x 45mm H
-
Weight: 625g (excluding T-harness)
Vehicle Compatibility:
-
Toyota GR86: 2023+ models with 6-speaker audio system
-
Subaru BRZ: 2023+ models with 6-speaker audio system
-
Important Requirements: Vehicles without factory amplifier only
-
Not Compatible: Vehicles with factory JBL audio system
-
Factory Integration: Maintains all OEM functionality and appearance
Installation Applications:
-
Sports Car Audio Enhancement: GR86 and BRZ audio upgrade without losing factory warranty
-
Enthusiast Builds: Performance vehicle audio improvement maintaining OEM appearance
-
Daily Driver Enhancement: Improved audio quality for commuting and touring
-
OEM-Plus Philosophy: Professional audio upgrade preserving factory integration
Frequently Asked Questions
Will this work with my 2024 Toyota GR86? Yes, compatible with 2023+ GR86 models with 6-speaker system (non-JBL, non-amplified only).
Can I use this with a factory JBL system? No, this unit is specifically not compatible with factory JBL audio systems.
Do I need to replace my factory speakers? No, the custom DSP tune is specifically designed to enhance factory speaker performance.
Will this void my vehicle warranty? Plug-and-play installation maintains factory wiring integrity - consult dealer for warranty specifics.
Does this work with Subaru BRZ? Yes, 2023+ BRZ with 6-speaker system (same platform as GR86) is fully compatible.
