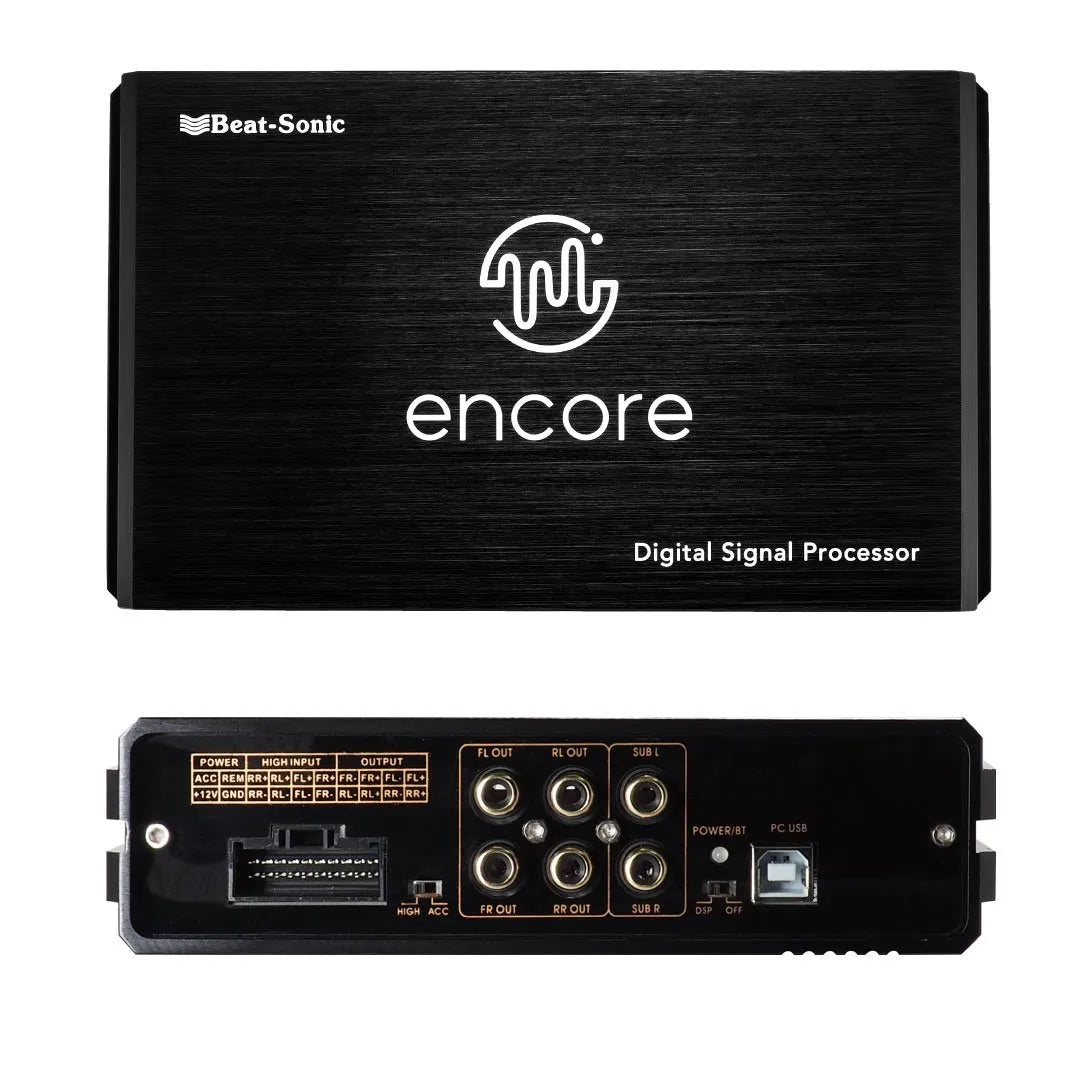

Beat-Sonic EX-DSP Encore X DSP Amplifier
Universal DSP amplifier with advanced tuning capabilities and system expansion options
The Beat-Sonic EX-DSP Encore X DSP Amplifier provides professional audio enhancement through advanced DSP technology combined with a built-in 4-channel Class AB amplifier. This universal system delivers 45W x 4 channels with 24-bit DSP processing, 6 RCA outputs including 2 dedicated subwoofer pre-outs, and downloadable DSP software for custom tuning. Unlike vehicle-specific models, this unit requires a separate vehicle-specific T-harness for installation.
Designed for advanced users seeking maximum flexibility, this amplifier offers system expansion capabilities with remote amp turn-on for powered subwoofers and aftermarket amplifier integration. The free DSP software tool allows detailed audio system parameter adjustment to suit individual listening preferences and vehicle acoustics.
Beat-Sonic EX-DSP Key Features & Benefits:
-
Advanced DSP Technology: 24-bit processing with 48kHz sampling rate and 31-band frequency adjustment
-
System Expansion Ready: 6 RCA outputs with 2 dedicated subwoofer pre-outs for future upgrades
-
Custom Tuning Software: Free downloadable DSP software for personalized audio parameter adjustment
-
Universal Application: Works with multiple vehicle brands using appropriate T-harness (sold separately)
-
Professional Audio Quality: Class AB amplification with 0.01% THD for audiophile performance
-
Future-Proof Design: Remote amp turn-on and multiple outputs for comprehensive system building
Technical Specifications:
-
Model: Beat-Sonic EX-DSP
-
SKU: EX-DSP
-
Amplifier Type: Class AB, 4 channels
-
Power Output: 45W x 4CH (4 ohm)
-
Speaker Impedance: 4 ohm
-
Audio Inputs: 4x speaker high level
-
Audio Outputs: 4x speaker output, 6x RCA (2.2V P-P)
-
Subwoofer Outputs: 2 dedicated RCA pre-outs
-
DSP Resolution: 24-bit processing
-
Sampling Rate: 48kHz
-
Crossover Options: Bypass, bandpass, lowpass, highpass
-
Frequency Range: 20Hz - 22kHz (31 bands)
-
THD: 0.01% (total harmonic distortion)
-
Operating Voltage: DC 10V - 15V
-
Quiescent Current: 350mA
-
Fuse Rating: 15A
-
Dimensions: 170mm W x 103mm D x 45mm H
-
Weight: 625g (excluding T-harness)
Required Accessories:
-
Vehicle-Specific T-Harnesses (sold separately):
- EX-FD3: Ford vehicle applications
- EX-N1: Nissan vehicle applications
- EX-T1: Toyota vehicle applications
- EX-T3: Toyota additional model applications
Installation Applications:
-
Custom Audio Builds: Enthusiast installations requiring advanced tuning and expansion capabilities
-
Multi-Brand Fleets: Universal solution for mixed vehicle fleets with appropriate harnesses
-
Professional Installations: Audio shops requiring flexible, tunable amplifier solutions
-
System Building: Foundation for comprehensive audio systems with subwoofer and amplifier expansion
-
Advanced Tuning Projects: Applications requiring detailed DSP parameter adjustment
Frequently Asked Questions
What T-harness do I need for my vehicle? Depends on your vehicle - EX-FD3 (Ford), EX-N1 (Nissan), EX-T1/EX-T3 (Toyota). Check compatibility charts.
Can I tune this myself? Yes, free DSP software allows advanced parameter adjustment, though professional tuning recommended for optimal results.
How many subwoofers can I connect? Features 2 dedicated subwoofer pre-outs plus additional RCA outputs for multiple subwoofer configurations.
Is professional installation required? Recommended due to DSP setup complexity and need for proper T-harness integration.
Can I add more amplifiers later? Yes, 6 RCA outputs and remote turn-on support comprehensive system expansion.
