Description

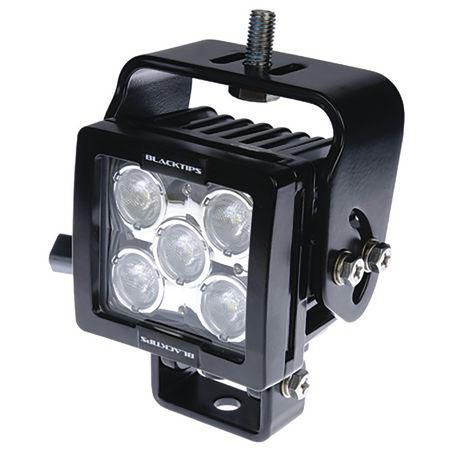

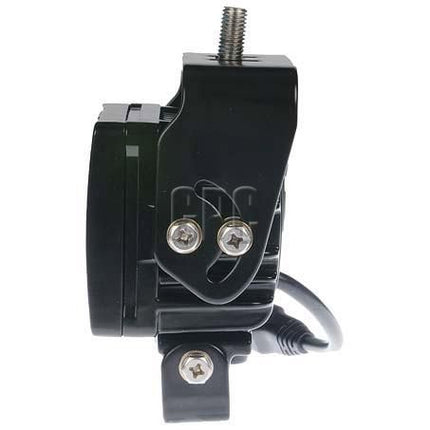

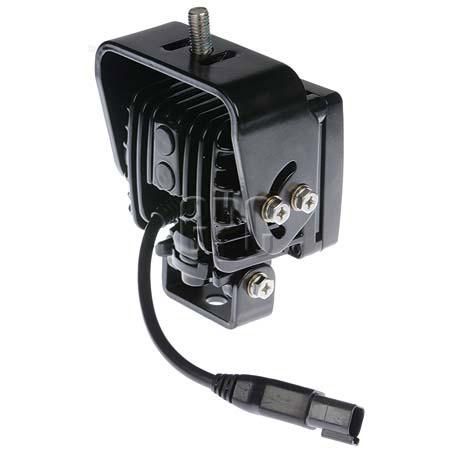

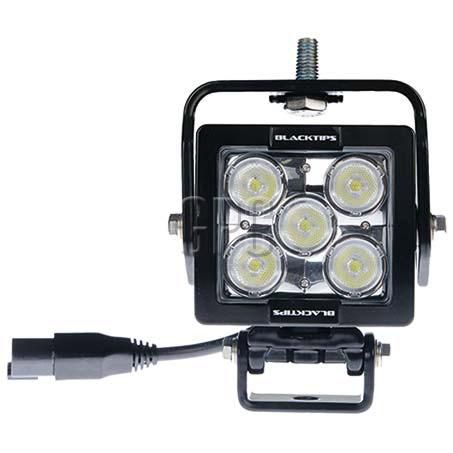

Blacktips BLB070560 5 LED Work Light 60DEG Wide Flood
Compact, marine-grade aluminium work light delivering a broad 60° wide flood beam with IP68/IP69K dual-rated protection, CISPR25 Class 1 EMC approval, and anti-corrosive coating engineered for 4WD, marine, agricultural, and heavy industrial applications requiring wide-area illumination.
Product Overview
The Blacktips BLB070560 is a purpose-built wide flood LED work light designed for demanding environments where broad area coverage, rugged durability, and corrosion resistance are essential. Housing 5 high-output LEDs in a compact 100 x 95 x 70mm aluminium body, this work light produces a wide 60° flood beam at a crisp 6000 Kelvin colour temperature, delivering expansive, high-definition white light ideal for close-range work zones, reversing illumination, equipment bays, and wide-area task lighting around vehicles and machinery. The BLB070560 carries a dual IP68 and IP69K ingress protection rating — the highest combined standard available — confirming full submersion resistance alongside protection against high-pressure, high-temperature washdowns. This makes the light equally at home on offshore marine vessels, agricultural washdown machinery, mining equipment, and construction plant subject to regular high-pressure cleaning. A marine-grade anti-corrosive coating on the aluminium body provides an additional layer of protection against salt spray, moisture, and harsh chemical environments, significantly extending service life in coastal and marine applications. CISPR25 Class 1 EMC approval ensures the light generates minimal electromagnetic interference, protecting sensitive vehicle electronics and communications equipment in trucks, vessels, and modern work vehicles. The DT04-2P deutsch-style connector provides a secure, weatherproof wiring connection that resists vibration-induced loosening — rated to 21.2G vibration resistance. Universal 9–32V input accepts both 12V and 24V vehicle electrical systems without modification, and the multiple bolt mount allows secure, stable positioning on equipment frames, machinery guards, bull bars, and roll cages where a wider mounting footprint is preferred.
Features & Benefits
60° Wide Flood Beam Pattern — Broad area illumination spreads light across a wide zone close to the vehicle or equipment, ideal for reversing, work zone lighting, equipment bays, loading areas, and applications where wide near-field coverage is required rather than long-throw spotlighting.
IP68 & IP69K Dual Rating — Full submersion rating combined with high-pressure washdown protection provides the highest available ingress protection standard. Suitable for marine applications, underground mining, and equipment subject to regular high-pressure cleaning.
Marine-Grade Anti-Corrosive Coating — Specialised protective coating on the aluminium body resists salt spray, moisture, and chemical exposure, making the BLB070560 a genuine long-term solution for coastal, offshore, and marine vessel applications.
CISPR25 Class 1 EMC Approved — Meets the highest electromagnetic compatibility standard for vehicle components, ensuring no interference with onboard radios, GPS, communications, or control systems across automotive, marine, and industrial applications.
6000 Kelvin Output — Pure white, daylight-spectrum colour temperature delivers excellent colour rendering and clarity for work tasks, providing fatigue-reducing visibility during extended night operations.
21.2G Vibration Resistance — Engineered to withstand extreme vibration levels from heavy machinery, off-road driving, and industrial equipment without compromising LED connections or optical integrity.
Aluminium Body Construction — Lightweight yet thermally efficient aluminium housing draws heat away from LEDs effectively, supporting consistent output and extended LED lifespan across demanding duty cycles.
DT04-2P Deutsch Connector — Industry-standard weatherproof connector provides a secure, moisture-resistant wiring termination resistant to vibration loosening and corrosion in harsh environments.
Multiple Bolt Mount — Multi-point mounting footprint provides a more stable, vibration-resistant installation platform compared to single bolt alternatives, ideal for heavy machinery, high-vibration equipment, and applications requiring a secure fixed position.
9–32V Universal Input — Compatible with 12V and 24V vehicle electrical systems, covering passenger 4WDs, light commercial vehicles, heavy trucks, agricultural machinery, and marine vessels without voltage adapters.
Technical Specs
| Specification |
Detail |
| Part Number |
BLB070560 |
| Voltage Input |
9–32V (12V or 24V compatible) |
| LEDs |
5 |
| Beam Pattern |
Wide Flood (60°) |
| Colour Temperature |
6000K |
| Lens Material |
Acrylic |
| Body Material |
Aluminium |
| Shape |
Square |
| Mount Type |
Multiple Bolt |
| Connector |
DT04-2P |
| Ingress Protection |
IP68, IP69K |
| EMC Compliance |
CISPR25 Class 1 |
| Vibration Rating |
21.2G |
| Coating |
Marine-Grade Anti-Corrosive |
| Dimensions (W×H×D) |
100 × 95 × 70mm |
| Weight |
1.3kg |
| Warranty |
Two Years |
Compatible With / Goes Well With
The Blacktips BLB070560 suits any 12V or 24V vehicle, vessel, or equipment requiring wide-area flood lighting in demanding environments. Primary applications include 4WD and off-road vehicles requiring broad reversing or campsite illumination, agricultural tractors and harvesters needing wide work zone coverage, construction plant and earthmoving equipment, mining trucks and underground machinery, commercial fishing vessels and offshore platforms, tow trucks and roadside assistance vehicles requiring wide side and rear lighting, and heavy trucks needing supplementary reversing or loading dock illumination.
Pairs well with complementary Blacktips narrow beam work lights such as the BLB070525 for combined wide/long-throw coverage setups, OEX emergency beacons and strobe lighting for comprehensive vehicle safety configurations, DT04-2P wiring harnesses and switch kits, and bull bar or roll cage mounting brackets for flexible positioning.
Frequently Asked Questions
What is the difference between the BLB070560 wide flood and the BLB070525 narrow beam?
The BLB070560 produces a 60° wide flood beam that spreads light broadly across a wide near-field zone, ideal for reversing, work areas, loading docks, and close-range illumination. The BLB070525 produces a 25° narrow beam that concentrates light into a tight, long-throw column for spotlighting and forward distance illumination. Pairing both provides a versatile combined near/far lighting setup for most 4WD, agricultural, and work vehicle applications.
What is the difference between IP68 and IP69K ratings?
IP68 certifies the light can withstand continuous submersion in water beyond 1 metre depth, while IP69K certifies protection against high-pressure, high-temperature water jets at close range (typically 80°C at 80–100 bar). Carrying both ratings simultaneously means the BLB070560 is protected against both prolonged water immersion and harsh pressure-washing — the most comprehensive ingress protection available for a work light.
Is this light suitable for saltwater marine environments?
Yes. The marine-grade anti-corrosive coating on the aluminium body provides specific protection against salt spray, sea mist, and moisture ingress that causes premature corrosion on standard work lights. Combined with the IP68/IP69K dual rating, the BLB070560 is built to withstand the demands of coastal and offshore marine applications.
What does CISPR25 Class 1 EMC approval mean?
CISPR25 is an international standard governing electromagnetic emissions from vehicle components. Class 1 is the strictest level, confirming the BLB070560 produces the minimum possible electromagnetic interference. This ensures the light will not disrupt onboard AM/FM radio, GPS navigation, UHF communications, or sensitive vehicle control electronics — particularly important for trucks, vessels, and work vehicles with complex electrical systems.
Why does the BLB070560 use a multiple bolt mount instead of a single bolt?
The multiple bolt mounting footprint distributes load across a wider surface area, providing a more stable and vibration-resistant installation compared to a single bolt pivot point. This is particularly valuable on high-vibration machinery, heavy trucks, and off-road equipment where a single bolt mount may allow the light to shift or loosen over time under sustained operational stress.
