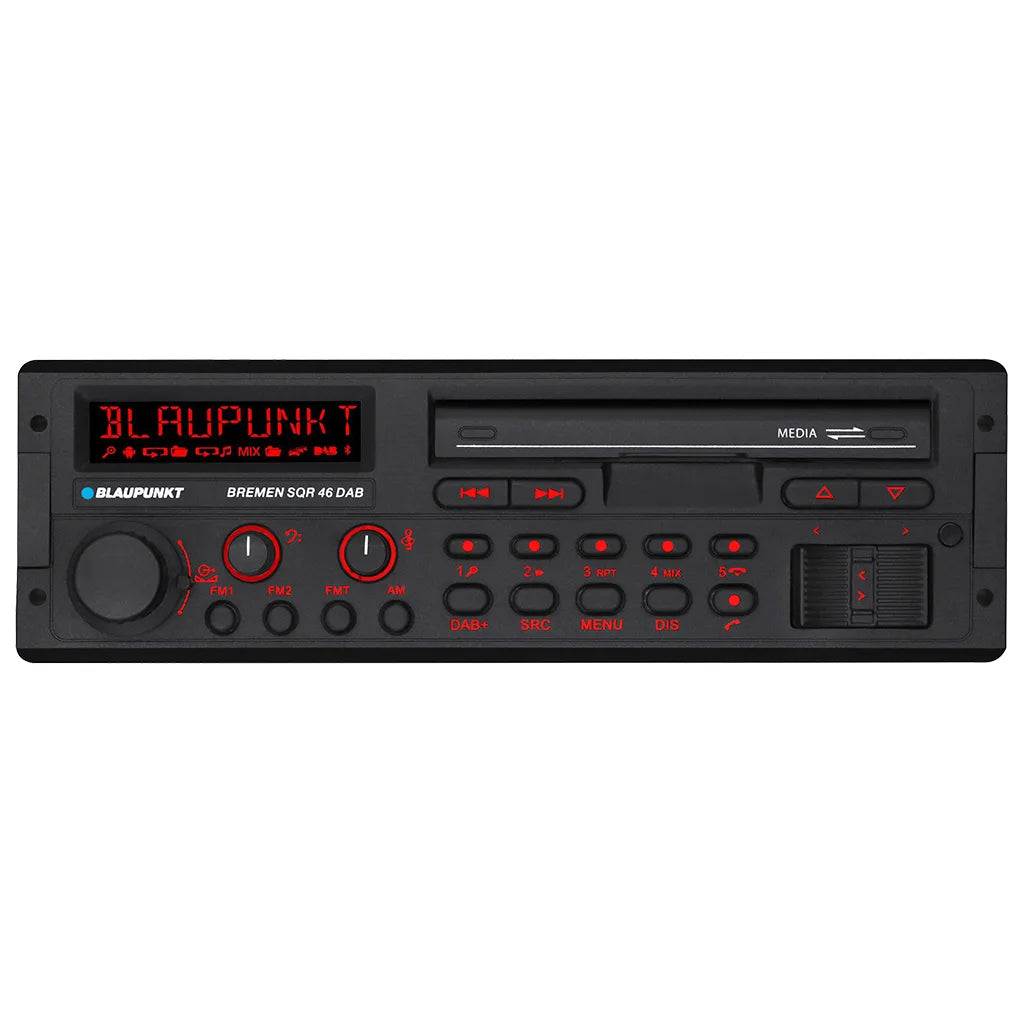

Blaupunkt Bremen SQR46 Retro Single DIN DAB+ Bluetooth Media Receiver
The Blaupunkt Bremen SQR46 is a single DIN car radio styled after the original 1986 Bremen SQR 46, combining retro aesthetics with modern audio technology. It features a built-in DAB+ tuner, FM/AM with RDS, Bluetooth with Twin-Connect, dual USB inputs, an SDHC slot, 4 x 50W max output, a 4-channel 4V preamp output, RGB Variocolor illumination, and a short mounting depth for vehicles with shallow installation shafts.
Product overview
The Blaupunkt Bremen SQR46 is a reinterpretation of the 1986 Blaupunkt Bremen SQR 46, retaining the styling of the original single DIN car radio while adding modern connectivity and digital radio capabilities. The front panel design mirrors the original model's layout, with RGB Variocolor button and display illumination replacing the fixed colours of the 1986 version.
Reception is handled by the High-End CODEM IV World-Tuner for FM with RDS and AM, alongside a built-in DAB+ tuner for digital radio access. Bluetooth with HFP, PBAP, A2DP, SPP, and AVRCP profiles supports hands-free calling, phonebook access, and wireless audio streaming. The Twin-Connect feature allows two Bluetooth devices to be connected simultaneously. Navigation audio mix allows turn-by-turn directions from a connected navigation device to blend over the audio output.
Media playback is handled via front USB, rear USB, or front SDHC slot supporting cards up to 32GB, with MP3 and WMA audio format support. A 3-band semi-parametric equaliser with sound presets, X-Bass, and a separate subwoofer output round out the audio control options. The short mounting depth makes the unit suitable for vehicles with shortened installation shafts where a standard depth single DIN unit would not fit. Permanent memory retains all settings even when the vehicle battery is disconnected.
Features and benefits
Built-in DAB+ digital radio tuner: The integrated DAB+ tuner provides access to digital radio broadcasts with clearer reception than FM, alongside the High-End CODEM IV World-Tuner for FM with RDS and AM coverage.
Bluetooth with Twin-Connect: Bluetooth supports HFP, PBAP, A2DP, SPP, and AVRCP profiles for hands-free calling, phonebook access, and wireless audio streaming. Twin-Connect allows two Bluetooth devices to be paired and active simultaneously.
Navigation audio mix: Navigation audio mix blends turn-by-turn directions from a connected navigation device over the head unit's audio output without requiring manual source switching.
Dual USB inputs with rear and front access: One front USB and one rear USB input support media playback and device connectivity, with the front USB providing convenient access for passengers.
Front SDHC slot up to 32GB: A front-mounted SDHC card slot supports cards up to 32GB for audio playback in MP3 and WMA formats.
4 x 50W max output with 4V preamp: Delivers 4 x 50W max power with a 4-channel 4V preamp output and a separate subwoofer output for flexible amplifier integration and system expansion.
3-band semi-parametric EQ with presets: A 3-band semi-parametric equaliser with Rock, Pop, and Classic sound presets, plus X-Bass enhancement, allows straightforward audio tuning without specialist knowledge.
RGB Variocolor display and button illumination: Full RGB colour selection for both the display and button illumination allows the lighting to be matched to the vehicle's interior colour scheme.
Short mounting depth: The reduced installation depth makes the Bremen SQR46 suitable for vehicles with shortened installation shafts where a standard single DIN unit would not sit flush or clear the cavity.
Permanent memory: All user settings are retained in permanent memory even when the vehicle battery is disconnected, removing the need to reconfigure the unit after battery changes or disconnections.
Steering wheel control input: A programmable steering wheel control input allows the head unit to be configured for compatibility with factory steering wheel audio controls via a compatible SWC interface.
Made for iPhone/iPod: Carries Made for iPhone/iPod certification, confirming compatibility with Apple devices connected via the USB input.
What's in the box
- Blaupunkt Bremen SQR46 single DIN receiver
- DAB+ windshield antenna
- External Bluetooth microphone
- IR remote control
Technical specs
| Specification |
Detail |
| SKU |
BREMEN SQR46 |
| DIN Size |
Single DIN |
| Tuner |
FM (RDS), AM, DAB+ |
| FM/AM Tuner |
High-End CODEM IV World-Tuner |
| Bluetooth Profiles |
HFP, PBAP, A2DP, SPP, AVRCP |
| Twin-Connect |
Yes |
| Navigation Audio Mix |
Yes |
| USB Inputs |
1 x front, 1 x rear |
| SDHC Slot |
1 x front, up to 32GB |
| Aux Input |
1 x front |
| Media Formats |
MP3, WMA |
| Max Power Output |
4 x 50W |
| Preamp Output |
4-channel, 4V |
| Subwoofer Output |
Yes, separate |
| EQ |
3-band semi-parametric |
| Sound Presets |
Rock, Pop, Classic |
| X-Bass |
Yes |
| Illumination |
RGB Variocolor (display and buttons) |
| Steering Wheel Control |
Yes, programmable input |
| Microphone |
Built-in and external |
| Mounting Depth |
Short mounting depth |
| Permanent Memory |
Yes |
| Remote Control |
IR remote control included |
Frequently asked questions
Does the Blaupunkt Bremen SQR46 support DAB+ digital radio out of the box?
Yes. The Bremen SQR46 has a built-in DAB+ tuner and includes a DAB+ windshield antenna in the box, so no additional hardware is required for digital radio reception.
What is Twin-Connect and how does it work?
Twin-Connect allows two Bluetooth devices to be paired and active simultaneously. This means a driver and passenger can both have their phones connected, with either device able to receive calls or stream audio without needing to disconnect and reconnect.
Will the Bremen SQR46 fit in a vehicle with a shallow installation shaft?
The Bremen SQR46 features a short mounting depth, making it suitable for vehicles with shortened installation shafts where a standard depth single DIN receiver would not fit. Contact us to confirm fitment for your specific vehicle before purchasing.
Does the Bremen SQR46 retain settings after the battery is disconnected?
Yes. The permanent memory function retains all user settings even when the vehicle battery is disconnected, so the unit does not need to be reconfigured after a battery change or disconnection.
Is a steering wheel control adaptor included with the Bremen SQR46?
No. The Bremen SQR46 includes a programmable steering wheel control input but the SWC adaptor is not included. A compatible aftermarket SWC interface is required for steering wheel control integration. Contact us for guidance on compatible SWC adaptors for your vehicle.
