Calibre ELITE 9WL 9 Inch Floating Wireless CP AA DAB+ Receiver
Experience premium in-car entertainment with wireless connectivity, crystal-clear DAB+ radio, and a stunning 9-inch high-resolution display that transforms your driving experience.
Product Overview

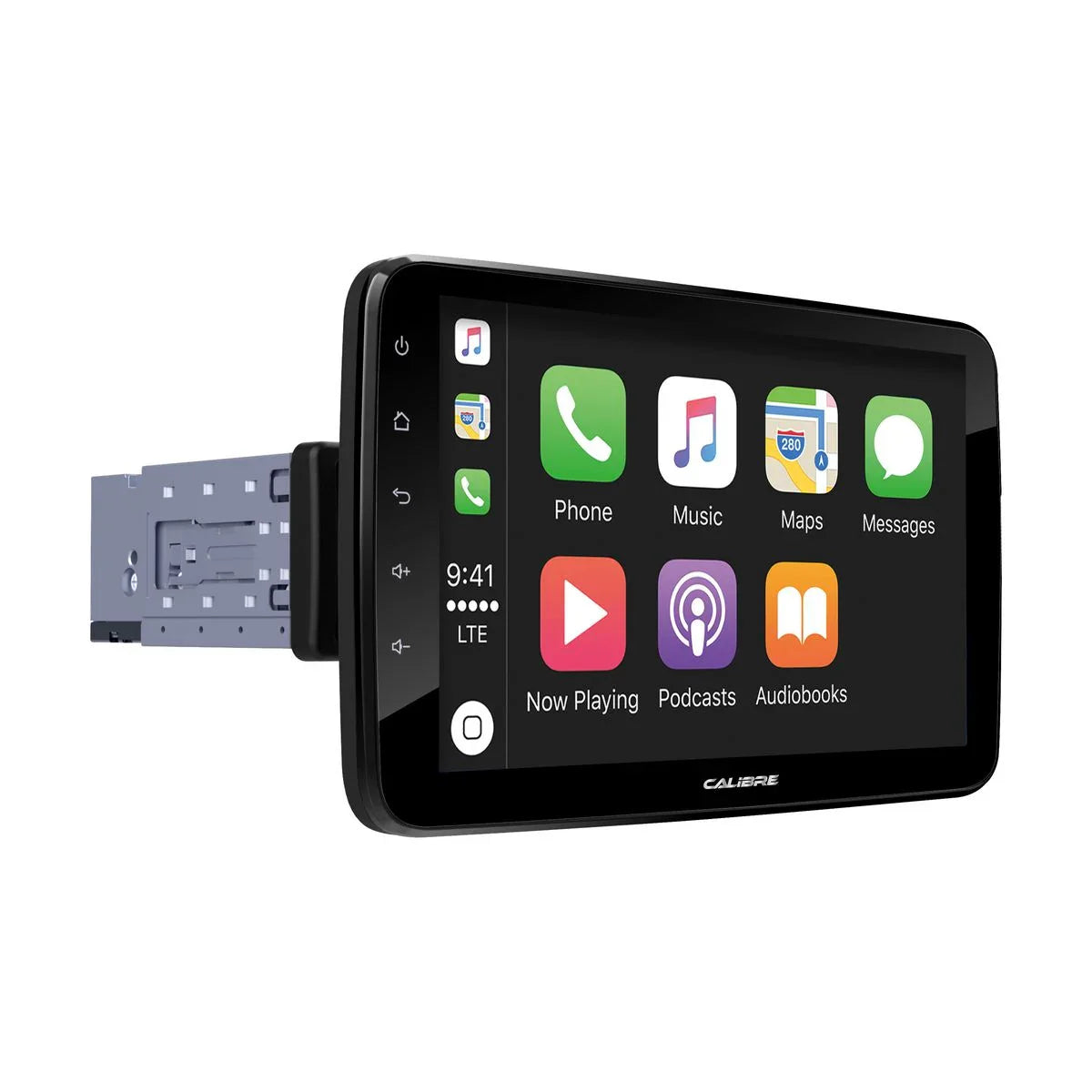

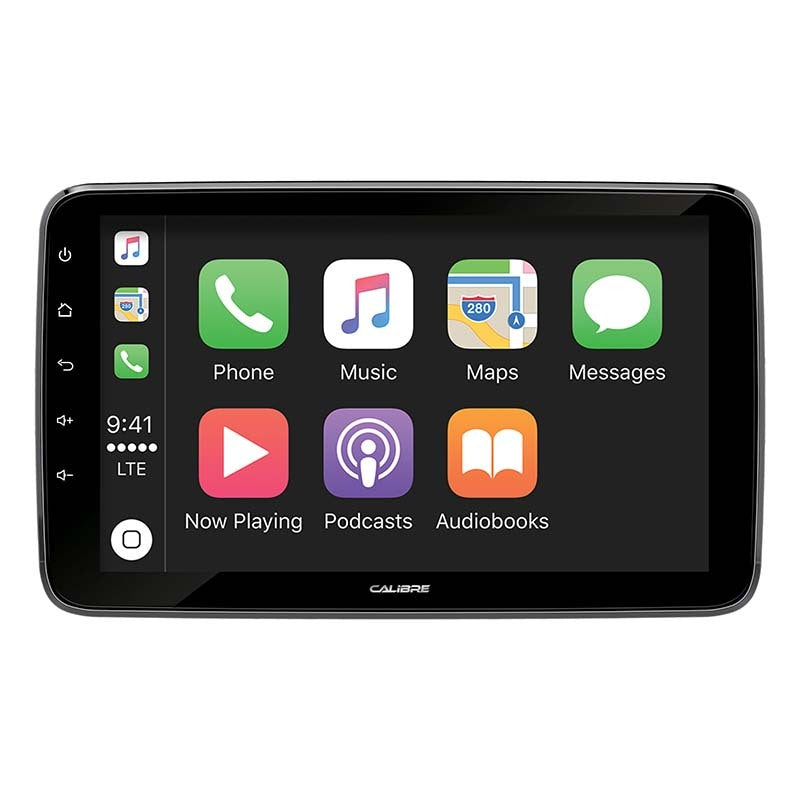

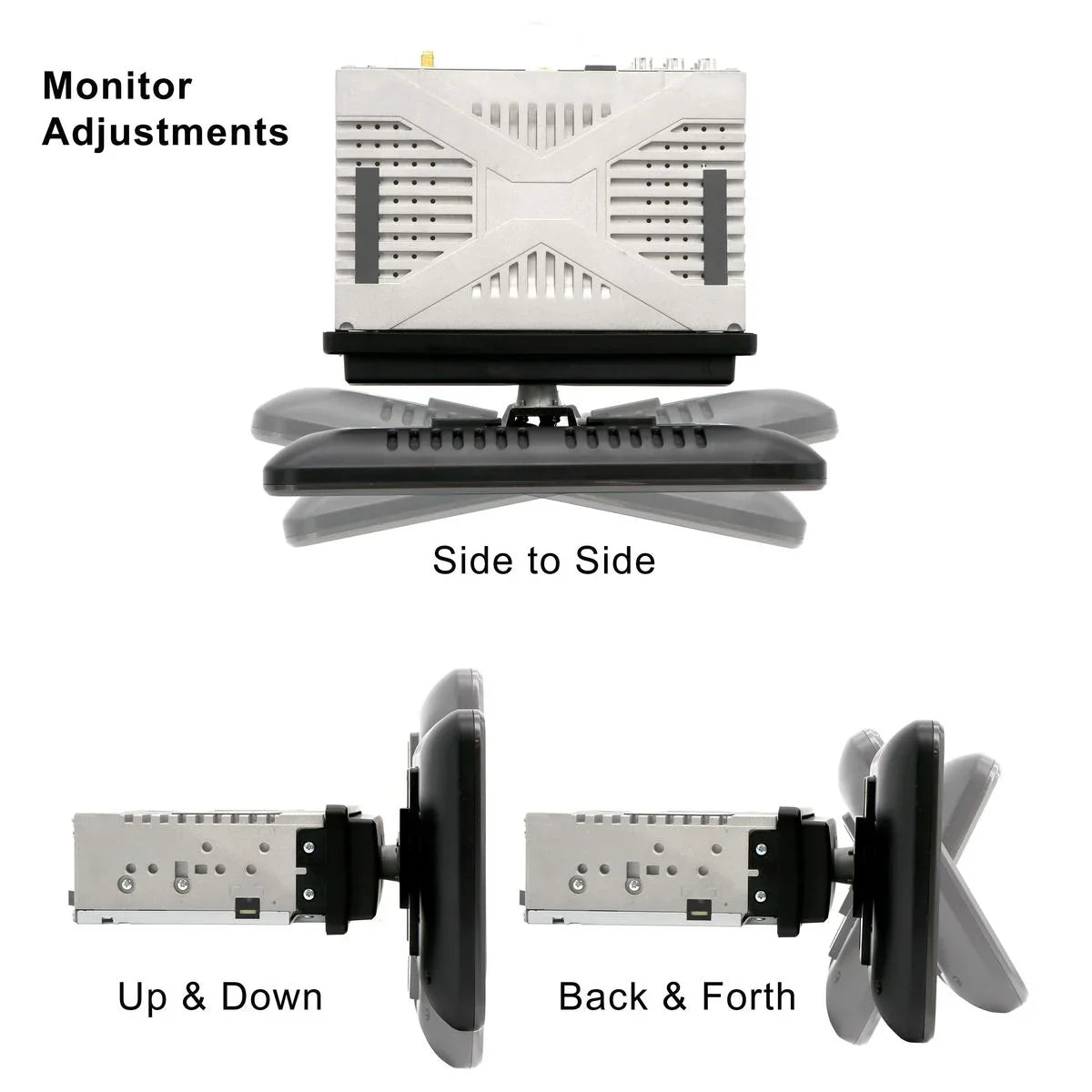

The Calibre ELITE 9WL is a cutting-edge 9-inch floating screen multimedia receiver loaded with premium features designed to enhance your entertainment experience. Enjoy seamless connectivity with wireless or wired Apple CarPlay® and Android Auto™, crystal-clear audio with DAB+ digital radio, and a high-resolution capacitive touchscreen for crisp visuals and responsive control. With dual camera inputs for convenient parking assistance, the ability to connect two phones simultaneously via Bluetooth, and built-in WiFi, this multimedia system delivers everything you need for the ultimate in-vehicle upgrade. The floating panel design offers a modern aesthetic that seamlessly integrates into your dashboard, while the Android 9 operating system ensures smooth performance and extensive functionality. Upgrade your ride with the ELITE 9WL and elevate your entertainment on the move.
Features & Benefits
The ELITE 9WL combines advanced technology with user-friendly features to create an exceptional driving experience. The wireless Apple CarPlay and Android Auto capability eliminates the need for cables while maintaining full smartphone integration for navigation, music, messaging, and calls. The built-in DAB+ tuner delivers superior radio reception with crystal-clear digital audio quality and the ELITE RDS AM/FM tuner provides comprehensive broadcast options. The 9-inch 1024x600 high-resolution capacitive touchscreen offers vibrant visuals and intuitive touch control, making every interaction effortless. Dual camera inputs support both front and rear cameras with multiple format compatibility including 720p and 1080p, providing comprehensive visibility for safe parking and reversing. The powerful audio system features 4x45W maximum power output, 16-band EQ for precise sound tuning, time alignment for optimal staging, and dedicated subwoofer output for enhanced bass response. Programmable steering wheel controls maintain safe, convenient operation without taking your hands off the wheel. The ability to connect two phones simultaneously means both driver and passenger can stay connected, while the comprehensive multimedia support handles all your favorite audio and video formats via three rear USB 2.0 ports and rear AV input.
Technical Specifications
| Category |
Specification |
| Display |
9 inch 1024x600 High Resolution Capacitive Touchscreen |
| Operating System |
Android 9 OS with Ultra Memory |
| Mounting |
ISO 1-DIN with Floating Panel Design |
| Floating Panel Dimensions |
238W x 143H mm |
| Body Dimensions |
178W x 50H mm |
| Power Requirements |
10.8~16V DC |
| Operating Temperature |
-20°C to +60°C |
| Speaker Impedance |
4-8 ohm |
| Navigation |
Via Apple CarPlay/Android Auto |
| Wireless Connectivity |
Built-in WiFi, Wireless/Wired CarPlay & Android Auto |
| USB Ports |
3x Rear USB 2.0 |
| Video Inputs |
1x Rear A/V RCA Input, 2x Camera Input (PAL/NTSC/720p/1080p) |
| Audio Formats |
AAC, APE, FLAC, MP3, WMA |
| Video Formats |
MPEG, H.264, MP4, AVI, MKV, FLV, WMV |
| Image Formats |
JPG, JPEG, PNG, BMP, GIF |
| Tuner Type |
PLL Synthesized AM/FM, ELITE RDS, DAB+ |
| FM Frequency |
87.5-108 MHz |
| AM Frequency |
531-1701 KHz |
| Presets |
18 FM, 12 AM |
| Max Power Output |
4x45W @ 4Ω |
| RMS Power Output |
4x20W @ 1KHz 1% THD 4Ω |
| Equalizer |
16 Band (62.5/100/160/250/400/500/600/700/1K/1.6K/2K/3K/4K/5K/7K/10K/16K Hz) |
| Subwoofer Low Pass Filter |
25/31.5/40/50/63/80/100/125/160/200/250 Hz |
| Time Alignment |
Front L/R, Rear L/R, Subwoofer |
| Pre-Out Voltage |
4x RCA 5V, 1x Sub RCA 5V |
| Bluetooth Features |
A2DP Audio Streaming, Hands Free Phone, Dual Phone Connect, Phonebook & Search, Call History |
| Microphone |
External HF Microphone Included |
| Steering Wheel Control |
Programmable |
| Included Accessories |
2x 1m USB Lead, 10cm USB Lead, DAB+ Antenna, GPS Antenna, WiFi Antenna, ISO Wiring Harness, Camera Harness, CANBUS Wiring Harness, Front Camera & MIC Harness, Surround Frame, Installation Cage, Removal Keys, External HF Mic |
Compatible With
The Calibre ELITE 9WL is designed for universal ISO 1-DIN installation and works with most vehicles equipped with standard single DIN mounting spaces. The floating panel design allows installation in various dashboard configurations. Compatible with both wired and wireless Apple CarPlay (iPhone 5 and later with iOS 7.1 or higher) and Android Auto (Android 5.0 Lollipop and later). Works seamlessly with aftermarket backup cameras supporting PAL, NTSC, 720p, or 1080p formats. Pairs perfectly with external amplifiers via the 5V RCA pre-outs, active subwoofers using the dedicated sub output, and steering wheel control interfaces for factory steering wheel button retention. The CANBUS harness enables integration with factory vehicle systems in supported models, while the programmable steering wheel control function adapts to various vehicle button configurations.
Frequently Asked Questions
Q: Does the Calibre ELITE 9WL support wireless Apple CarPlay and Android Auto?
A: Yes, the ELITE 9WL supports both wireless and wired Apple CarPlay and Android Auto connectivity. You can connect your compatible smartphone wirelessly via the built-in WiFi for a cable-free experience, or use a wired USB connection for charging while connected.
Q: Can I connect two phones to the Bluetooth simultaneously?
A: Yes, the ELITE 9WL allows you to connect two phones simultaneously via Bluetooth. This enables both driver and passenger to stay connected for calls, with easy switching between devices through the Bluetooth menu.
Q: What cameras are compatible with this headunit?
A: The ELITE 9WL features two camera inputs that support PAL, NTSC, 720p, and 1080p format cameras. This allows you to connect both front and rear cameras for comprehensive parking assistance. The included camera harness makes installation straightforward.
Q: Will this work with my factory steering wheel controls?
A: Yes, the ELITE 9WL features programmable steering wheel control functionality. When used with the included CANBUS wiring harness or an appropriate steering wheel control interface (vehicle-specific), you can retain and program your factory steering wheel buttons to control the headunit.
Q: Do I need any additional parts to install this in my vehicle?
A: The ELITE 9WL includes comprehensive installation accessories including ISO wiring harness, installation cage, surround frame, and removal keys. For a complete installation, you may need a vehicle-specific fascia panel, wiring harness adapter (if your vehicle doesn't have ISO standard wiring), and potentially an antenna adapter depending on your vehicle make and model.
