Automatic start-stop disabler engineered for Ford commercial and passenger vehicles
Product Overview

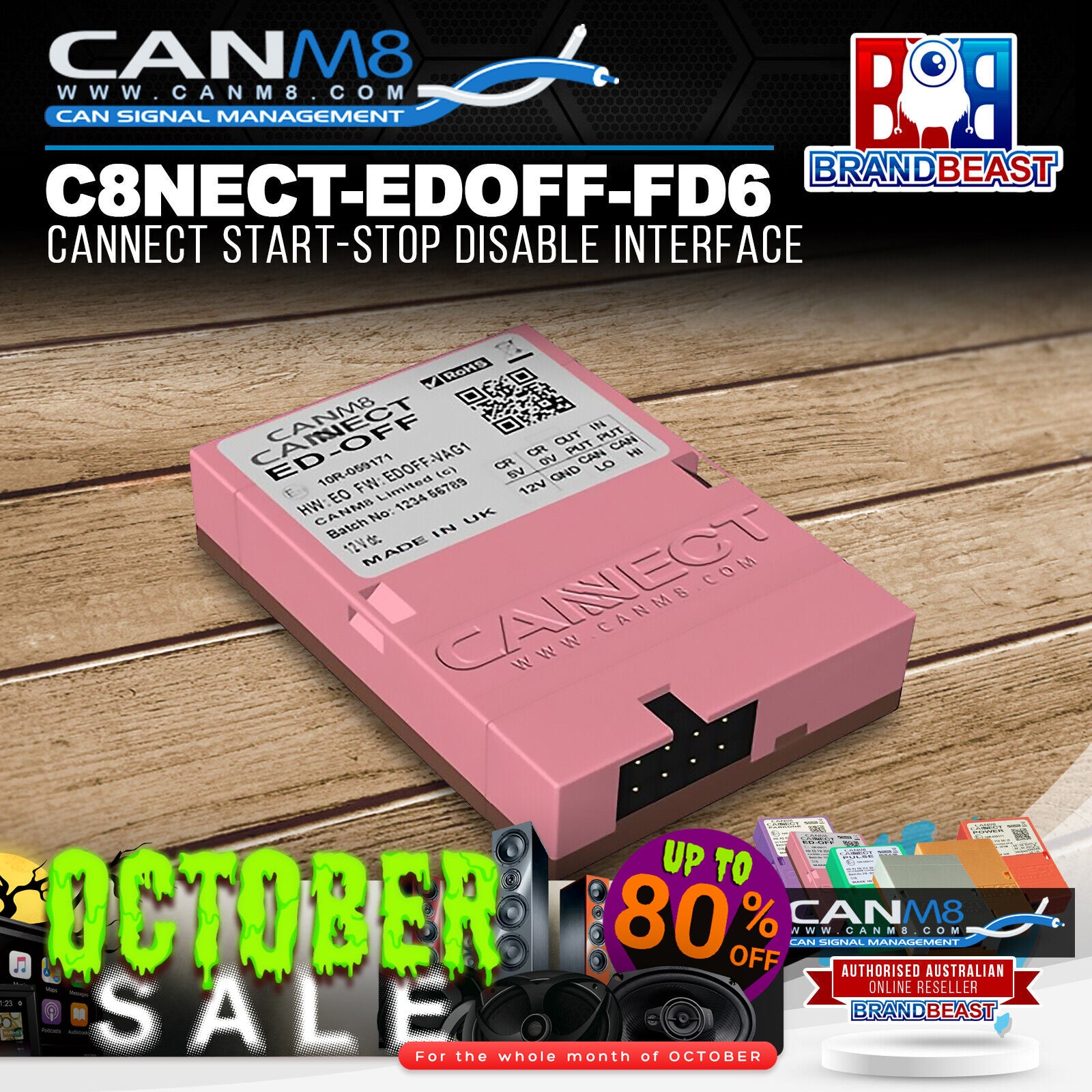

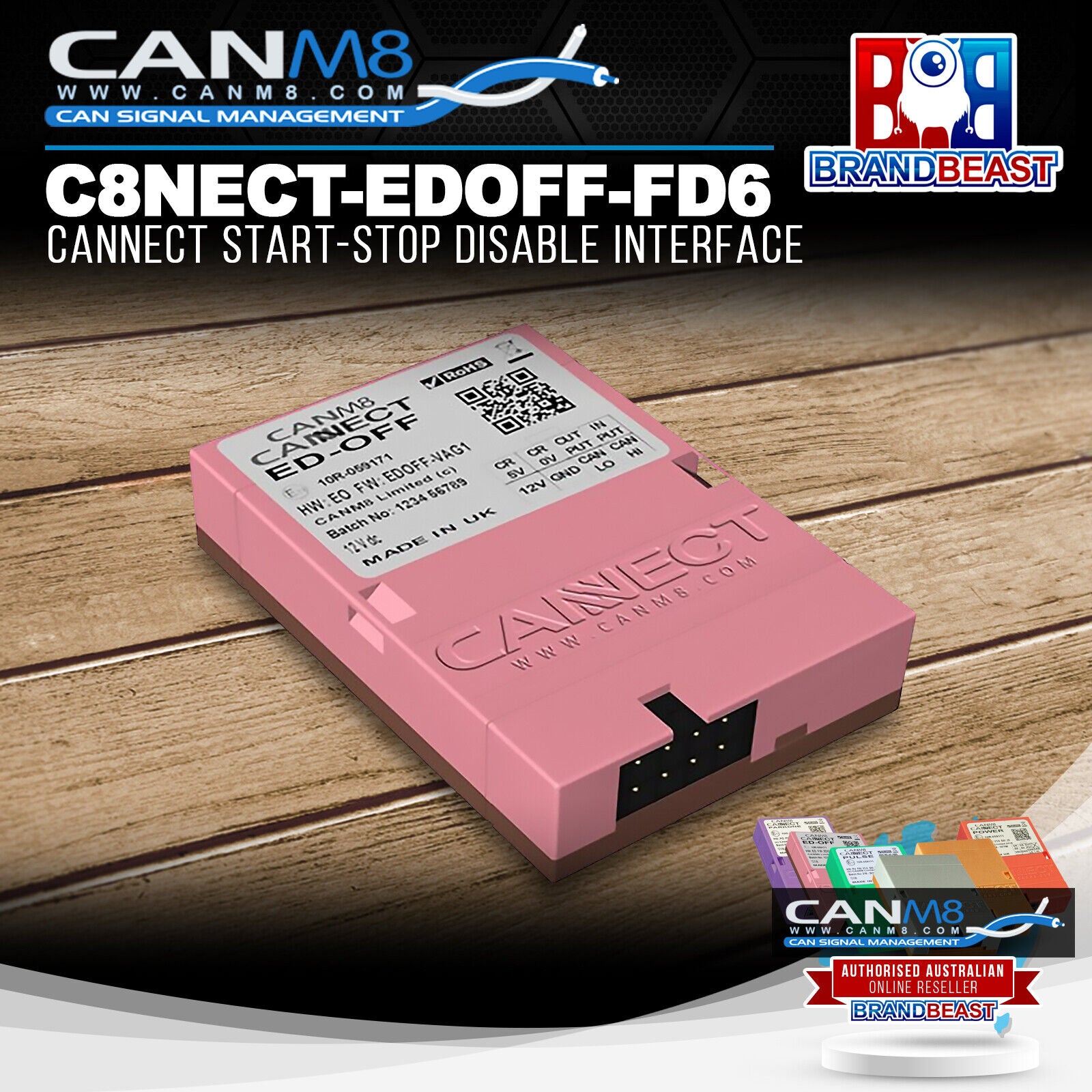

The CANM8 C8NECT-EDOFF-FD6 CANNECT Start-Stop Disable Interface is a CAN-bus control module designed to automatically deactivate Ford's engine start-stop system each time the vehicle is started. Unlike manually pressing the start-stop override button every journey, this interface permanently disables the function by default while allowing the driver to manually re-enable it during travel if desired—though it will automatically deactivate again upon the next engine start. Engineered specifically for Ford Focus (2012-2019 LW), Ranger (2015-2019 PX2-PX3), and Transit Custom (2016-2017 VN Euro 6), this interface addresses the critical operational challenges faced by refrigeration transport operators where start-stop mode cuts engine power, subsequently shutting down temperature-controlled storage systems at precisely the moments vehicles idle at traffic lights or loading zones. The plug-and-play CAN-bus integration connects via four primary wires (CAN HI, CAN LO, permanent 12V, earth) with optional sensing input/output wires for specific vehicle variants, featuring LED status indication confirming start-stop system deactivation.
Key Specifications
- Vehicle compatibility: Ford Focus LW (2012-2019), Ford Ranger PX2-PX3 (2015-2019), Ford Transit Custom VN Euro 6 (2016-2017)
- Operation: Automatic start-stop system deactivation on every engine start
- Connection method: CAN-bus integration via vehicle data network
- Wiring: Molex plug connector with 6-wire configuration
- Primary connections: CAN HI (white), CAN LO (blue), permanent 12V (red via 5A fuse), earth (black)
- Optional connections: Sensing input (brown), output 0V (pink) - vehicle-dependent
- Status indication: Multi-function LED (red = start-stop active, green = start-stop disabled)
- Power requirement: 12V DC via permanent ignition-switched supply
- Fuse rating: 5A inline fuse on 12V supply wire
- Manufacturer: CANM8
- Part number: C8NECT-EDOFF-FD6
Features & Benefits
Automatic start-stop deactivation on every ignition cycle eliminates the daily frustration of manually pressing the override button each time you start your Ford—particularly valuable for commercial drivers making 20-50 starts per day across delivery routes, refrigeration transport, or trades applications where constantly defeating the system becomes an operational burden.
Critical for refrigeration and temperature-controlled transport where engine stop during traffic idling immediately cuts power to refrigerated compartments, causing temperature fluctuations that can spoil perishable goods, violate food safety regulations, or damage pharmaceutical products requiring constant climate control during metropolitan delivery routes.
LED status confirmation provides instant visual verification that start-stop has been successfully deactivated (flashing green) versus still active (flashing red)—eliminates guesswork about system status and confirms proper interface function before departing on commercial routes where refrigeration failure would be costly.
Manual re-enable capability during journey allows drivers to temporarily activate start-stop for specific situations like long traffic jams or extended idling where fuel economy benefits outweigh operational concerns—though the system automatically reverts to disabled state upon next ignition cycle, maintaining the driver's preference for default-off operation.
Ford-specific CAN-bus integration engineered for Focus, Ranger, and Transit Custom models (2012-2019) ensures reliable communication with Ford's vehicle network without triggering check engine lights, fault codes, or warranty concerns that generic bypass solutions might cause—maintains proper vehicle operation while defeating only the start-stop function.
Plug-and-play Molex connector simplifies installation with labeled wire connections (CAN HI/white, CAN LO/blue, 12V/red, earth/black) and disconnectable plug for easy removal if vehicle is sold or returned to fleet—no permanent modifications to factory wiring harness required for most installations.
Optional sensing input/output wires (brown/pink) accommodate vehicle-specific variants requiring physical connection to start-stop button circuit rather than CAN-only control—installation instructions specify which Ford models need these connections versus CAN-only operation, ensuring correct fitment across different chassis and model years.
Commercial vehicle focus addresses the unique needs of refrigerated vans, utes with auxiliary power requirements, trades vehicles with constant PTO operation, and delivery fleets where start-stop creates operational inefficiencies that outweigh the minimal fuel economy benefits in stop-start urban environments.
Technical Specs
- Part number: C8NECT-EDOFF-FD6
- Manufacturer: CANM8
- Product type: CAN-bus start-stop disable interface
- Operation mode: Automatic deactivation on ignition, manual re-enable available during journey
- Vehicle compatibility: Ford Focus LW (2012-2015, 2016-2019 including XR5), Ford Ranger PX2-PX3 (2015-2019), Ford Transit Custom VN Euro 6 (2016-2017)
- Connection type: Molex plug connector (6-pin)
- Primary wiring connections:
- Red: Permanent 12V supply (via 5A inline fuse)
- Black: Chassis earth/ground
- White: CAN HI (vehicle CAN-bus high)
- Blue: CAN LO (vehicle CAN-bus low)
- Optional wiring connections (vehicle-dependent):
- Brown: Sensing input (start-stop button circuit)
- Pink: Output 0V (start-stop control circuit)
- Status LED indicators:
- Flashing red: Vehicle CAN-bus detected, start-stop system active
- Flashing green: Start-stop system successfully deactivated
- Power consumption: Low-draw standby current (specification not provided)
- Operating voltage: 12V DC (9-17V tolerance typical)
- Fuse requirement: 5A inline on red power wire
- Installation location: Under dash or near fuse box (CAN-bus access required)
- Dimensions: Compact module (specific dimensions not provided)
- Weight: Not specified (lightweight interface module)
Frequently Asked Questions
Will this void my Ford warranty?
The C8NECT-EDOFF-FD6 is a non-invasive CAN-bus interface that doesn't modify factory systems or trigger fault codes. However, warranty coverage decisions rest with individual dealers. The interface can be easily removed if required. For commercial vehicles past warranty, this concern is typically irrelevant.
Does this work on all Ford vehicles with start-stop?
No, the C8NECT-EDOFF-FD6 is specifically engineered for Ford Focus LW (2012-2019), Ranger PX2-PX3 (2015-2019), and Transit Custom VN Euro 6 (2016-2017) only. Different Ford models use different CAN-bus protocols requiring alternative interfaces. Verify your exact model and year before purchasing.
Do I need the brown and pink wires for my vehicle?
It depends on your specific Ford model. Some vehicles disable start-stop via CAN-bus only (white/blue wires), while others require physical connections to the start-stop button circuit (brown/pink wires). Vehicle-specific installation instructions provided with the interface clarify which connections your model requires.
Can I still use start-stop if I want it occasionally?
Yes, the driver can manually re-enable start-stop during any journey using the factory button. The system will function normally until you turn off the ignition. The next time you start the vehicle, start-stop will automatically be disabled again—maintaining your preference for default-off operation.
Is professional installation required?
Experienced DIYers with automotive electrical knowledge can install this interface by following the provided instructions. However, locating CAN-bus wires, routing to the interface, and testing proper function requires diagnostic skills. Professional installation is recommended for commercial vehicles where improper installation could cause downtime or refrigeration system failures.
Compatible With / Goes Well With
- Ford Focus LW (2012-2015 including XR5 performance variant)
- Ford Focus LW (2016-2019 including XR5 performance variant)
- Ford Ranger PX2 (2015-2018 ute platform)
- Ford Ranger PX3 (2019 updated ute platform)
- Ford Transit Custom VN Euro 6 (2016-2017 commercial van)
- Refrigerated truck bodies and temperature-controlled conversions
- Commercial vehicle auxiliary power systems requiring constant engine operation
- Trades vehicles with PTO (power take-off) equipment requiring continuous power
- Delivery fleet vehicles with frequent start-stop cycles in urban environments
