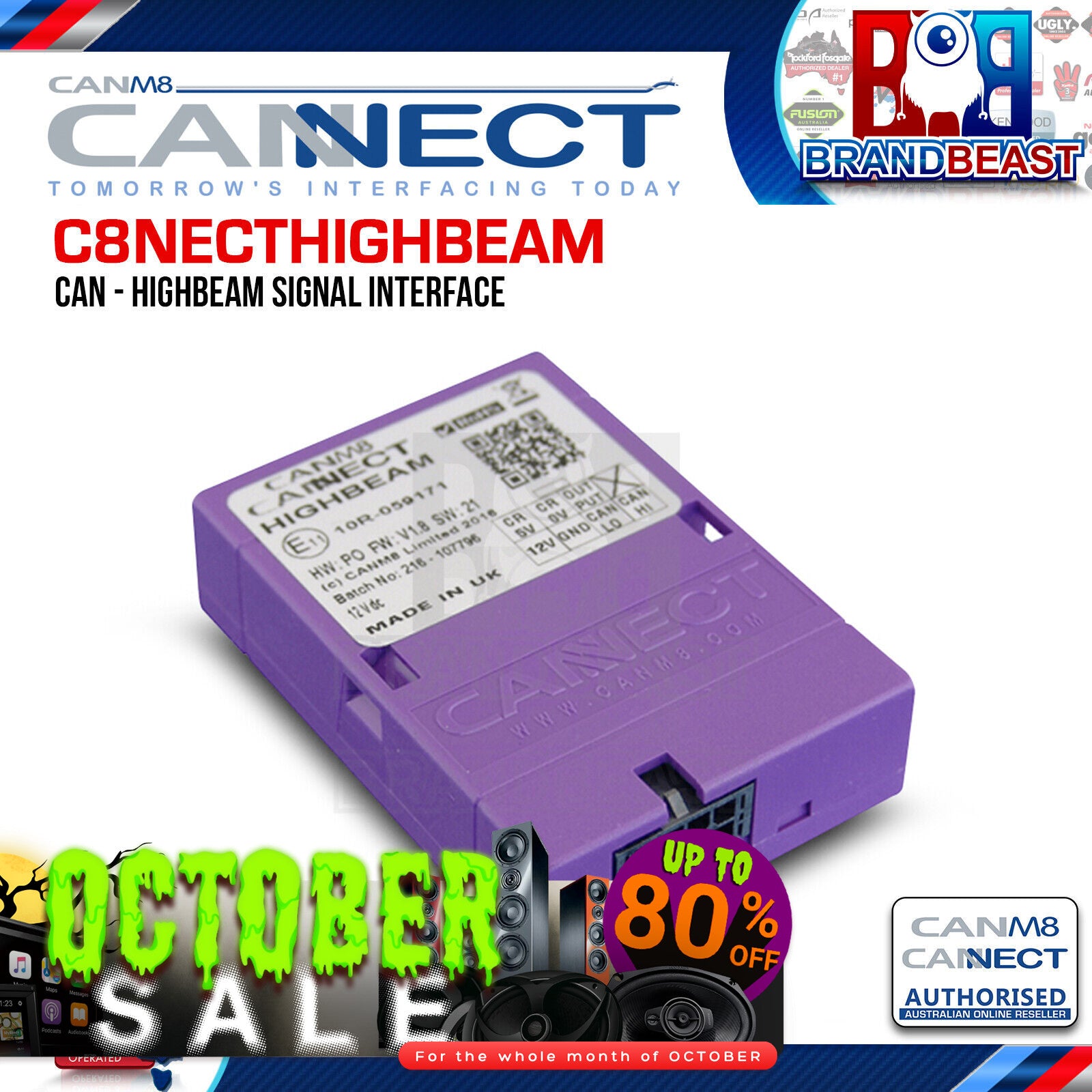

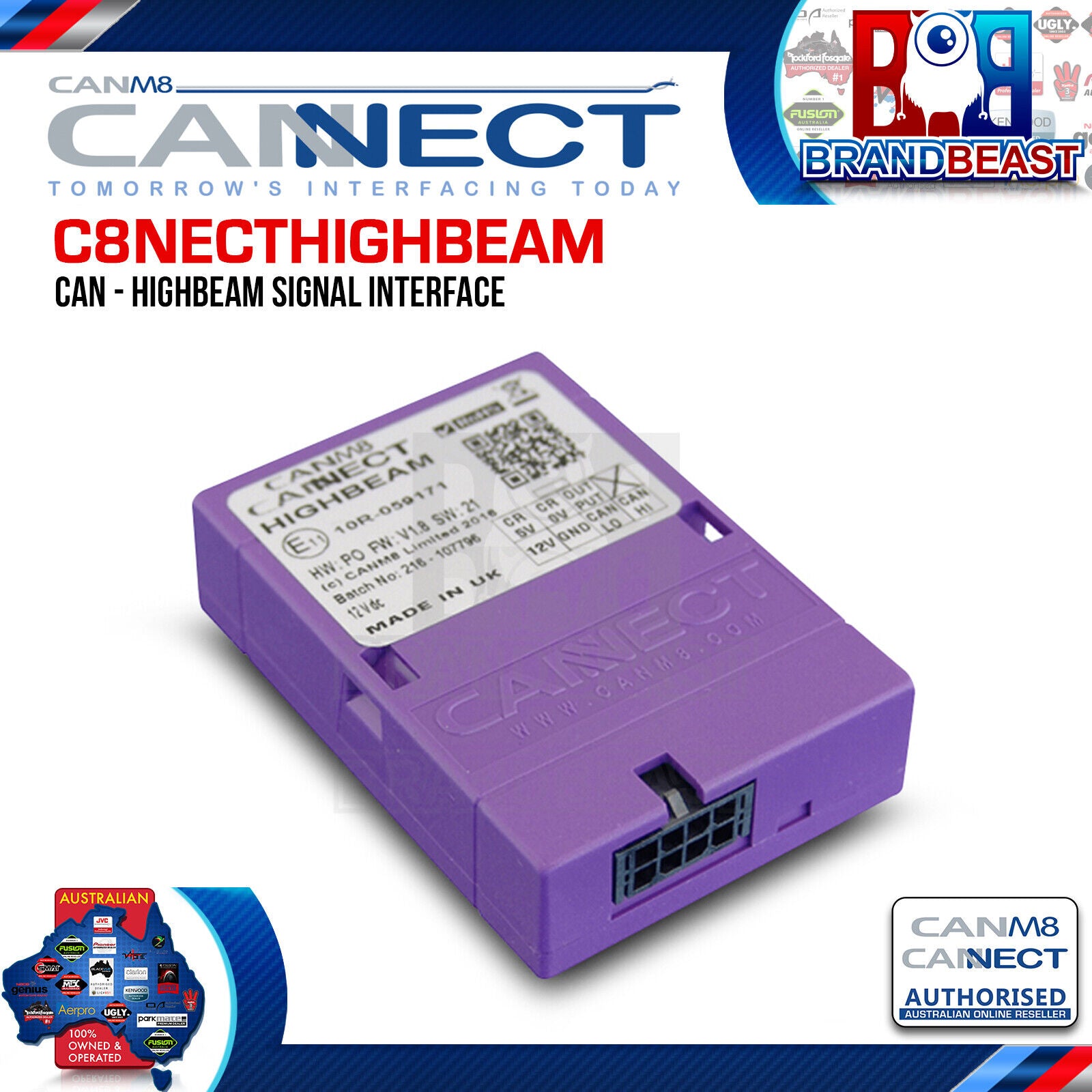

CANM8 C8NECTHIGHBEAM CANNECT High Beam Signal Output Interface

Description

Provides A Quick Solution For Detecting High Beam Activity, For the Installation Of Additional Driving Lights Via A Relay

High Beam Signal Interface

The CANM8 CANNECT HIGHBEAM interface is a single output CAN Bus interface which provides a quick solution for detecting high beam activity on vehicles which feature CAN Bus wiring.

Applications:

  • The CANM8 CANNECT HIGHBEAM is ideal for the installation of all aftermarket electronic products that require an output when the High Beam light is activated.

Continual Development Program

All CANM8 products have been designed with the future in mind and are continually under redevelopment to support the latest vehicle specifications and customer requirements.

Installation:

The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN Hi & CAN Lo) along with a connection to a switched 12v power supply and an earth connection. The interface provides a 12V, 1A output when the vehicle main beam is activated.

The interface incorporates a multi-function miniature status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.

LED Status:

  • Flashing Red: Searching For CAN Information.
  • Solid Red: CAN Data Received But Vehicle Type Not Identified Yet.
  • Solid Green: CAN Data Received & Vehicle Type Recognised.
  • Flashing Green: Vehicle Speed Detected.

Wiring Installation Details:

  • White – CAN HI
  • Blue – CAN LO
  • Black – 0V
  • Red – 12V
  • Purple – 12V High Beam Output
Vehicle Compatibility - ** SUPPLIED BY CANM8 **
Audi BMW Chrysler Ford Land Rover Mercedes Mitsubishi Peugeot Renault Seat Toyota
A3 2005 – 1 Series (E87) 2004 – Grand Cherokee 2011 – C-Max 2011 – Discovery 4 2012 – A Class (169) 2005 – 2011 ASX – 108 2014 – Clio 2006 – Altea 2004 – 2015 Avensis 2009 – 2015
A3 2013 –
1 Series (F20) 2011 –
 Fiesta 2013 – Evoque 2013 – A Class (176) 2012 > Lancer 207 2006 – Clio 2009 – Exeo 2010 – GT86 1012 >
A4 2007 – 2 Series (F45) 2014 – Citroen Focus 2005 – Freelander 2 2010 – B Class (245) 2005 – 2011 L200 2006 – 208 2011 – Clio 4 2012 – Leon 2005 – 2011
A5 2007 – 3 Series (E90/E91/E92/E93) 2005 – Berlingo 2008 – Focus 2011 – Freelander 2 2013 – B Class (246) 2012 > L200 2015 – 2008 2013 – Grand Scenic 3 2009 – Leon 2012 > Volkswagen
S5 2007 – 3 Series (F30) 2012 – C4 2006 – Galaxy 2016 > Range Rover 2013 – C Class (204) 2007 – Outlander 2007 – 308 2007 – Laguna 3 2009 – Ibiza 2008 > Crafter
A6 2004 – 4 Series (F32/F33) 2013 – C4 2010 – Kuga 2013 – Range Rover Sport 2010 – C Class (205) 2014 – Outlander 2012 – 308 2015 – Megane 2004 – Toledo 2004 – 2009 Golf V 2005 –
A6 2011 – 5 Series (E60/E61) 2003 – C5 2008 – Mondeo 2009 – Range Rover Sport 2014 – CLS Class 2010 – Shogun/Pajero 2007 – 3008 2008 – Megane 3 2009 – Golf VII 2012 –
A8 (4H) 2010 – 5 Series (F10/F11) 2010 – C-Crosser 2007 – Mondeo 2015 –
E Class (212) 2011 –
 408 2010 – Modus 2004 – Vauxhall Passat 2005 –
Q5 2009 – 6 Series (E63/E64) 2004 – DS3 2010 – Ranger 2012 – 2016 Jeep G Class 2010 – Nissan 4007 2007 – Scenic 2004 – Astra J Passat 2010 –
Q7 2006 – 6 Series (F12/F13) 2011 – DS4 2011 – Ranger 2016 > Cherokee Latitude 2015 – GLE Coupe 2015 > Cube 2004 – 4008 2012 – Scenic 3 1.4 Turbo Captiva Passat 2015 –
R8 2007 – 7 Series (E65) 2004 – DS5 2010 – S-Max 2009 – M Class – Micra 2004 – 508 2010 – Traffic 2014 – Corsa Polo (T5) Pre 2010
TT 2007 –
7 Series (F01/F02) 2008 –
 Transit 2012 – Mazda Sprinter 2007 – 2014 Note 2006 – 5008 2009 – Zoe 2013 – Insignia Routan 2010 –
i3 2014 – Transit Connect 2014 – 3 2013 – Sprinter 2014 > Qashqai 2014 > Bipper 2008 – Movano 2009 – Touareg 2007 –
Fiat X1 (E84) 2009 – Hyundai Transit Custom 2013 – CX-3 2016 > Vito 2010 – 2014 Pulsar 2014 > Boxer 2007 – Volvo Vectra Touareg 2011 –
Ducato Euro 4 X1 (F48) 2015 – i30 2012 – CX-5 2013 – Vito (W447) 2015 > X-Trail 2010 – 2014 Expert 2007 – S60 2012 – Zafira
Transporter (T5) Pre 2010
Ducato Euro 5 X3 (F25) 2011 – Special Note Subaru X-Trail 2014 > Partner 2008 – V40 2013 – Transporter 2010 –
X5 (E70) 2007 – Forester 2012 > Suzuki Skoda RCZ 2010 – V50 2010 –
Honda X5 (F15) 2013 – Impreza 2011 > SX4 S-Cross 2013 Octavia III 2012 – V60 2012 –
CR-V 2012 – X6 (E71) 2008 – XV 2011 > Swift 2010 > V70 2012 –
Z4 (E89) 2009 – Vitara 2015 > XC60 2013 –



 XC70 2012 –
