Description

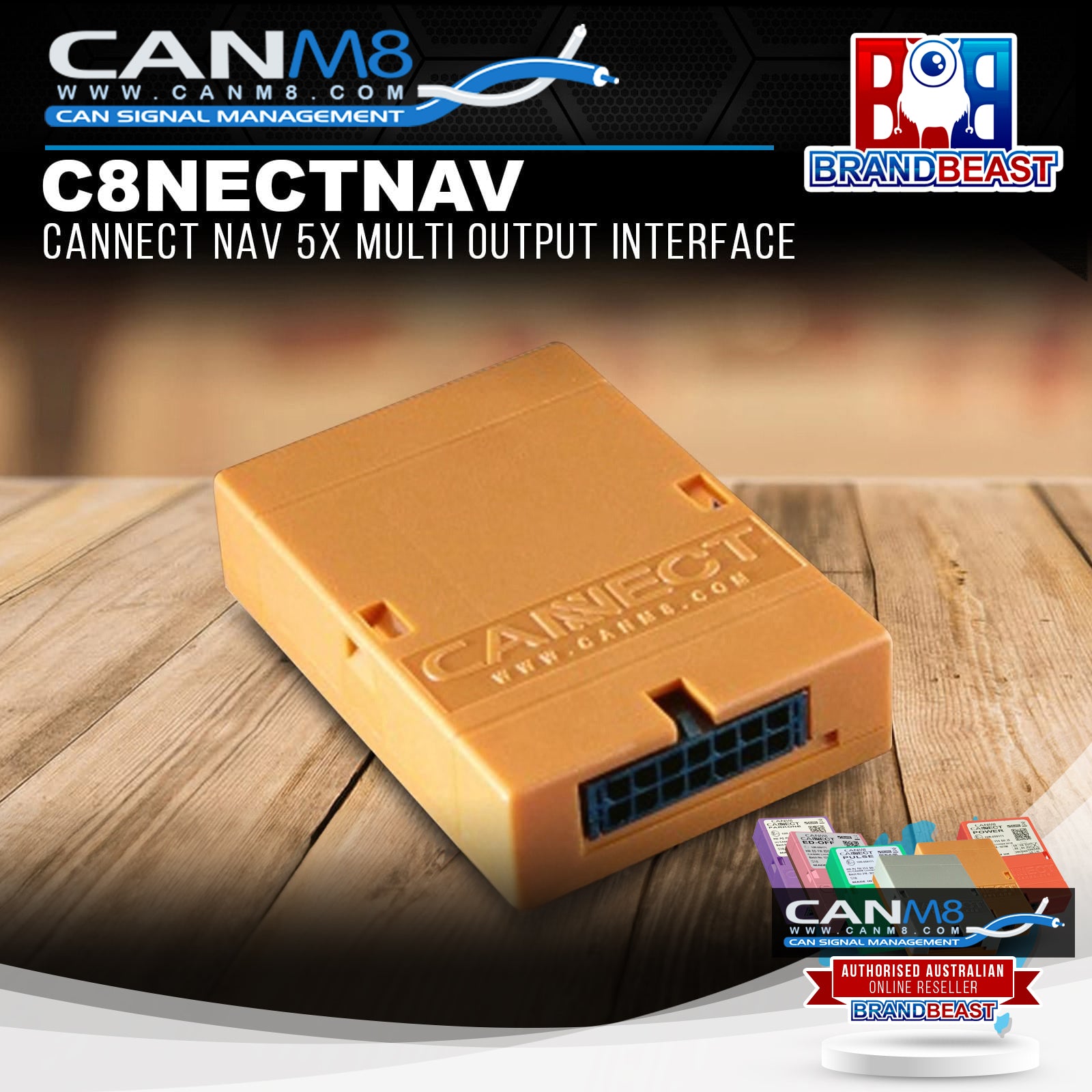

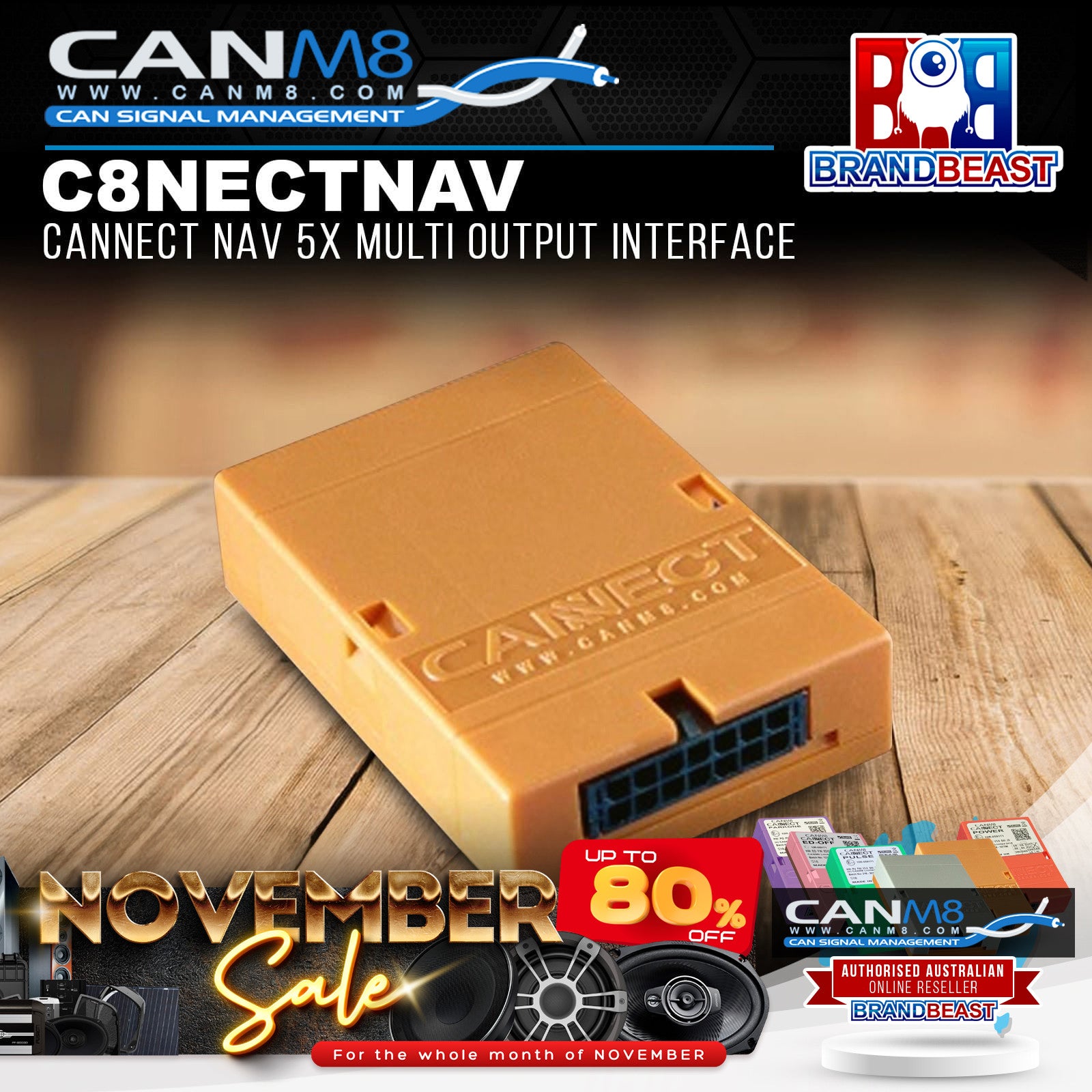

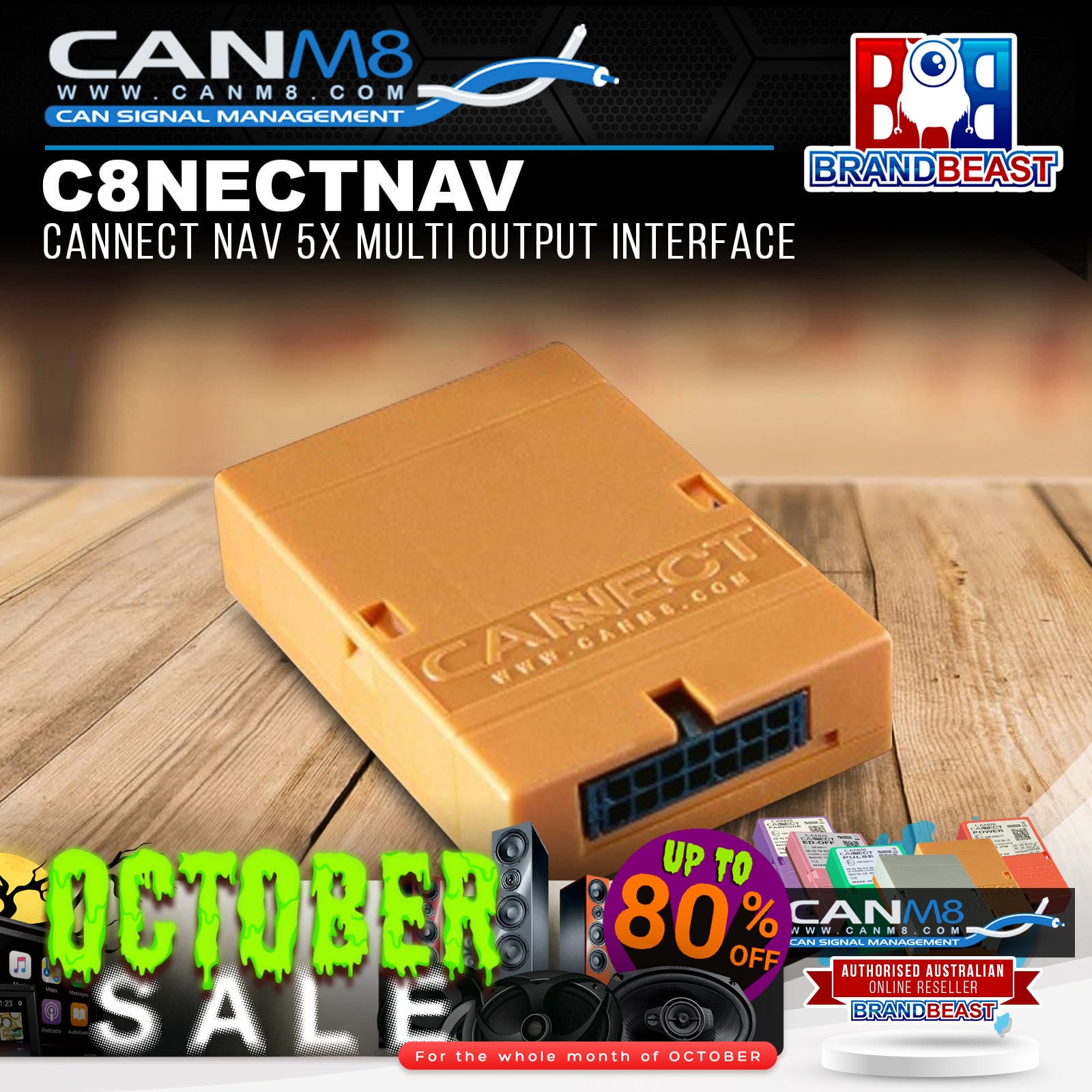

A Multi-output Can Bus Interface Designed To Provide A Universal Solution For Installing After-market Electronic Products Such As Navigation Systems To Vehicles Which Feature Can Bus Wiring
The interface features “Key-In” detection with compatible vehicles enabling the ignition-on output to remain active when the ignition is turned off but the key remains in the ignition.
ApplicationsThe CANM8 CANNECT NAV is an ideal solution for use when installing navigation systems, car audio & entertainment systems, mobile phone hands-free kits, taxi meters, and many other systems which require sensing of vehicle signals. Installation time is drastically reduced as instead of hard wiring into the vehicle to find all the different required outputs, this interface provides 5 of the most common outputs from a mere 4 connections to the vehicle.
Installation DetailsThe interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates the correct connection to the CAN system, CAN activity present, and confirmation that the CAN identity has been recognised.
LED Status DetailsFlashing Red: Searching for CAN information.
Solid Red: CAN Data was received but the vehicle has not yet been identified.
Solid Green: CAN Data received and vehicle type recognised.
Flashing Green: Vehicle speed detected.
Wiring Harness DetailsRED> Connect via a 5A fuse to a PERMANENT 12v supply.
BLACK> Connect to a good chassis GROUND point.
WHITE> CAN HI Connection: Vehicle CAN HI wire.
BLUE> CAN LO Connection: Vehicle CAN LO wire.
GREEN> Speed Signal Output: 12v pulsing (1 Hz = 1 MPH approx).
PURPLE> Ignition On Output: 12v (1A max) when the ignition is switched on.
ORANGE>Illumination Output: 12v (1A max) when side lights are active.
BROWN> Reverse Output: 12v (1A max) when reverse gear is selected.
PINK> Park Brake Output: 0v (1A max) when the park brake is engaged.
Features:
- Speed Signal > 12v square pulsed output at approximately 1 pulse per 1 MPH.
- Ignition ON > 12v (1A max) when the ignition is switched on
- Reverse > 12v (1A max) when reverse gear is selected.
- Illumination > 12v (1A max) when the side lights are active.
- Park Brake > 0v (1A max) when the park brake is engaged.
