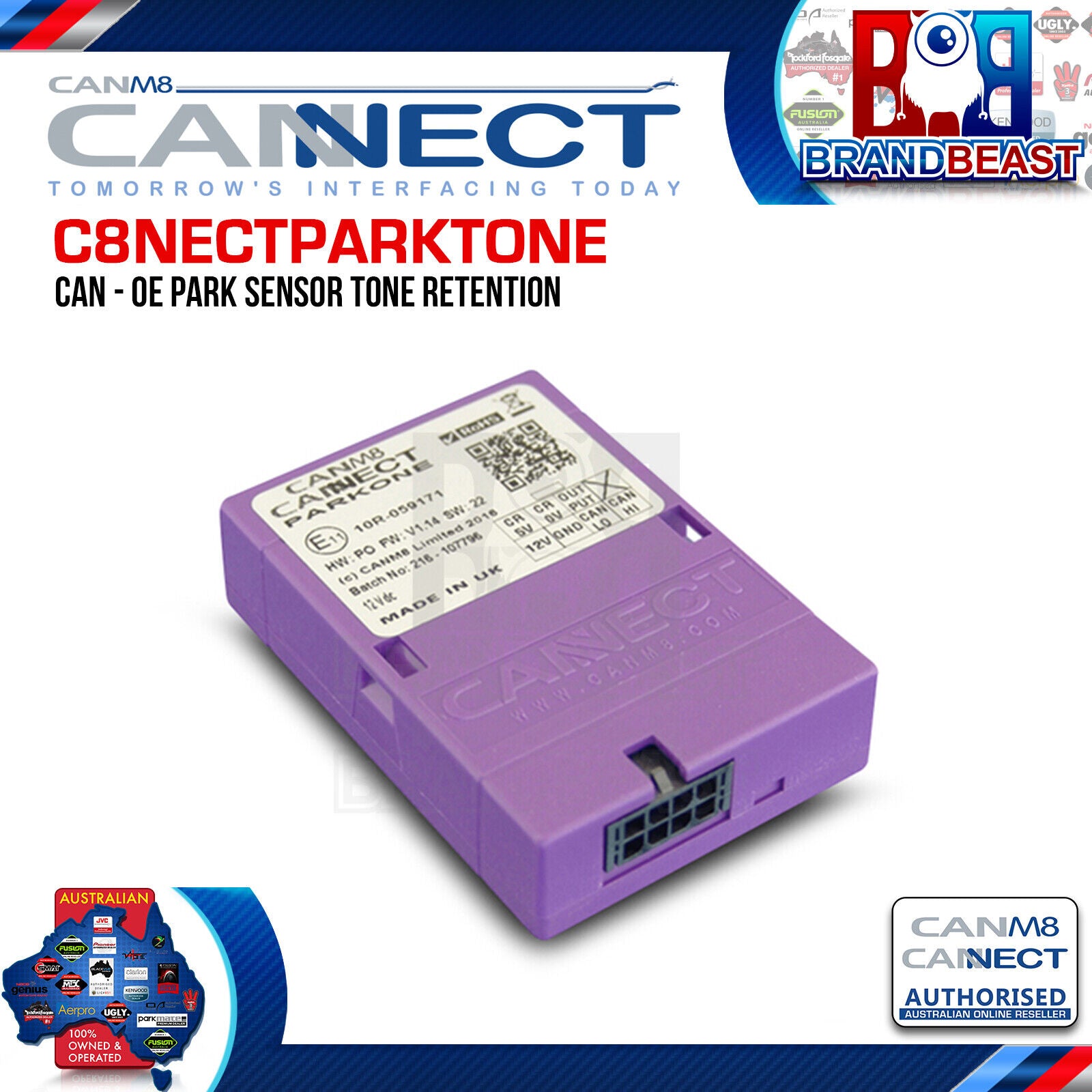

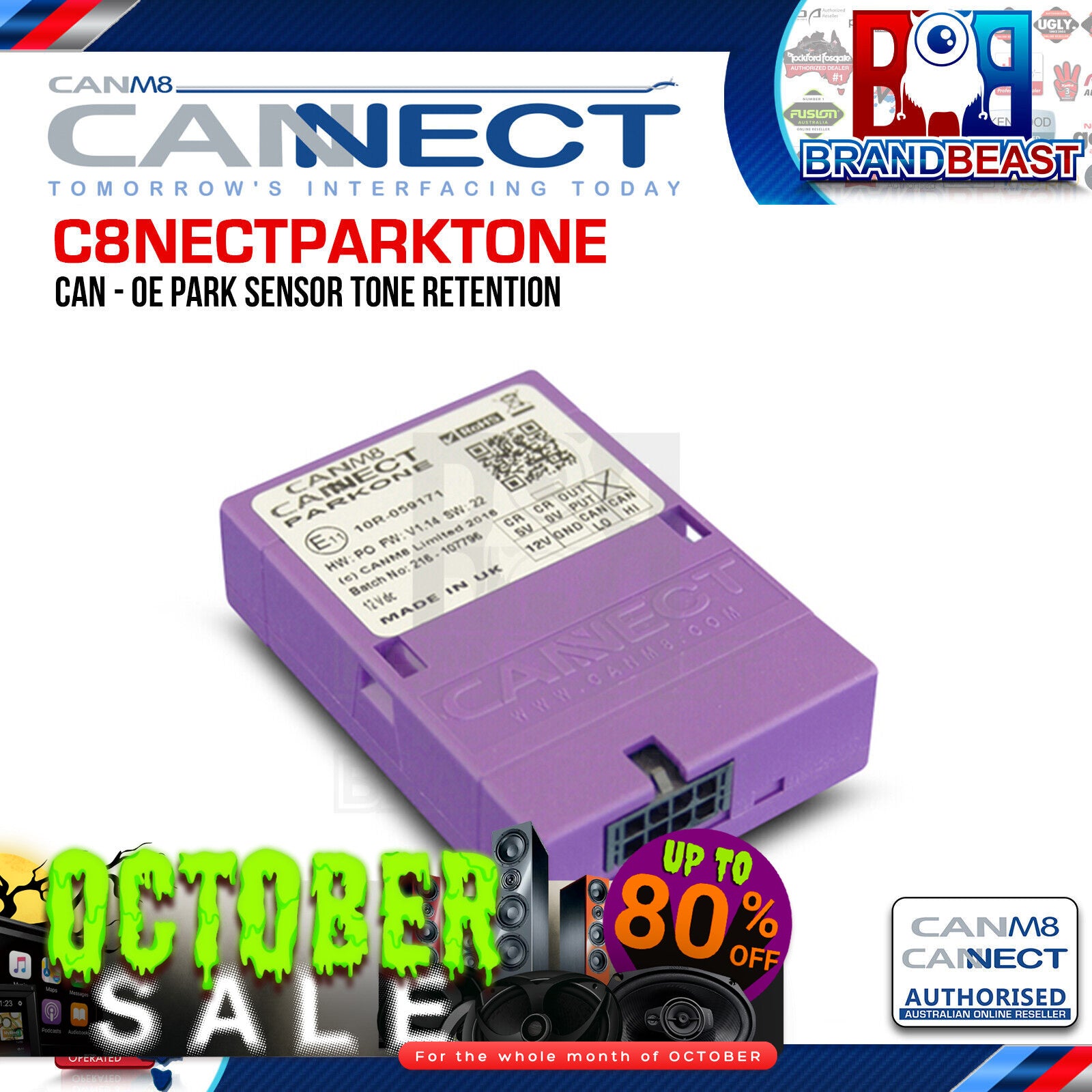

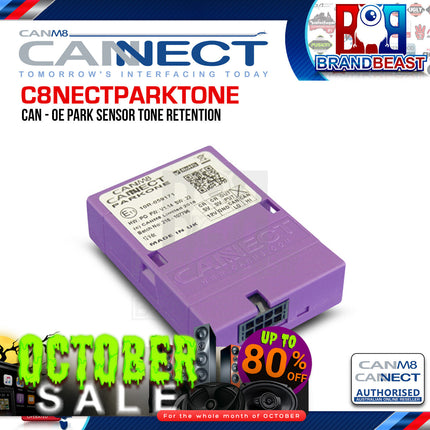

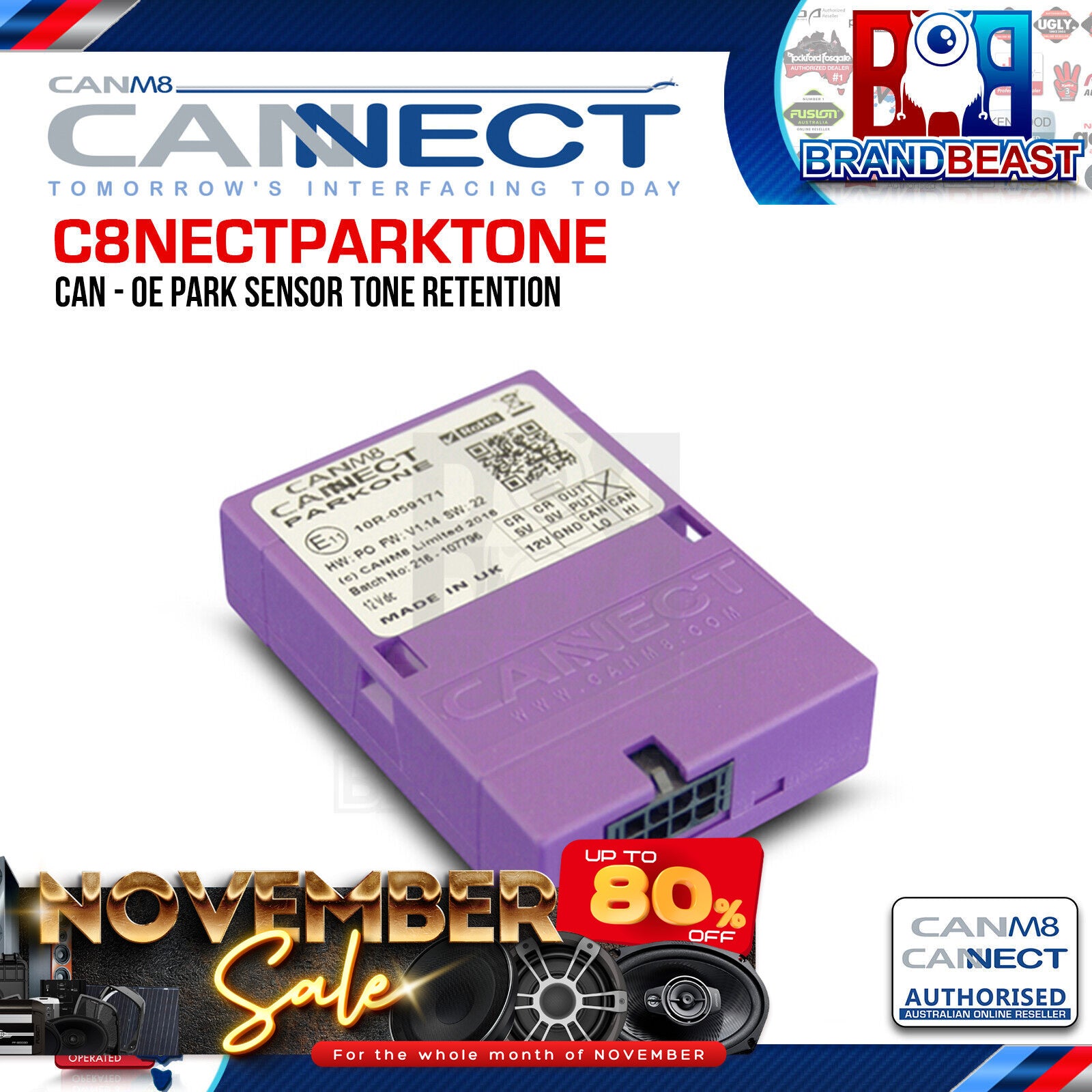

CANM8 C8NECTPARKTONE CANNECT Parking Sensor Retention Interface

Description

Provides Retention of Factory Parking Sensors Front & Rear When Installing an Aftermarket Radio



Parking Sensor Retention Interface
The C8NECTPARKTONE includes a Piezo buzzer for audio output (additional Piezo buzzer may be required for some vehicles with front & rear sensors).

Continual Development Program
All CANM8 products have been designed with the future in mind and are continually under redevelopment to support the latest vehicle specifications and customer requirements.
Installations
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN Hi & CAN Lo) along with a connection to a switched 12v power supply and an earth connection. The interface provides a 12V, 1A output when vehicle speed is below 6MPH to activate the parking sensors.
The interface incorporates a multi-function miniature status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status:

  • Flashing Red: Searching For CAN Information.

  • Solid Red: CAN Data Received But Vehicle Type Not Identified Yet.

  • Solid Green: CAN Data Received & Vehicle Type Recognised.

  • Flashing Green: Vehicle Speed Detected.


Wiring Installation Details:

  • White – Can HI

  • Blue – Can LO

  • Black – Ground

  • Red – 12v

  • Yellow – Rear Sensor + Output

  • Green – Sounder – Output

  • Pink – Front Sensor + Output


Legendary Products & Support From Authorized Dealers

When you choose CANM8, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized CANM8 dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by CANM8's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized CANM8 dealer today!
