Description

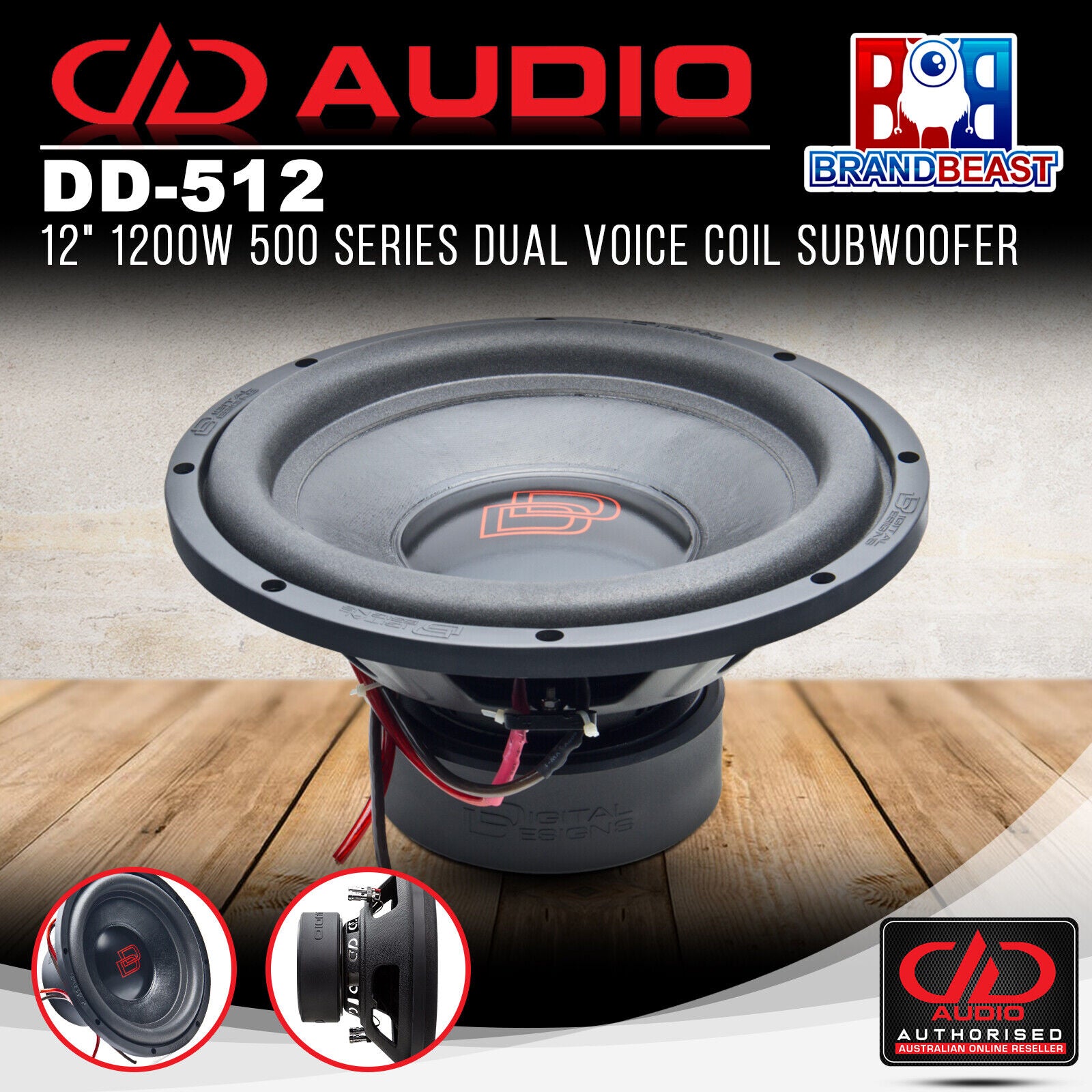

One Of The Best Performing Subs You Can Find In Its Power Class
With a Highly Efficient Design, the 500 Series Can Easily Be Driven to High Output Levels on As Little as 150-400 Watts. when Compared to The 200 Series the 500 Series Uses a Longer Coil, More Powerful Motor and The Suspension Is Designed to Handle Higher Transient Peaks. These Are Very Versatile Subs that Work Well in Sealed Enclosures While Providing the Extra Energy and Control Needed for Vented Enclosures Applications.
Note: Marine Grade Products Are Not Waterproof, and Submersion or Excessive Moisture Exposure May Result in Product Failure. DD Audio Marine Grade Products Are Not Certified for Saltwater Environments.
REDLINE EROM SurroundEROM (Extended Range Of Motion) Surrounds, Pioneered by DD in the Early 90's, Allow Our Subs to Have Higher, More Linear Excursion with More Cone Area than Subs Using Wider Surround Profiles. Simply Put, This Surround Design Allows Our Subwoofers to Make More and Better Bass than Other Subs out There. in Fact, We Like This Surround Style so Much that Some Variation of It Is Used on All Levels of Our Subwoofers. The REDLINE EROM Surround Features New Signature Aesthetics Including a Red Accent Line Pressed Into the Surround and An Embossed REDLINE Logo.
REDLINE Voice CoilREDLINE SpiderSpiders Are the Heart of A Subwoofers Suspension. Engineered to Work with Today's Music and System Design Trends, the Multi-Layer, Multi-Configuration REDLINE Spiders Achieve the Perfect Balance Between Control and Compliance to Deliver Longer Excursion and Deeper Bass.
REDLINE ConeUtilizing a Unique Glass Fiber and Natural Pulp Formula, Treated with A Moisture Resistant Matte Finish, REDLINE Cones Are Ultra Strong, yet Impressively Lightweight.
Back Plate Coil Gap VentingThe Motor's Backplate Features Precision Drilled Vents in The Coil Gap for Increased Voice Coil Heat Dissipation.
Extended Pole PieceThe REDLINE Subs Feature Extended Pole Pieces for Added High Excursion Control and Improved Heat Dissipation.
DD Stamped BasketsThe DD Stamped Basket Uses Rigid Steel with A Specialized Coating Resulting in A Sturdy, Durable, Low Resonance Design. It Features Precision Punched DD Logos Incorporated Into Lower Venting Section.
DD Cast BasketsDD Cast Baskets Are Custom Designed for Strength, Stability, and Precision. Using Cast Aluminum Allows for Added Heat Dissipation Properties as Well as High Rigidity and Low Resonance. All These Qualities Combined, Result in A Basket that Supports Powerful High Excursion Designs.
10-Gauge Push TerminalsPush Terminals Allow for Quick Sturdy Connections to The Speaker Wire Coming from Your Amplifier. These Terminals Will Accept up To 10-Guage Speaker Wire for Delivering Maximum Power to The Voice Coil.
Product Features:
- EROM Surround
- High-Temp, 2.0”, Voice Coil
- Double Layer Deep Bass, High Excursion Spider System
- Unique Glass Fiber & Natural Pulp Cone
- Back Plate Coil Gap Venting
- Extended Pole Piece
- DD Stamped Steel Basket (508-512)
- DD Cast Basket (506)
Specifications:
- Driver Size: 12"
- Watts RMS: 150 – 400
- Peak Power: 1200
- VCD: 2
- Impedance: D2 / D4
- Piston Dia: in 10 3/16
- Fs: Hz 25.57
- Qms: 4.614
- Qes: 0.4701
- Qts: 0.4266
- Vas Liters: 86.42
- Xmech: mm 64
- Xmax: mm 11
- Frame OD: in 12 /14
- Frame OD With Gasket: in 12 ¬Ω
- Mounting Diameter: in 11 1/16
- Mounting Depth: in 5 7/8
- Motor Diameter: in 5 ¬Ω
- Motor Depth: in 2
- Woofer Displacement: cu ft 0.09
- Sealed Enclosure: cu ft 0.5 - 1.0
- Ported Enclosure: cu ft 1.75 - 2.75
- Shipping Weight: lbs 15
