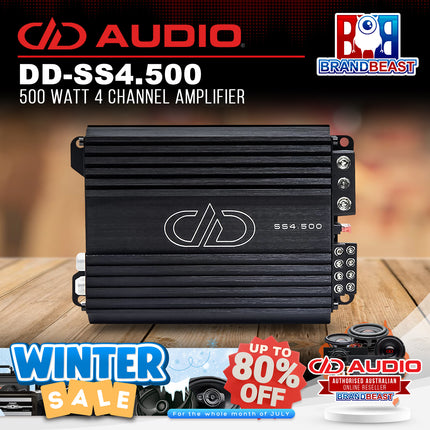

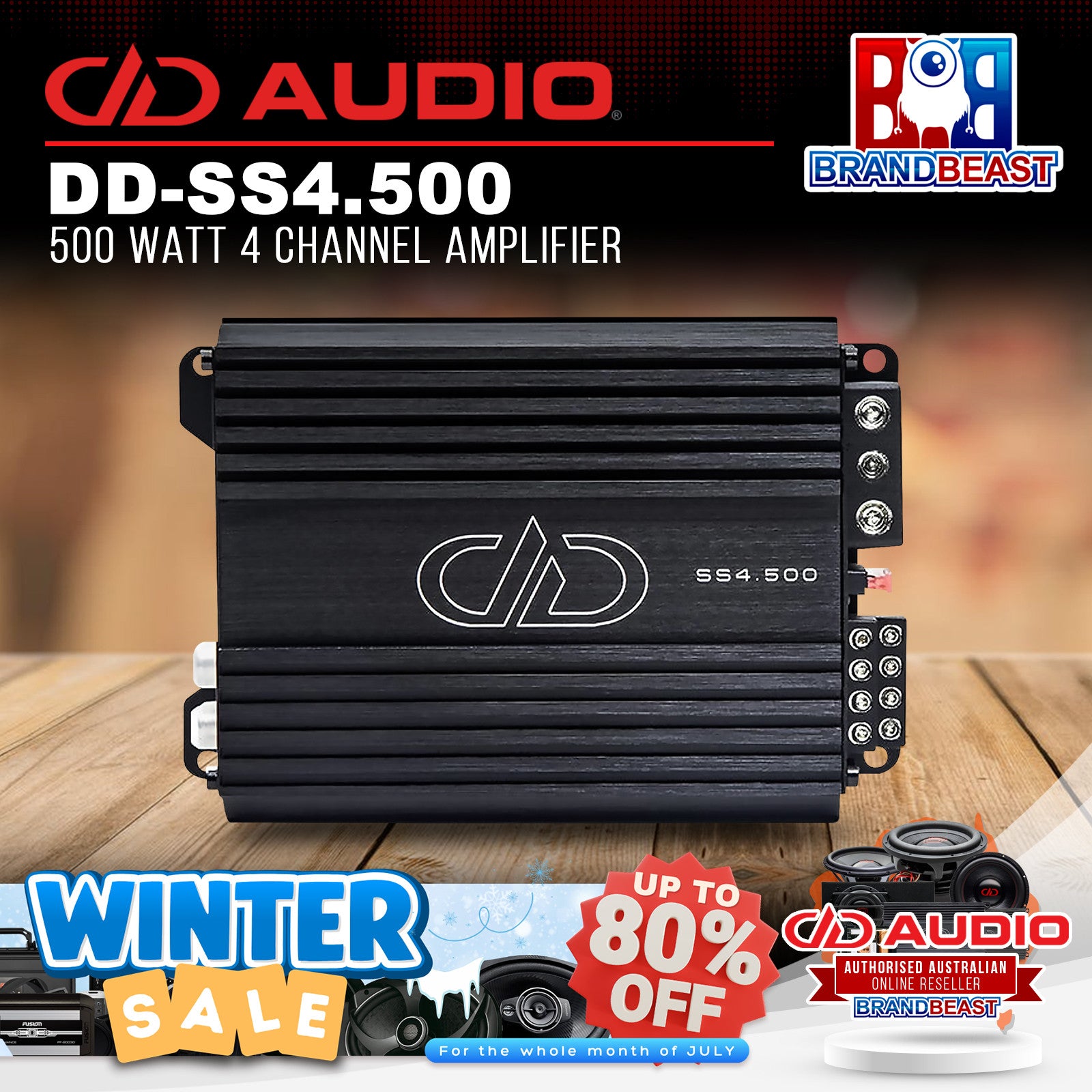

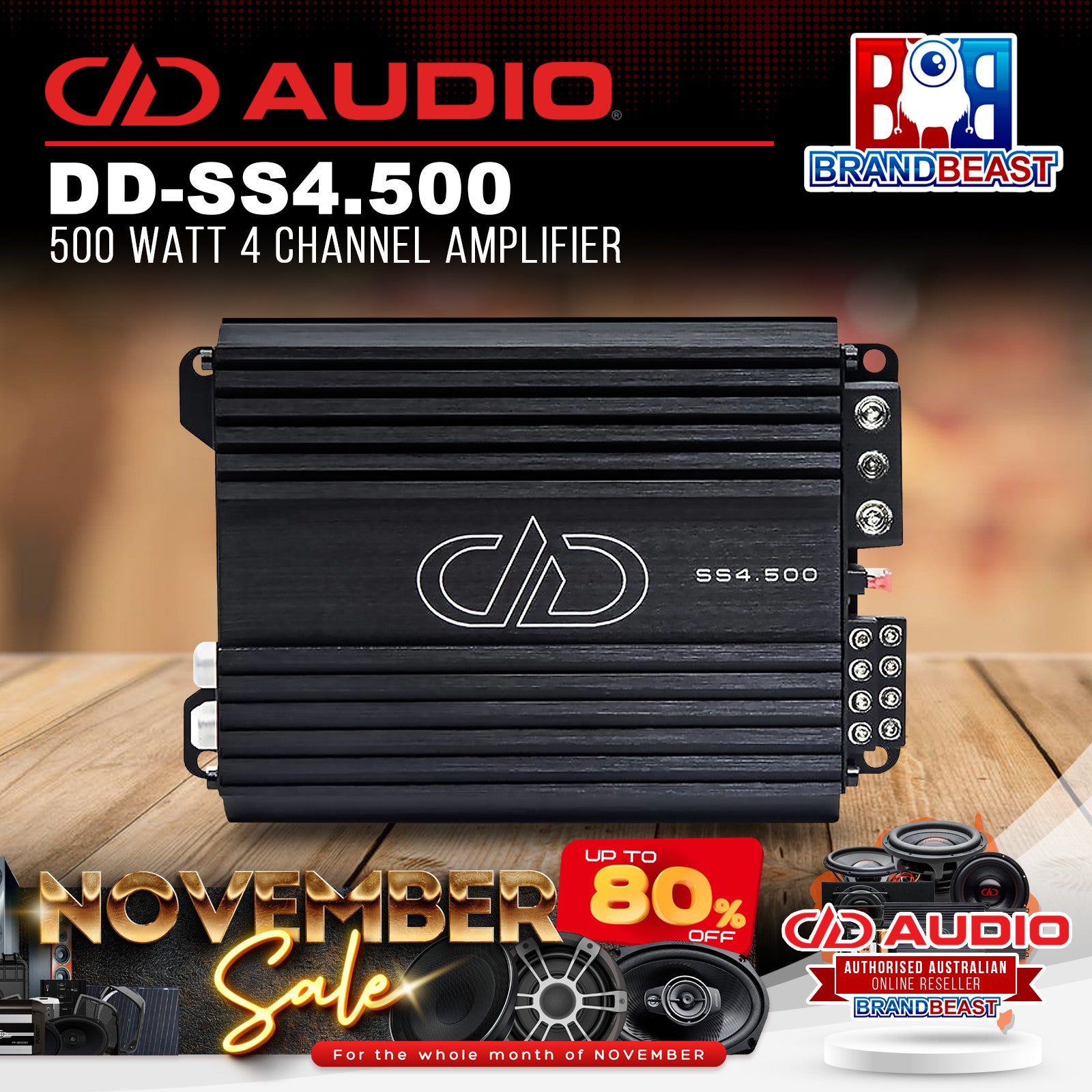

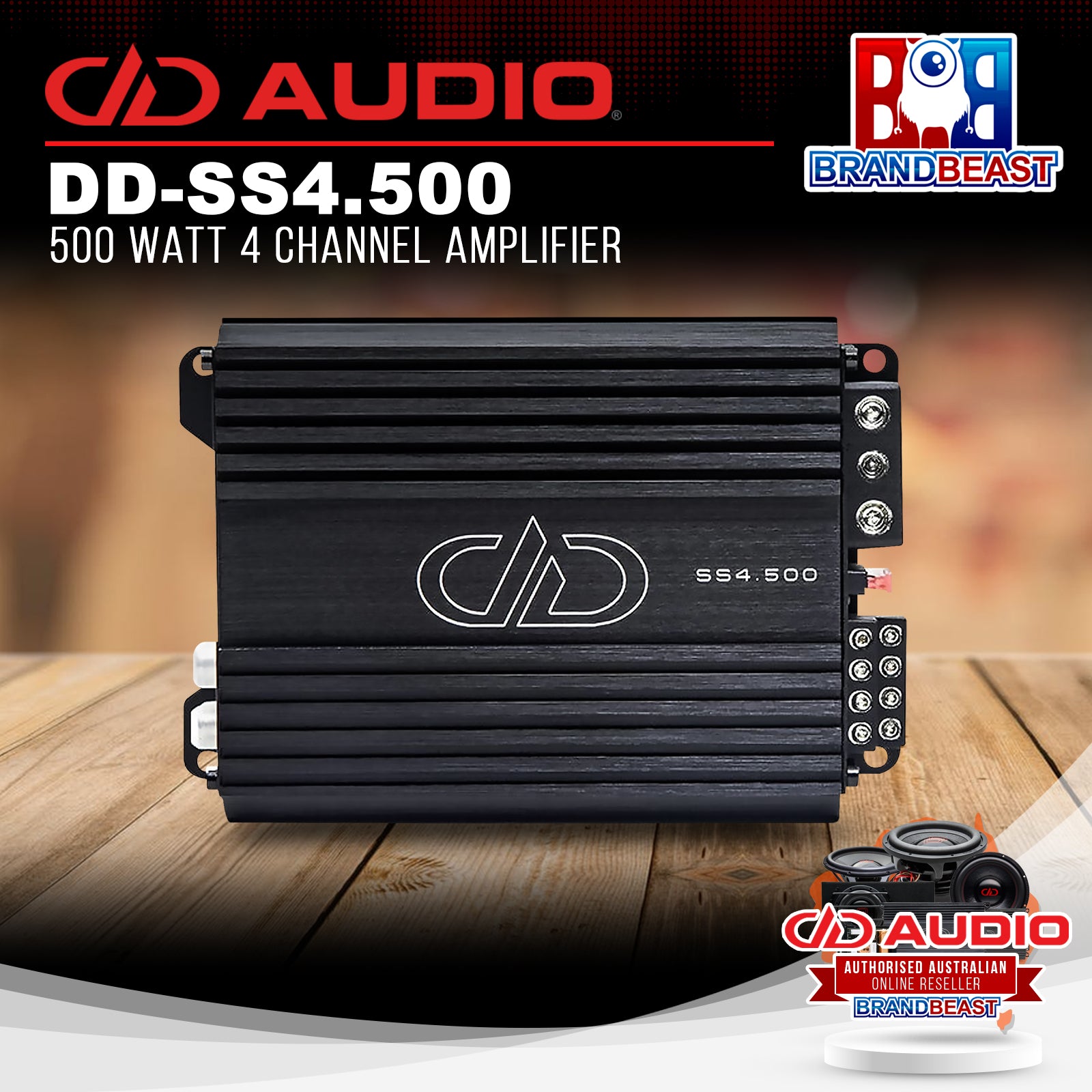

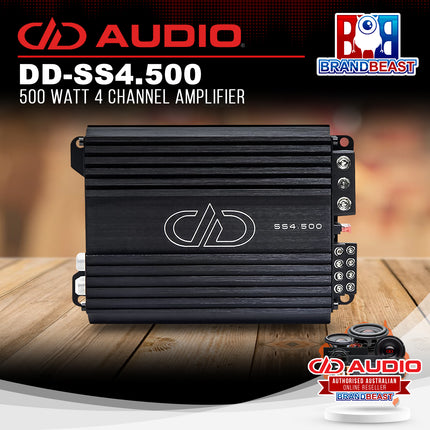

DD Audio DD-SS4.500 500 Watt 4 Channel Amplifier

Description

Super Small Multi-Channel


The new SS amplifiers are the latest in high speed, high current class D designs offering high power and superior sound quality in compact footprints. The classic DD AUDIO style heat sink is used in this upgrade for max cooling with 50% more side wall thickness than industry norms and extra long fins to increase surface area. All major components have been upgraded; higher current mosfets and output devices, increased power capacitors, a more powerful transformer, plus improved venting and PCB with twice the thermal capability.
These new high-end mini amps are state of the art, no compromise designs yielding the best sound with unparalleled power to size ratio. The transformation is not only tangible, but audibly apparent.
The SS4.500 is a 4 channel amplifier delivering a minimum of 125 Watts per channel from a mere 30 square inch footprint. This versatile, high speed, class D design can drive full range components and subwoofers through selectable high pass and low pass crossovers. These super small amplifiers are the ultimate combination of precision sound quality and installation ease.








For the SS Series the main design focus was to pack as much full-range stereo output capability as possible into as compact of a chassis as possible. We utilized discrete circuit class D technology for ultra low distortion levels that rival class AB designs. The resulting amp is capable of driving multiple driver mid-range and tweeter arrays while consuming less current, taking up less space and delivering more power.








Features:


  • High Level Inputs


  • 12dB/Oct High Pass/Low Pass X-Overs


  • Heavyweight DD Aluminum Chassis


  • Set Screw Power and Speaker Terminals


  • 4 AWG Power Terminals


Specifications:

  • Operating Voltage: 9 - 16

  • Test Voltage: 14.4

  • Input Channel(s): 4

  • Output Channel(s): 4

  • Continuous Wattage @4ohm: 75 x 4

  • Continuous Wattage @2ohm: 125 x 4

  • Max Current Draw (Amps): 40

  • RCA Input Voltage Sensitivity: 6 - 0.25

  • High-Level Input Voltage Sensitivity: 20 - 1.1

  • RCA Input S/N: > 95

  • Damping Factor: > 100

  • THD: < 0.1%

  • Frequency Response (Hz): 20 - 20k

  • High Pass Filter: 35 - 250

  • Low-Pass Filter: 35 - 250

  • ZVL Input: No

  • Pass Thru Output: No

  • Power Wire Gauge: 4

  • Speaker Wire Gauge: 12

  • Dimensions (Inches): 5.75 x 4.5 x 2

  • Dimensions (MM): 146 x 115 x 50

  • Shipping Weight (Lbs): 4


Legendary Products & Support From Authorized Dealers

When you choose DD Audio, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized DD Audio dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by DD Audio's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized DD Audio dealer today!
