Description

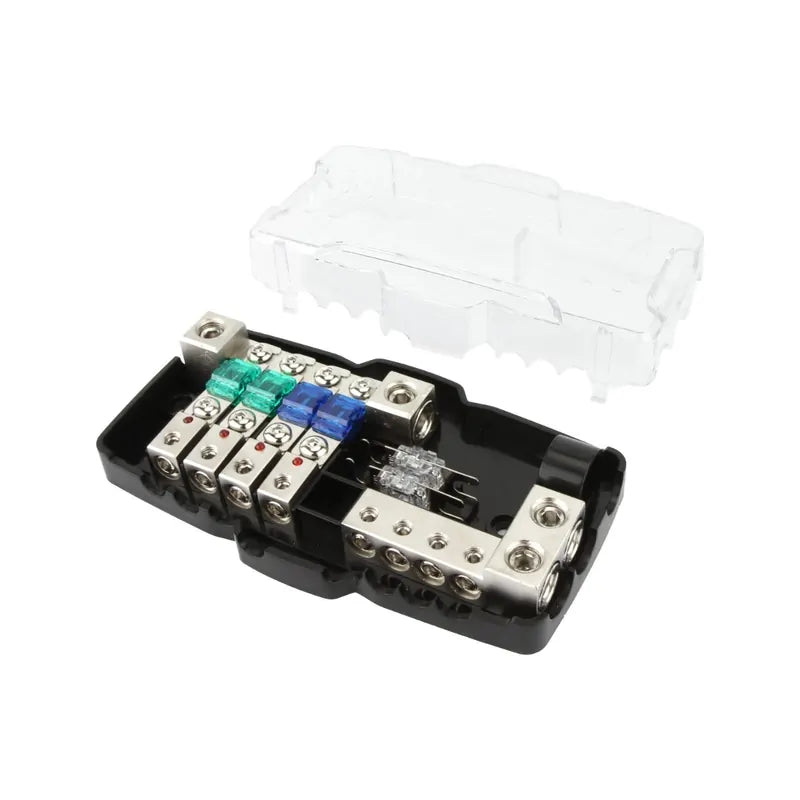

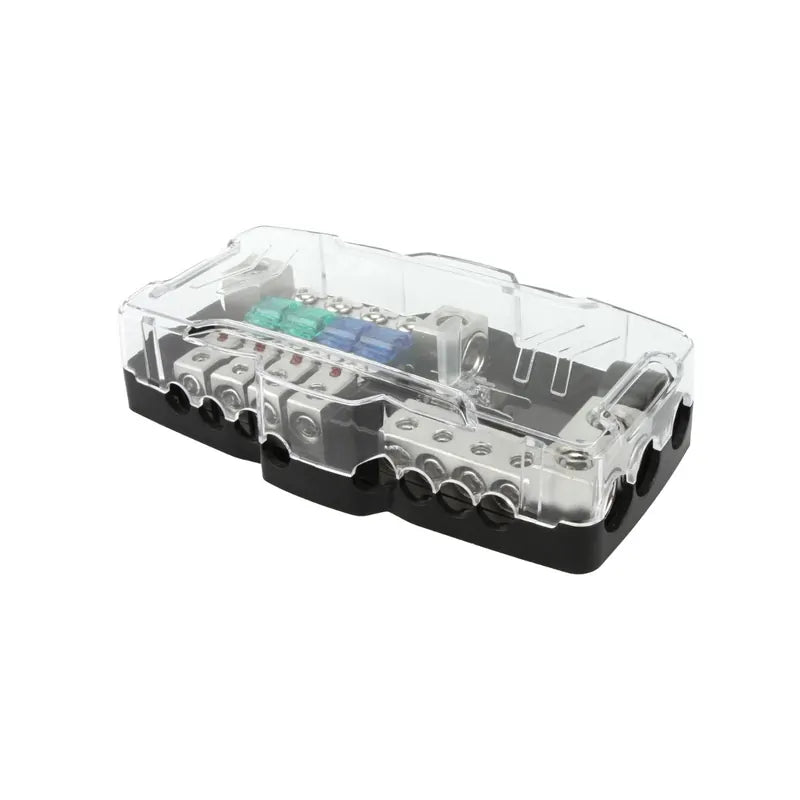

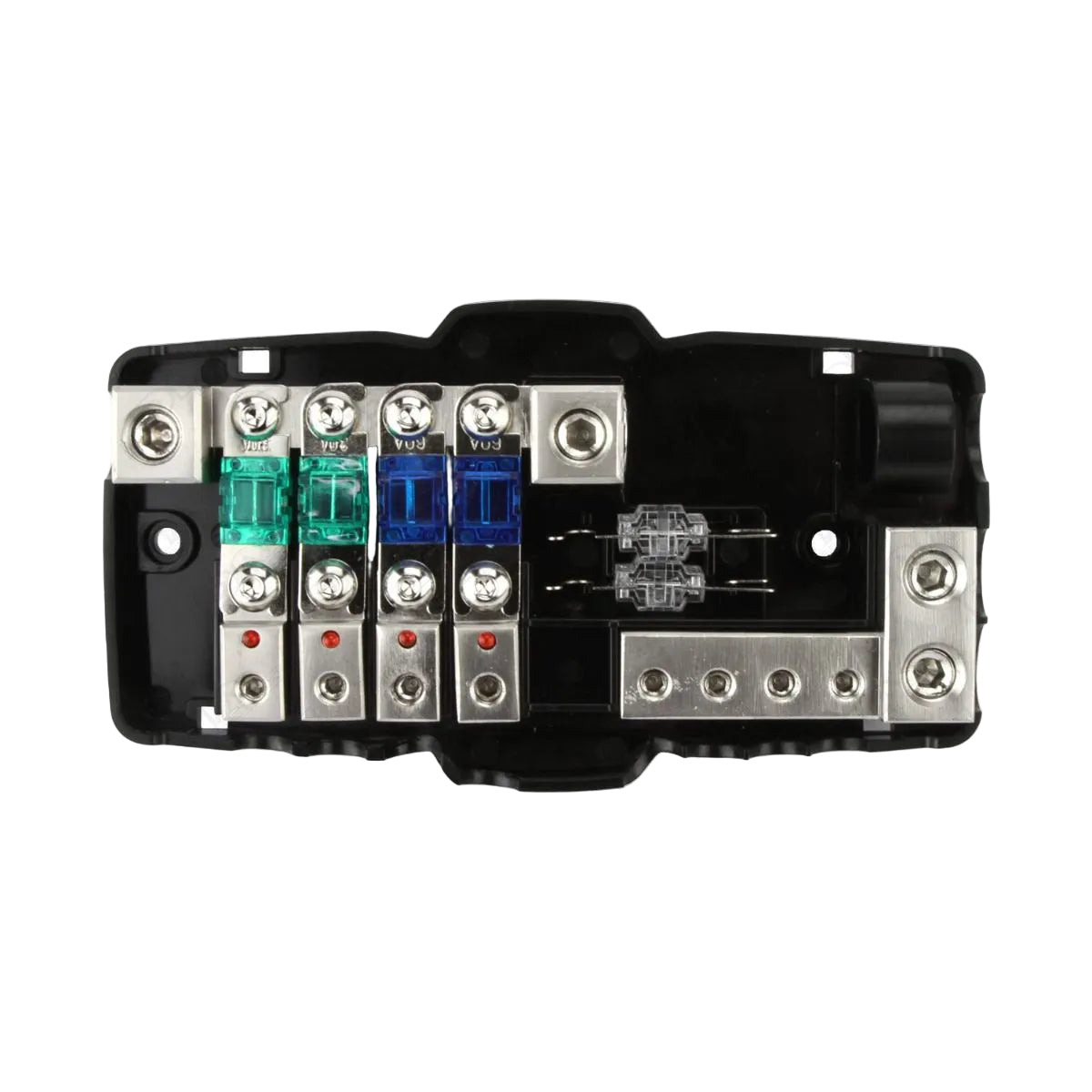

DNA Audio AAF404 4-Way Mini ANL Fuses Distribution Block - Professional Electrical Distribution Solution
Organize and protect your automotive electrical system with the DNA Audio AAF404 4-way Mini ANL fuses distribution block. This precision-engineered distribution housing provides 4 fused power outputs and 4 earth distributions in a single professional unit, enabling clean electrical system organization with built-in safety protection through individual circuit fusing and LED blow indicators.
Built with automotive-grade construction and comprehensive fuse protection, the AAF404 handles high-current applications with 0/2/4 AWG inputs and 4/8 AWG outputs. Each circuit supports up to 100 AMP maximum with 250 AMP total capacity, while LED indicators provide immediate visual notification of blown fuses for quick troubleshooting and system reliability.
DNA Audio AAF404 Key Features & Benefits:
-
Dual Distribution System: 4x fused power distribution plus 4x earth distribution in single housing
-
High Current Capability: 100 AMP max per circuit, 250 AMP max total capacity
-
Professional Wire Management: 0/2/4 AWG inputs with 4/8 AWG outputs for flexible installations
-
Safety Protection: Individual Mini ANL fuses protect each power circuit
-
Visual Fault Indication: LED indicators illuminate when fuses blow for quick diagnosis
-
Complete Fuse Kit: Includes 2x 30A, 2x 60A, 2x 80A Mini ANL fuses plus spare storage
-
Automotive Grade: Designed for automotive and car audio distribution applications
Professional Applications:
-
Car Audio Systems: Essential for multi-amplifier installations requiring individual circuit protection
-
Automotive Electrical: Professional distribution for high-current automotive applications
-
Workshop Installs: Clean, organized power distribution for professional installations
-
Custom Electrical Systems: Flexible distribution for specialized automotive electrical projects
-
Safety-Critical Applications: Individual fuse protection prevents system-wide electrical failures
Technical Specifications:
-
Model: DNA Audio AAF404
-
SKU: AAF404
-
Type: 4-Way Mini ANL Fuses Distribution Block
-
Power Distribution: 4x fused power outputs (4/8 AWG)
-
Earth Distribution: 4x earth connections (4/8 AWG)
-
Input Wire Gauge: 0/2/4 AWG
-
Output Wire Gauge: 4/8 AWG
-
Current Capacity: 100 AMP max per fused circuit, 250 AMP max total
-
Fuse Type: Mini ANL fuses
-
Fault Indication: LED indicators for blown fuses
-
Fuses Included: 2x 30A, 2x 60A, 2x 80A Mini ANL fuses
-
Spare Storage: Locations for spare fuses in holder casing
-
Application: Automotive and car audio distribution
-
Brand: DNA Audio installation accessories series
Included Components:
-
1x Distribution Block: 4-way power and earth distribution housing
-
6x Mini ANL Fuses: 2x 30A, 2x 60A, 2x 80A ratings
-
LED Indicators: Visual blown fuse indication system
-
Spare Fuse Storage: Integrated spare fuse holder locations
Compatible With / Goes Well With:
- Car audio amplifiers and high-current accessories
- Automotive electrical systems requiring distribution
- Professional installation tools and multimeters
- 0/2/4 AWG power cables for main feeds
- 4/8 AWG cables for individual circuit connections
- Additional Mini ANL fuses for spares and different ratings
Installation Applications:
-
Multi-Amplifier Systems: Distribute power to multiple car audio amplifiers with individual protection
-
Electrical System Organization: Clean, professional power and earth distribution
-
Safety-Critical Installations: Individual circuit protection prevents cascading electrical failures
-
Professional Installations: Workshop-grade electrical distribution with fault indication
-
Custom Electrical Projects: Flexible distribution for specialized automotive applications
For professional auto electricians and car audio installers requiring organized power distribution with safety protection, the DNA Audio AAF404 delivers comprehensive electrical distribution with individual fuse protection and fault indication. With DNA's automotive-grade construction and high-current capability, it's the smart choice for professional electrical system organization.
Frequently Asked Questions
What wire gauges can I connect?
Inputs accept 0/2/4 AWG wire, while outputs accommodate 4/8 AWG wire for flexible system connections.
How much current can each circuit handle?
Each fused circuit supports up to 100 AMP maximum, with total system capacity of 250 AMP.
What happens when a fuse blows?
LED indicators illuminate when individual fuses blow, providing immediate visual notification for quick troubleshooting.
Are spare fuses included?
Yes, includes 2x 30A, 2x 60A, 2x 80A Mini ANL fuses plus integrated storage for spare fuses.
Can I use this for non-audio applications?
Yes, this distribution block is suitable for any automotive electrical application requiring high-current distribution and protection.
