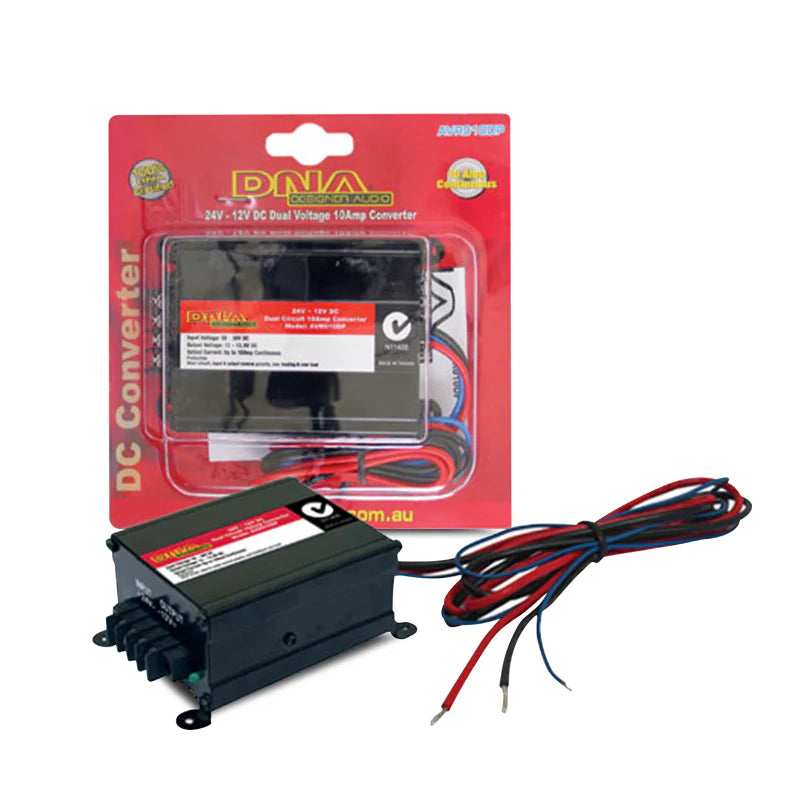

The DNA AVR010DP is a 10 AMP Dual Output 24 Volt DC To 12 Volt DC Voltage Reducer With Dual Outputs.
DNA AVR010DP Features:
- Fitted With 2 Independent 12v DC Outputs
- Using the Terminals on the Side of the Case for Output 1
- Using the 3 Wires for Output 2
- 12V DC Positive Output (Red)
- Negative Output (Black)
- 24V DC Trigger Wire For Activating The Circuit (Blue)
DNA AVR010DP Specifications:
- Input DC Voltage Range: DC20~30V DC
- Output Voltage Range: 12V~13.8V
- Continuous Power: 10 AMPS
- Peak Power: 15 AMPS
- No Load Current Draw: 20mA
- Max. Power Efficiency: >90%
- Cooling: Air Convection
- Input Polarity Reverse: Diode Protection
- Output Polarity Reverse: Circuit Protection
- Over Heating: Circuit Protection
- Over Load: Circuit Protection
- Output Short: Circuit Protection
- Fuse: 15 AMPS
- Dimension (LxWxH): 90 x 73 x 45mm
- Weight: 330g
- Packaging: Sliding Blister & Card With Hang Hole
