Description

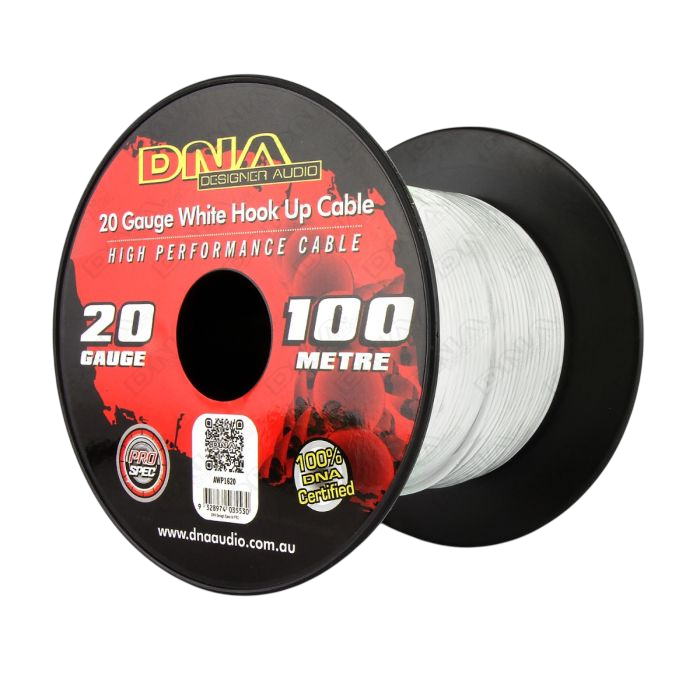

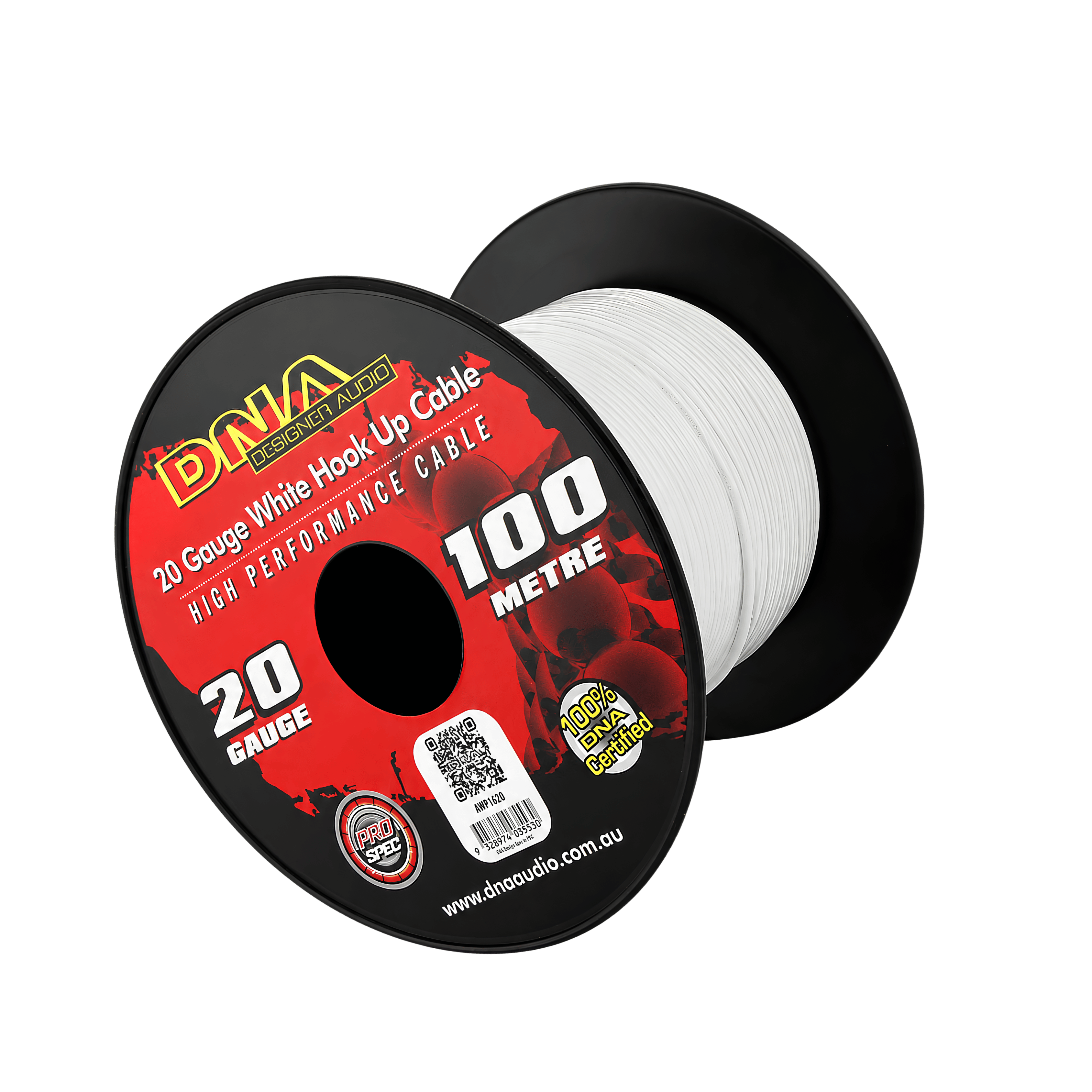

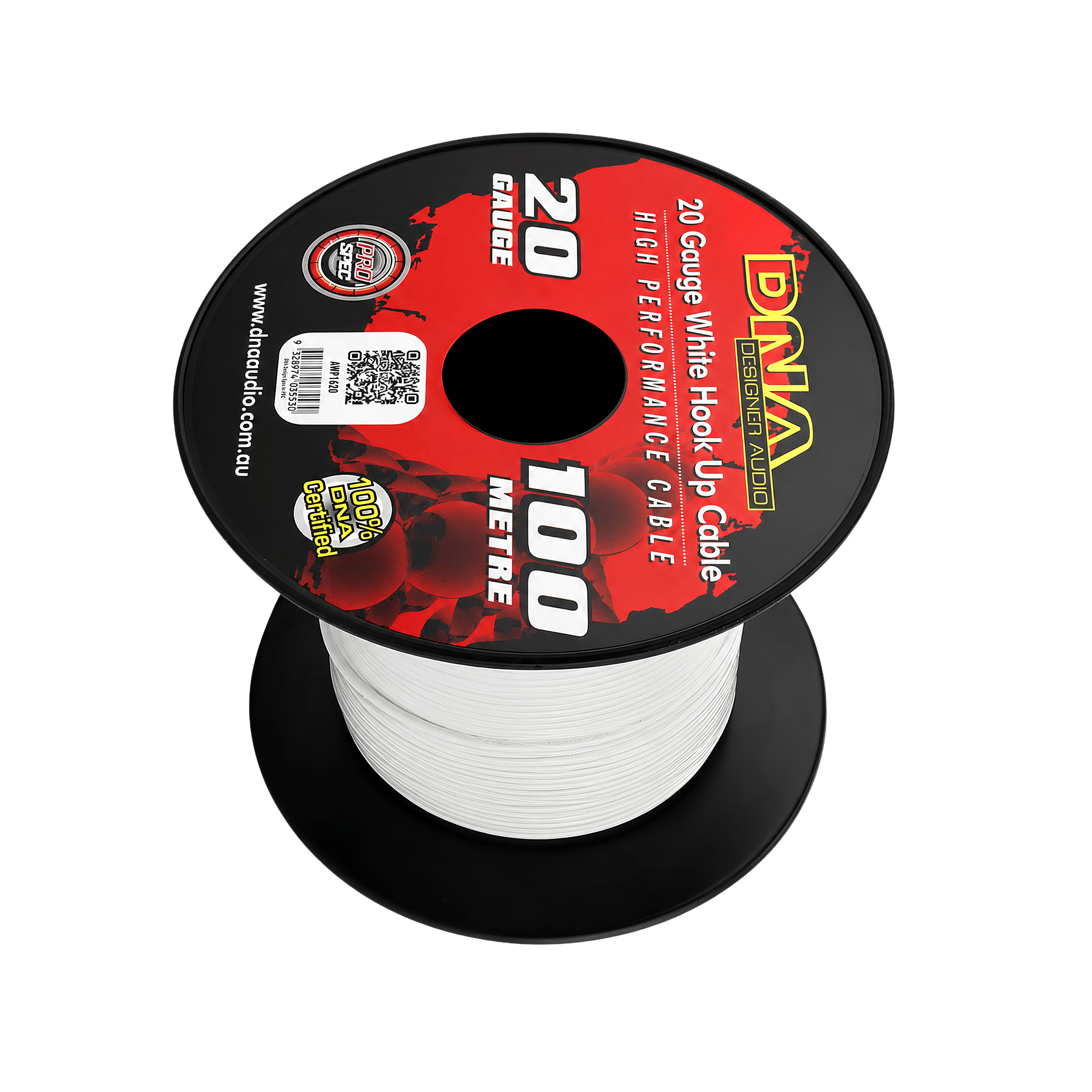

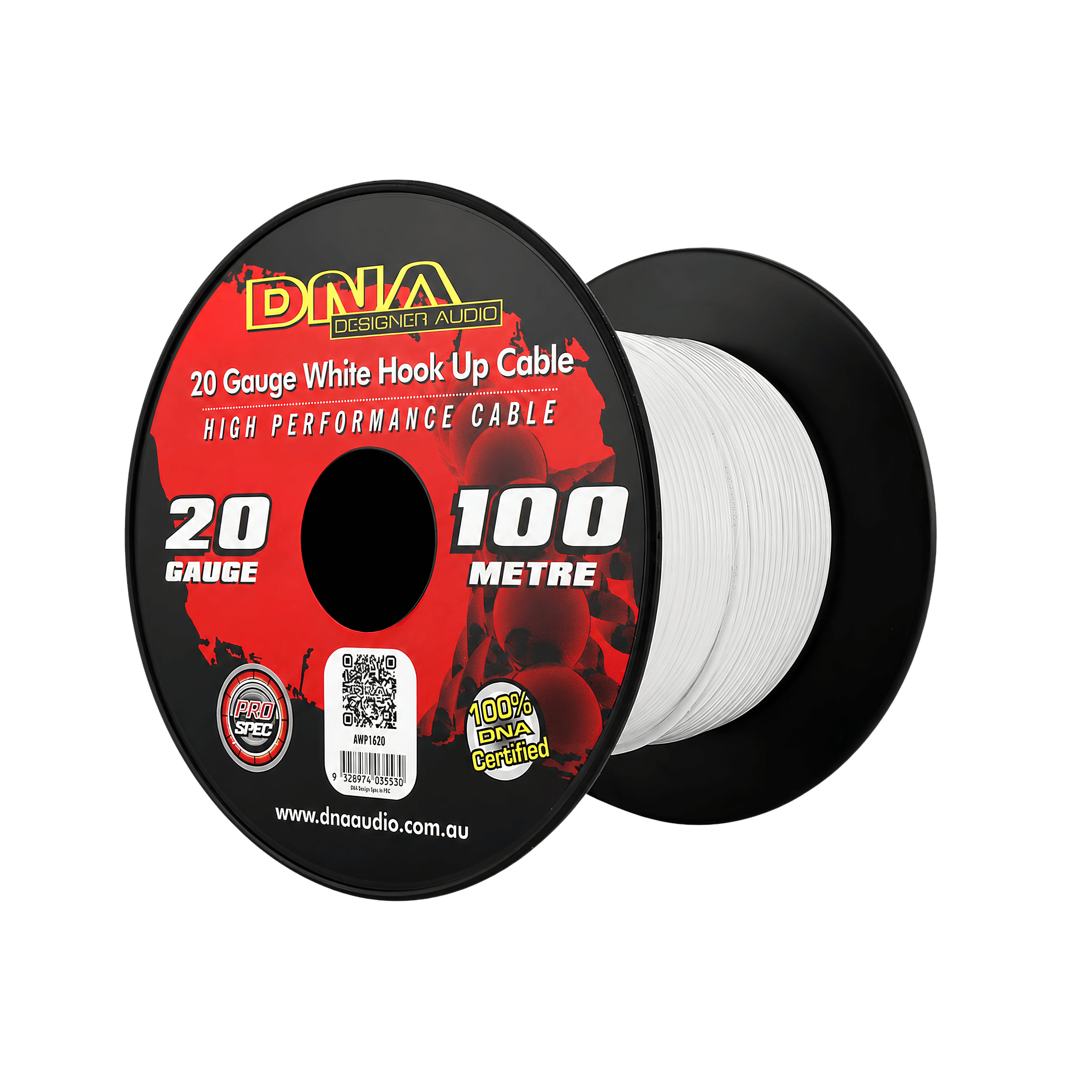

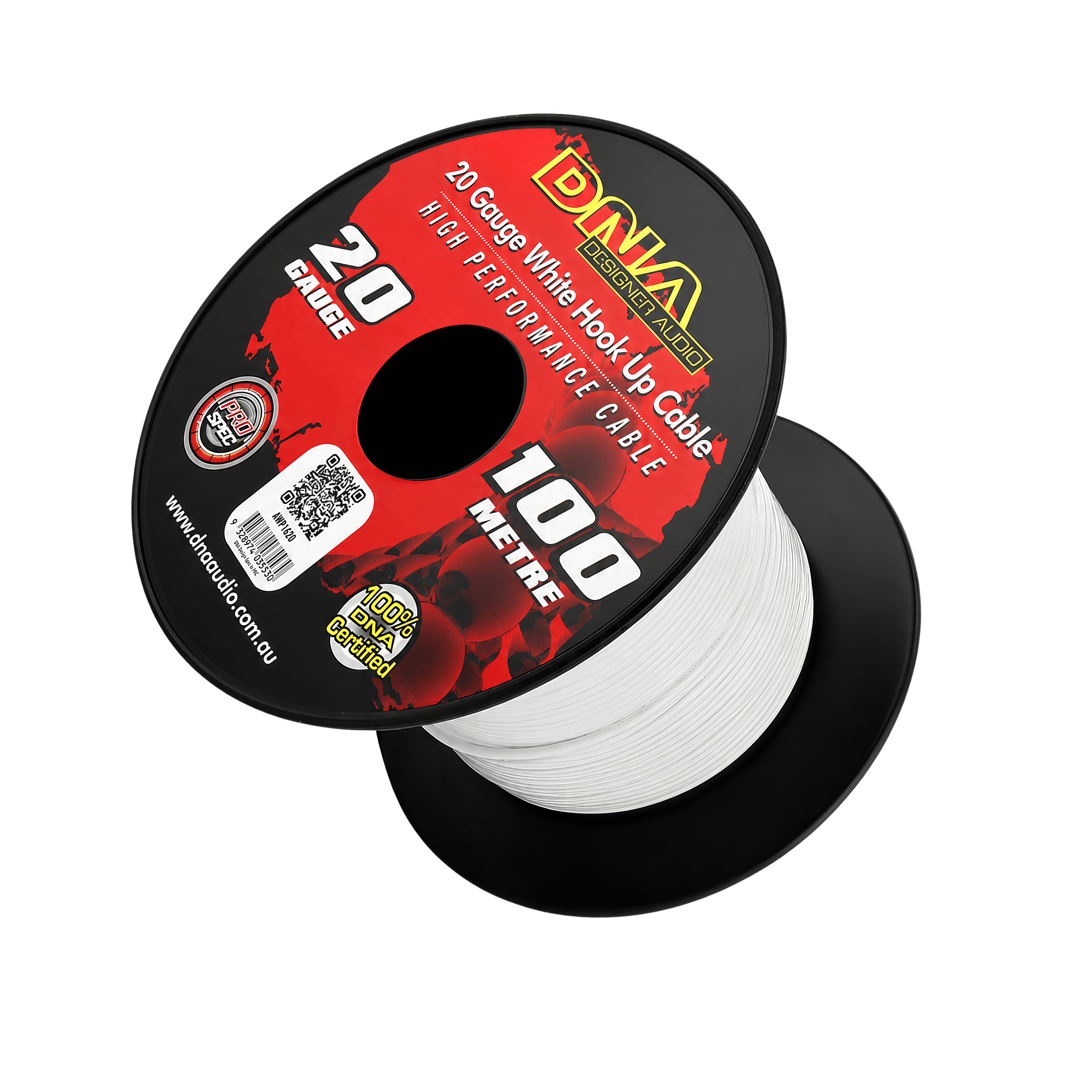

DNA AWP1620 20 Gauge White Single Core Cable 100 Metre Reel, 37 x 0.12mm Strands, 2mm Outer Diameter
This 20 gauge white single core cable from DNA comes supplied on a 100 metre reel with display cards, making it a practical bulk purchase for auto electricians and car audio installers. The cable is constructed with 37 x 0.12mm strands delivering a 0.52mm2 cross-sectional area, with a compact 2mm outer diameter.
Product overview
Single core cable at 20 gauge is suited to low-current automotive wiring applications where a slim, flexible conductor is required. Common uses include trigger wiring, remote turn-on leads, accessory feeds, and general auto electrical work where current demands are modest and tight routing paths are a factor.
The 37 x 0.12mm strand configuration provides good flexibility for routing through tight vehicle cavities and around corners without stressing the conductor. At 100 metres per reel, this cable is well suited to professional installers and auto electricians who need a consistent, reliable cable on hand across multiple jobs. The white jacket makes colour coding and polarity identification straightforward in multi-wire installations.
Features and benefits
20 gauge single core construction: Suited to low-current automotive wiring applications including trigger signals, remote leads, and accessory feeds where a slim and flexible conductor is required.
37 x 0.12mm strand configuration: The 37-strand construction delivers a 0.52mm2 cross-sectional area and provides the flexibility needed for routing through tight vehicle cavities, door apertures, and around corners without fatiguing the conductor.
2mm outer diameter: The compact 2mm outer diameter makes this cable easy to route through grommets and tight spaces without requiring oversized entry points or causing jacket damage during installation.
100 metre reel with display cards: A full 100 metre reel covers multiple complete jobs from a single purchase, reducing per-job material costs for professional installers and auto electricians.
White jacket: The white colour suits colour-coded wiring installations and makes identification straightforward in multi-wire automotive electrical work.
Technical specs
| Specification |
Detail |
| SKU |
AWP1620 |
| Brand |
DNA |
| Gauge |
20 AWG |
| Strand Configuration |
37 x 0.12mm |
| Cross-Sectional Area |
0.52mm2 |
| Outer Diameter |
2mm |
| Colour |
White |
| Roll Length |
100 Metres |
| Packaging |
Reel with display cards |
Frequently asked questions
What applications is 20 gauge single core cable suited to?
20 gauge single core cable is suited to low-current automotive wiring applications such as trigger signals, remote turn-on leads, accessory feeds, and general auto electrical work. For higher current applications such as power feeds or speaker wiring, a heavier gauge cable is recommended. Contact us if you need guidance on the correct gauge for your specific application.
How many metres of cable are on the reel?
Each reel contains 100 metres of cable. At 20 gauge, this is sufficient to cover a large number of individual wiring runs across multiple vehicle installations.
What is the strand configuration of the AWP1620?
The AWP1620 is constructed with 37 x 0.12mm strands, delivering a 0.52mm2 cross-sectional area. This strand count provides good flexibility for routing through tight automotive spaces without fatiguing the conductor over time.
Is this cable available in other colours?
This listing covers the white variant of the DNA 20 gauge single core cable. Contact us to confirm availability of other colours in this cable range.
Can this cable be used for general auto electrical work outside of car audio?
Yes. The AWP1620 is a general-purpose 20 gauge single core automotive cable suited to a broad range of low-current auto electrical applications beyond car audio installation.
