Description

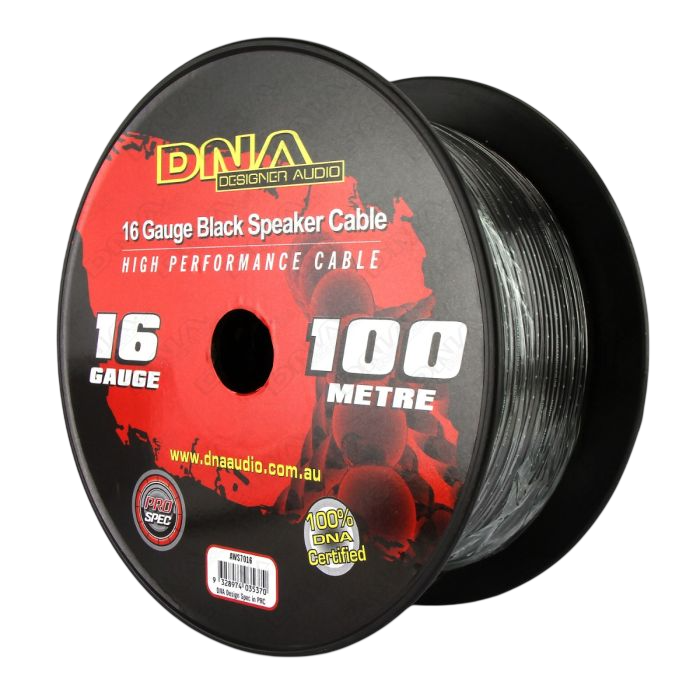

16 Gauge Black Speaker Cable 100 Metre Reel, 2 x 48 x 0.15mm Strands, 3.0mm Outer Diameter
This 16 gauge black speaker cable comes supplied on a 100 metre reel, making it a practical bulk purchase for car audio installers and enthusiasts working across multiple installations. The cable is constructed with 2 x 48 x 0.15mm strands delivering a 0.85mm2 cross-sectional area, with an outer diameter of 3.0mm per conductor.
Product overview
Speaker cable at 16 gauge is suited to standard car audio speaker runs where moderate power levels and manageable cable routing are the priority. The 2 x 48 x 0.15mm strand configuration provides flexibility for routing through tight door and pillar spaces without compromising the conductor's structural integrity over time.
At 100 metres per reel, this cable covers multiple full vehicle installations from a single purchase, making it the practical choice for professional installers who want a consistent, reliable cable on hand rather than purchasing shorter lengths per job. The black outer jacket suits installations where the cable will be visible, and the paired conductor format simplifies polarity identification during connection.
Features and benefits
16 gauge conductor: A practical gauge for standard car audio speaker runs, balancing current-carrying capacity with ease of routing through vehicle cavities and door apertures.
2 x 48 x 0.15mm strand construction: The 48-strand configuration per conductor delivers the flexibility needed for routing through tight spaces while maintaining a solid 0.85mm2 cross-sectional area for consistent signal transfer.
3.0mm outer diameter per conductor: The compact outer diameter makes this cable easy to route through grommets, door hinges, and trim panels without requiring excessive force or causing damage to the jacket.
100 metre reel: A full 100 metre reel provides enough cable for multiple complete vehicle installations from a single purchase, reducing per-job material costs for professional installers.
Black finish: The black outer jacket suits a wide range of installation environments, including applications where the cable may be partially visible within the vehicle interior.
Technical specs
| Specification |
Detail |
| SKU |
AWS7016 |
| Gauge |
16 AWG |
| Strand Configuration |
2 x 48 x 0.15mm |
| Cross-Sectional Area |
0.85mm2 |
| Outer Diameter |
3.0mm x 2 |
| Colour |
Black |
| Roll Length |
100 Metres |
| Packaging |
Reel |
Frequently asked questions
Is this cable suitable for car audio speaker installations?
Yes. 16 gauge speaker cable is suited to standard car audio speaker runs, covering most front and rear speaker installations in passenger vehicles. For high-power subwoofer applications requiring lower impedance runs over longer distances, a heavier gauge may be more appropriate. Contact us if you need guidance on the right cable gauge for your specific setup.
How many vehicle installations will a 100 metre reel cover?
This depends on the vehicle size and the number of speakers being wired. A typical four-speaker passenger vehicle installation uses between 8 and 15 metres of speaker cable depending on routing paths. A 100 metre reel will comfortably cover multiple complete installations.
What is the outer diameter of each conductor?
Each conductor has an outer diameter of 3.0mm. The cable is a paired format, so the overall flat width of the two conductors side by side is 3.0mm x 2.
Can this cable be used for home audio applications as well as car audio?
The cable construction is standard and not restricted to automotive use. It is suitable for any application calling for 16 gauge two-conductor speaker cable, including home audio installations.
How do I identify polarity when connecting this cable?
Contact us for guidance on polarity identification with this specific cable if markings are not immediately visible on the jacket. Correct polarity connection is important for speaker phase alignment across multiple drivers.
