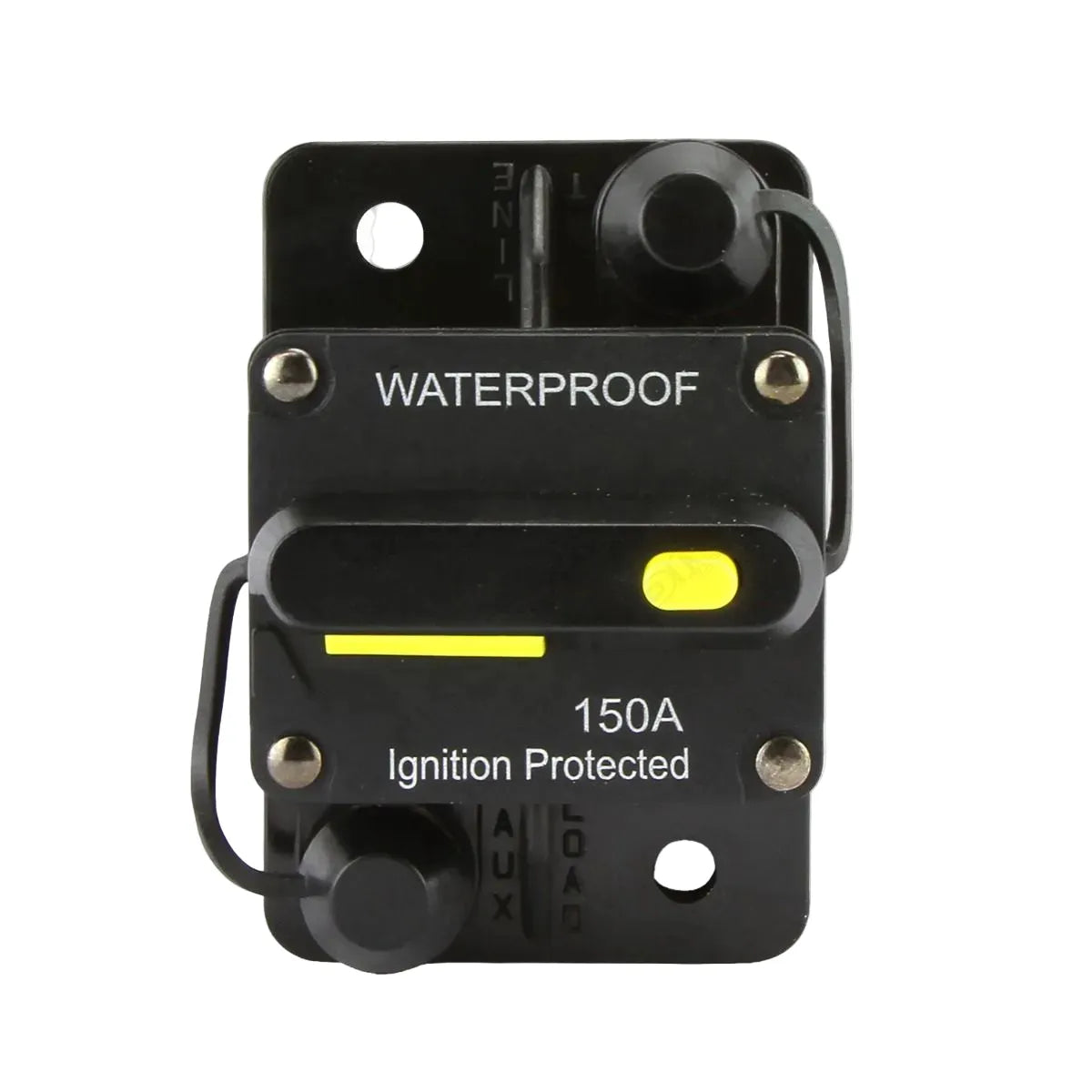

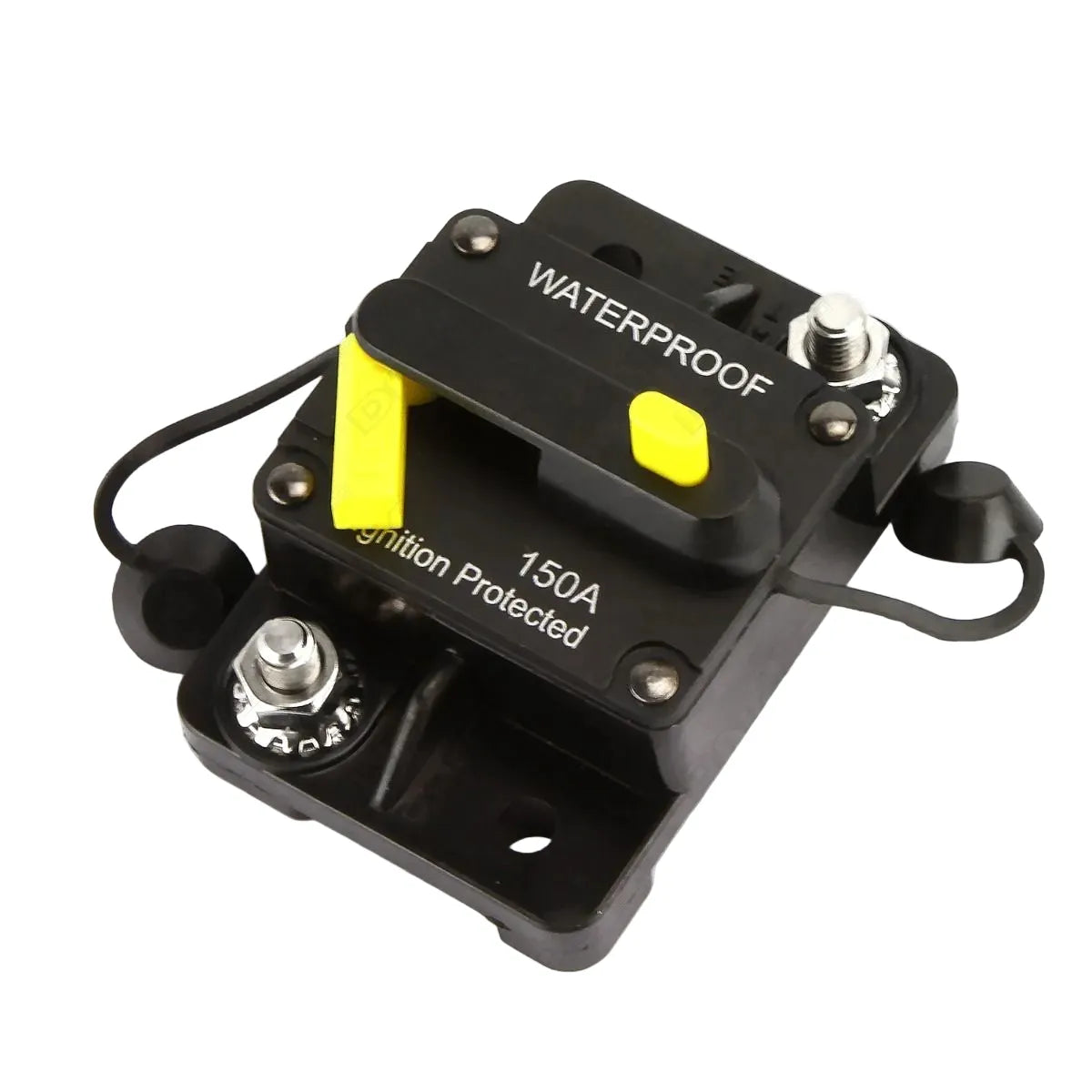

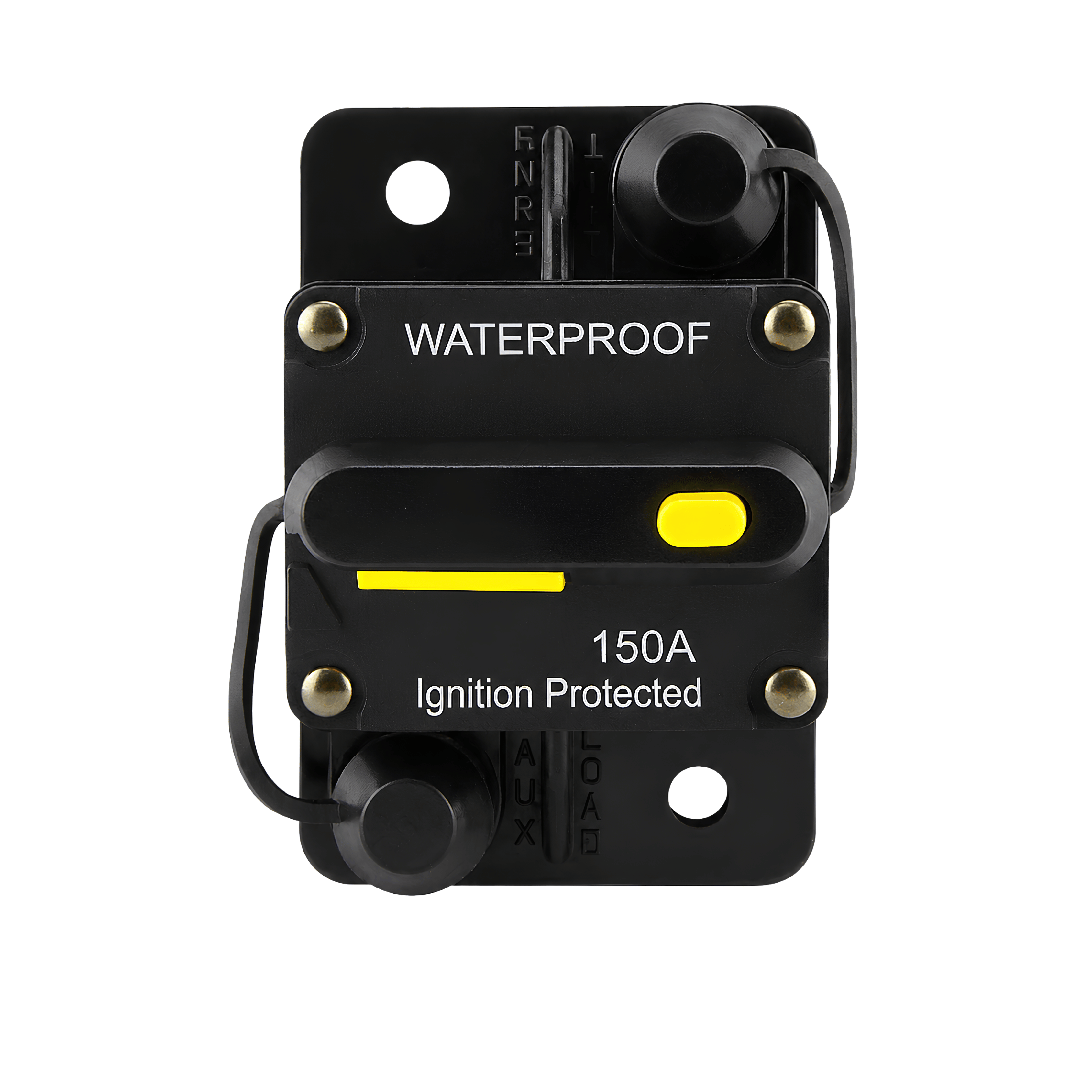

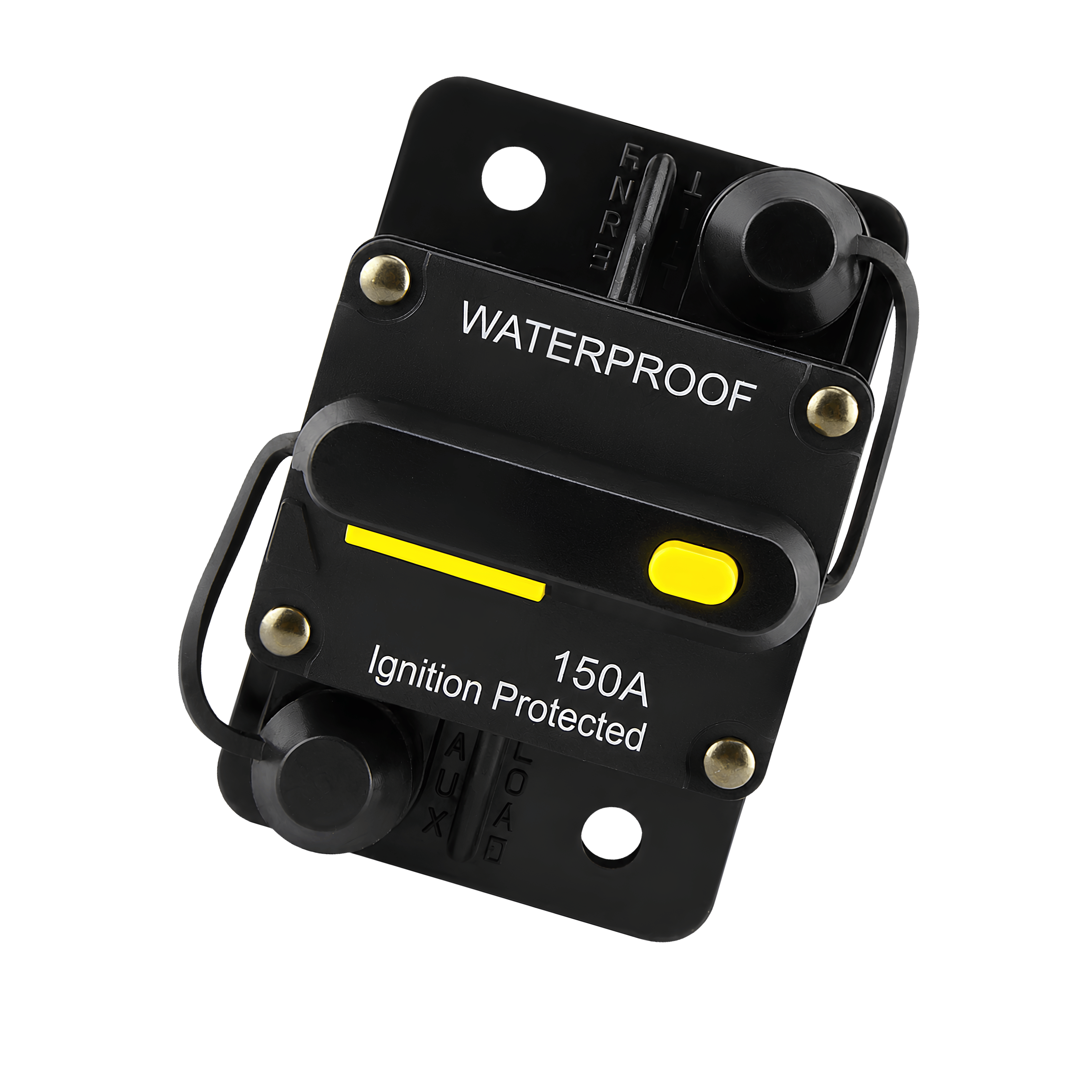

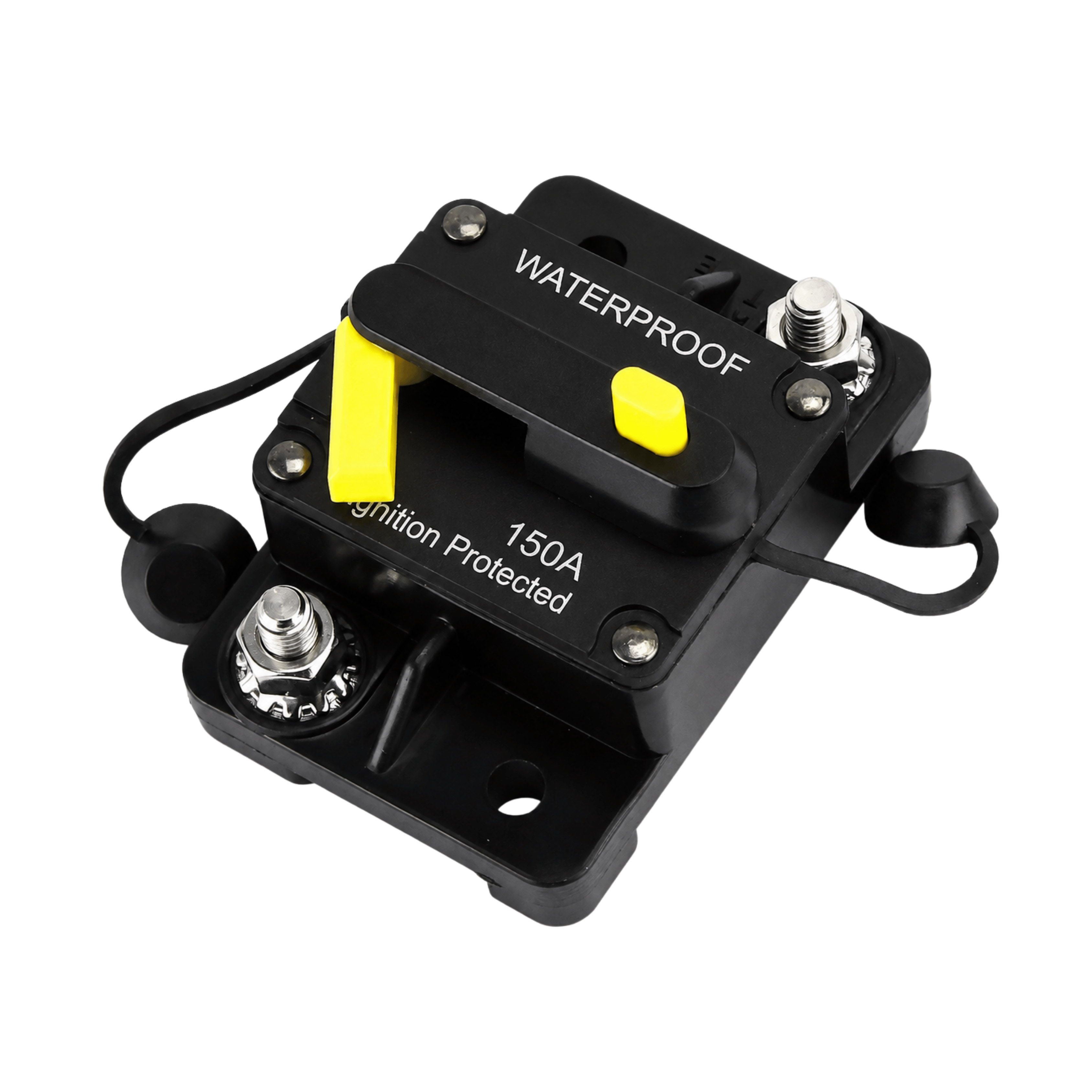

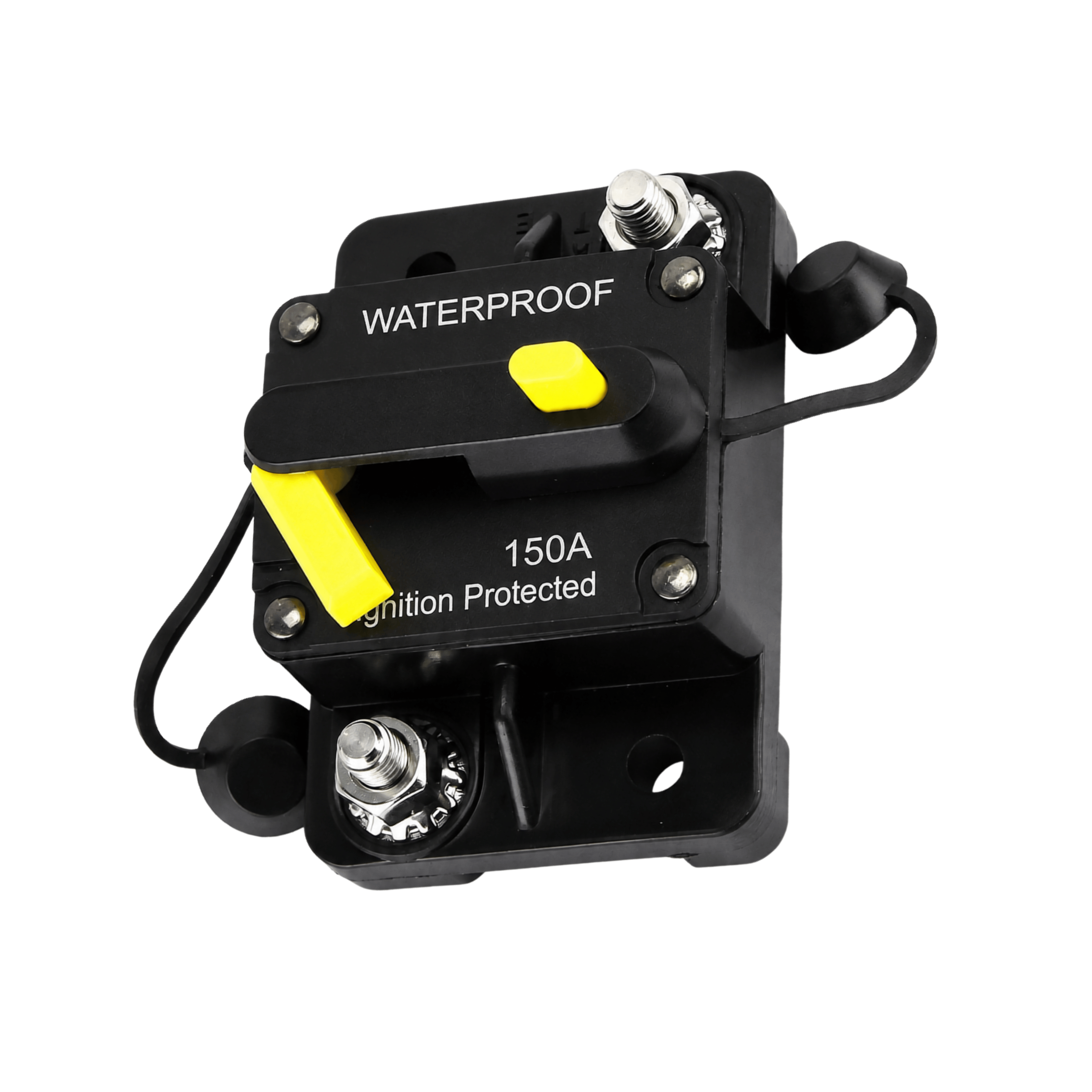

DNA CBM150Y 150A Manual Reset Circuit Breaker 12-48V DC IP67 Waterproof
A 150A manual reset circuit breaker from DNA, the CBM150Y operates across 12-48V DC with IP67 waterproof protection, ignition-safe design (no spark or heat during use), and 6mm studs for termination with 8-6 or 22-6 lugs, suited to automotive, marine, caravan, and 4WD electrical system protection applications.
Product Overview
The DNA CBM150Y is a 150A manual reset circuit breaker designed for use in 12V, 24V, and 48V DC electrical systems including vehicles, caravans, marine installations, and dual battery setups. The IP67 waterproof rating confirms full protection against dust and temporary immersion, making it suited to exposed installation positions in engine bays, under-vehicle locations, and marine environments. The ignition-protected design ensures no sparking or heat generation during operation, a critical safety requirement for installation near fuel systems and in confined spaces. The 6mm studs are compatible with 8-6 or 22-6 crimp lugs for a clean and secure wiring termination.
Manual reset operation allows the circuit breaker to be reset by hand after a trip event rather than requiring replacement, providing a reusable protection solution for main power feed and sub-circuit protection in complex 12-48V DC electrical builds.
Features & Benefits
150A Rating - 12-48V DC Operation: Rated at 150A across 12V, 24V, and 48V DC systems, covering passenger vehicles, commercial vehicles, caravans, 4WDs, and marine applications with a single circuit breaker unit.
Manual Reset - Reusable Protection: Manual reset operation allows the breaker to be reset by hand after a trip event, providing reusable circuit protection without requiring replacement after each fault.
IP67 Waterproof - Engine Bay and Marine Ready: IP67 rated for full dust protection and temporary water immersion, enabling installation in engine bays, exposed exterior locations, and marine environments without additional waterproofing.
Ignition Protected - No Spark or Heat During Use: The ignition-protected design produces no sparking or heat during operation, meeting safety requirements for installation near fuel systems and in confined or flammable environments.
6mm Studs - Compatible with 8-6 and 22-6 Lugs: The 6mm stud terminals accept standard 8-6 or 22-6 crimp lugs for a clean, secure, and vibration-resistant wiring termination.
Technical Specs
| Specification |
Detail |
| SKU |
CBM150Y |
| Brand |
DNA |
| Type |
Manual Reset Circuit Breaker |
| Rating |
150A |
| Operating Voltage |
12-48V DC |
| IP Rating |
IP67 |
| Ignition Protected |
Yes (No Spark or Heat) |
| Stud Size |
6mm |
| Compatible Lugs |
8-6 or 22-6 Crimp Lugs |
| Reset Type |
Manual |
Compatible With
The CBM150Y is compatible with 12V, 24V, and 48V DC electrical systems. The 6mm studs accept 8-6 or 22-6 crimp lugs for termination. Confirm the required amperage rating and system voltage against your specific electrical installation before purchase.
Frequently Asked Questions
Is the CBM150Y suitable for marine installation?
Yes. The IP67 waterproof rating and ignition-protected design make the CBM150Y suitable for marine installation in exposed positions.
Does the CBM150Y need to be replaced after a trip event?
No. The manual reset design allows the breaker to be reset by hand after a trip event and reused without replacement.
What lug size is compatible with the CBM150Y studs?
The 6mm studs are compatible with 8-6 or 22-6 crimp lugs for termination.
Is the CBM150Y suitable for 24V and 48V systems?
Yes. The CBM150Y operates across 12-48V DC, covering 12V, 24V, and 48V electrical systems.
