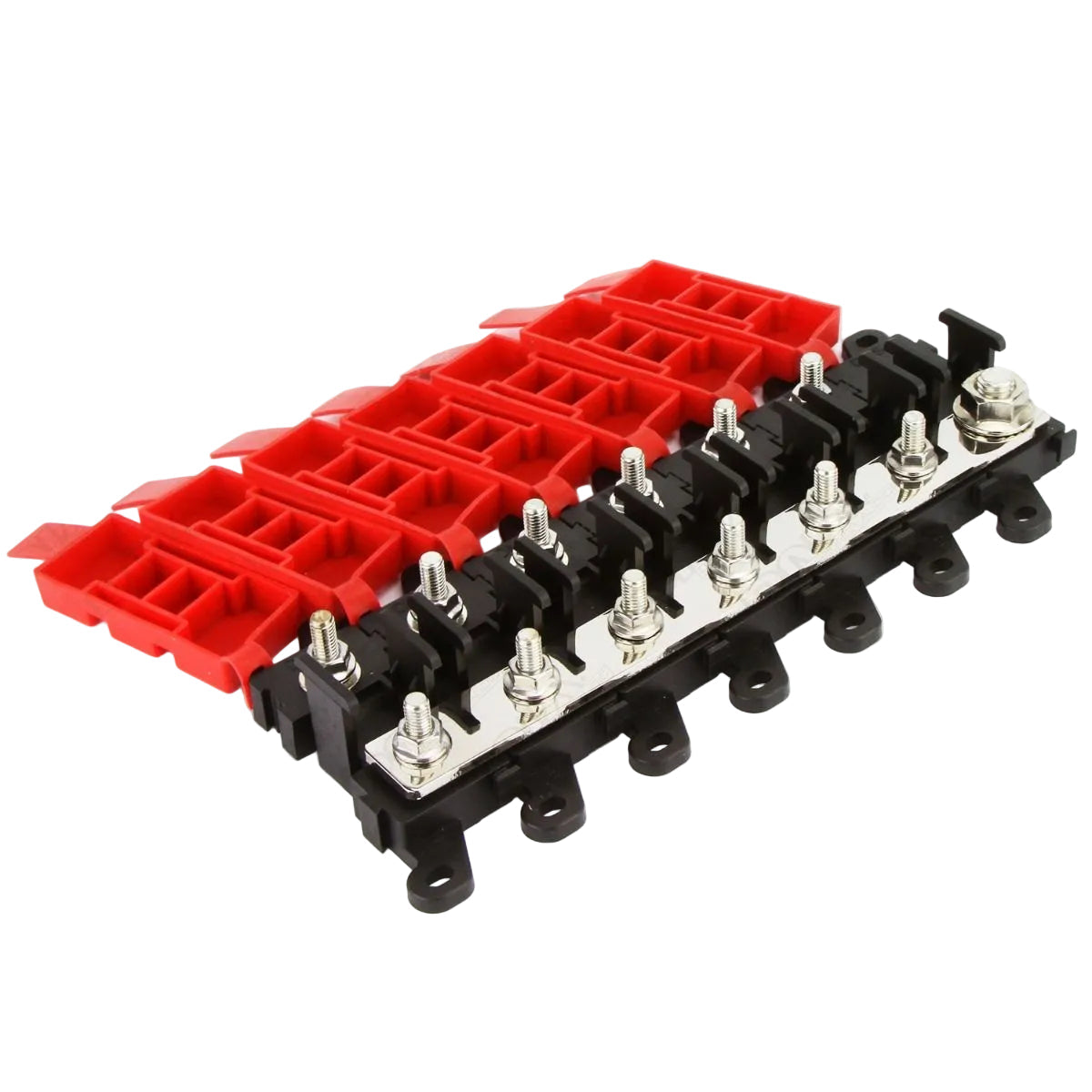

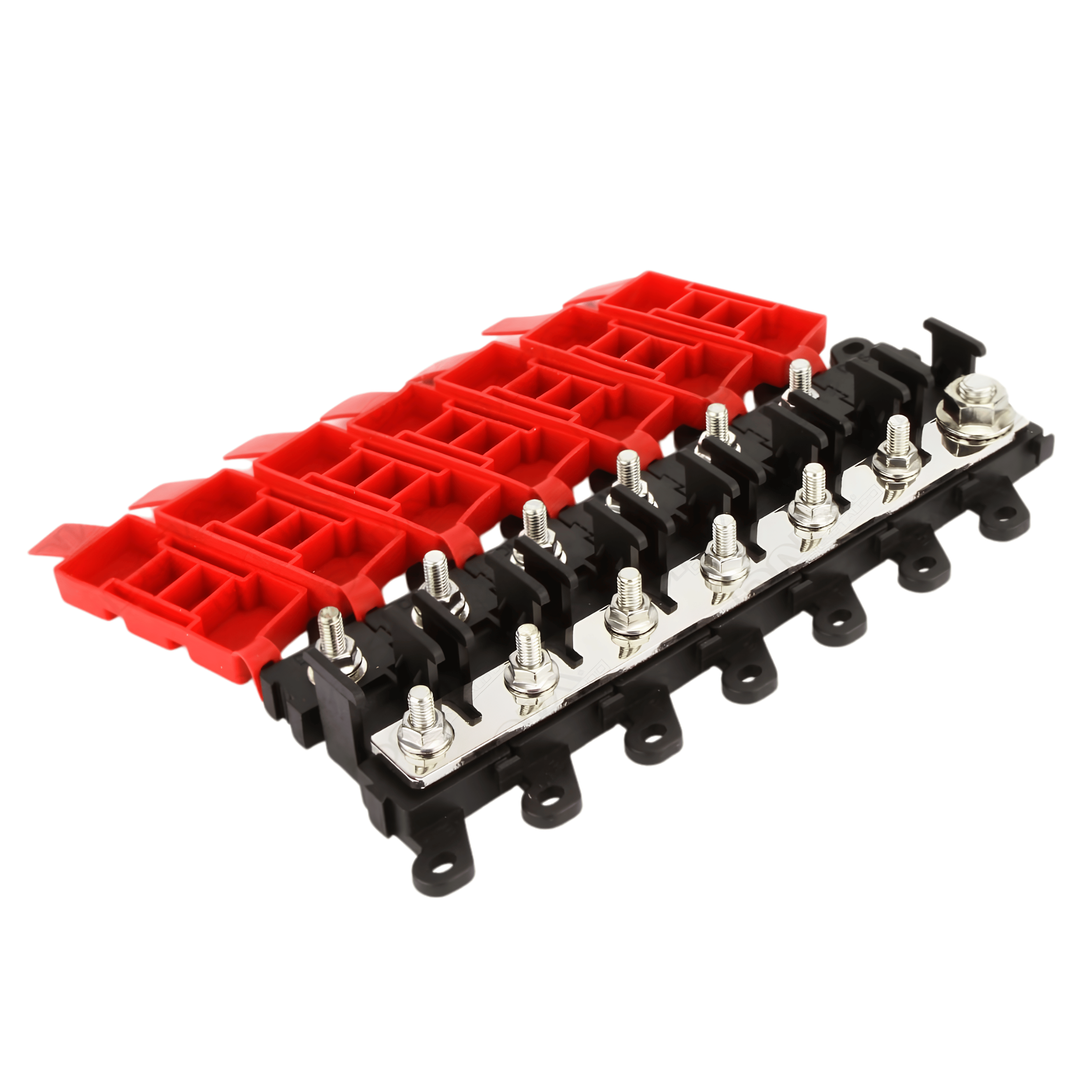

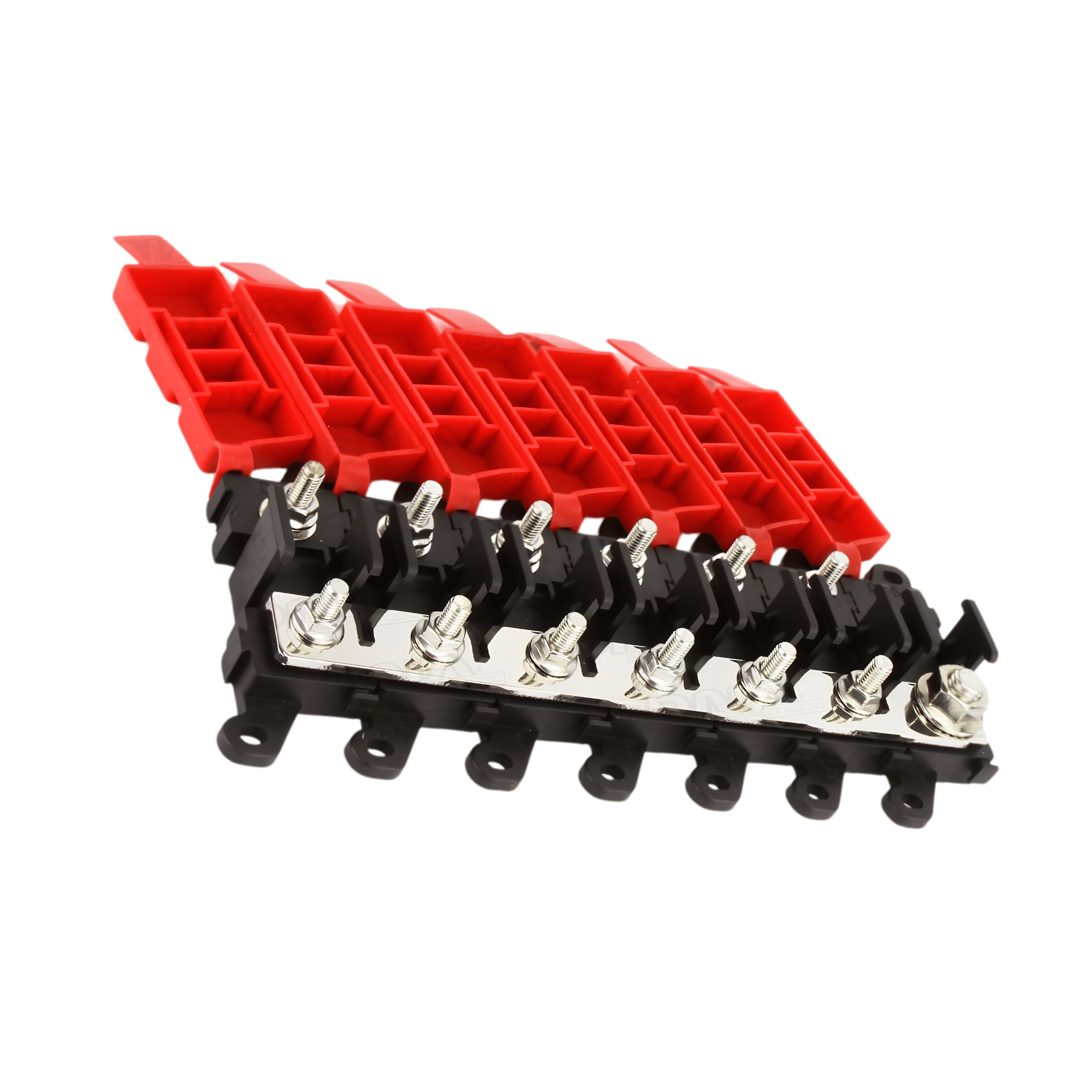

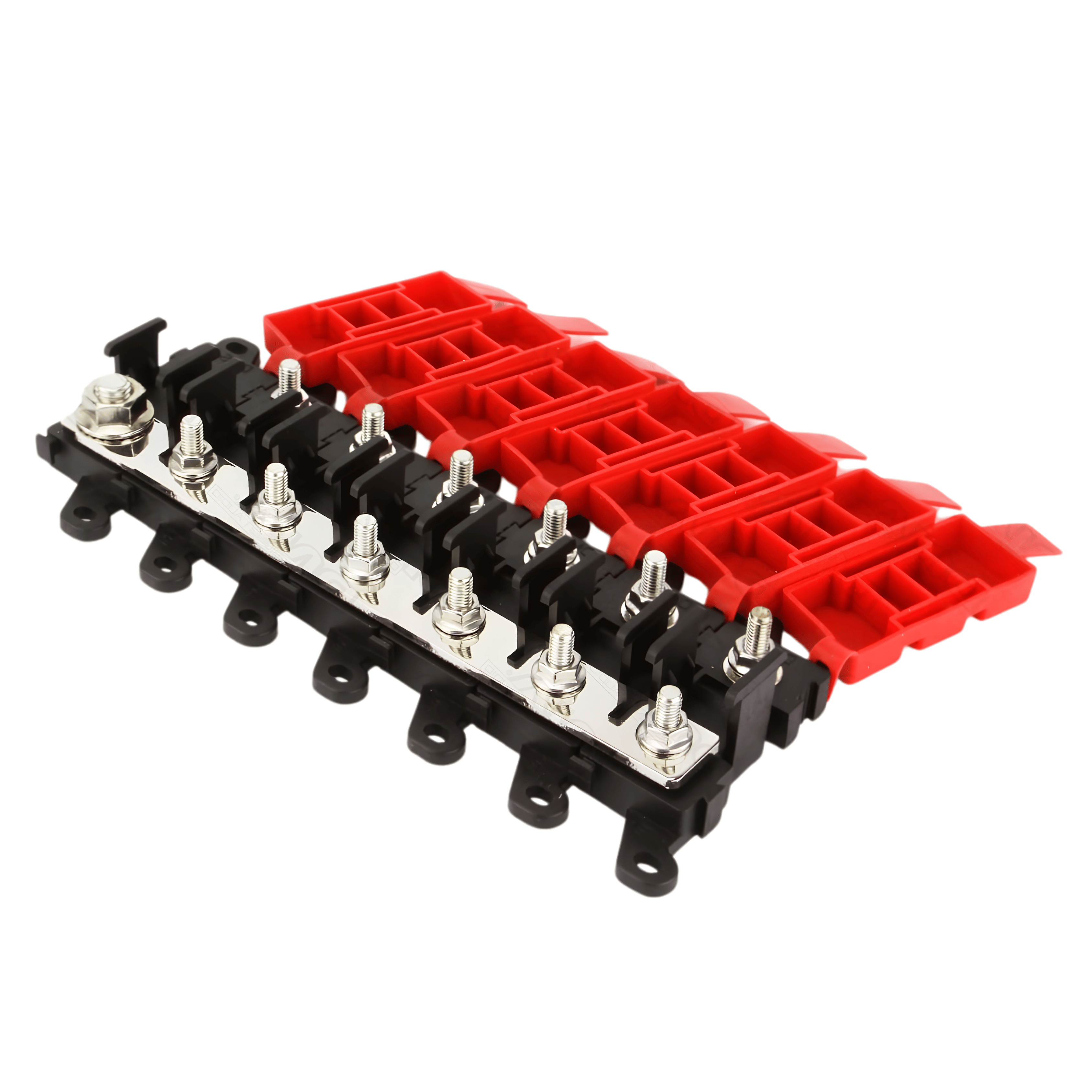

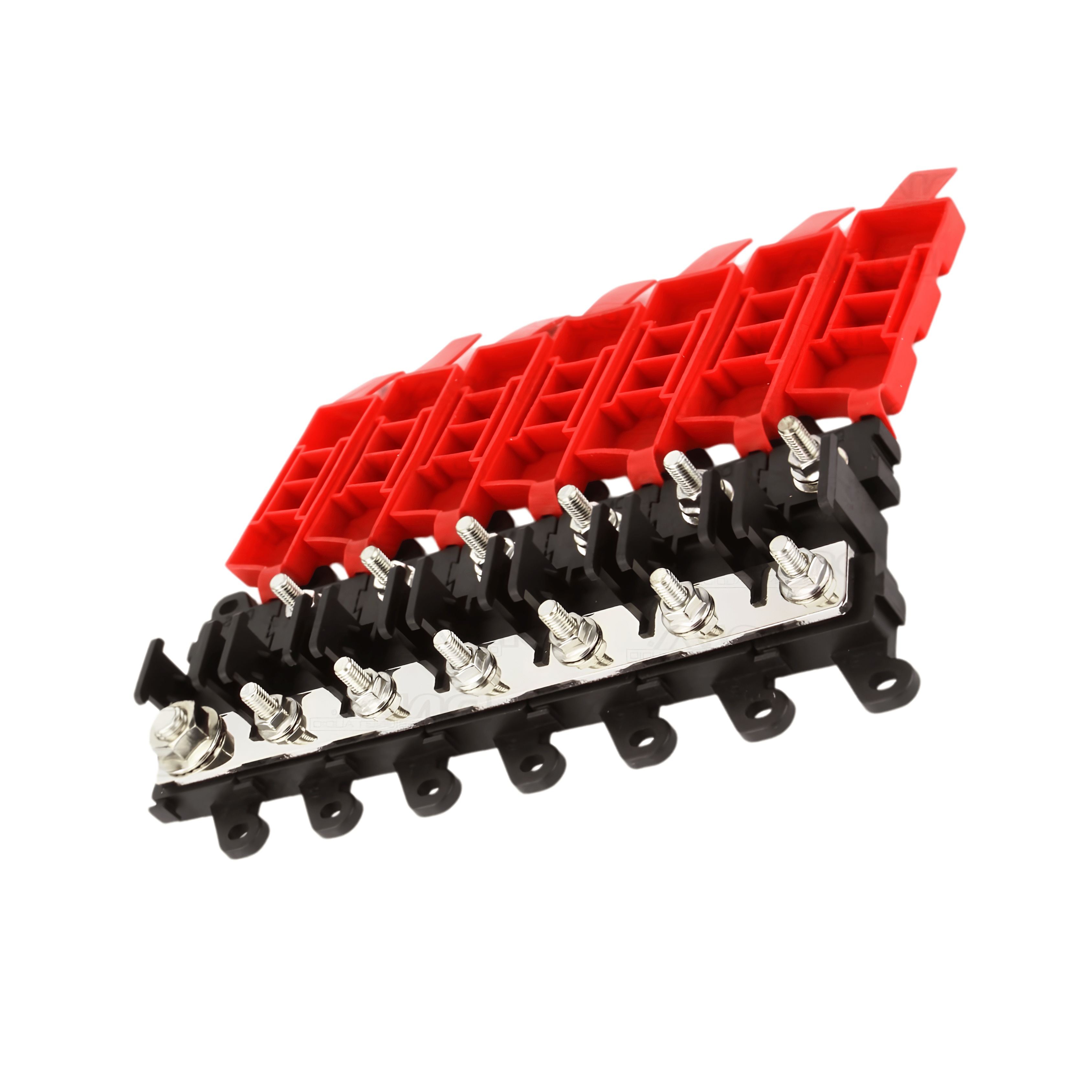

DNA MIDI010-6 6-Way Modular AMI and Midi Fuse Holder 400A
A complete 6-way modular AMI and Midi fuse holder pack for high-current DC systems, the DNA MIDI010-6 includes one input module, six AMI/Midi fuse holders, and a 7-hole busbar, rated at 200A per fuse holder and 400A total system capacity, suited to automotive, marine, caravan, and off-grid applications.
Product Overview
The DNA MIDI010-6 is a complete 6-way modular AMI/Midi fuse holder pack designed for high-current DC power distribution in automotive, marine, caravan, and off-grid applications. The pack is supplied pre-configured with one MIDI010-N input module, six MIDI010 AMI/Midi fuse holders, and one MIDIBB07 7-hole busbar, providing a compact, secure, and expandable power distribution solution ready for installation.
Each fuse holder is rated at 200A and the total system capacity is 400A at up to 24V DC. The M8 input stud and M5 fuse studs accommodate high-current cable terminations, and the high-temperature thermoplastic housing operates across -40°C to +85°C. The unit is surface mounted via bolt-down fixing. Fuses are sold separately. Individual modular components are also available separately, including the MIDI010 fuse holder, MIDI010-N input module, and modular packs from 1-way to 5-way configurations.
Features & Benefits
Complete 6-Way Modular Power Distribution Pack: The MIDI010-6 includes all components required for a complete 6-way AMI/Midi fuse holder installation in a single purchase, including the input module, six fuse holders, and the 7-hole busbar, pre-configured and ready to install.
200A Per Fuse Holder - 400A Total System Capacity: Each MIDI010 fuse holder is rated at 200A, with the total system capacity of the MIDI010-6 configuration at 400A, supporting high-current DC distribution requirements in demanding automotive, marine, and off-grid applications.
AMI and Midi Fuse Compatibility: The MIDI010-6 accepts AMI and Midi format fuses, which are widely used in high-current automotive, marine, and off-grid electrical systems. Fuses are sold separately.
M8 Input Stud and M5 Fuse Studs: The M8 input stud accommodates heavy-gauge power cable terminations at the input, and M5 fuse studs provide secure connections at each fuse position for reliable high-current distribution.
High-Temperature Thermoplastic Housing: The housing is manufactured from high-temperature thermoplastic, operating reliably across a -40°C to +85°C temperature range suited to underbonnet, marine, and off-grid environments.
Surface Mount Bolt-Down Fixing: The MIDI010-6 is secured via bolt-down surface mounting, providing a stable and vibration-resistant installation on panels, chassis, and enclosures.
Modular and Expandable Design: The MIDI010-6 uses a modular system that can be expanded or reconfigured using individual MIDI010 fuse holders, MIDI010-N input modules, and compatible busbars available separately. Modular configurations from 1-way to 6-way are available.
Wide Application Compatibility: The MIDI010-6 is suited to automotive, marine, caravan, and off-grid DC electrical system applications up to 24V DC.
Technical Specs
| Specification |
Detail |
| SKU |
MIDI010-6 |
| Brand |
DNA |
| Fuse Type |
AMI and Midi |
| Maximum Voltage |
24V DC |
| Maximum Current per Fuse Holder |
200A |
| Total System Capacity |
400A |
| Input Stud |
M8 |
| Fuse Studs |
M5 |
| Housing Material |
High-Temperature Thermoplastic |
| Mounting |
Surface Mount, Bolt-Down |
| Operating Temperature |
-40°C to +85°C |
| Included Components |
1 x MIDI010-N Input Module, 6 x MIDI010 Fuse Holders, 1 x MIDIBB07 7-Hole Busbar |
| Fuses |
Sold Separately |
What's in the Box
- 1 x MIDI010-N Input Module
- 6 x MIDI010 AMI/Midi Fuse Holders
- 1 x MIDIBB07 7-Hole Busbar
Compatible With
The MIDI010-6 is suited to automotive, marine, caravan, and off-grid DC electrical system applications up to 24V DC. Accepts AMI and Midi format fuses (sold separately). Individual components and alternative modular configurations are available separately: MIDI010 fuse holder, MIDI010-N input module, MIDI010-1 single-way, MIDI010-2 two-way, MIDI010-3 three-way, MIDI010-4 four-way, and MIDI010-5 five-way modular packs.
Frequently Asked Questions
Are fuses included with the MIDI010-6?
No. The MIDI010-6 includes the input module, six fuse holders, and the 7-hole busbar. AMI and Midi format fuses must be purchased separately. Select the appropriate current rating for each circuit based on the load requirements.
What is the maximum current capacity of the MIDI010-6?
Each MIDI010 fuse holder is rated at 200A and the total system capacity of the MIDI010-6 configuration is 400A at up to 24V DC.
Can the MIDI010-6 be expanded beyond 6 ways?
The MIDI010 system uses modular components that can be configured and expanded. Additional MIDI010 fuse holders and compatible busbars are available separately. Confirm the electrical ratings of the expanded configuration against your system requirements before installation.
What fuse types does the MIDI010-6 accept?
The MIDI010-6 accepts AMI and Midi format fuses, which are sold separately. Confirm the current rating required for each circuit before selecting fuses.
Is the MIDI010-6 suitable for marine installations?
Yes. The high-temperature thermoplastic housing and M8/M5 stud terminals are suited to marine applications. The operating temperature range of -40°C to +85°C and bolt-down surface mounting provide reliable performance in marine and outdoor environments.
