The cleanest way to panel-mount your DNA PA series socket
Product Overview

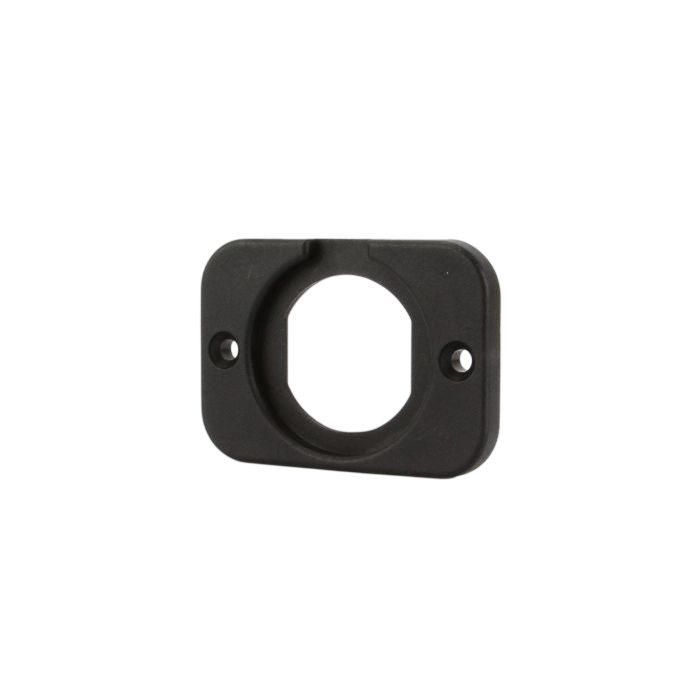

The DNA PA001 is a single-hole flush mount panel designed to house any socket from the DNA PA series range. If you're running a PA010, PA011, PA012, PA013, PA014, or PA016 or any of the PA100, PA403 series sockets this panel lets you remove them from their original housing and mount them cleanly into a dash, console, or custom panel.
It's a straightforward, no fuss solution for installers and DIYers who want a tidy, professional-looking finish when integrating DNA PA sockets into a vehicle, caravan, or custom build. The compact footprint makes it easy to fit into tight spaces without cutting large openings.
Key Specifications
- Panel dimensions: 60.2mm (L) x 42.3mm (W) x 5.4mm (D)
- Socket cutout diameter: 29mm
- Single-hole flush mount design
- Compatible with DNA PA series sockets (PA010 through PA403 range)
- Supplied in poly bag with barcode sticker
Features & Benefits
-
Flush mount design — sits flush against your panel surface for a factory-finished look, whether you're mounting in a centre console, overhead panel, or custom enclosure
-
Universal PA series fit — accepts the full DNA PA range including PA010, PA011, PA012, PA013, PA014, PA016, PA100–PA105, PA200–PA203, PA300–PA304, and PA400–PA403
-
Compact footprint — at just 60.2mm x 42.3mm, it fits neatly into tight dash or console locations common in 4WDs, utes, and caravans
-
Simple installation — simply remove your PA socket from its original housing and press it into this panel; no specialist tools required
-
Clean OEM-style result — ideal for builds where exposed socket housings look out of place
Technical Specs
- Length: 60.2mm
- Width: 42.3mm
- Depth: 5.4mm
- Socket hole diameter: 29mm
- Mount type: Single hole, flush mount
- Packaging: Poly bag with barcode sticker
Compatible With
Confirmed compatible DNA PA series sockets:
- PA010, PA011, PA012, PA013, PA014, PA016
- PA100, PA101, PA102, PA104, PA105
- PA200, PA201, PA202, PA203
- PA300, PA301, PA302, PA304
- PA400, PA401, PA402, PA403
Goes well with:
- DNA PA series power sockets and accessories
- Custom console and dash panel builds
- 4WD, caravan, and ute fitouts requiring flush-mounted power points
Note: Compatibility is confirmed for the DNA PA series listed above only. Fitment with non-DNA sockets is not specified verify socket diameter (29mm) before use with third-party products.
Frequently Asked Questions
What PA series sockets does the PA001 panel fit?
The PA001 is confirmed compatible with DNA PA series sockets PA010, PA016, PA100, PA105, PA200, PA203, PA300, PA304, and PA400, PA403. Simply remove the socket from its original housing to fit.
How does the flush mount installation work?
Remove your DNA PA socket from its supplied housing and press it into the 29mm cutout on the PA001 panel. No specialist tools are required for a clean, flush finish.
What are the panel dimensions?
The PA001 measures 60.2mm long x 42.3mm wide x 5.4mm deep, with a 29mm diameter socket hole. It's compact enough for tight console and dash locations.
Will this panel work with non-DNA sockets?
Compatibility is only confirmed for the DNA PA series listed. If using a third-party socket, verify it has a 29mm diameter before purchasing.
Does this come ready to install?
Yes. The PA001 ships in a poly bag and requires no additional hardware for basic installation. Your PA series socket presses directly into the panel cutout.
