Description

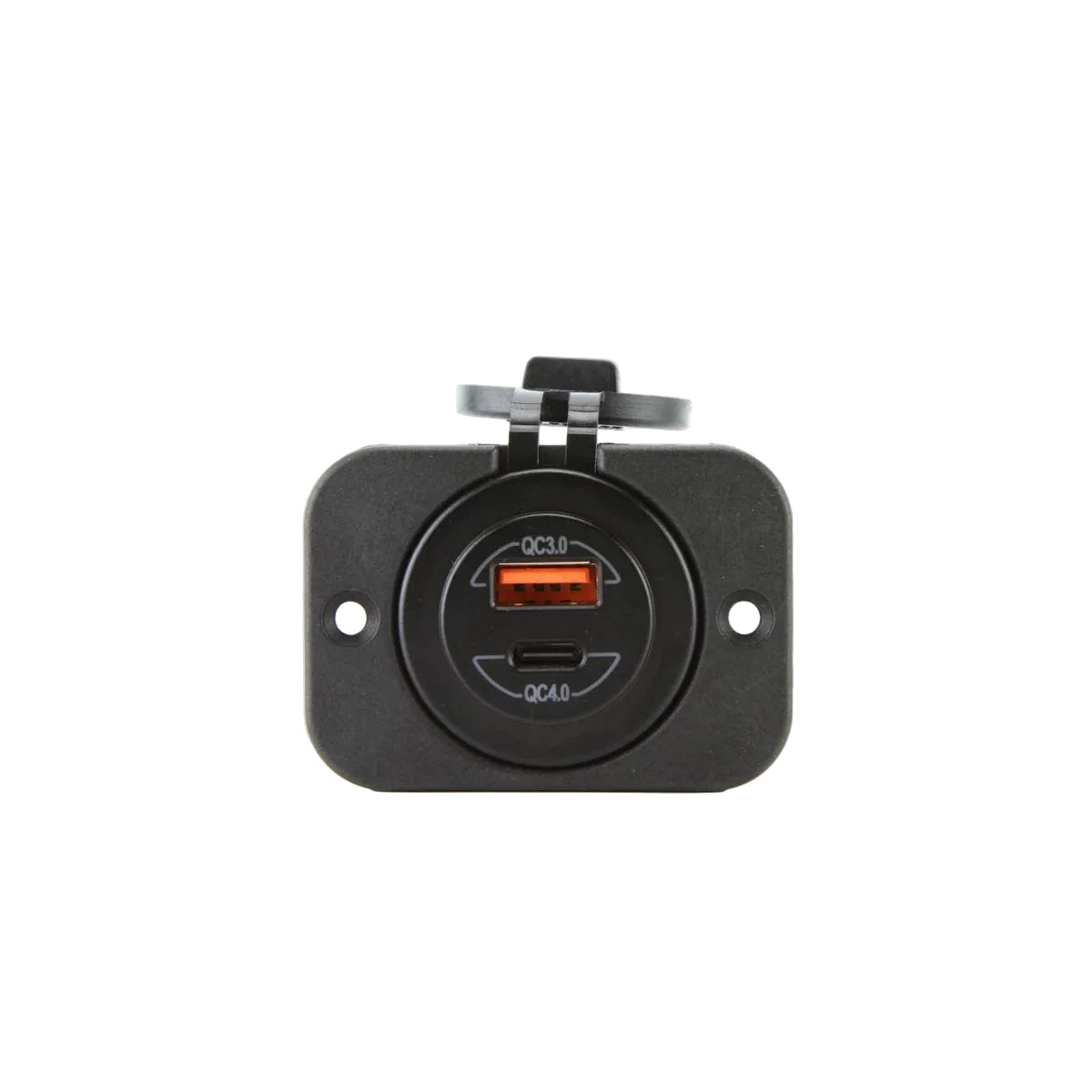

DNA PA105 Heavy-Duty Type-C & USB Socket - Professional Fast Charging Solution for Marine, RV & Vehicle Applications
The DNA PA105 Heavy-Duty Type-C & USB Socket delivers professional-grade fast charging capabilities in a robust, easy-to-install package. Featuring both USB Type-C (60W) and USB Type-A (36W) ports with advanced Quick Charge technology, this heavy-duty socket system is perfect for marine, RV, commercial vehicle, and industrial applications where reliable fast charging is essential.
Why Choose the DNA PA105 Type-C & USB Socket:
Dual Fast Charging Technology - Combines USB Type-C with QC4.0 (60W max) and USB Type-A with QC3.0 (36W max) for simultaneous fast charging of multiple devices including smartphones, tablets, and laptops.
Heavy-Duty Construction - Built for demanding environments with dustproof covers and robust construction suitable for marine, RV, and commercial vehicle installations where durability is critical.
Universal Voltage Compatibility - Wide input voltage range (8V-32V) with 12V-24V operation ensures compatibility with various electrical systems including automotive, marine, and industrial applications.
Comprehensive Protection Systems - Multiple safety features including over-voltage, over-current, over-temperature, short circuit, and reverse polarity protection ensure safe operation and equipment protection.
Versatile Installation Options - Fitting mechanism allows installation into interior or exterior panels including steel and aluminium, with all necessary terminals and screws included.

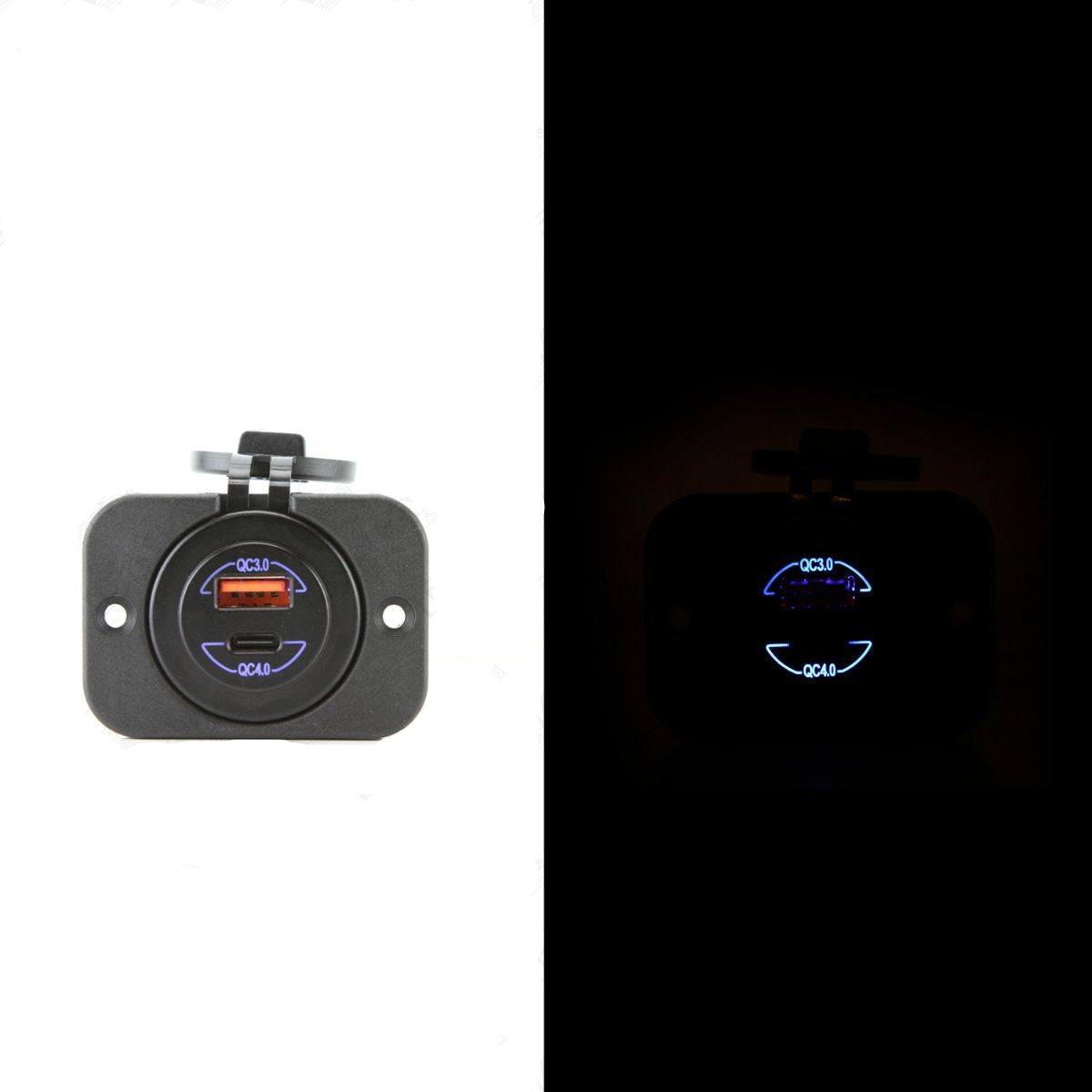

Professional LED Indication - Blue LED indicator provides clear visual confirmation of power status, making it easy to locate and use in low-light conditions.
Key Features
Fast Charging Capabilities
- USB Type-C: QC4.0 up to 60W
- USB Type-A: QC3.0 up to 36W
- Simultaneous dual device charging
- Advanced Quick Charge technology
Heavy-Duty Design
- Dustproof covers included
- Robust construction materials
- Suitable for harsh environments
- Professional-grade durability
Universal Compatibility
- Input voltage: 12V-24V ± 4.0V
- Voltage range: 8V-32V
- 20A at 12V DC, 10A at 24V
- Wide system compatibility
Advanced Protection
- Over-voltage protection
- Over-current protection
- Over-temperature protection
- Short circuit protection
- Reverse polarity protection
Technical Specifications
Charging Specifications:
- USB Type-C output: QC4.0 maximum 60W
- USB Type-A output: QC3.0 maximum 36W
- Input voltage: 12V-24V ± 4.0V
- Amperage rating: 20A at 12V DC, 10A at 24V
- Voltage range: 8V-32V
Physical Specifications:
- Dimensions: 60mm x 43mm
- Mounting depth: 57mm
- Mounting opening: 29mm diameter (per socket)
- Weight: 0.20kg
- LED colour: Blue indication
Installation Specifications:
- Type: Socket system (Type-C & USB)
- Mounting: Interior or exterior panels
- Compatible materials: Steel and aluminium
- Supplied with: Terminals and screws
- Packaging: Heat sealed blister with card and hang hole
Protection Features:
- Over-voltage protection: Yes
- Over-current protection: Yes
- Over-temperature protection: Yes
- Short circuit protection: Yes
- Reverse polarity protection: Yes
Perfect For These Applications
Marine Applications
- Boat electrical systems
- Marine electronics charging
- Yacht power systems
- Waterproof charging solutions
RV and Motorhome
- Caravan electrical systems
- Motorhome interior charging
- Camping power solutions
- Mobile device charging
Commercial Vehicles
- Truck cab charging systems
- Fleet vehicle installations
- Work vehicle power solutions
- Heavy equipment charging
Industrial Applications
- Workshop charging stations
- Equipment panel installations
- Industrial control panels
- Machinery charging solutions
Installation Benefits
Easy Installation
- Complete hardware package included
- Versatile mounting options
- Steel and aluminium compatibility
- Professional installation ready
Reliable Performance
- Multiple protection systems
- Heavy-duty construction
- Wide voltage compatibility
- Professional-grade reliability
User-Friendly Design
- Dustproof covers for protection
- Blue LED status indication
- Easy access dual ports
- Professional appearance
Compatible With / Goes Well With
- 12V and 24V electrical systems
- Marine electrical components
- RV power systems
- Vehicle charging accessories
- Industrial electrical panels
- Mobile device accessories
Weight
Weight: 0.20kg (0.44 lbs)
