CMOS Reverse Camera With Butterfly Mount & Harness Kit The DNA RCH170 CMOS Reverse Camera With Butterfly Mount and Harness Kit will suit Toyota Hilux vehicles from June 2005 - onward. Updated Design - As of December 2022 this kit now includes a 4-pin adaptor harness for use with Toyota Hilux vehicles dated 2005 to early 2020.

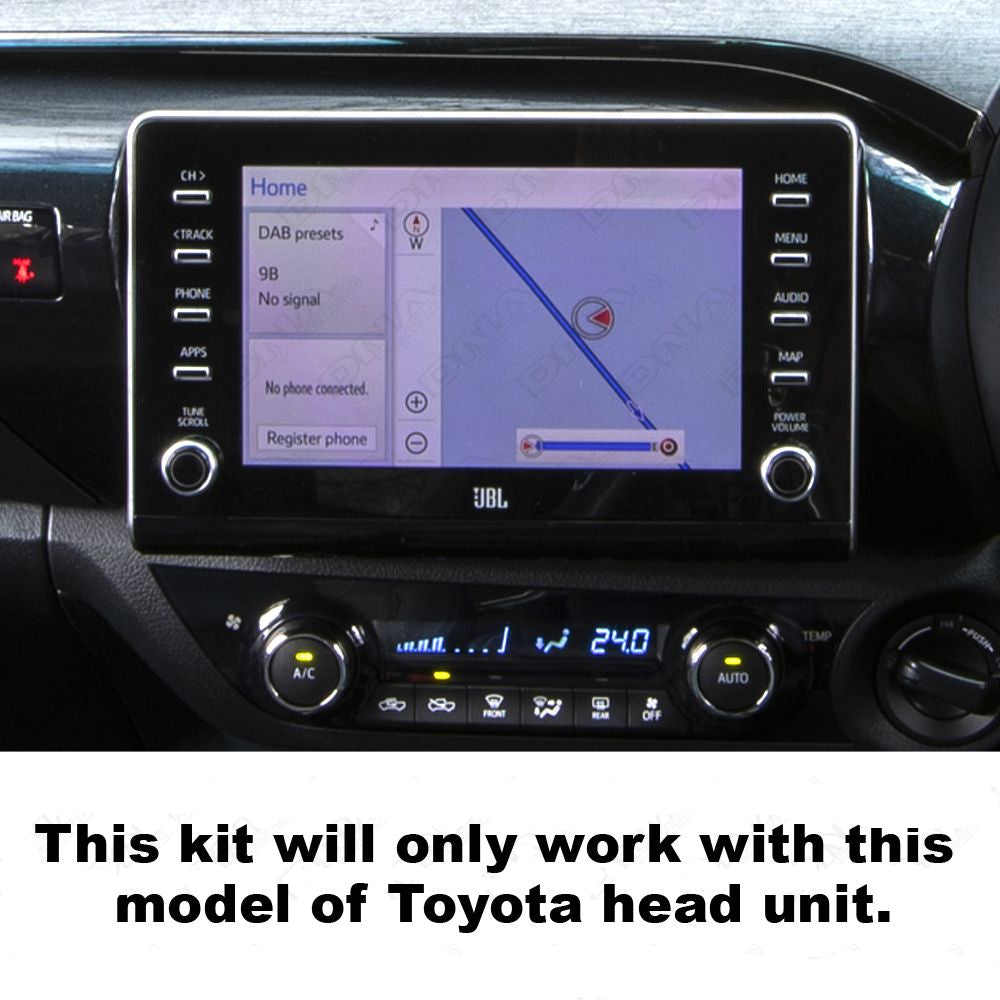

Suits: - Toyota Hilux June 2020 - ON Use the main harness and connect to the camera extension cable. Plugs into the passenger side footwell.

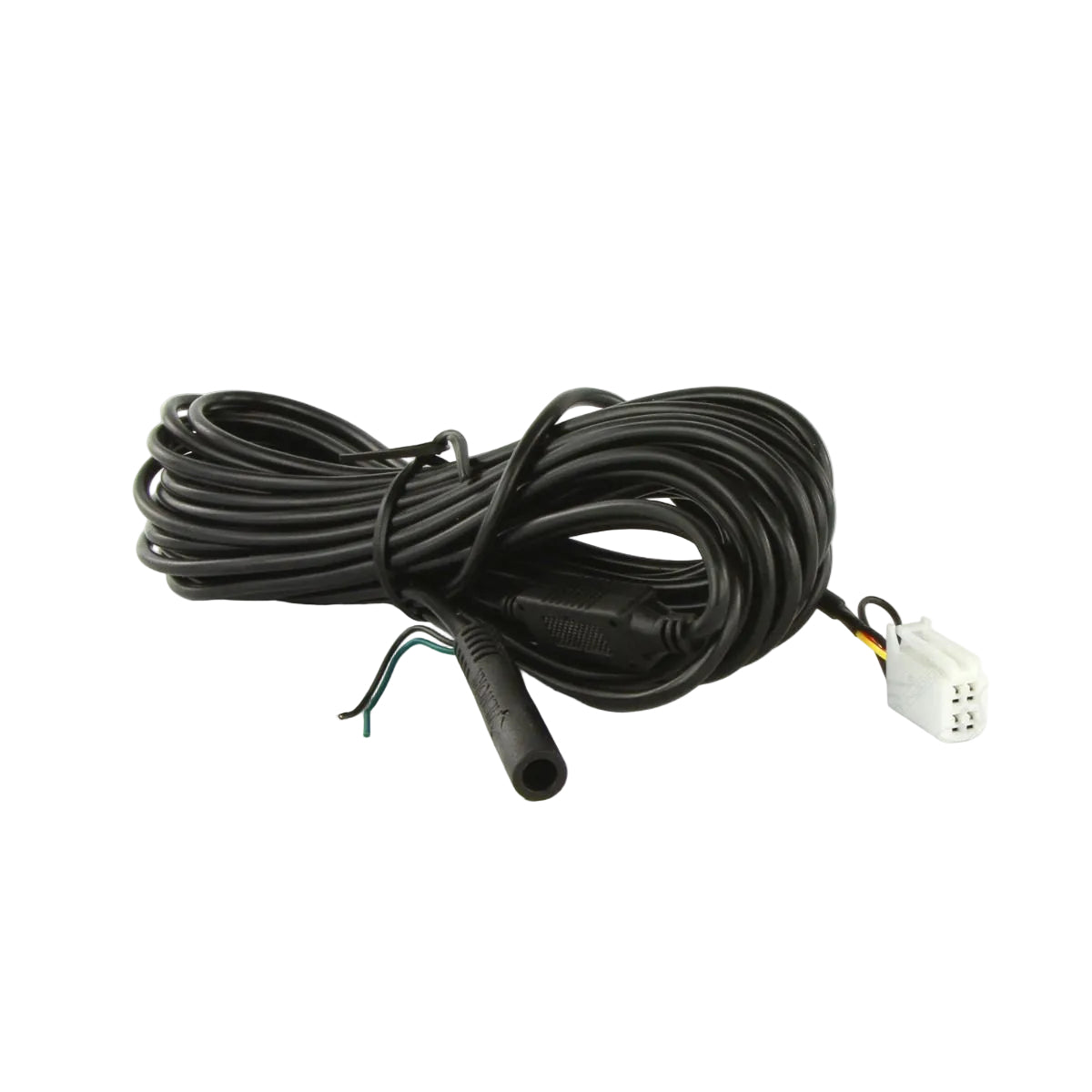

- Toyota Hilux June 2014 - 2020 Early (January - May 2020) Use the main harness with 4 4-pin adaptor harnesses and connect to the camera extension cable. Plugs into the passenger side footwell.

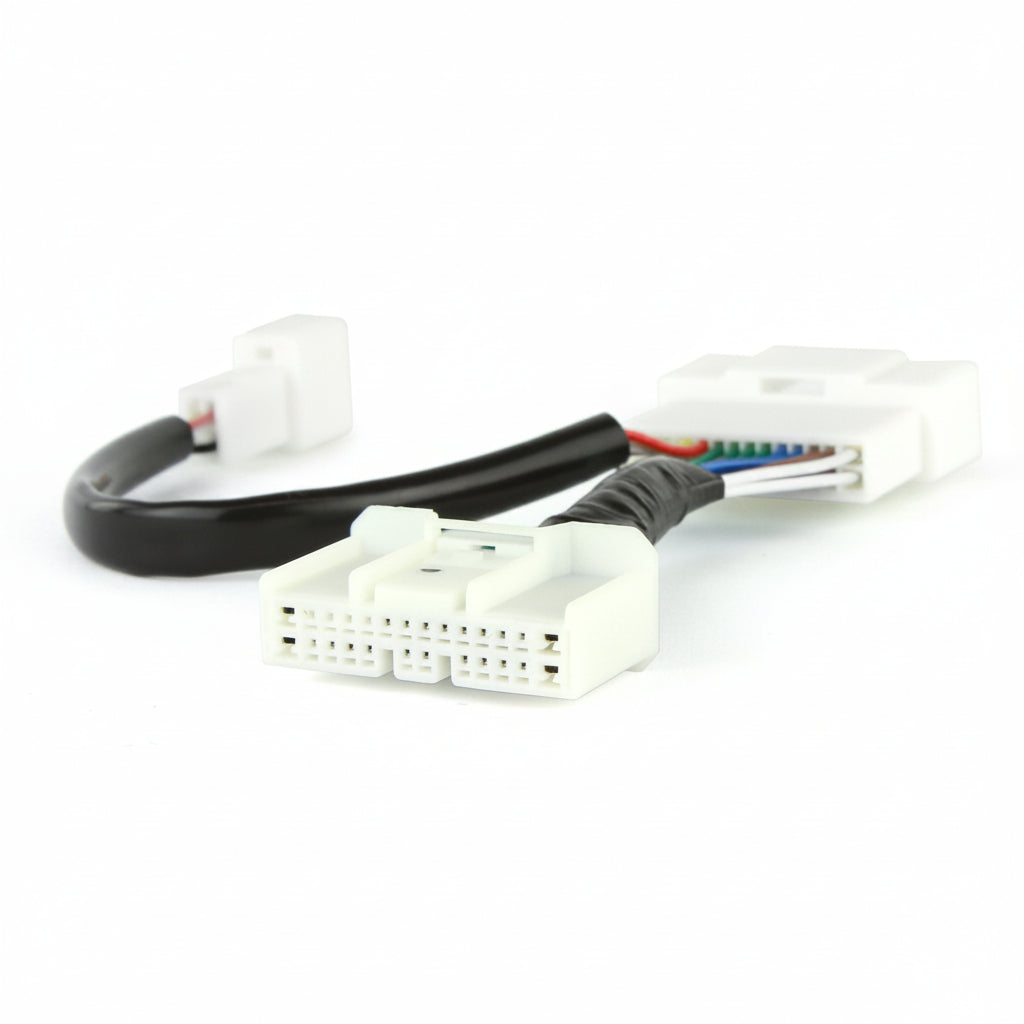

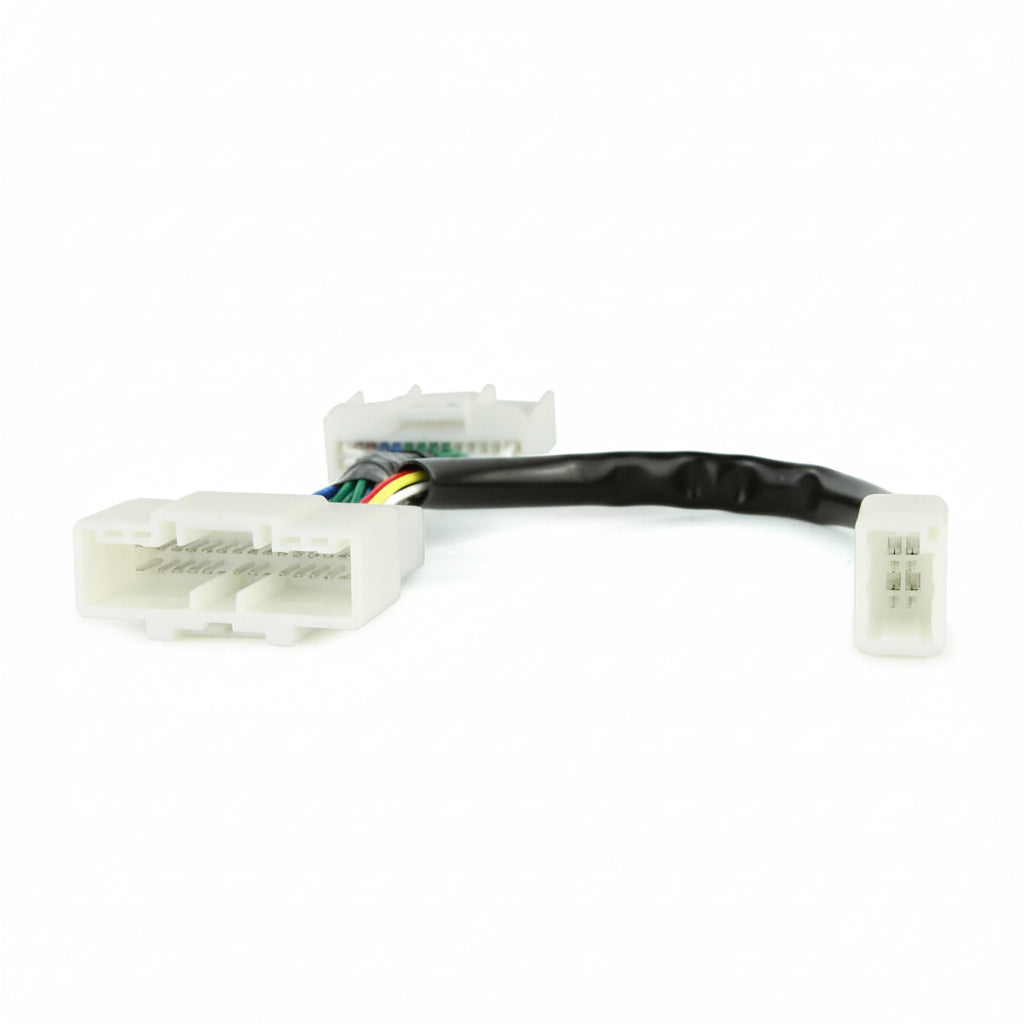

- Toyota Hilux June 2005 - 2013 Use a 4-pin adaptor harness and connect to the camera extension cable. Plugs into the back of the OEM Toyota head unit that has the 4-pin camera input socket.
Installation: - This reverse camera and harness kit is designed for plug-and-play DIY installation in Toyota Hilux vehicles without the need to cut or solder any wires.
- It allows easy installation and integration of a reverse camera to the OEM factory Toyota Hilux screen.
- The camera is then simply mounted in the factory location or under the tray.
- Refer to the included instruction manual for installation instructions for your year-range Toyota Hilux vehicle.
Camera Strengths: - Heavy-Duty Robust Design

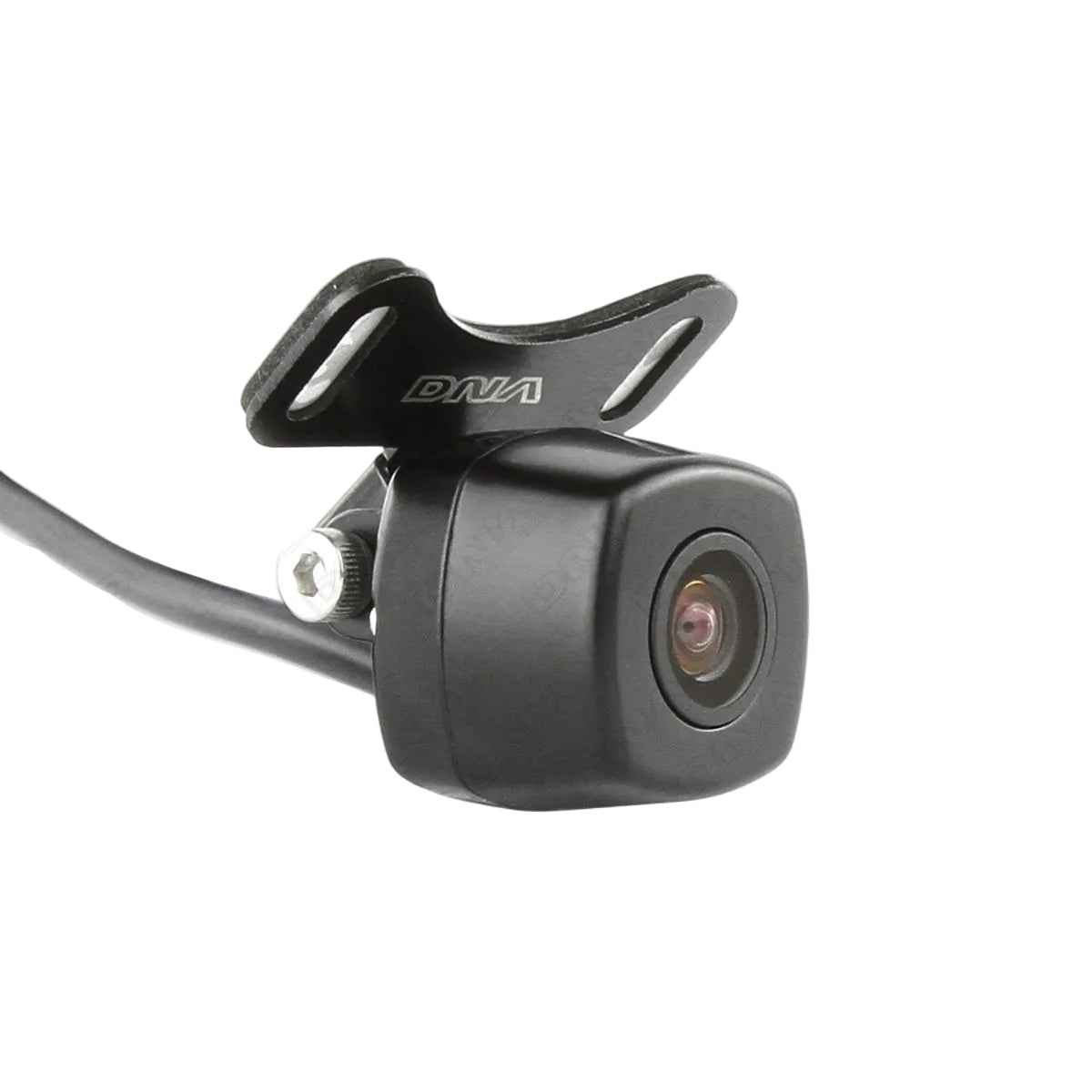

- Zinc Alloy Housing
- PAL / NTSC Selectable* (By Default Set to PAL. to Select NTSC Cut the Wire)
- Parking Guide Lines*
- Mirror Image*
- Plug-N'-Play DIY Installation With Harness
Features: - Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.

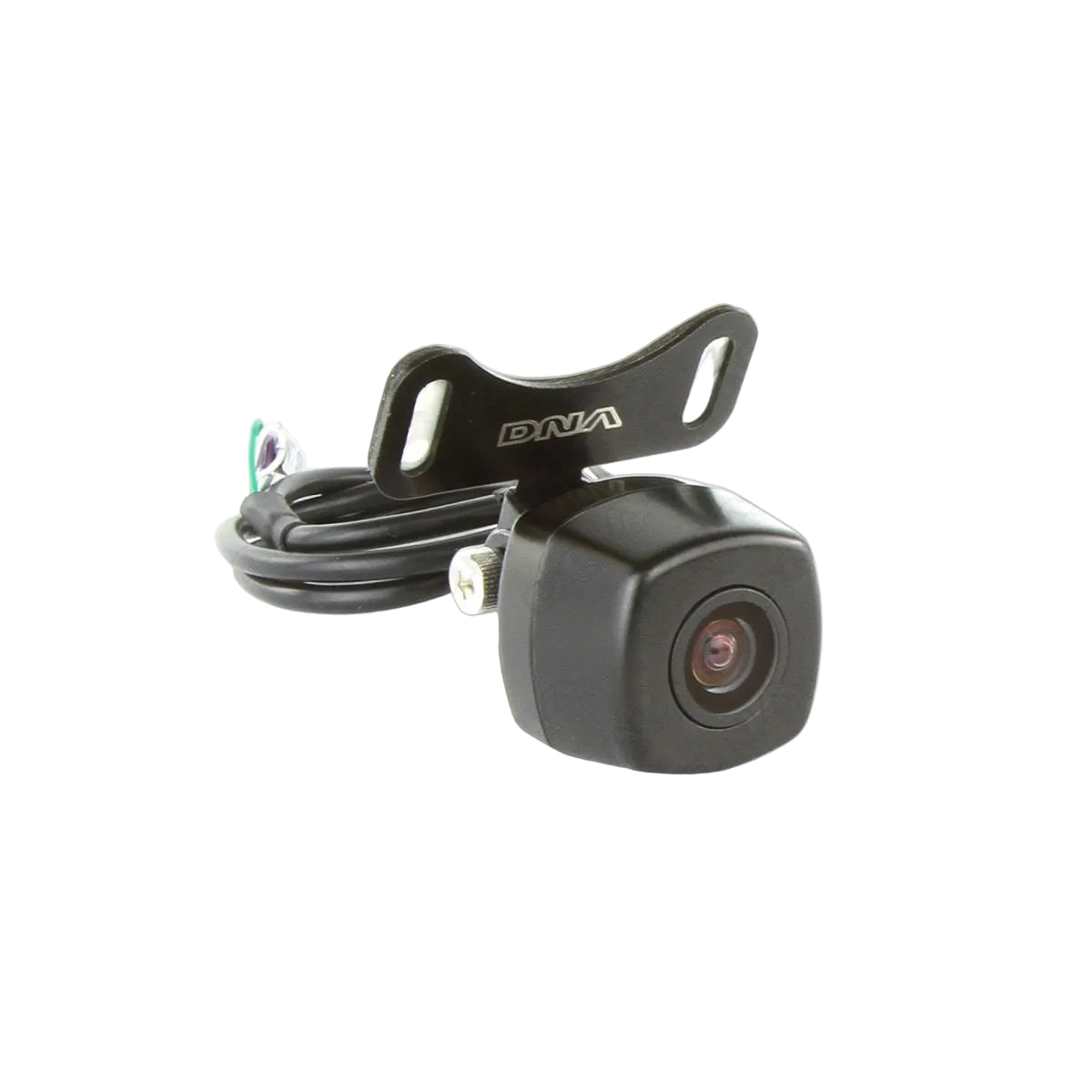

- The camera also includes a butterfly mount and has a Waterproof IP68 rating.
- Ideal for 4WD and or trade vehicles that get knocked about where a tough camera is needed.
- Plug-and-play DIY installation with harness
Selectable Features: - PAL/NTSC format (Purple Wire): By default is set to NTSC format for Toyota OEM head units.
- Image Control (Green Wire): By default is set for rear camera installation. (Cut the wire to change the image for front camera installation)
- Parking Line (White Wire): By default is set to show parking lines. (Cut the wire to turn off)
Specifications: - Image Sensor: CMOS
- Video System: PAL/NTSC (Selectable)
- Scanning Area: 4.88mm * 3.67mm
- Resolution: 976 (H) * 592 (V)
- Horizontal Resolution: 700 TVL
- Electronic Shutter: 1s-1/10000(S)
- SNR: =45.0dB
- Min Illumination: 0.01Lux
- Video Output: 1.0V±0.5Vp-p 75O
- View Angle: 170°
- Working Voltage: DC6V - 15V±0.5V
- Consumption: 100mA±10%
- Waterproof Rating: IP68
- Camera Body Size: 28mm (W) x 22mm (H) x 22mm (D)
- Butterfly Base Size: 44mm (L) x 18mm (W)
- Packaging: DNA Gift Box With Sleeve
- Weight: 0.39kg
Vehicle Compatibility: - Toyota Hilux June 2020 - ON
- Toyota Hilux June 2014 - 2020 Early (January - May 2020)
- Toyota Hilux June 2005 - 2013
Please Note: Also available is just the video retention harness only: VRTY20 (Replaces RCH160)
