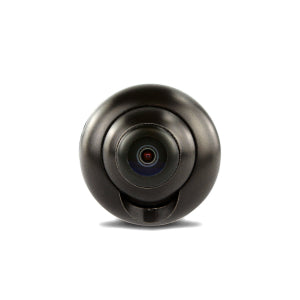

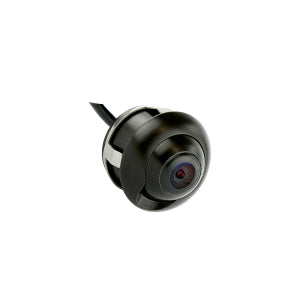

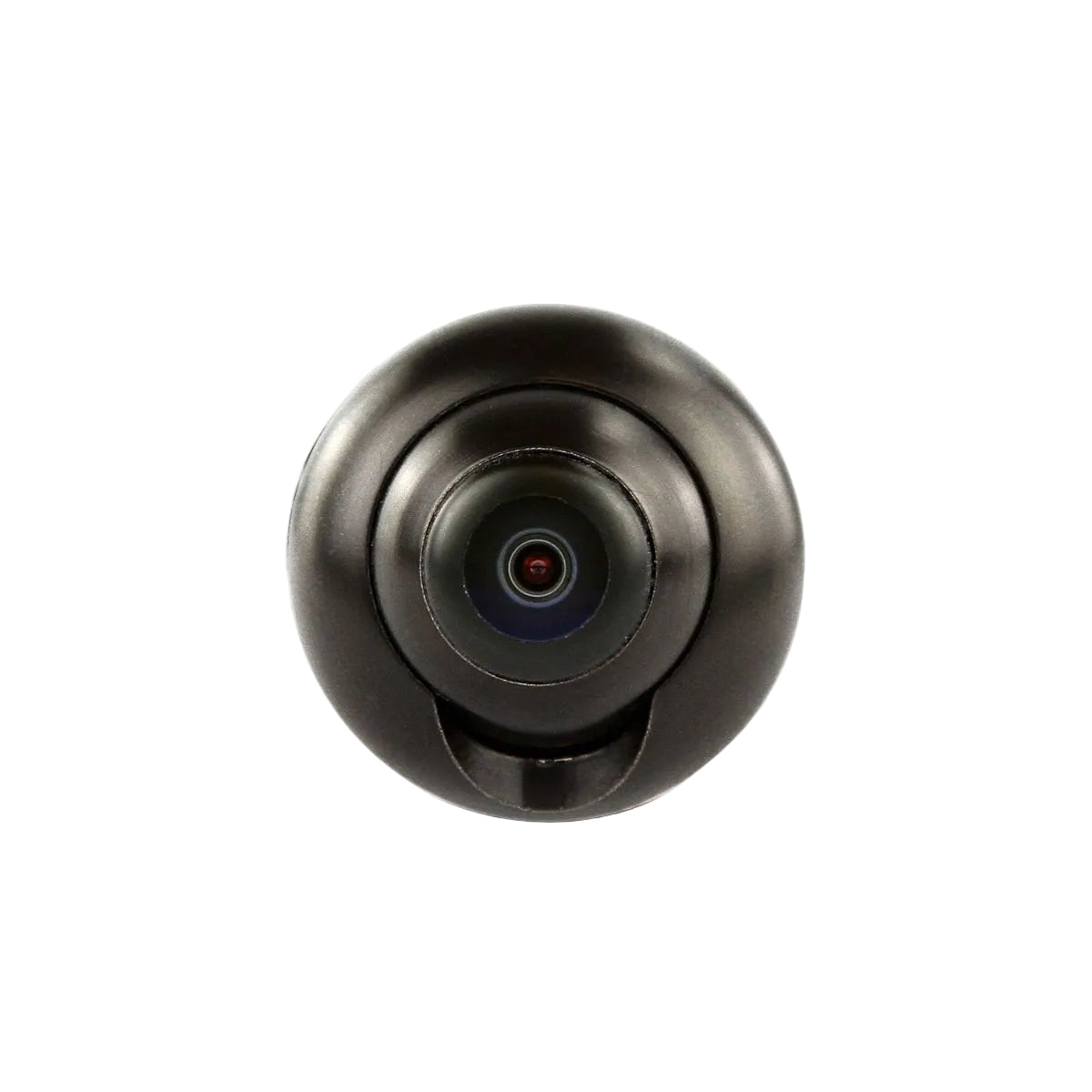

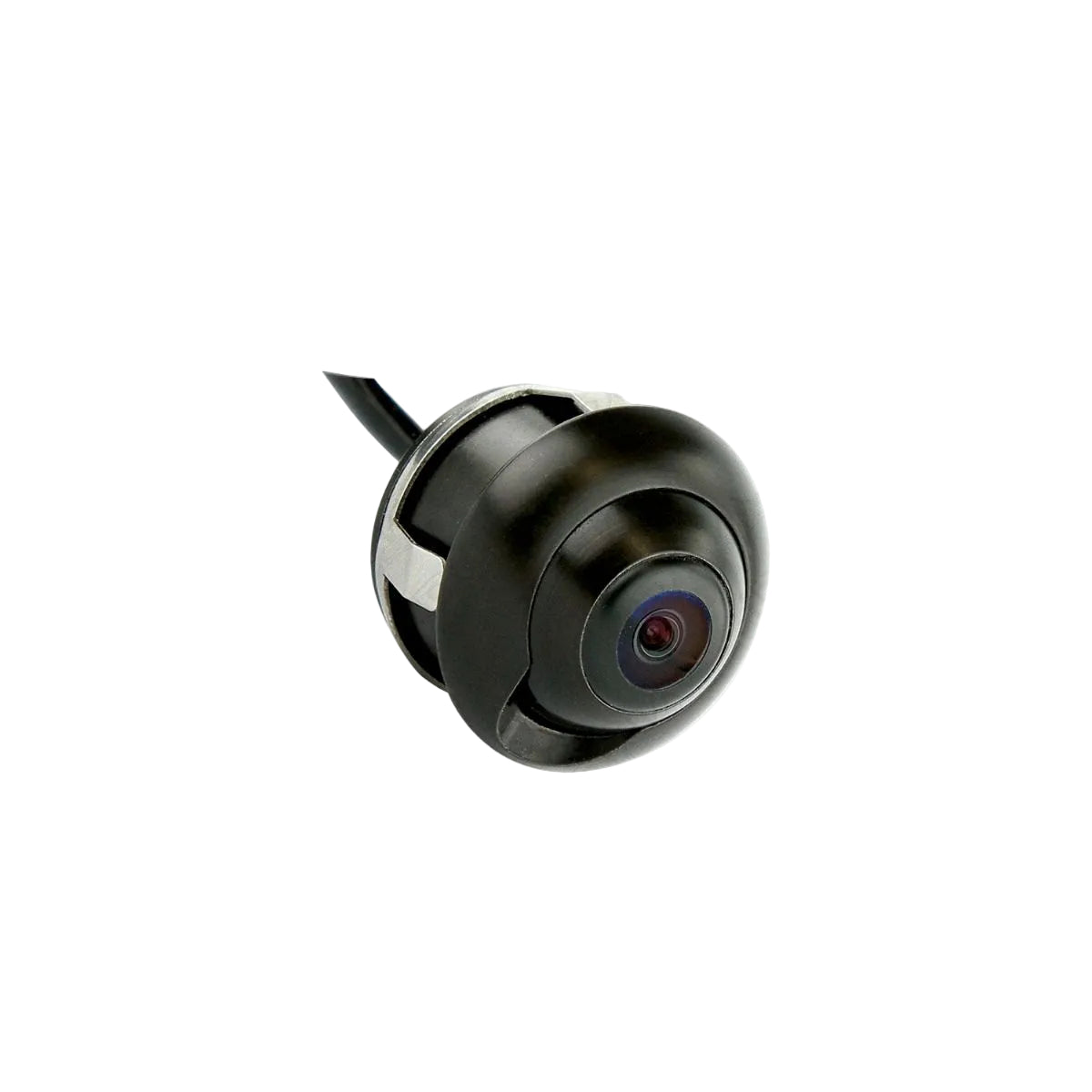

DNA RCP170 CMOS Push-In Pivot Mount Reverse Camera - PAL/NTSC
Professional push-in pivot mount camera with adjustable angle for OEM-style installations
The DNA RCP170 CMOS Push-In Pivot Mount Reverse Camera delivers professional installation capability with zinc alloy construction and pivot mount design for precise angle adjustment. This camera features selectable PAL/NTSC compatibility, customizable parking guidelines, and requires only a 22.5mm mounting hole for clean, concealed installations. The pivot mount mechanism allows post-installation angle adjustment using a pin spanner tool.
Engineered for OEM applications where professional appearance and concealed wiring are essential, this camera provides 170° ultra-wide coverage with IP68 waterproof protection. The 9V-15V operating voltage suits various vehicle electrical systems while maintaining reliable 700 TVL resolution performance.
DNA RCP170 Key Features & Benefits:
-
Push-In Installation: Simple 22.5mm hole mounting with secure push-in design for professional installations
-
Adjustable Pivot Mount: Post-installation angle adjustment using pin spanner tool for optimal positioning
-
Zinc Alloy Construction: Durable metal housing provides superior longevity compared to plastic alternatives
-
Selectable Video Format: PAL/NTSC compatibility via wire cutting ensures global system compatibility
-
Customizable Features: Parking guidelines and image control selectable for various installation scenarios
-
OEM Professional: Concealed wiring capability maintains factory appearance standards
Technical Specifications:
-
Model: DNA RCP170
-
SKU: RCP170
-
Image Sensor: CMOS technology
-
Video System: PAL/NTSC selectable (default PAL)
-
Scanning Area: 4.88mm x 3.67mm
-
Resolution: 976(H) x 592(V) pixels
-
Horizontal Resolution: 700 TVL
-
Electronic Shutter: 1s to 1/10000s variable
-
Signal-to-Noise Ratio: ≥45.0dB
-
Minimum Illumination: 0.01 LUX
-
Video Output: 1.0V±0.5V p-p 75Ω
-
View Angle: 170° ultra-wide
-
Operating Voltage: DC 9V-15V±0.5V
-
Power Consumption: 100mA±10%
-
Waterproof Rating: IP68
-
Camera Dimensions: 25mm deep x 28mm diameter
-
Required Hole Size: 22.5mm diameter
-
Packaging: DNA gift box

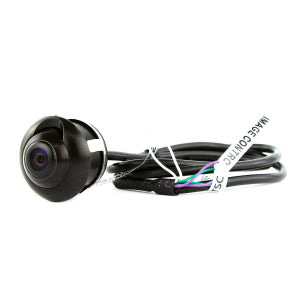

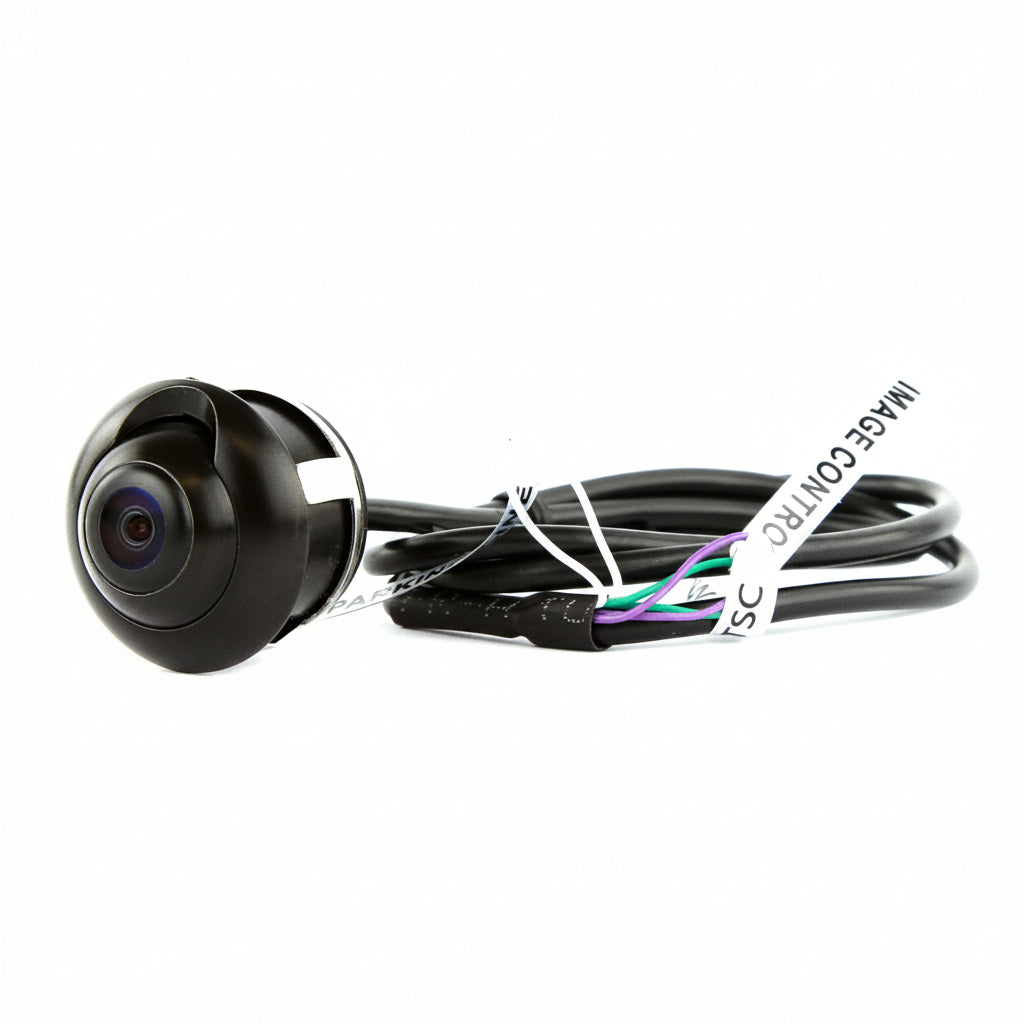

Selectable Options:
-
Video Format (Purple Wire): Default PAL setting - cut wire for NTSC compatibility
-
Image Control (Green Wire): Default rear camera setup - cut wire for front camera installation
-
Parking Guidelines (White Wire): Default parking lines enabled - cut wire to disable guidelines
Installation Applications:
-
OEM Replacements: Professional camera installations maintaining factory appearance standards
-
Commercial Vehicle Upgrades: Fleet installations requiring clean, professional appearance
-
Custom Installations: Applications requiring precise angle adjustment and concealed wiring
-
Automotive Workshops: Professional installations where adjustability and reliability are essential
-
Export Applications: NTSC compatibility for international vehicle markets
Frequently Asked Questions
How do I adjust the camera angle after installation? Use a pin spanner tool to undo the locking ring at the rear of the camera for angle adjustment.
What size hole do I need to drill? Requires a 22.5mm diameter hole for push-in installation.
Can I change from PAL to NTSC after installation? Yes, cut the purple wire to switch from default PAL to NTSC format.
Will the push-in mount stay secure? Yes, the zinc alloy construction and push-in design provide secure, vibration-resistant mounting.
Can I disable the parking guidelines? Yes, cut the white wire to turn off the default parking line display.
