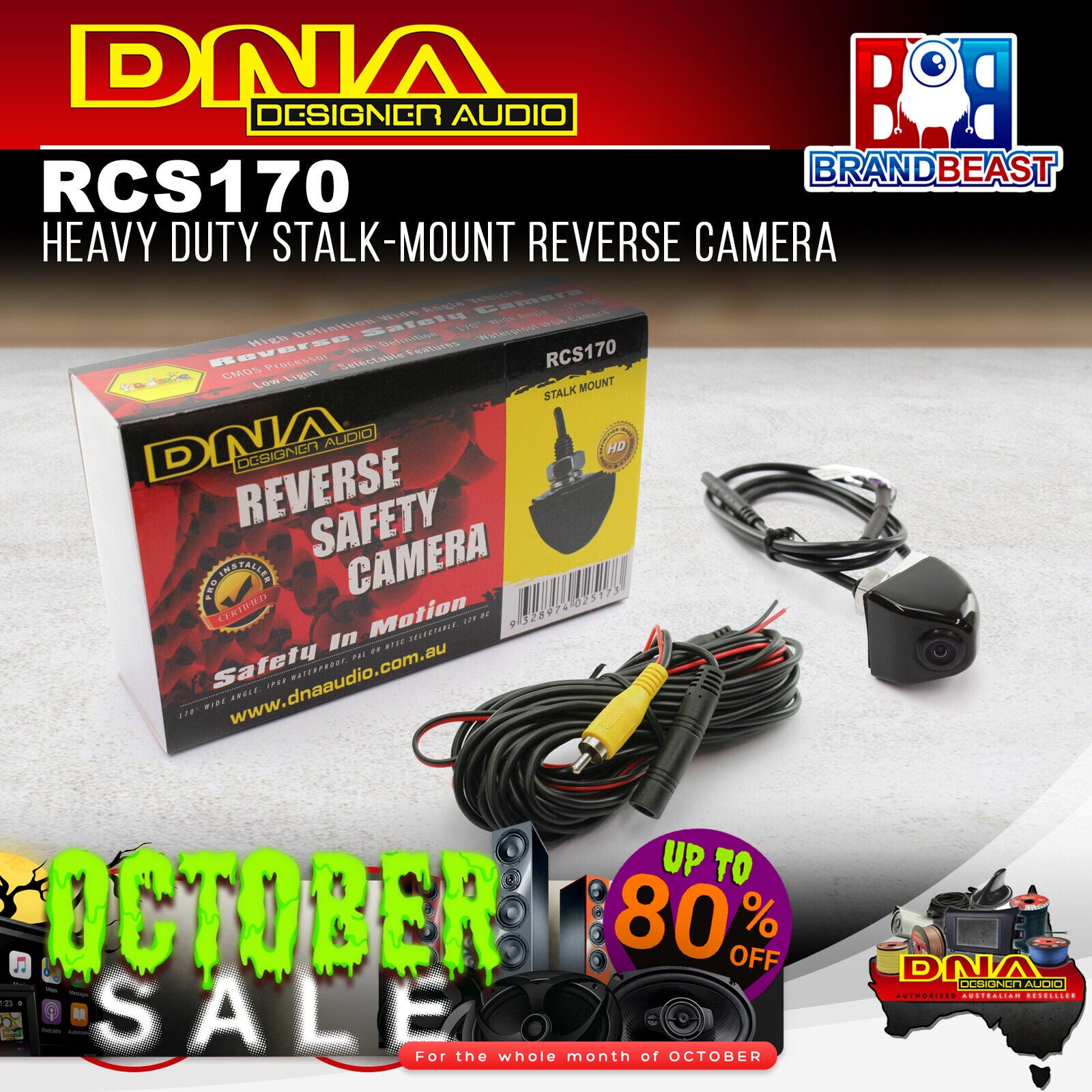

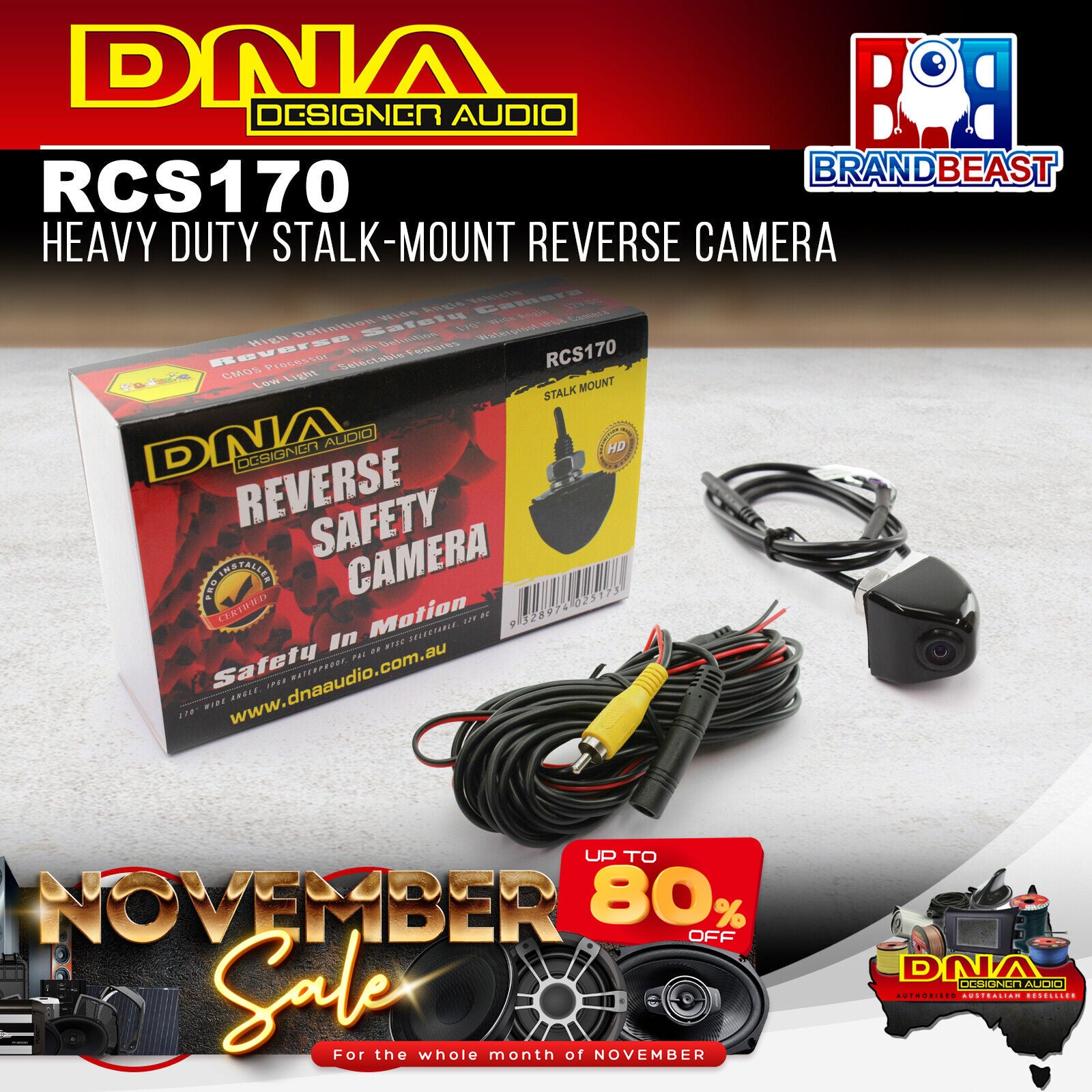

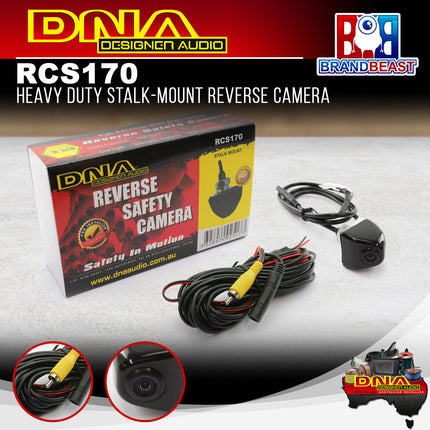

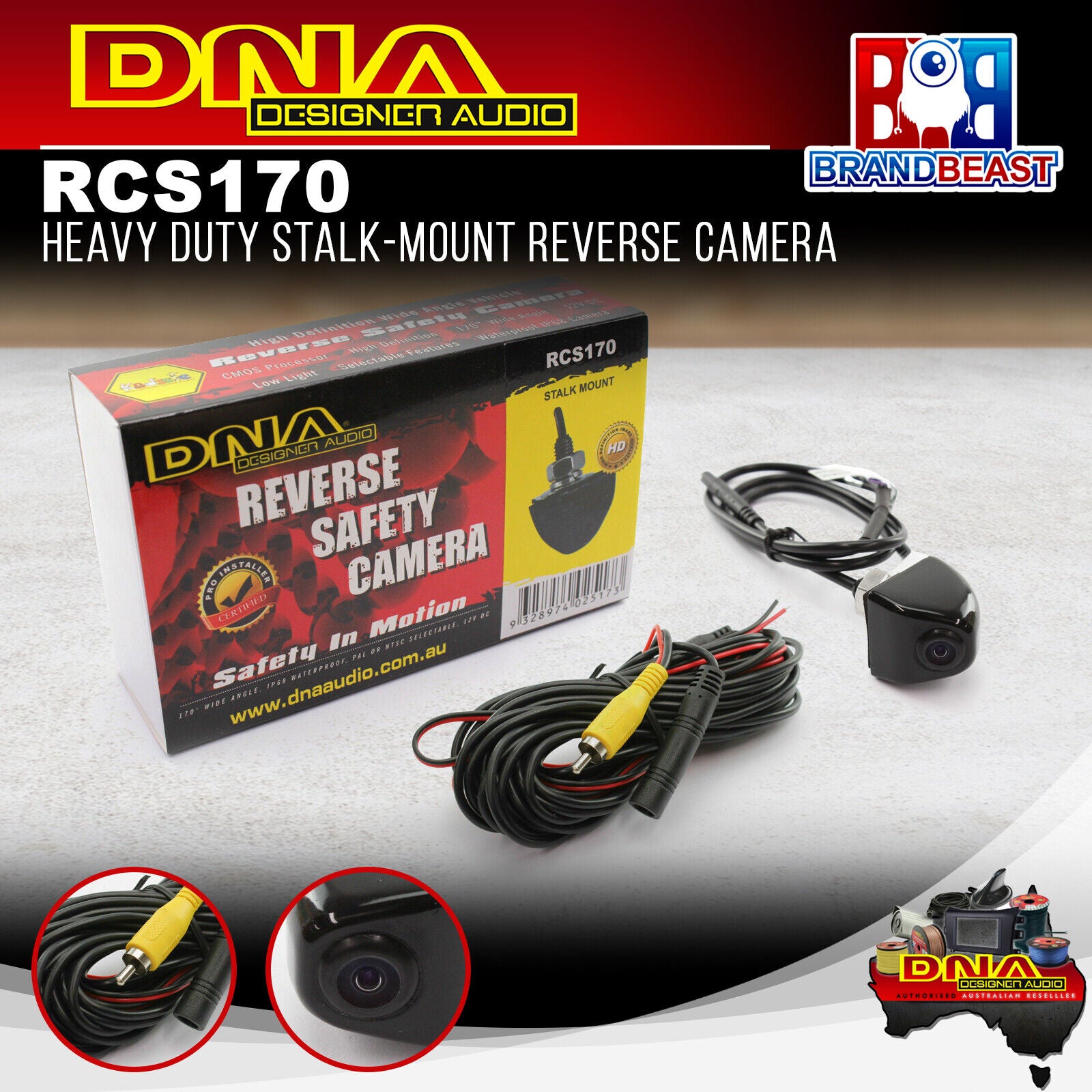

DNA RCS170 CMOS Reverse Camera Stalk Mount - PAL/NTSC

Description

This Camera Is Ideal for OEM Applications, Where Wiring Is Concealed for A Neat and Professional Finish

CMOS Reverse Camera Stalk Mount.

Model Strengths:

  • OEM Solution
  • Zinc Alloy Housing
  • Only Requires 8mm Hole
  • PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
  • Mirror Image*

Features:

  • Includes selectable options: PAL/NTSC video format and reverse mirror imaging.
  • Camera also comes with a stalk mount and has a Waterproof IP68 rating.

Specifications:

  • Image Sensor: CMOS
  • Video System: PAL or NTSC (Selectable)
  • Scanning area: 4.88mm*3.67mm
  • Resolution: 976(H)*592(V)
  • Horizontal Resolution: 700 TVL
  • Electronic Shutter: 1s-1/10000(S)
  • SNR: =45.0dB
  • Min Illumination: 0.01Lux
  • Video Output: 1.0V±0.5Vp-p 75O
  • View Angle:170°
  • Working Voltage: DC6V-15V±0.5V
  • Consumption: 100mA±10%
  • Waterproof Rating: IP68
  • Camera Body Size: 25mm W x 24mm H x 28mm D
  • Hole Size: 8mm Diameter
  • Packaging: DNA Gift box with sleeve
  • Legendary Products & Support From Authorized Dealers

    When you choose DNA, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

    • ▸ Expert Knowledge & Training

      Only authorized DNA dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

    • ▸ Authorized Warranty Protection:

      We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

    • ▸ Reliable Customer Support:

      If you ever run into an issue, you're backed by DNA's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

    • ▸ Protect Your Investment:

      Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

    Choose wisely. Buy from an authorized DNA dealer today!
