DNA RCS170A-HDTVI Heavy Duty Stalk Mount Reverse Camera - HD-TVI Compatible
Professional HD-TVI reverse camera with flexible stalk mount and selectable resolution options
The DNA RCS170A-HDTVI Heavy Duty Stalk Mount Reverse Camera delivers high-definition video with HD-TVI compatibility designed for professional installations requiring superior image quality. This advanced camera features flexible stalk mount design, zinc alloy housing, and selectable 1080p/720p resolution with customizable parking guidelines and image control options. The 170° ultra-wide view angle provides comprehensive rear coverage.
Engineered for HD-TVI compatible head units and monitoring systems, this camera offers professional-grade construction with IP68 waterproof rating and 360-degree rotation capability. Perfect for installers seeking OEM-quality installations with concealed wiring and adjustable positioning for optimal viewing angles in any vehicle configuration.
DNA RCS170A-HDTVI Key Features & Benefits:
-
HD-TVI High Definition: 1280x720 resolution with 30fps frame rate for crystal-clear video transmission
-
Selectable Resolution: Switch between 1080p/720p formats via purple wire cutting for system compatibility
-

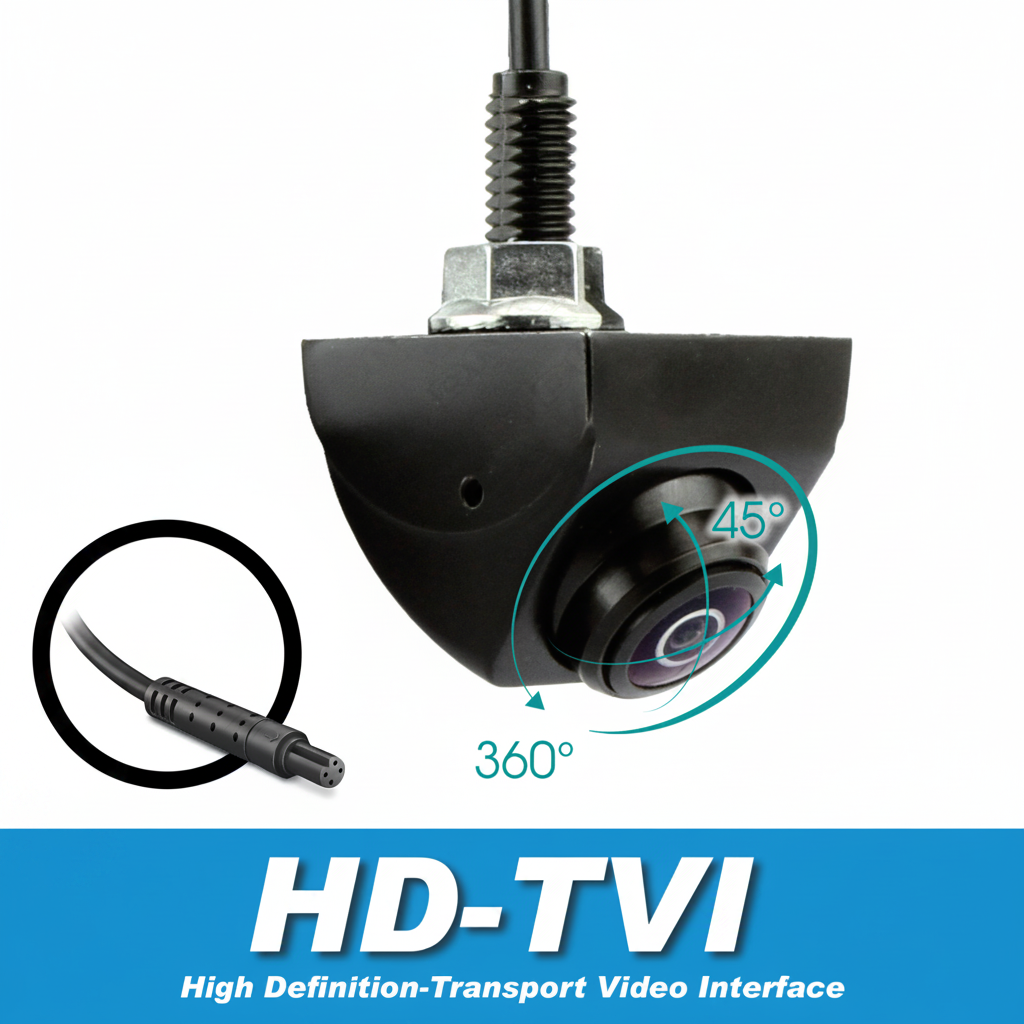

Flexible Stalk Mount: 45-degree adjustment in all directions plus 360-degree rotation for perfect positioning
-
Customizable Features: Parking guidelines and image control selectable via wire cutting options
-
Professional Construction: Zinc alloy housing with IP68 waterproof rating for extreme durability
-
Minimal Installation: Requires only 8mm mounting hole with concealed wiring capability
Technical Specifications:
-
Model: DNA RCS170A-HDTVI
-
SKU: RCS170A-HDTVI
-
Video System: HD-TVI format
-
Resolution: 1280(H) x 720(V) pixels
-
Frame Rate: 30fps (frames per second)
-
View Angle: 170° ultra-wide
-
Operating Voltage: DC 6V-15V±0.5V
-
Waterproof Rating: IP68 (fully submersible)
-
Camera Dimensions: 25mm W x 24mm H x 28mm D
-
Required Hole Size: 8mm diameter
-
Construction: Heavy-duty zinc alloy housing
-
Mount Type: Flexible stalk with butterfly mount
-
Packaging: Premium DNA gift box with sleeve
-
Resolution Control (Purple Wire): Default 1080p format - cut wire for 720p compatibility
-
Image Control (Green Wire): Default rear camera setup - cut wire for front camera installation
-
Parking Guidelines (White Wire): Default parking lines enabled - cut wire to disable guidelines
Installation Applications:
-
HD-TVI Systems: Professional installations with HD-TVI compatible head units and monitors
-
Commercial Vehicles: High-definition monitoring for trucks, buses, and fleet applications
-
OEM Replacements: Professional-grade camera upgrades maintaining factory appearance
-
Custom Installations: Applications requiring precise positioning and concealed wiring
-
Security Systems: HD-TVI surveillance applications requiring wide-angle coverage
Frequently Asked Questions
What head units are compatible with HD-TVI? Only head units specifically designed for HD-TVI format - check compatibility before purchase.
Can I adjust the camera angle after installation? Yes, stalk mount allows 45-degree adjustment in all directions plus 360-degree rotation.
How do I change from 1080p to 720p? Cut the purple wire to switch from default 1080p to 720p format.
Will this work with standard analogue systems? No, requires HD-TVI compatible head unit or monitor for proper operation.
Can I disable the parking guidelines? Yes, cut the white wire to turn off the default parking line display.
