Description

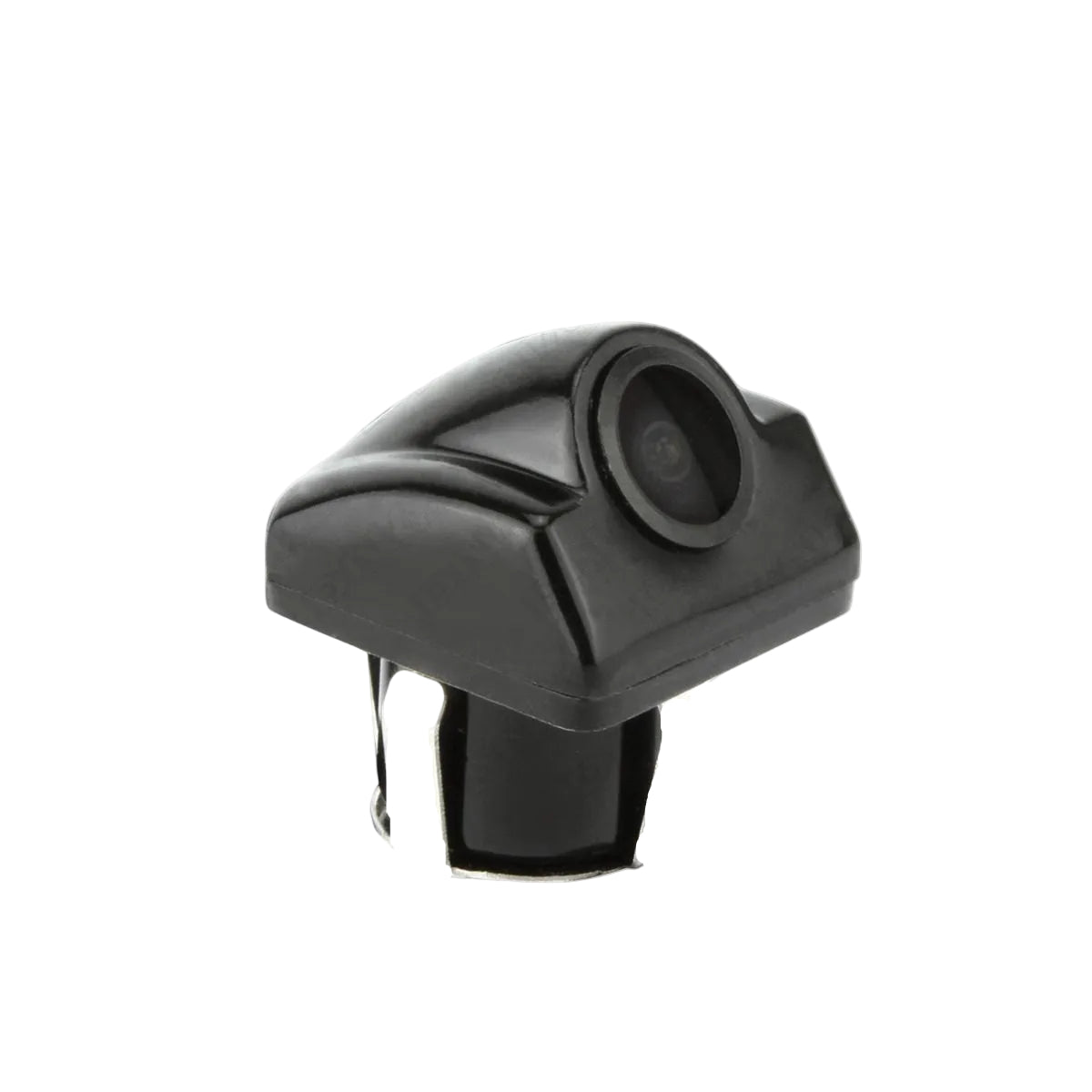

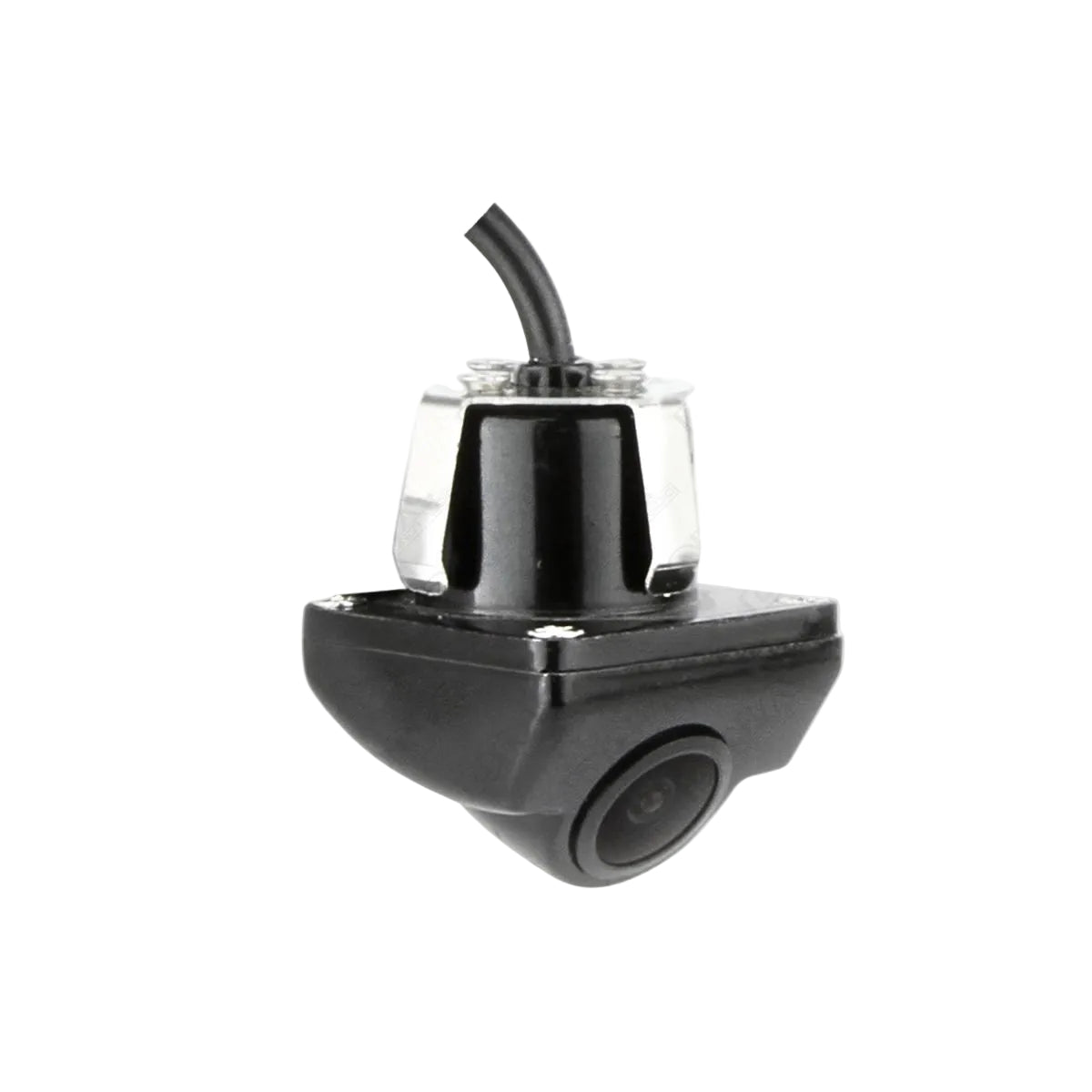

DNA RCSM170 CMOS Snap Mount Reverse Camera - PAL/NTSC
Compact CMOS Reverse Camera with Snap-In Mount & Selectable PAL/NTSC Format
The DNA RCSM170 CMOS Snap Mount Reverse Camera is engineered for applications where rear access is limited, making it ideal for tight installations. Featuring an innovative snap-in mounting system combined with heavy-duty 3M adhesive, this reverse camera offers a secure, stable fit without the need for rear-panel access. The tough zinc alloy housing ensures long-lasting durability in any environment.
With selectable PAL/NTSC video format, mirror/reverse image control, and optional parking guide lines, the RCSM170 is versatile enough for a wide range of vehicles, including sedans, SUVs, trucks, and caravans. Designed with an IP68 waterproof rating, it delivers dependable performance in all weather conditions.
DNA RCSM170 Key Features & Benefits:
-

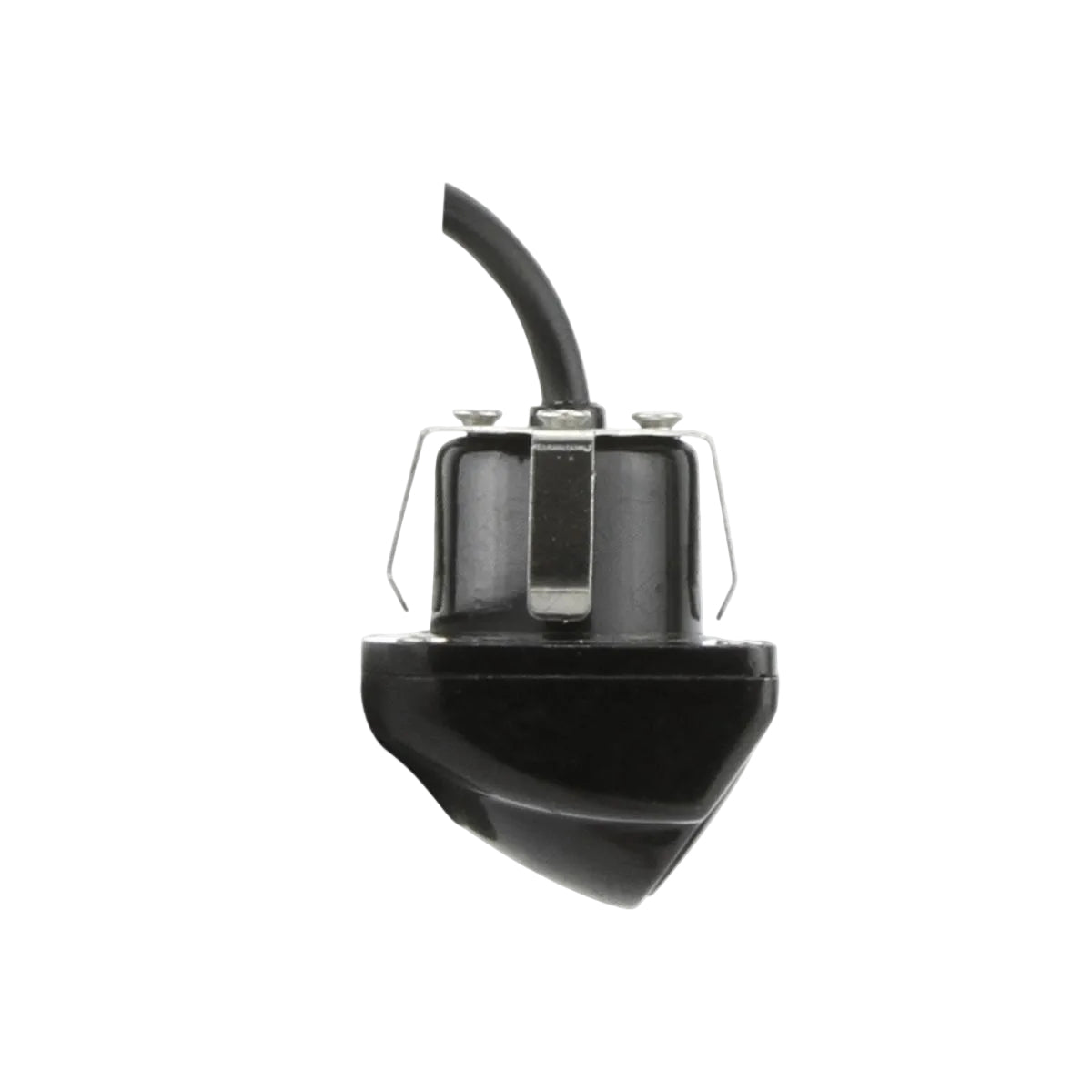

Snap-In Mounting System: Perfect for installations where rear panel access is restricted.
-
Selectable PAL/NTSC Formats: Supports multiple video formats for greater compatibility.
-
Low Profile Design: Compact 20mm hole size ensures a clean and neat installation.
-
Optional Parking Guide Lines: Enable or disable visual parking assistance as needed.
-
Durable Zinc Alloy Housing: Built for harsh automotive environments with enhanced protection.
-
Waterproof IP68 Rating: Ensures reliability in rain, mud, and off-road conditions.
-
High-Resolution CMOS Sensor: Produces sharp, clear, and detailed images.
Technical Specifications:
-
Model: DNA RCSM170
-
SKU: RCSM170
-
Type: CMOS Snap Mount Reverse Camera
-
Video System: PAL / NTSC (Selectable)
-
Resolution: 976(H) × 592(V)
-
Horizontal Resolution: 700 TVL
-
Viewing Angle: 170° Wide Angle
-
Image Sensor: CMOS
-
Electronic Shutter: 1s - 1/10000(S)
-
SNR: ≥45.0dB
-
Minimum Illumination: 0.01 Lux
-
Video Output: 1.0V ± 0.5Vp-p 75Ω
-
Operating Voltage: DC 9V–15V ± 0.5V
-
Power Consumption: 100mA ± 10%
-
Mounting Style: Snap Mount with Adhesive & Spring Clips
-
Body Material: Zinc Alloy
-
Hole Size: 22mm
-
Camera Size: 26.5mm W × 34mm H × 28mm D
-
Waterproof Rating: IP68
-
Packaging: DNA Gift Box
Installation Applications:
-
Passenger Vehicles: Compact cars, sedans, and hatchbacks for improved reversing visibility.
-
4WD & Off-Road Applications: Built tough for SUVs and off-road vehicles operating in harsh conditions.
-
Commercial Installations: Ideal for vans, fleet vehicles, and trade vehicles.
-
Caravans & Motorhomes: Perfect for enhancing rear visibility during towing or reversing.
-
Custom Installs: Excellent choice where rear panel access is limited but reliability is essential.
Frequently Asked Questions
-
Can I switch between PAL and NTSC formats?
Yes, simply cut the purple wire to change from PAL to NTSC.
-
Does this include parking guide lines?
Yes, by default they are enabled. Cut the white wire to disable them.
-
Is this camera waterproof?
Absolutely, it’s IP68-rated for superior protection against water and dust.
-

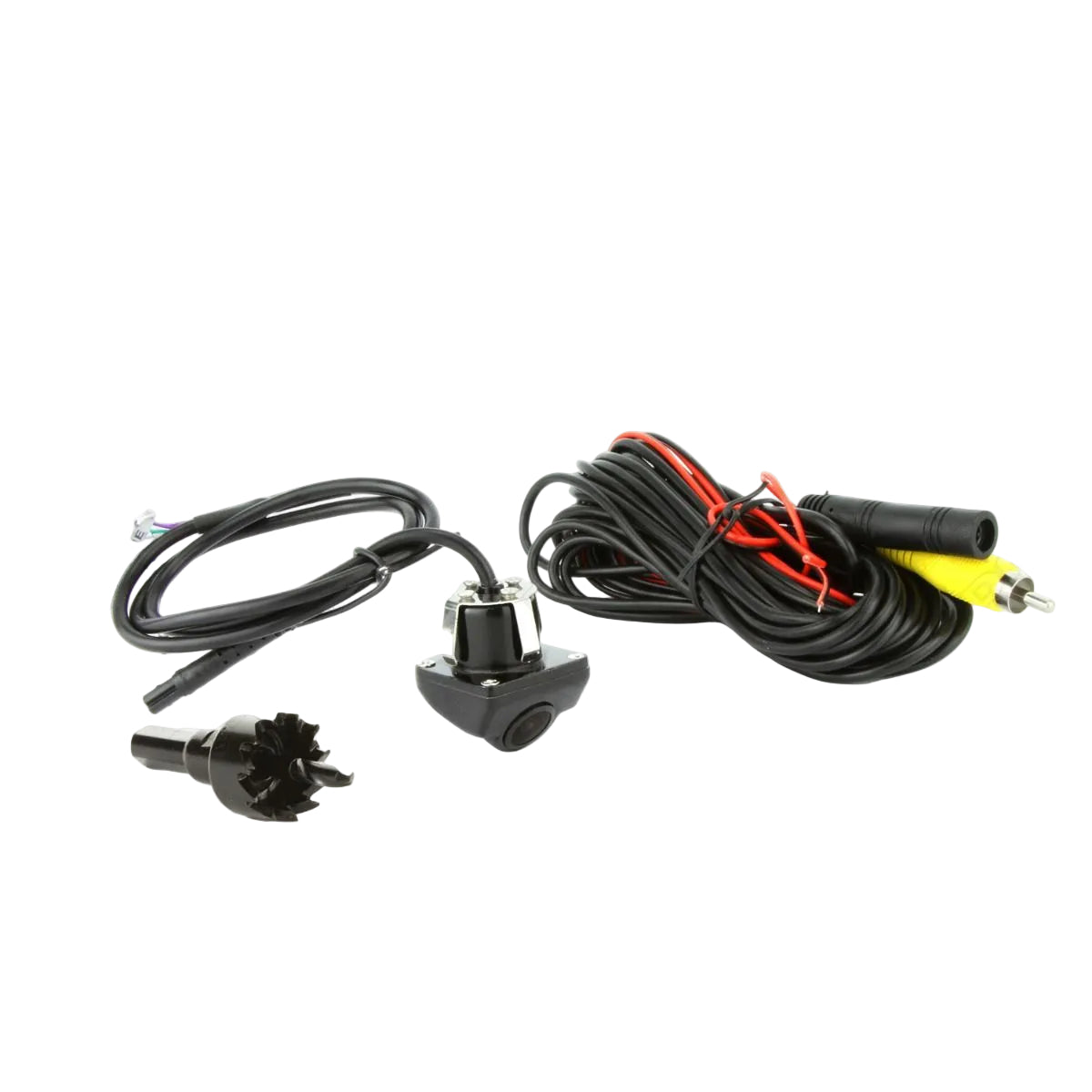

Does the kit include a hole saw?
Yes, a hole saw is provided for quick and easy installation.
-
Will this work with any head unit?
Yes, it works with most displays or DVR mirror systems with RCA video input.
