Description
DNA RV100-AHD - Heavy Duty AHD Camera - PAL/NTSC
Heavy-duty AHD truck, bus, and caravan camera with all-metal waterproof construction, removable sun visor, selectable PAL/NTSC format, adjustable resolution, and enhanced 18 IR LED night vision for professional commercial vehicle installations.
Product Overview
The DNA RV100-AHD Heavy Duty AHD Camera delivers professional-grade video surveillance for trucks, buses, and caravans with selectable PAL/NTSC format, AHD 1080P/720P resolution, and mirror image options. This rugged camera features all-metal aluminium alloy construction with IP68 waterproof rating, enhanced 18 built-in IR LEDs for excellent night visibility, integrated microphone for enhanced safety, and removable sun visor for flexible installation. Operating on both 12V and 24V vehicles, this camera provides reliable performance in demanding commercial applications.
Key Features
-

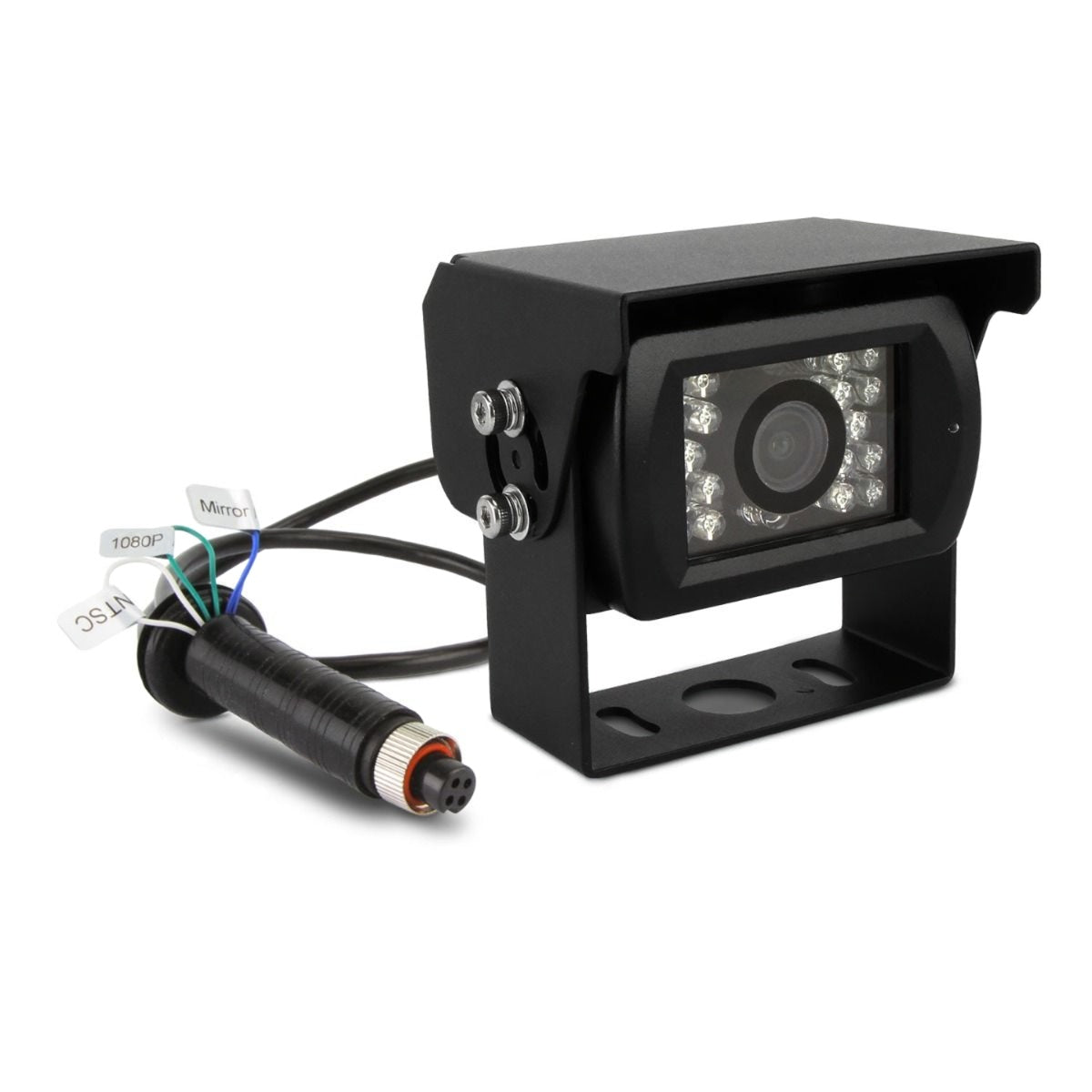

Selectable Video Formats - PAL/NTSC format selection (white wire), mirror image for front/rear installation (blue wire), and AHD 1080P/720P resolution switching (green wire) via wire-cut configuration
-

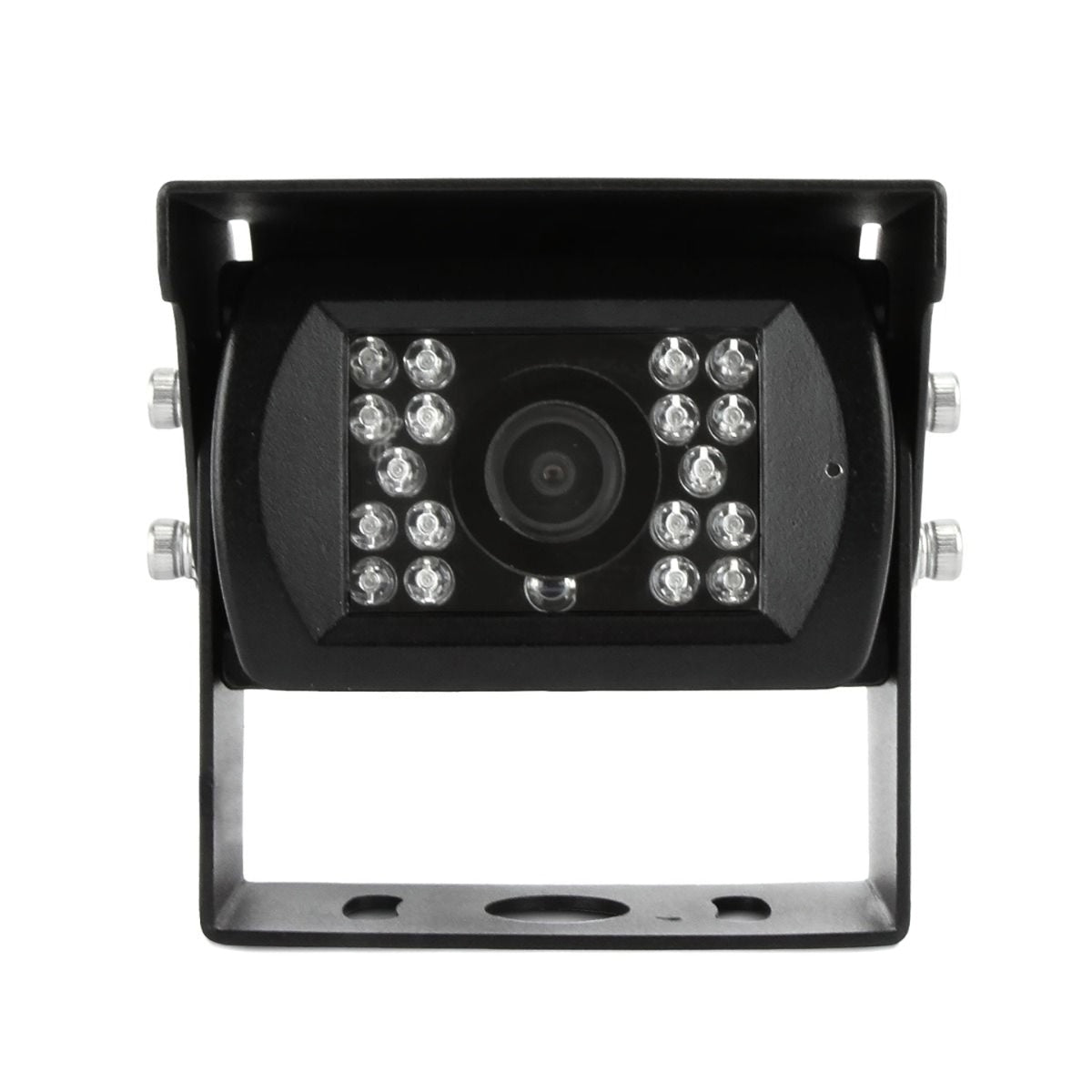

Enhanced Night Vision - 18 built-in IR LEDs provide 0 LUX illumination for superior night mode visibility in complete darkness with extended range
-
Heavy-Duty Metal Construction - All-metal aluminium alloy shell with IP68 waterproof rating for extreme weather resistance and durability in commercial applications
-
Removable Sun Visor - Included detachable sun visor protects lens from direct sunlight and weather elements for optimal viewing in bright conditions
-
Dual Voltage Compatibility - Operates on both 12V and 24V DC systems for compatibility with cars, trucks, buses, and commercial vehicles
-
Integrated Audio - Built-in microphone for audio monitoring and enhanced safety during vehicle operations
Technical Specifications
| Specification |
Details |
| Brand |
DNA |
| Model |
Heavy Duty AHD Camera |
| SKU |
RV100-AHD |
| Video Format |
PAL/NTSC Selectable (Default: PAL) |
| Resolution |
AHD 1080P/720P Selectable (Default: 1080P) |
| Horizontal Viewing Angle |
110° |
| Horizontal Resolution |
420 TV Line |
| IR LEDs |
18 IR LEDs |
| Night Vision |
0 LUX Illumination |
| Operating Voltage |
12V or 24V DC |
| Material |
Aluminium Alloy Shell |
| Signal-to-Noise Ratio |
>48dB |
| Waterproof Rating |
IP68 |
| Video Output |
1Vp-p 75 Ohm Composite |
| Audio |
Microphone Included |
| Sun Protection |
Removable Sun Visor Included |
| Connector |

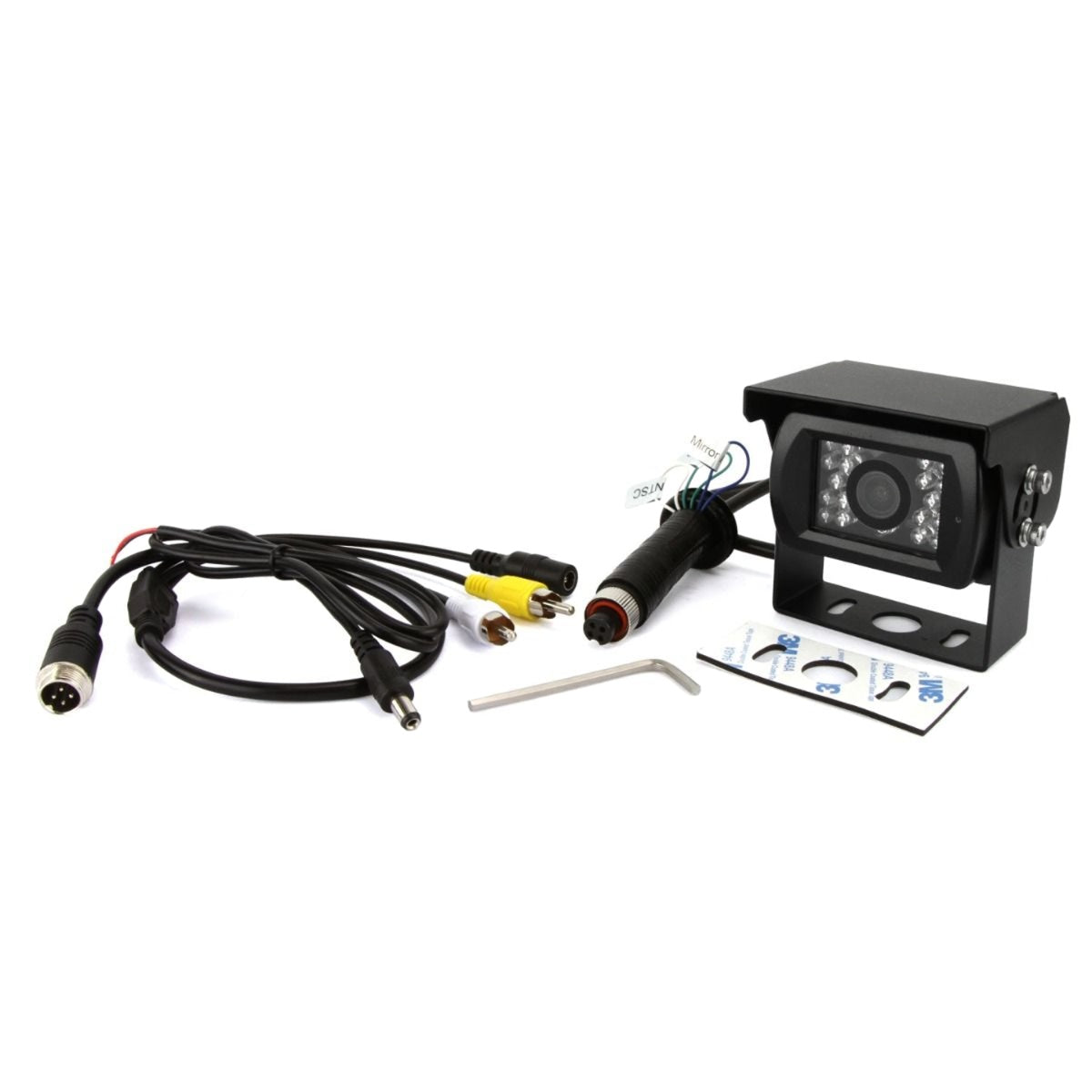

0.6m 4-Pin Water Resistant Lockable |
| Dimensions (With Sunvisor) |
76.5mm W x 77mm H x 64.5mm D |
| Dimensions (Without Sunvisor) |
74mm W x 71mm H x 50mm D |
| Packaging |
White Box with DNA Sticker |
| Availability |
In Stock |
Frequently Asked Questions
Q: Can this camera work on both 12V and 24V vehicles?
A: Yes, the RV100-AHD operates on both 12V and 24V DC systems, making it compatible with passenger vehicles, light commercial trucks, heavy-duty trucks, buses, and other commercial vehicles with either voltage system.
Q: How do I change between PAL and NTSC formats?
A: The camera defaults to PAL format. To change to NTSC format, simply cut the white wire. This allows compatibility with different regional video standards and display systems.
Q: Can I use this camera as a front-facing camera?
A: Yes, this camera can be used for front camera installations. Cut the blue wire to enable mirror image mode, which reverses the image orientation for proper front camera viewing.
Q: What is the advantage of 18 IR LEDs compared to fewer LEDs?
A: The 18 IR LEDs provide enhanced night vision with greater illumination range and coverage compared to cameras with fewer LEDs, ensuring clearer visibility in complete darkness for improved safety.
Q: Is the sun visor removable?
A: Yes, the sun visor is a separate included component that can be removed if not required for your installation. Dimensions are 76.5mm x 77mm x 64.5mm with sunvisor, or 74mm x 71mm x 50mm without sunvisor.
