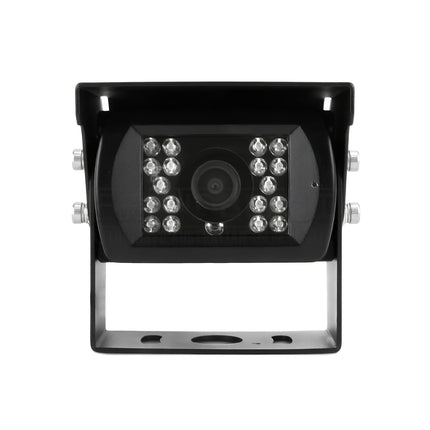

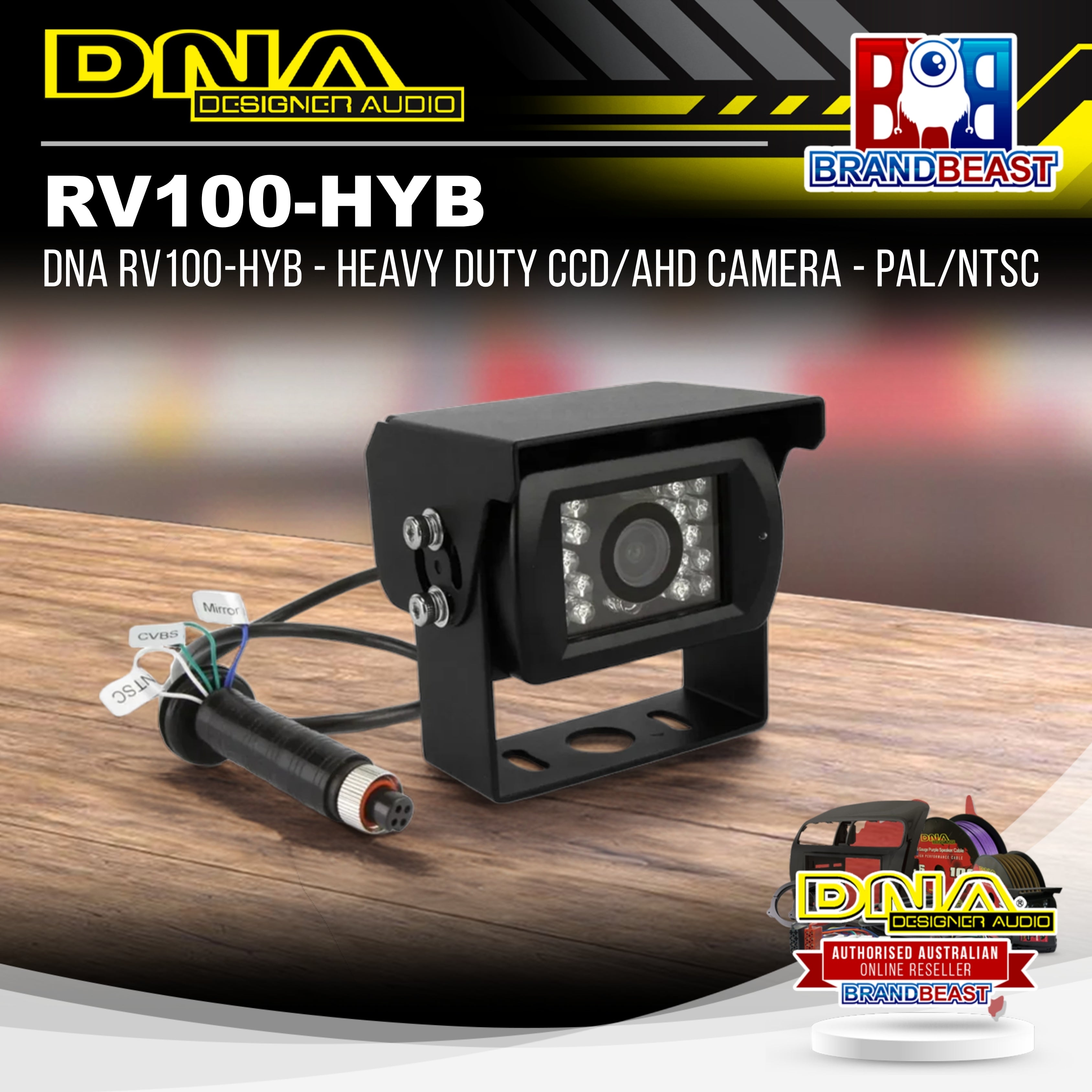

DNA RV100-HYB - Heavy Duty CCD/AHD Camera - PAL/NTSC
Heavy-duty CCD/AHD hybrid truck, bus, and caravan camera with all-metal waterproof construction, removable sun visor, selectable PAL/NTSC format, switchable CVBS/AHD modes, and enhanced 18 IR LED night vision for professional commercial vehicle installations.
Product Overview
The DNA RV100-HYB Heavy Duty CCD/AHD Camera delivers professional-grade video surveillance for trucks, buses, and caravans with selectable PAL/NTSC format, switchable CVBS/AHD 1080P output, and mirror image options. This rugged CCD camera features all-metal aluminium alloy construction with IP68 waterproof rating, enhanced 18 built-in IR LEDs for excellent night visibility, integrated microphone for enhanced safety, and removable sun visor for flexible installation. Operating on both 12V and 24V vehicles with dual viewing angles (90° in CVBS mode, 110° in AHD mode), this camera provides reliable performance in demanding commercial applications.
Key Features
-
Dual Output Modes - CVBS mode with 90° viewing angle (default) or AHD 1080P mode with 110° viewing angle for compatibility with different display systems via wire-cut selection
-

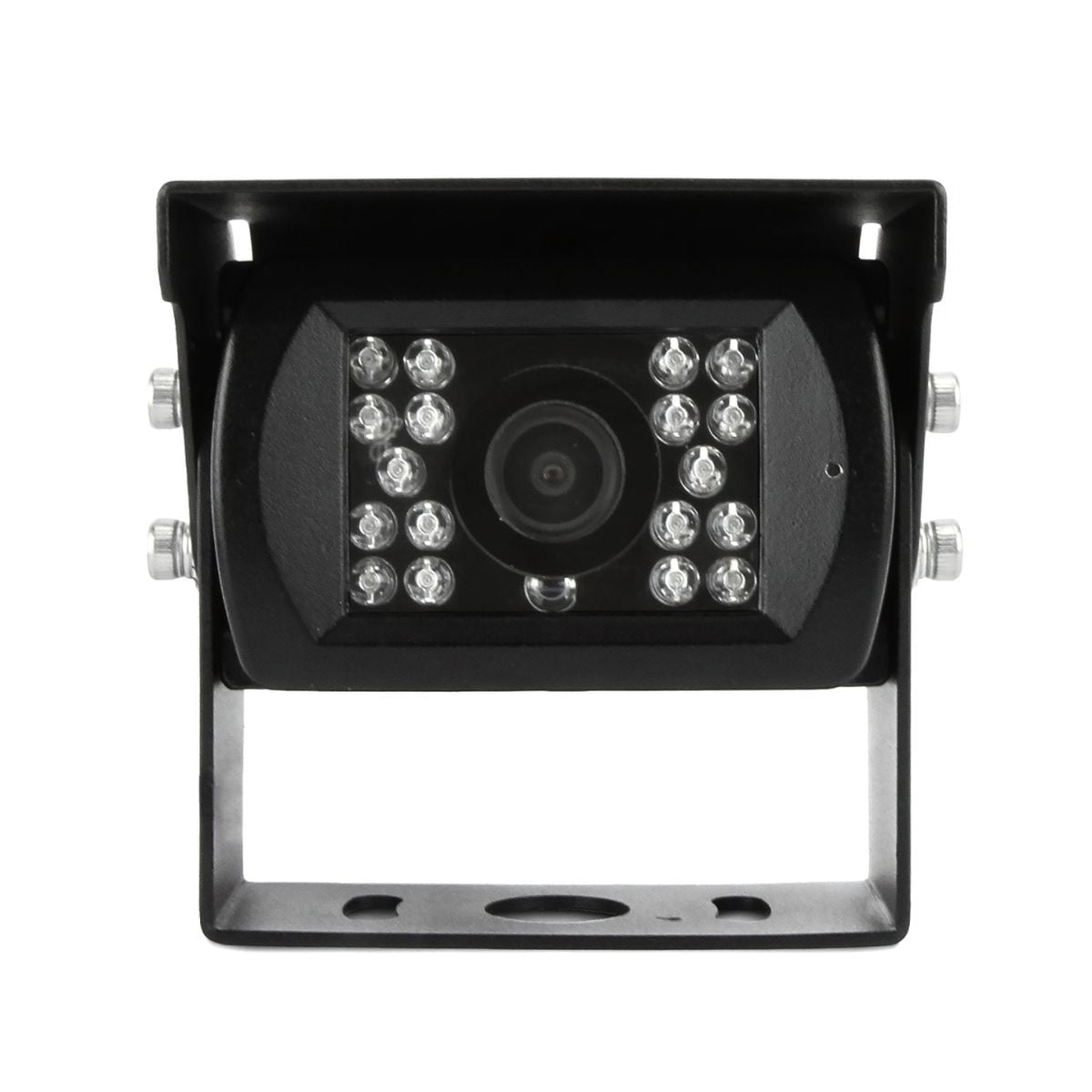

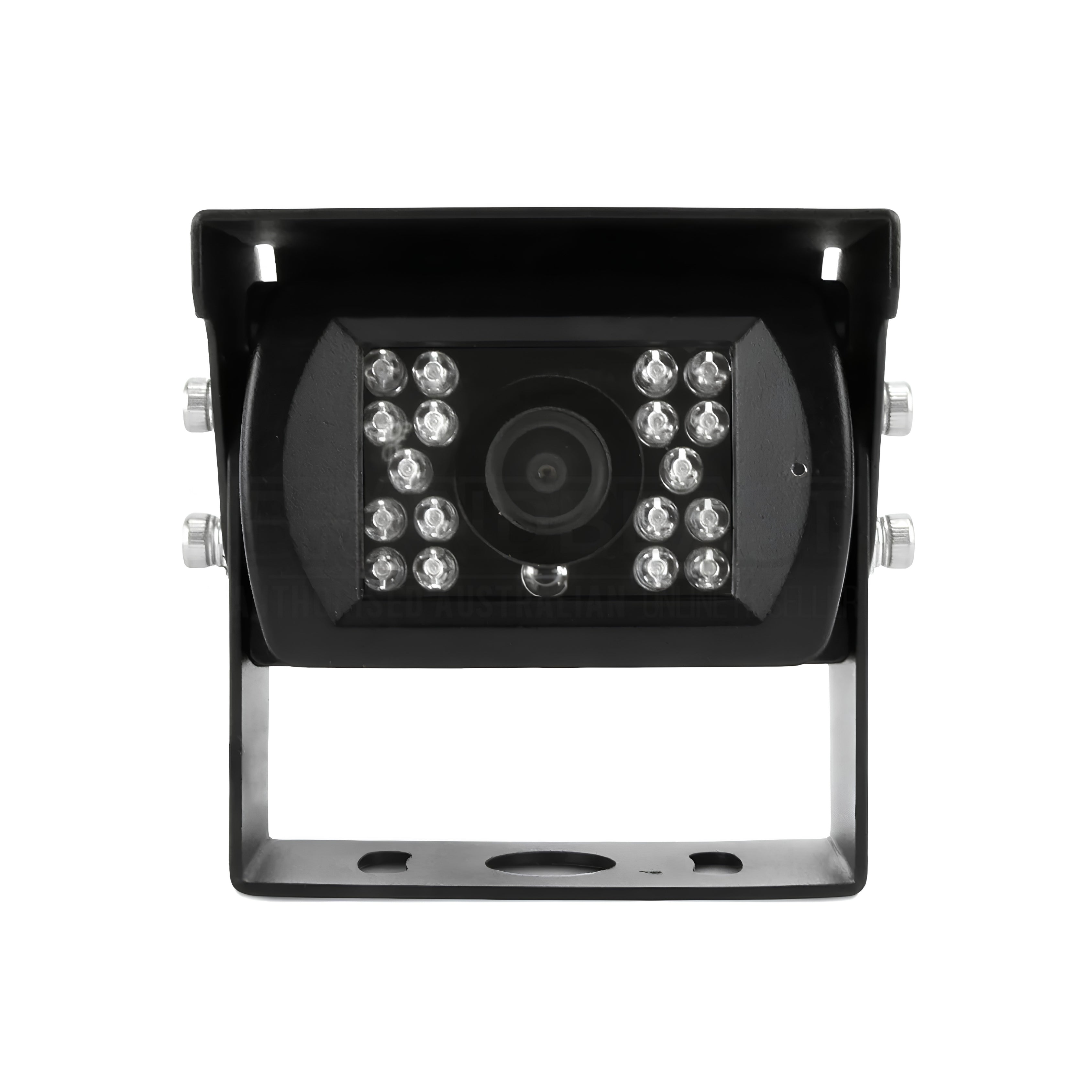

Enhanced Night Vision - 18 built-in IR LEDs provide excellent night mode visibility in complete darkness with extended illumination range
-
Heavy-Duty Metal Construction - All-metal aluminium alloy shell with IP68 waterproof rating for extreme weather resistance and durability in commercial applications
-
Removable Sun Visor - Included detachable sun visor protects lens from direct sunlight and weather elements for optimal viewing in bright conditions
-
Dual Voltage Compatibility - Operates on both 12V and 24V DC systems for compatibility with cars, trucks, buses, and commercial vehicles
-

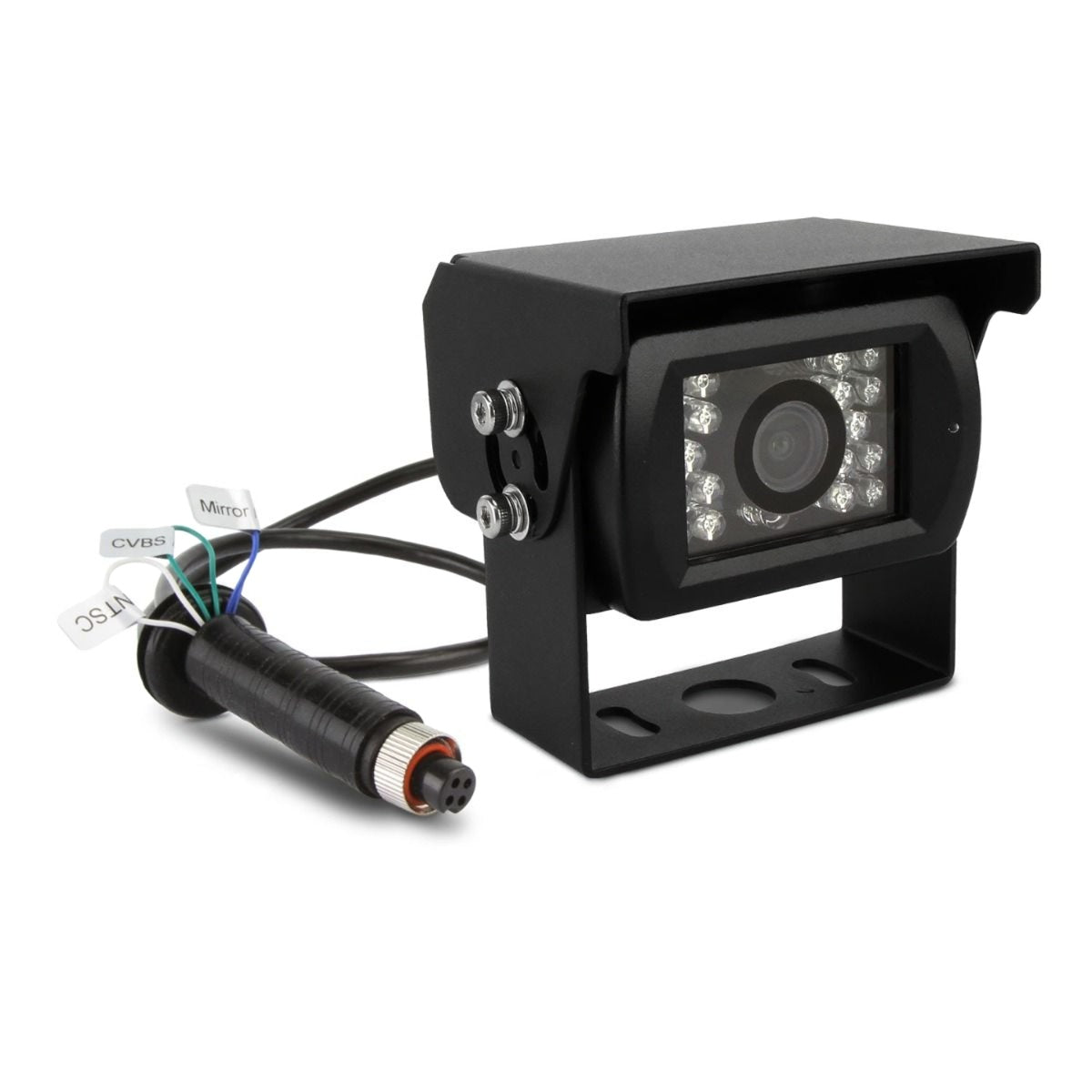

Selectable Configuration - PAL/NTSC format selection (white wire), mirror image for front/rear installation (blue wire), and CVBS/AHD output switching (green wire)
Technical Specifications
| Specification |
Details |
| Brand |
DNA |
| Model |
Heavy Duty CCD/AHD Camera |
| SKU |
RV100-HYB |
| Video Format |
PAL/NTSC Selectable (Default: PAL) |
| Output Mode |
CVBS/AHD 1080P Selectable (Default: CVBS) |
| Sensor Type |
CCD |
| Horizontal Viewing Angle (CVBS) |
90° |
| Horizontal Viewing Angle (AHD) |
110° |
| Horizontal Resolution |
420 TV Line |
| IR LEDs |
18 IR LEDs |
| Operating Voltage |
12V or 24V DC |
| Material |
Aluminium Alloy Shell |
| Signal-to-Noise Ratio |
>48dB |
| Waterproof Rating |
IP68 |
| Video Output |
1Vp-p 75 Ohm Composite |
| Audio |
Microphone Included |
| Sun Protection |
Removable Sun Visor Included |
| Connector |
0.6m 4-Pin Water Resistant Lockable |
| Dimensions (With Sunvisor) |
76.5mm W x 77mm H x 64.5mm D |
| Dimensions (Without Sunvisor) |
74mm W x 71mm H x 50mm D |
| Packaging |
White Box with DNA Sticker |
| Availability |
In Stock |
Frequently Asked Questions
Q: What is the difference between CVBS and AHD modes?
A: CVBS (default) provides 90° viewing angle for standard analog displays, while AHD 1080P mode provides 110° viewing angle with higher resolution for compatible AHD displays. Cut the green wire to switch from CVBS to AHD 1080P mode.
Q: Can this camera work on both 12V and 24V vehicles?
A: Yes, the RV100-HYB operates on both 12V and 24V DC systems, making it compatible with passenger vehicles, light commercial trucks, heavy-duty trucks, buses, and other commercial vehicles with either voltage system.
Q: How do I change between PAL and NTSC formats?
A: The camera defaults to PAL format. To change to NTSC format, simply cut the white wire. This allows compatibility with different regional video standards and display systems.
Q: Can I use this camera as a front-facing camera?
A: Yes, this camera can be used for front camera installations. Cut the blue wire to enable mirror image mode, which reverses the image orientation for proper front camera viewing.
Q: Is the sun visor removable?
A: Yes, the sun visor is a separate included component that can be removed if not required for your installation. Dimensions are 76.5mm x 77mm x 64.5mm with sunvisor, or 74mm x 71mm x 50mm without sunvisor.
