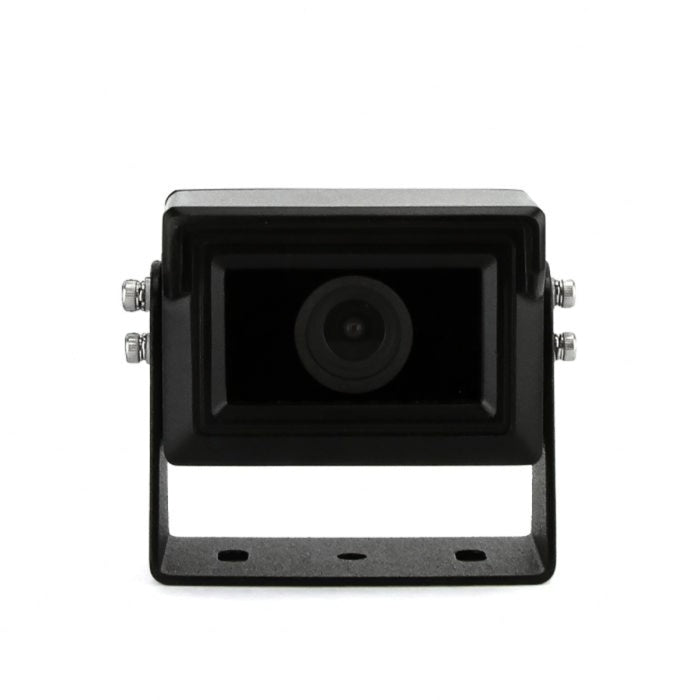

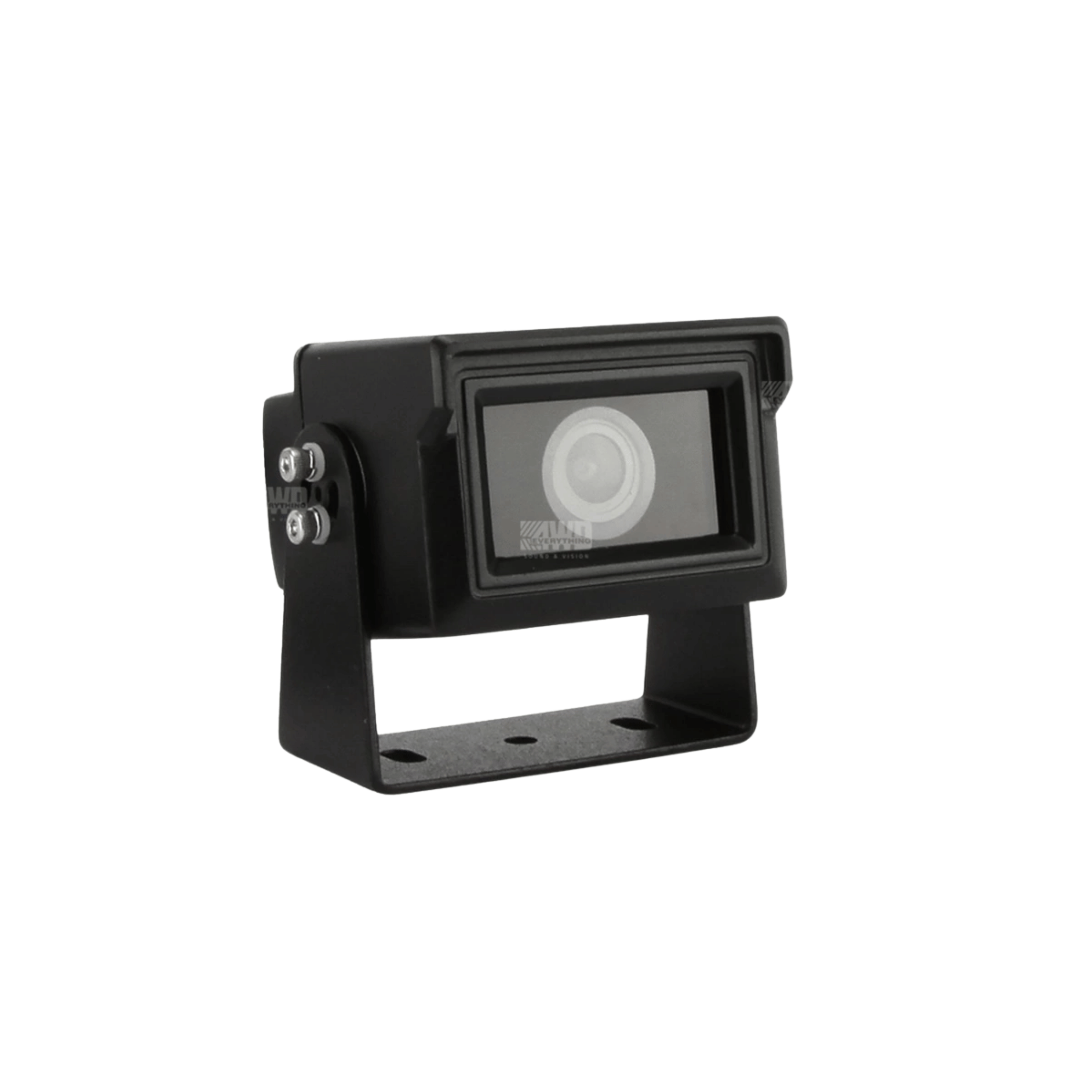

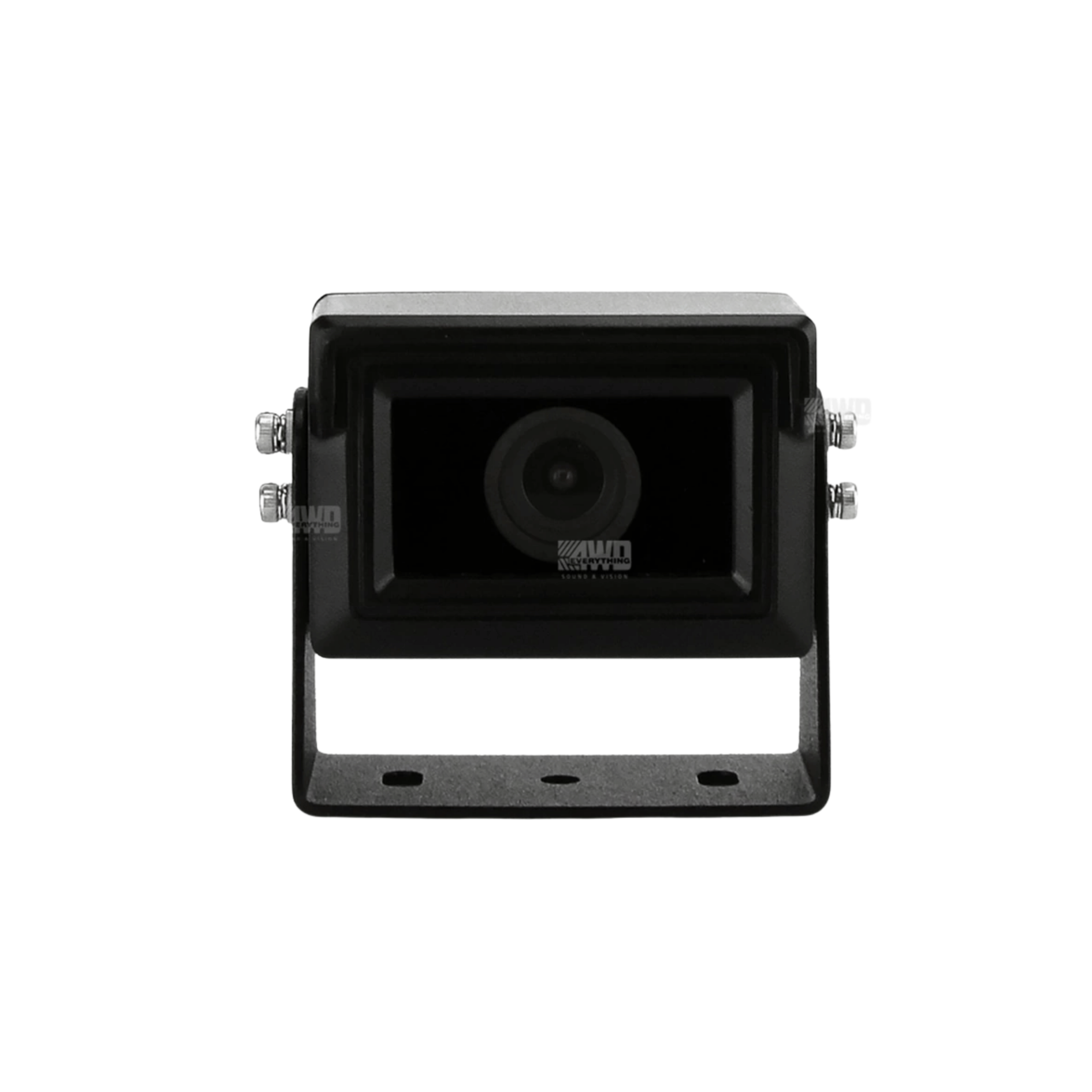

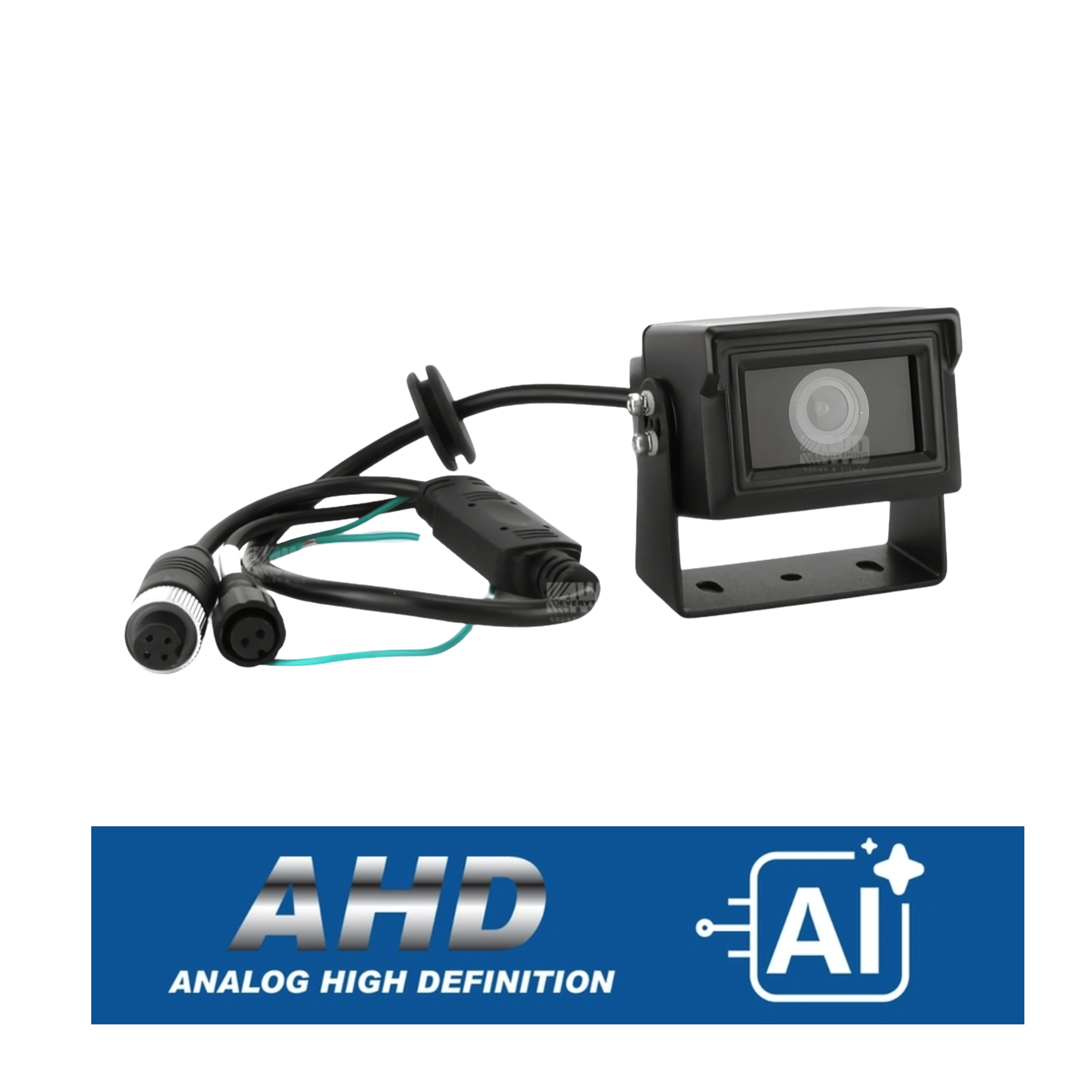

DNA RV103-AI Heavy Duty Compact AHD AI Camera - Commercial-Grade Reversing Camera with Pedestrian Detection
Enhance vehicle safety with the DNA RV103-AI heavy duty compact AHD AI camera, featuring advanced artificial intelligence pedestrian detection technology that identifies stationary and moving people up to 10 metres away with audible alerts and dynamic colour-changing on-screen warnings, delivering exceptional 1080P Analogue High Definition image clarity through CMOS sensor with 105° horizontal viewing angle, rugged IP69K waterproof aluminum alloy construction, and adjustable PAL/NTSC system compatibility for commercial-grade vehicle surveillance and reversing applications.
Product Overview
The DNA RV103-AI represents cutting-edge commercial-grade camera technology that combines Analogue High Definition imaging with sophisticated artificial intelligence pedestrian detection capabilities for enhanced vehicle safety and situational awareness. This rugged camera utilises advanced CMOS image sensor technology delivering crisp 1080P high-resolution visuals through AHD (Analogue High Definition) transmission, providing significantly improved visibility compared to traditional CVBS cameras while maintaining simple analogue installation procedures. The revolutionary AI pedestrian detection system actively monitors the vehicle's surroundings, identifying both stationary and moving people within a 10-metre detection range through sophisticated computer vision algorithms. When pedestrians enter the vehicle's driving or reversing path, the system immediately triggers audible alerts on compatible monitors while displaying dynamic on-screen visual warnings that intelligently change colour as detected persons move closer to the vehicle, providing drivers with clear, immediate, and graduated feedback about pedestrian proximity for enhanced reaction time and accident prevention. The camera features 0.1 LUX low-light sensitivity combined with F1.2 aperture, enabling excellent visibility during dawn, dusk, and nighttime operations when pedestrian detection becomes most critical for commercial vehicle safety. The 105° horizontal viewing angle provides comprehensive rear or side coverage that minimizes blind spots while the 600TV line horizontal resolution ensures sharp detail capture for license plate reading and obstacle identification. Robust IP69K waterproof rating protects against high-pressure water jets, dust ingress, and harsh environmental conditions, making this camera ideal for commercial vehicles, construction equipment, agricultural machinery, and heavy-duty applications exposed to extreme weather and wash-down procedures. The aluminum alloy shell construction provides superior durability against impacts, vibrations, and temperature extremes compared to plastic housings, ensuring long-term reliability in demanding commercial environments. Built-in sun visor reduces glare and lens flare in bright sunlight conditions, maintaining image clarity throughout varied lighting scenarios. The camera supports multiple video formats including 1080P, 720P, and CVBS with PAL/NTSC system adjustability through included control box, providing flexible compatibility with existing monitor installations across international markets. The supplied 0.6m cable with 4-pin water-resistant lockable connector ensures secure connections that resist vibration loosening and moisture ingress. Compact dimensions of just 55mm × 40mm × 49mm (camera only) enable discreet installation in tight mounting locations while the included bracket expands dimensions to 68mm × 57mm × 49mm for secure positioning. The intuitive controller interface allows on-site configuration of video settings, guideline overlays, and system parameters through simple press-key menu navigation with save functionality.
Features & Benefits
Advanced AI Pedestrian Detection Technology Revolutionary artificial intelligence system actively identifies both stationary and moving pedestrians up to 10 metres away, triggering audible alerts and dynamic colour-changing on-screen warnings that intensify as people approach closer, providing drivers with graduated proximity feedback that enables proactive accident prevention and enhanced situational awareness in commercial vehicle operations.
1080P AHD High-Definition Imaging Delivers exceptional 1080P Analogue High Definition resolution through advanced CMOS sensor technology, providing significantly improved image clarity, detail capture, and visibility compared to traditional CVBS cameras while maintaining simple analogue installation procedures without requiring complex IP networking infrastructure, ensuring professional-grade surveillance quality for commercial applications.
Extreme IP69K Waterproof Protection Features robust IP69K waterproof rating that protects against high-pressure water jets, steam cleaning, dust ingress, and harsh environmental conditions, combined with durable aluminum alloy shell construction that withstands impacts, vibrations, and temperature extremes, ensuring reliable long-term operation in demanding commercial, construction, agricultural, and heavy-duty vehicle applications.
Superior Low-Light Performance Equipped with 0.1 LUX low-light sensitivity and F1.2 large aperture that enables excellent visibility during dawn, dusk, and nighttime operations when pedestrian detection becomes most critical for safety, maintaining clear image quality and reliable AI detection capabilities throughout varied lighting conditions for 24-hour commercial vehicle operation.
Comprehensive 105° Wide-Angle Coverage Provides extensive 105° horizontal viewing angle that minimizes blind spots and delivers comprehensive rear or side area coverage, combined with built-in sun visor that reduces glare and lens flare in bright sunlight, ensuring consistent image clarity and optimal visibility across diverse lighting scenarios for enhanced driver confidence and safety.

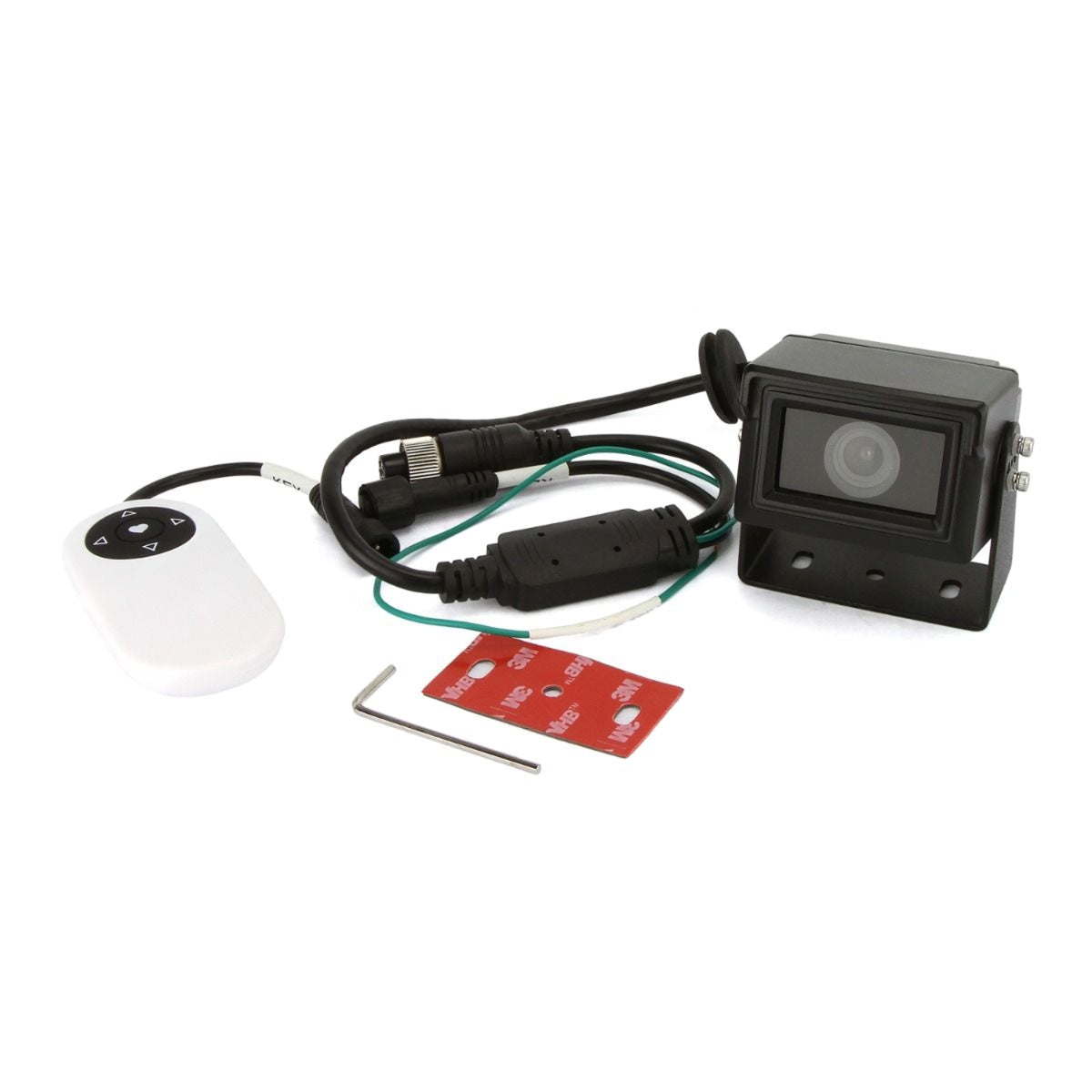

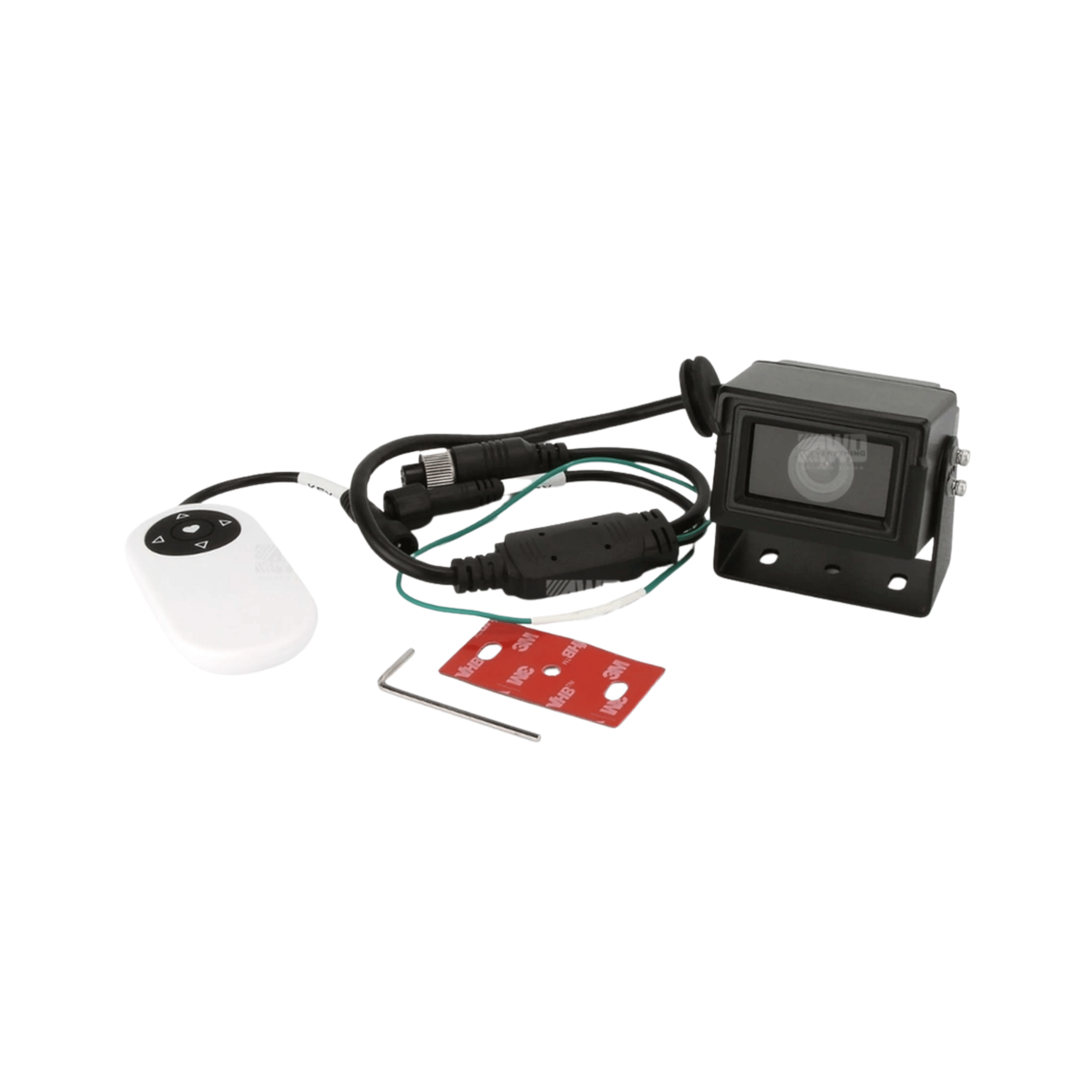

Flexible System Compatibility and Configuration Supports multiple video formats including 1080P, 720P, and CVBS with adjustable PAL/NTSC system compatibility through included control box, enabling flexible integration with existing monitor installations across international markets, while intuitive controller interface allows on-site configuration of video settings, guideline overlays, and system parameters for customized installation requirements.
Technical Specifications
| Specification |
Details |
| Brand |
DNA |
| Model |
RV103-AI |
| Product Type |
Heavy Duty AHD AI Camera |
| Image Sensor |
CMOS |
| Video Output |
Default AHD 1080P/PAL System |
| Resolution |
1080P (Adjustable: 1080P/720P/CVBS) |
| Video System |
NTSC/PAL Adjustable via Control Box |
| AI Detection |
Built-in Pedestrian Detection |
| Detection Range |
Up to 10 Metres |
| Low-Light Sensitivity |
0.1 LUX |
| Aperture |
F1.2 |
| Viewing Angle |
105° Horizontal |
| Horizontal Resolution |
600TV Line |
| Operating Voltage |
12V DC |
| Sun Visor |
Built Into Casing |
| Shell Material |
Aluminum Alloy |
| Waterproof Rating |
IP69K |
| Video Output Signal |
1Vp-p 75 Ohm Composite |
| Cable Length |

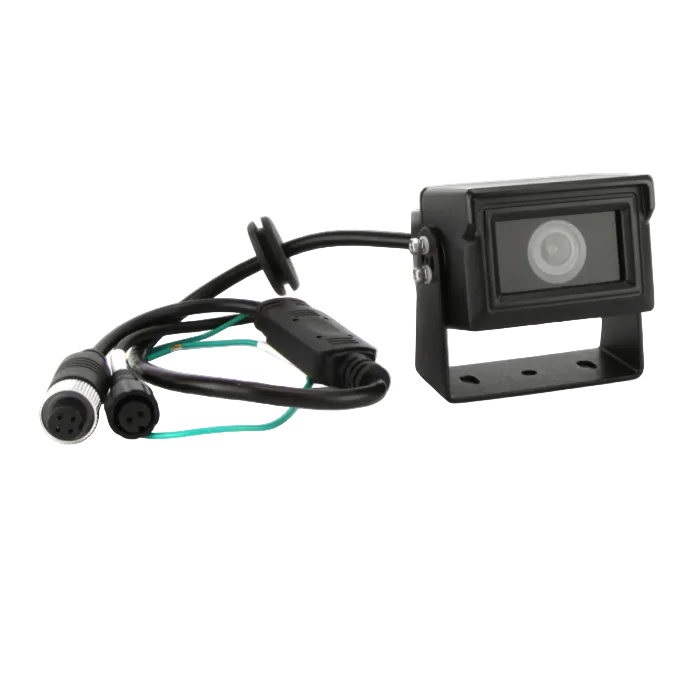

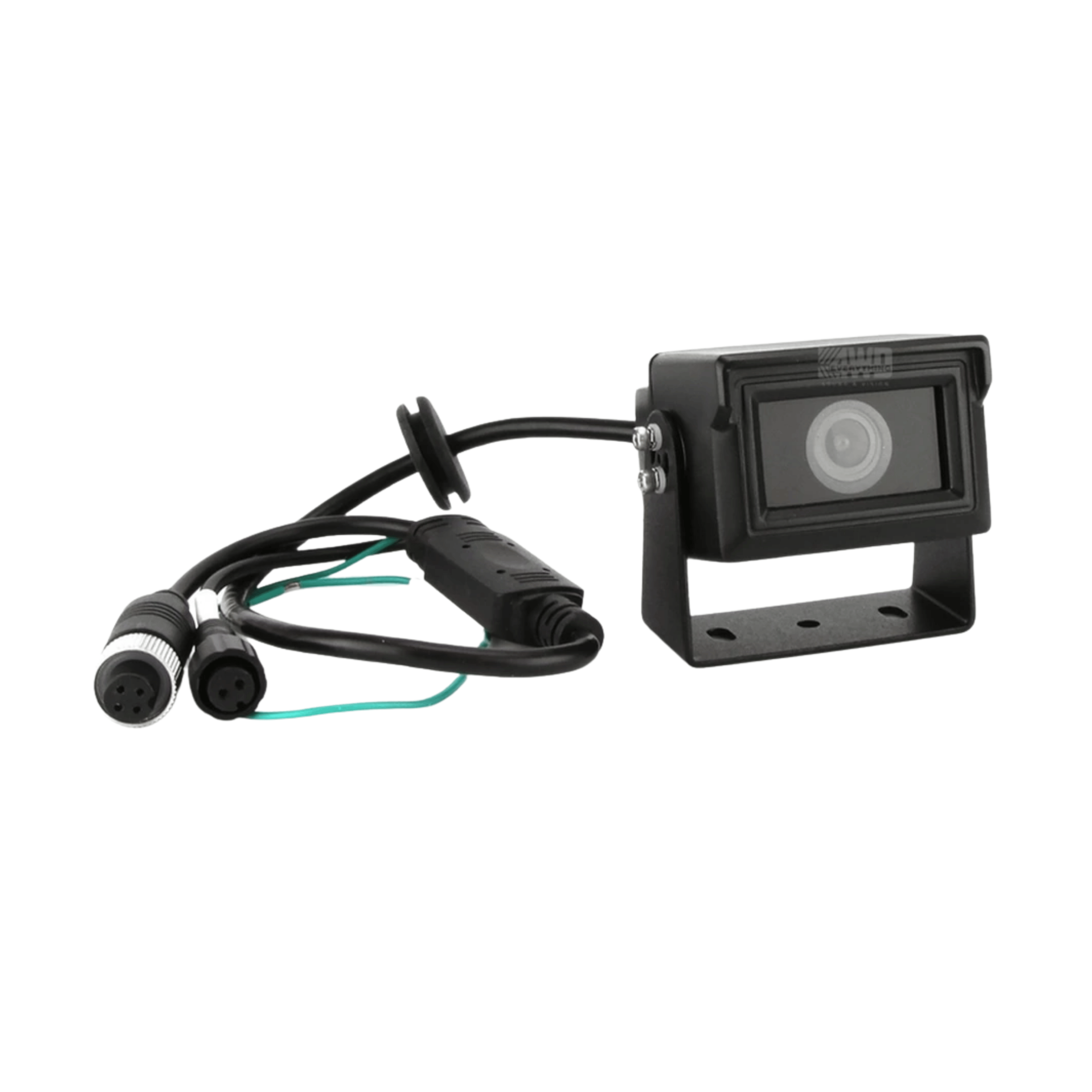

0.6m with 4-Pin Water-Resistant Lockable Connector |
| Camera Dimensions |
55mm (W) × 40mm (H) × 49mm (D) |
| Camera & Bracket Dimensions |
68mm (W) × 57mm (H) × 49mm (D) |
| Controller |
Press Key Menu Navigation with Save Function |
| Guideline Settings |
Press and Hold 3 Seconds to Save/Exit |
| Packaging |
Box |
Compatible With
Compatible Monitors:
- AHD-compatible monitors supporting 1080P resolution
- DNA AHD monitor systems with AI alert support
- Commercial vehicle monitor systems with audio alert capability
- Multi-camera AHD DVR recording systems
Vehicle Applications:
- Commercial trucks and delivery vehicles
- Construction equipment and heavy machinery
- Agricultural tractors and farming equipment
- Buses and passenger transport vehicles
- Caravans and recreational vehicles
- Fleet vehicles requiring enhanced safety systems
Installation Components:
- DNA AHD extension cables for custom installation lengths
- 4-pin waterproof extension cables for longer runs
- Multiple camera switching systems for multi-view setups
- Professional-grade AHD video distribution amplifiers
Power Requirements:
- 12V DC vehicle electrical systems
- Commercial vehicle battery systems
- Isolated power supplies for standalone applications
Note: Optimal AI pedestrian detection and alert functionality requires compatible monitor system with audio alert capability and dynamic warning display support.
Frequently Asked Questions
How does the AI pedestrian detection system work?
The advanced AI system uses computer vision algorithms to continuously analyze the camera's video feed, identifying both stationary and moving pedestrians within a 10-metre detection range. When a person is detected in the vehicle's path, the system triggers an audible alert on the compatible monitor and displays a dynamic on-screen visual warning that changes colour as the person moves closer, providing graduated proximity feedback for enhanced driver awareness.
What is the difference between AHD and traditional CVBS cameras?
AHD (Analogue High Definition) provides significantly higher image resolution (1080P) compared to traditional CVBS cameras, delivering sharper detail, better clarity, and improved ability to identify objects and people. However, AHD maintains the simple analogue installation process without requiring complex IP networking, making it ideal for commercial vehicle upgrades requiring professional image quality with straightforward installation.
Can this camera withstand high-pressure washing and harsh weather?
Yes, the IP69K waterproof rating provides the highest level of protection against high-pressure water jets, steam cleaning, dust ingress, and extreme weather conditions. The aluminum alloy shell construction offers superior durability against impacts and temperature extremes, making this camera specifically designed for demanding commercial applications including construction sites, agricultural environments, and vehicles requiring regular pressure washing.
Is this camera compatible with existing reverse camera monitors?
The camera is compatible with AHD-capable monitors that support 1080P resolution. For traditional CVBS monitors, the camera can be configured to output in CVBS mode through the control box, though this will reduce resolution and disable some advanced features. For optimal AI pedestrian detection functionality including colour-changing warnings and audio alerts, a compatible DNA AHD monitor system is recommended.
How do I configure the camera settings and guidelines?
The included controller provides intuitive menu navigation using press keys and direction controls. Access the menu by pressing the key, navigate through settings using direction keys, then press save to store configuration. For guideline settings specifically, press and hold the key for 3 seconds to save and exit. The control box also allows adjustment of video format (1080P/720P/CVBS) and system type (PAL/NTSC) for compatibility with different monitor systems.
