Description

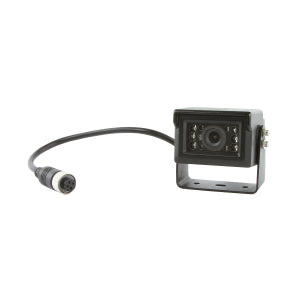

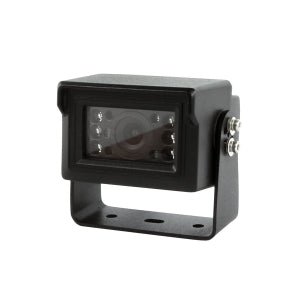

DNA RV103N 12V Heavy Duty Compact CCD Camera - NTSC
Professional compact CCD camera with metal construction designed for heavy-duty commercial applications
The DNA RV103N 12V Heavy Duty Compact CCD Camera delivers reliable commercial-grade video monitoring with Sharp 1/3" CCD sensor technology in a compact design specifically for trucks, buses, and heavy commercial vehicles. This all-metal aluminium alloy construction camera features IP69K waterproof rating, 10 IR LEDs for night vision, and built-in microphone for comprehensive safety monitoring. The 120° horizontal viewing angle provides excellent coverage while maintaining a compact profile.
Engineered for NTSC video systems and 12V electrical systems, this camera operates reliably in harsh Australian conditions. Perfect for fleet operators, transport companies, and heavy vehicle applications requiring durable, professional rear vision systems in space-constrained installations where standard cameras are too large.
DNA RV103N Key Features & Benefits:
-
Sharp CCD Technology: Professional 1/3" Sharp NTSC CCD sensor delivers reliable 600TV Line resolution
-
Compact Heavy-Duty Design: Smaller form factor with aluminium alloy construction for space-limited installations
-
Superior Waterproof Rating: IP69K rating withstands high-pressure washing and extreme weather conditions
-
Enhanced Night Vision: 10 IR LEDs provide excellent 0.05 LUX illumination for clear night-time visibility
-
Built-in Audio: Integrated microphone adds audio monitoring for enhanced safety awareness
-
Complete Connection Kit: Includes 4-pin connector, RCA adaptor cable, and sun visor for immediate installation
Technical Specifications:
-
Model: DNA RV103N
-
SKU: RV103N
-
Image Sensor: Sharp NTSC 1/3" CCD
-
Video System: NTSC (North American standard)
-
Resolution: 600TV Line
-
Viewing Angle: 120° horizontal
-
IR LEDs: 10 infrared LEDs
-
Night Illumination: 0.05 LUX minimum
-
Operating Voltage: 12V DC
-
Signal-to-Noise Ratio: >48dB
-
Waterproof Rating: IP69K (high-pressure washing resistant)
-
Construction: Aluminium alloy shell (compact design)
-
Video Output: 1V p-p 75Ω composite
-
Cable Length: 0.6m with 4-pin waterproof connector
-
Audio: Built-in microphone included
-

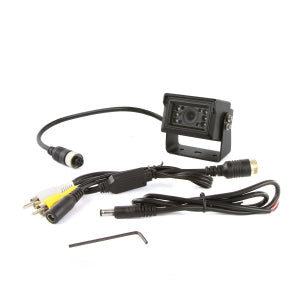

Accessories: Sun visor, RVA05 RCA adaptor cable included
Installation Applications:
-
Commercial Trucks: Compact installations where space is limited but heavy-duty performance is required
-
Buses & Coaches: Public transport applications requiring durable, washable camera systems
-
Delivery Vehicles: Fleet installations where compact size and reliability are essential
-
Industrial Equipment: Machinery and equipment requiring IP69K rated components
-
International Markets: NTSC-compatible systems for export or imported vehicles
Frequently Asked Questions
What makes this camera compact compared to other models? Smaller form factor design while maintaining heavy-duty aluminium construction and professional features.
Will this work with my Australian monitor? This is NTSC format - ensure your monitor supports NTSC or consider PAL versions for Australian systems.
What's special about IP69K rating? IP69K withstands high-pressure, high-temperature washing - superior to standard IP68 waterproofing.
Does it include connection cables? Yes, includes 4-pin connector and RVA05 RCA adaptor cable for immediate installation.
Can I wash this camera with high-pressure equipment? Yes, IP69K rating specifically designed to withstand high-pressure washing systems.
