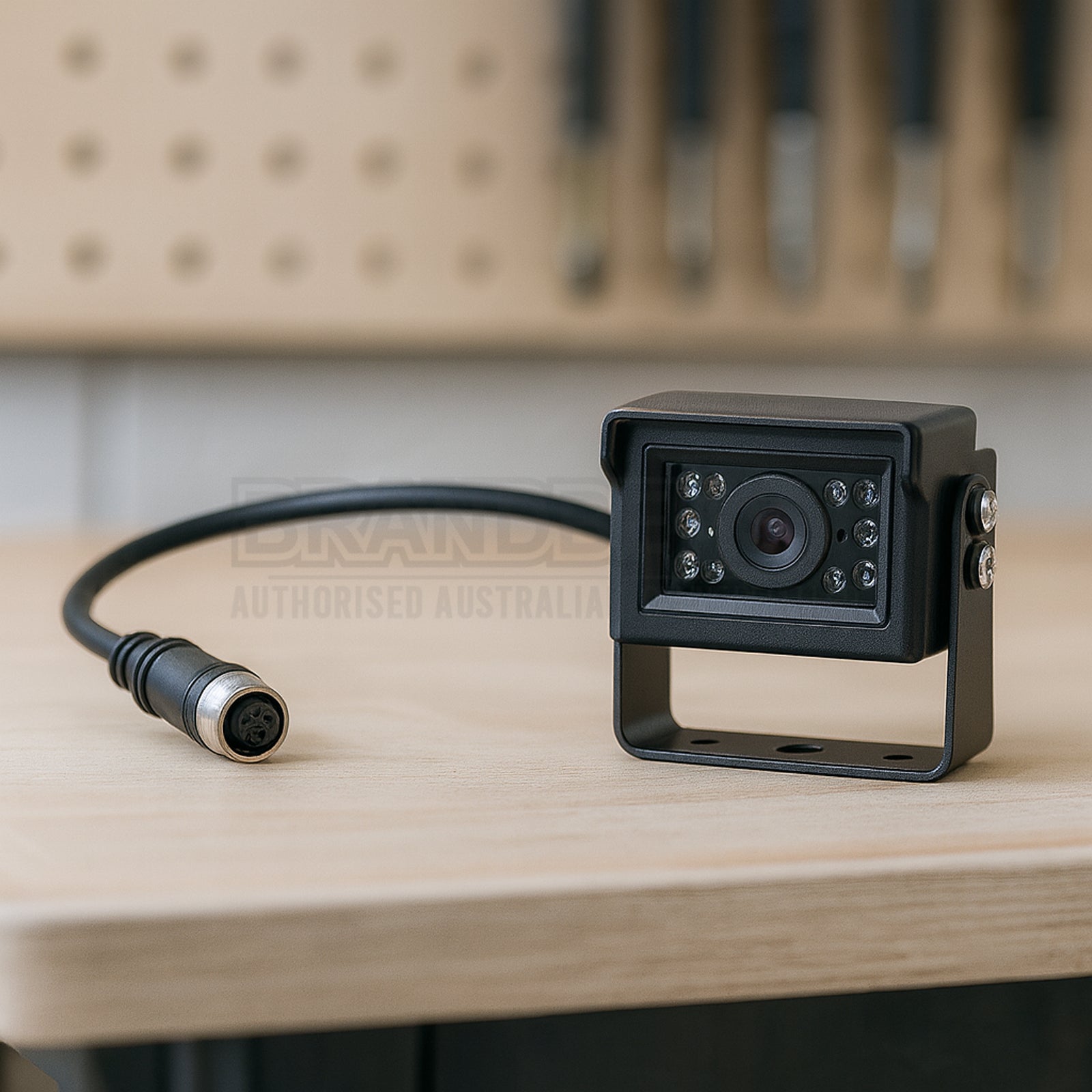

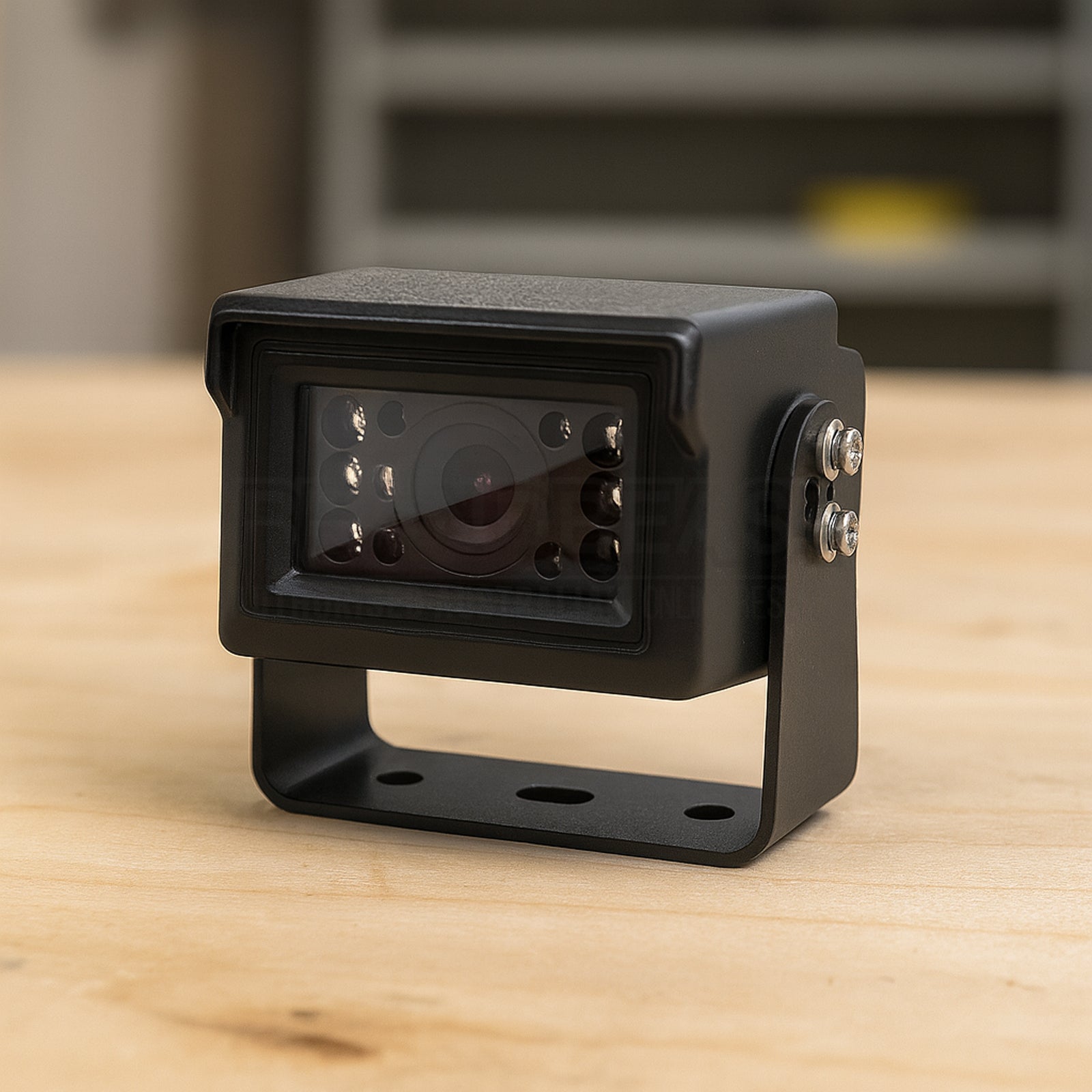

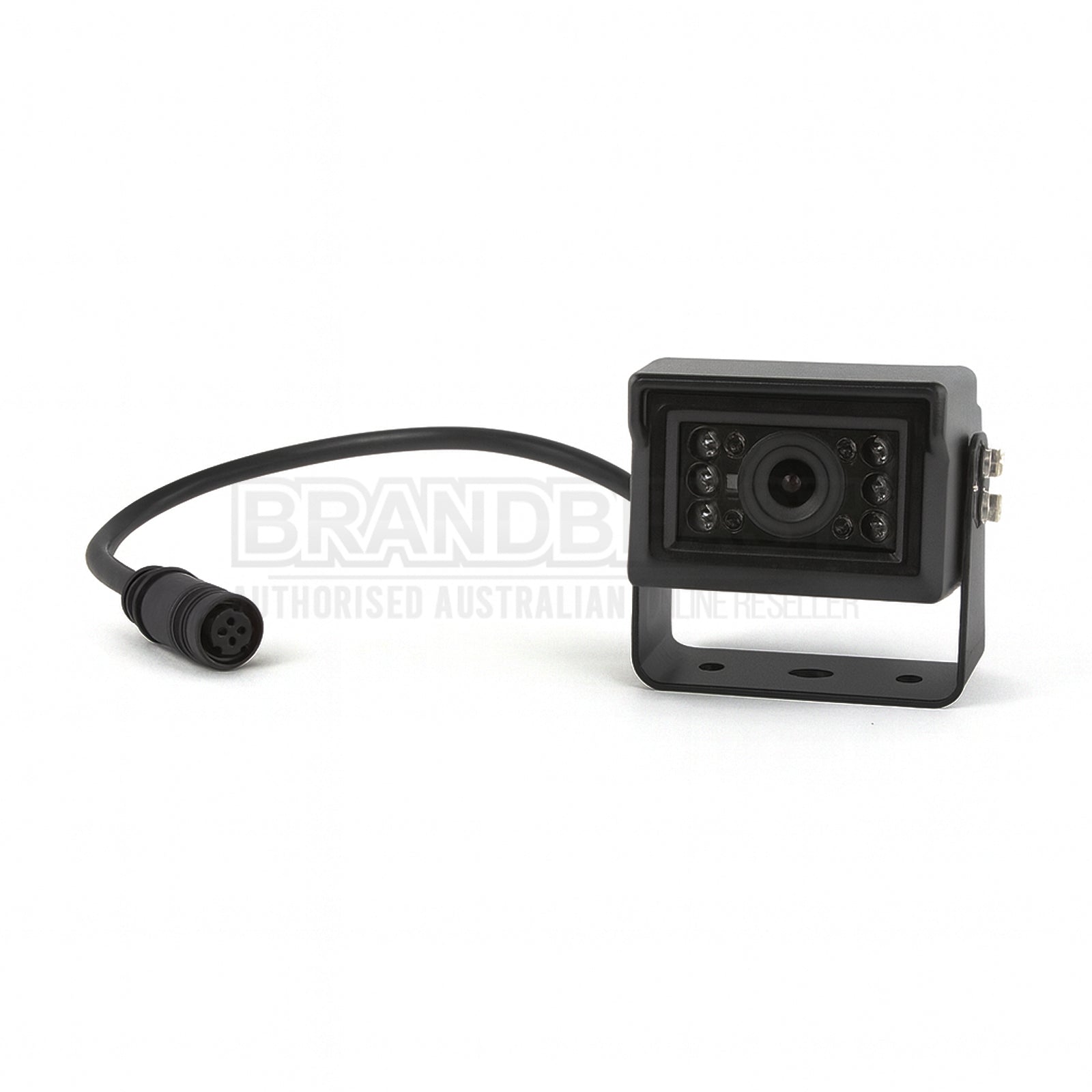

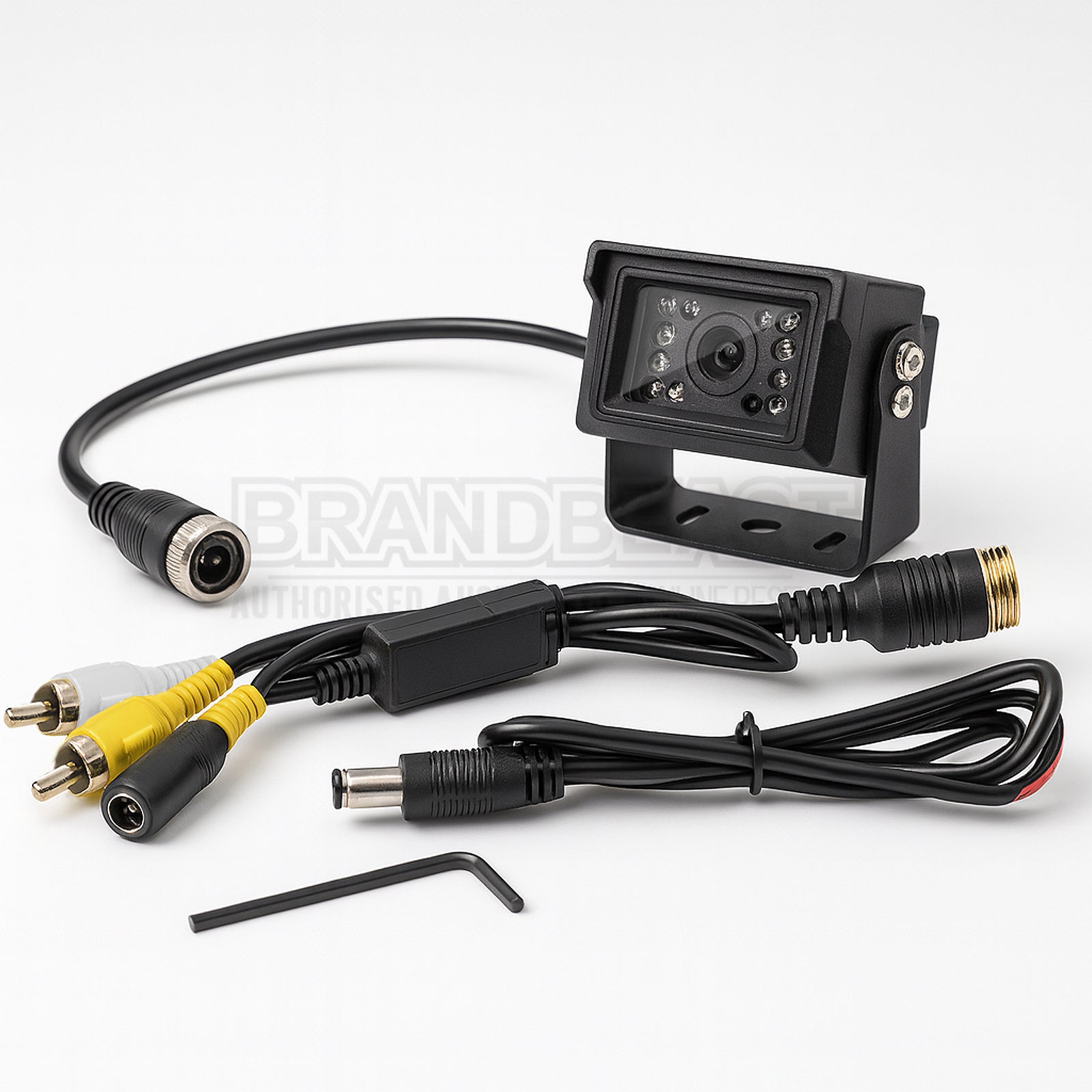

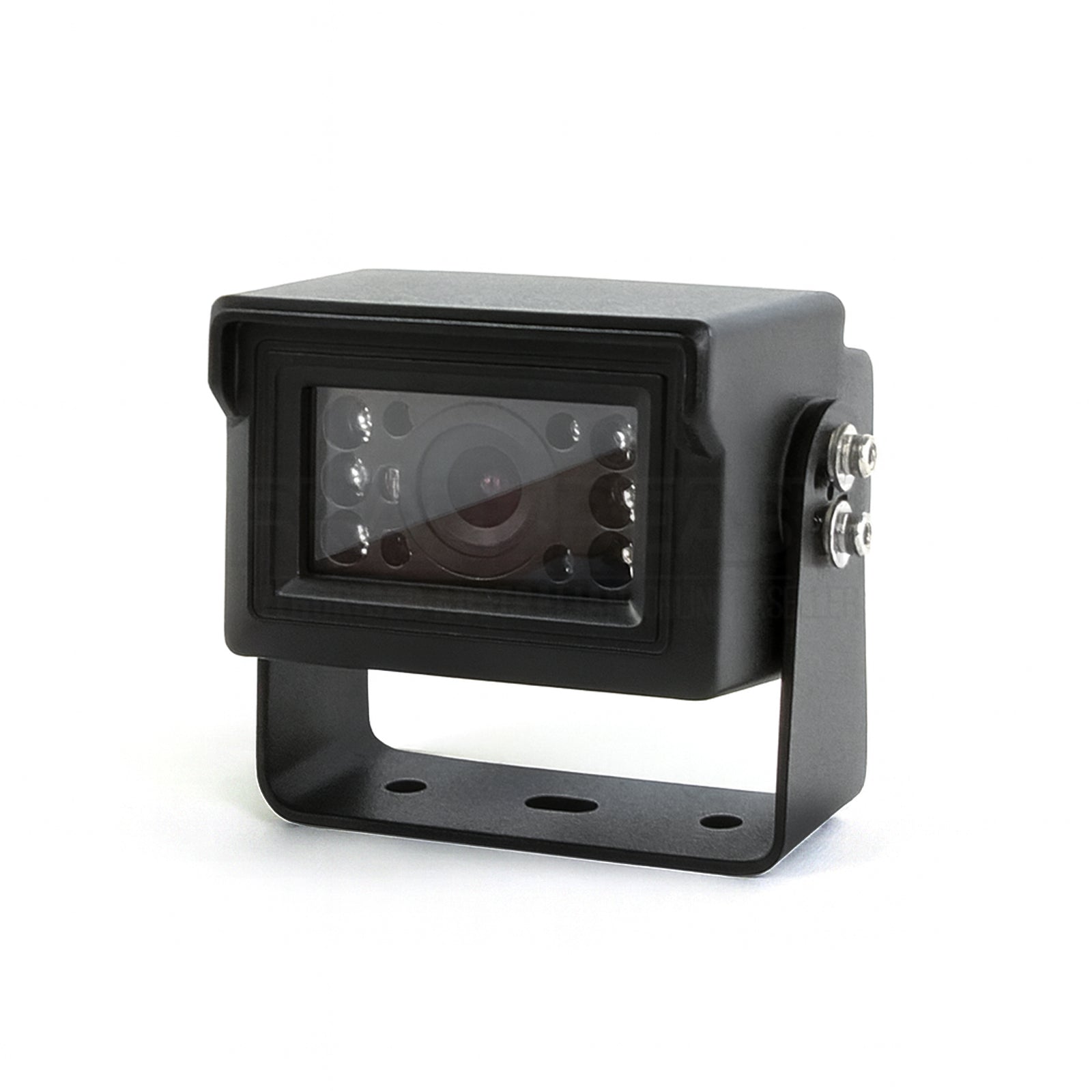

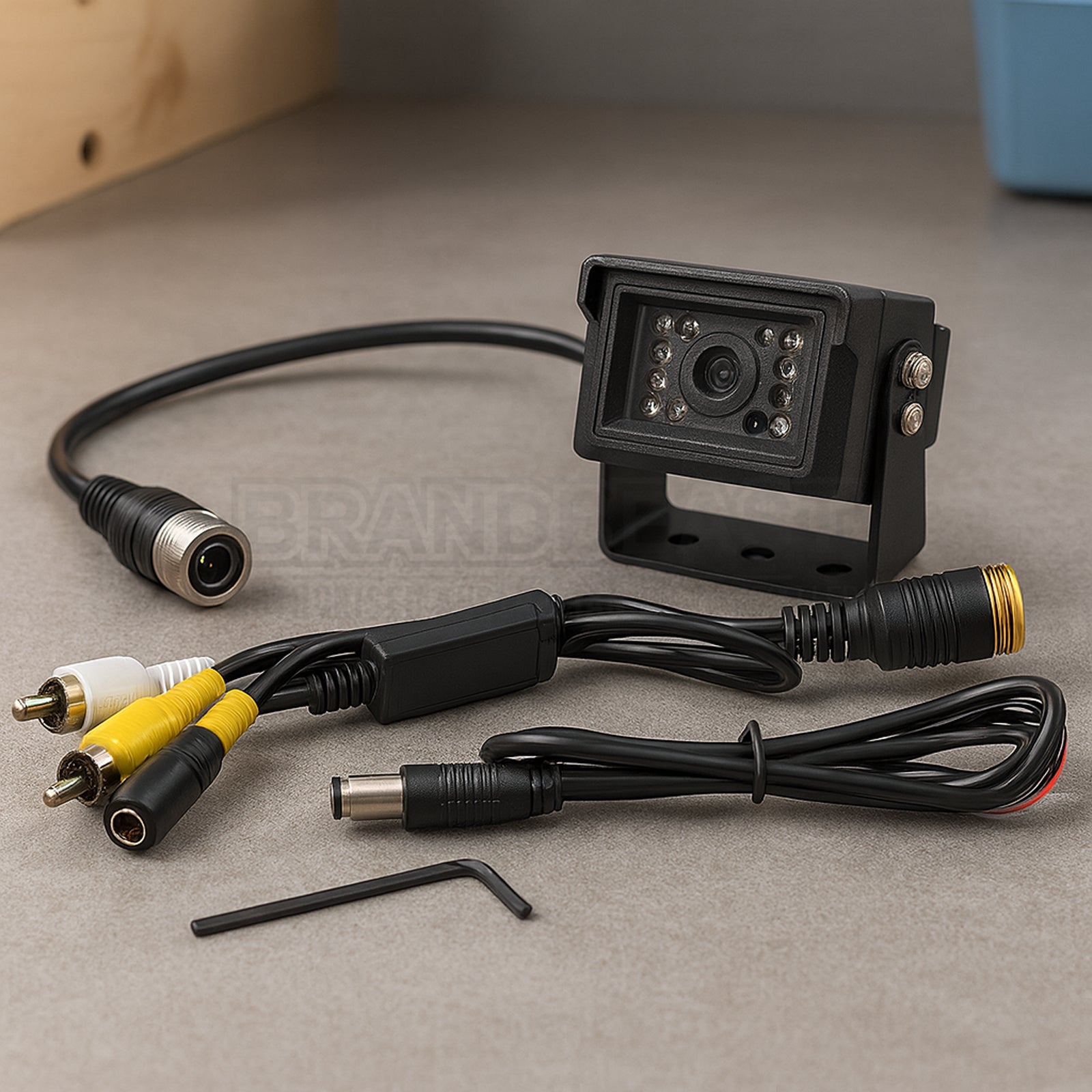

DNA RV103P | Heavy Duty Compact CCD Camera – PAL, IP69K Waterproof, IR Night Vision
The DNA RV103P heavy duty CCD camera is built for the toughest commercial applications where reliability matters most. Featuring all-metal waterproof construction and advanced night vision capabilities, this compact camera delivers crystal-clear PAL video for trucks, buses, and heavy machinery. Perfect for fleet operators and commercial drivers who need dependable rear visibility in all conditions.
Key Features & Benefits:
-
Heavy Duty Construction: All-metal aluminium alloy shell built for commercial vehicle punishment
-
Superior Night Vision: 10 built-in IR LEDs provide excellent visibility in 0.05 LUX conditions
-
IP69K Waterproof Rating: Ultimate protection against high-pressure washing and extreme weather
-
Wide Coverage: 120° horizontal viewing angle captures full rear area
-
Built-in Audio: Integrated microphone adds extra safety awareness
-
Sun Visor Protection: Built-in visor prevents glare and protects lens
-
Secure Connection: Water-resistant lockable 4-pin connector prevents disconnection
-
Compact Design: Small footprint fits tight mounting spaces
Technical Specifications:
-
Image Sensor: 1/3" Sharp PAL CCD
-
Video Format: PAL
-
Horizontal Resolution: 600 TV Lines
-
Viewing Angle: 120° Horizontal
-
IR LEDs: 10 Built-in LEDs
-
Min. Illumination: 0.05 LUX (Night Mode)
-
Operating Voltage: 12V DC
-
S/N Ratio: >48dB
-
Video Output: 1Vp-p 75Ω Composite
-
Waterproof Rating: IP69K
-
Material: Aluminium Alloy Shell
-
Cable: 0.6m with 4-pin Water Resistant Lockable Connector
Dimensions:
-
Camera Only: 55mm (W) x 40mm (H) x 49mm (D)
-
Camera & Bracket: 68mm (W) x 57mm (H) x 49mm (D)
-
Packaging: Retail Box
Ideal Applications:
-
Commercial Trucks: Semi-trailers, delivery vehicles, freight trucks
-
Buses: School buses, coach buses, public transport
-
Heavy Machinery: Construction equipment, mining vehicles
-
Fleet Vehicles: Any commercial application requiring reliable rear vision
When standard cameras won't cut it, the DNA RV103P delivers commercial-grade performance with the durability and features fleet operators demand. Built tough, performs reliably, day and night.
