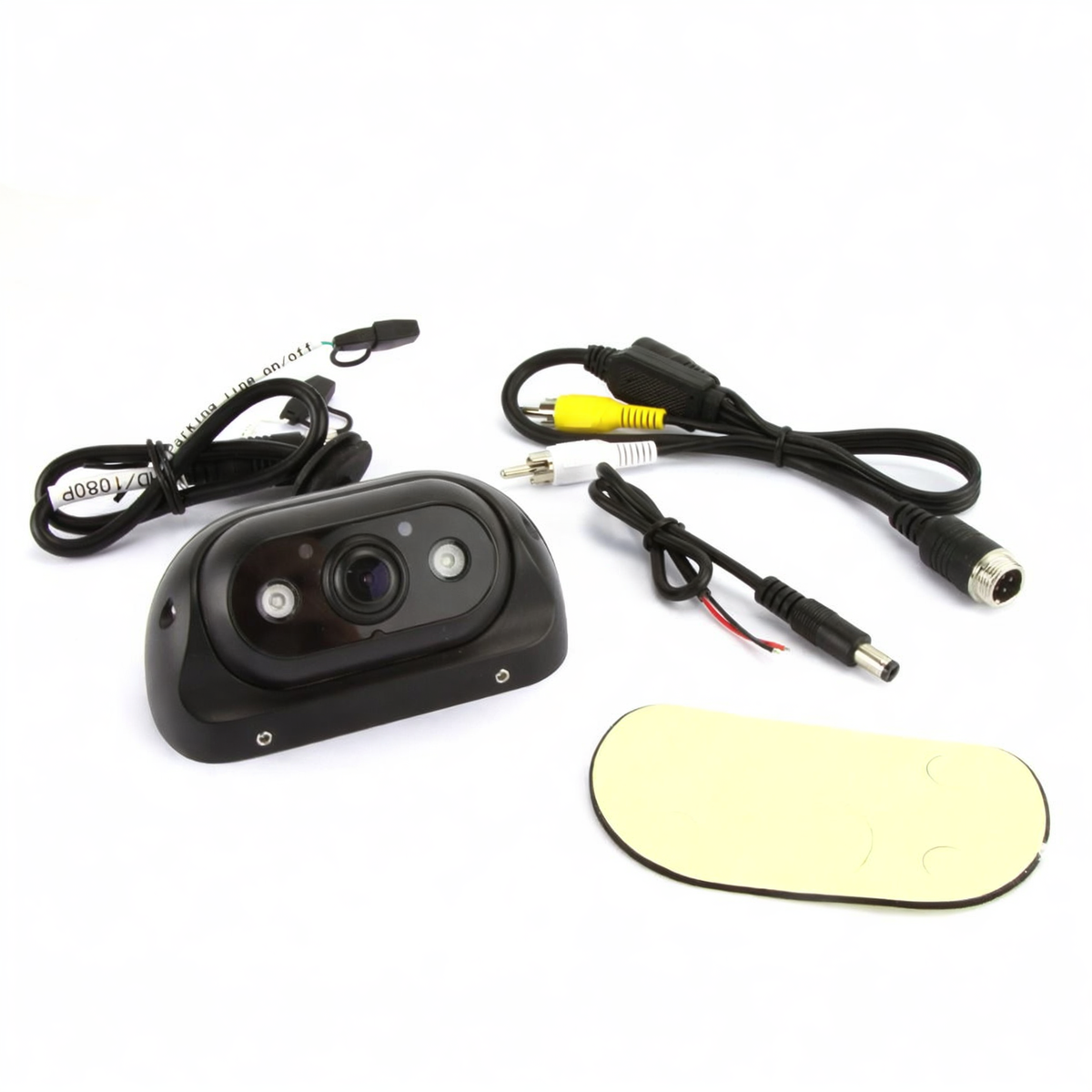

DNA RV105P-AHD Heavy Duty AHD Camera - PAL
Professional-grade Sony CMOS AHD camera built for heavy-duty commercial applications
The DNA RV105P-AHD Heavy Duty AHD Camera delivers HD 720p video quality with Sony 1/3" CMOS sensor technology designed specifically for trucks, buses, coaches, and commercial vehicles. This all-metal aluminium alloy construction camera features IP68 waterproof rating, 18 IR LEDs for night vision, and built-in microphone for comprehensive safety monitoring. The 140° horizontal viewing angle provides excellent rear coverage for large commercial vehicles.
Engineered for Australian PAL video systems and compatible with DNA AHD monitor systems, this camera operates reliably in 12V-24V commercial vehicle electrical systems. Perfect for fleet operators, transport companies, and heavy vehicle applications requiring durable, high-definition rear vision systems that perform in extreme Australian conditions.
DNA RV105P-AHD Key Features & Benefits:
-
Sony CMOS Technology: Professional 1/3" Sony PAL CMOS sensor delivers crisp 1280x720 HD resolution
-
Heavy-Duty Construction: Aluminium alloy shell with IP68 waterproof rating withstands harsh commercial environments
-
Superior Night Vision: 18 IR LEDs provide excellent 0.1 LUX illumination for clear night-time visibility
-
Built-in Audio: Integrated microphone adds audio monitoring for enhanced safety awareness
-
Wide Voltage Range: 12V-24V operation suits cars, trucks, buses, and heavy commercial vehicles
-
Professional Installation: 0.6m lockable 4-pin connector with sun visor for weather protection
Technical Specifications:
-
Model: DNA RV105P-AHD
-
SKU: RV105P-AHD
-
Image Sensor: 1/3" Sony PAL CMOS
-
Video System: PAL (Australian standard)
-
Resolution: 1280 x 720 pixels (HD 720p)
-
Viewing Angle: 140° horizontal
-
IR LEDs: 18 infrared LEDs
-
Night Illumination: 0.1 LUX minimum
-
Operating Voltage: 12V - 24V DC
-
Signal-to-Noise Ratio: >48dB
-
Waterproof Rating: IP68 (fully submersible)
-
Construction: Aluminium alloy shell
-
Video Output: 1V p-p 75Ω composite
-
Cable Length: 0.6m with 4-pin waterproof connector
-
Dimensions: 100mm W x 46mm H x 56mm D
-
Audio: Built-in microphone included
-
Accessories: Sun visor included
Installation Applications:
-
Commercial Trucks: Semi-trailers, delivery trucks, and freight vehicles requiring HD rear vision
-
Buses & Coaches: Public transport and charter vehicles for passenger safety monitoring
-
Heavy Machinery: Construction equipment, mining vehicles, and industrial applications
-
Fleet Vehicles: Company vehicle fleets requiring professional-grade monitoring systems
-
Caravans & Large RVs: Heavy-duty recreational vehicles where standard cameras aren't sufficient
Frequently Asked Questions
Will this work with my existing monitor? Only compatible with AHD monitors like RV70PK-AHD, RV70B-AHD, and RV74B-AHD.
Can I extend the cable length? Yes, compatible with RVEW cable kits and RVE05, RVE07, RVE10, RVE15, RVE20 extensions.
Will it work on 24V trucks? Yes, operates on both 12V and 24V electrical systems.
Is the microphone always recording? The microphone provides real-time audio to compatible AHD monitors with audio input.
Can I use this on a standard reverse camera monitor? No, AHD cameras only work with AHD-compatible screens and monitors.
