DNA RV70-AHD 7in Analog High Definition LCD 3 Channel Rearview Monitor
The DNA RV70-AHD is a 7-inch AHD LCD monitor with 3-channel camera input, supporting up to 1080P resolution and full screen viewing. Compatible with both AHD and standard CVBS cameras, it suits caravan and truck installations requiring a large viewing screen across a 12V to 24V DC system. A 6-metre 4-pin to 4-pin extension cable is included.
Product overview
The RV70-AHD provides a straightforward multi-camera monitoring solution for caravan and truck applications. The 7-inch 1024 x 600 pixel display supports AHD resolutions of 720P and 1080P as well as standard CVBS camera signals, giving flexibility in camera selection. Three AHD camera inputs are provided, each with a dedicated trigger input for automatic camera switching.

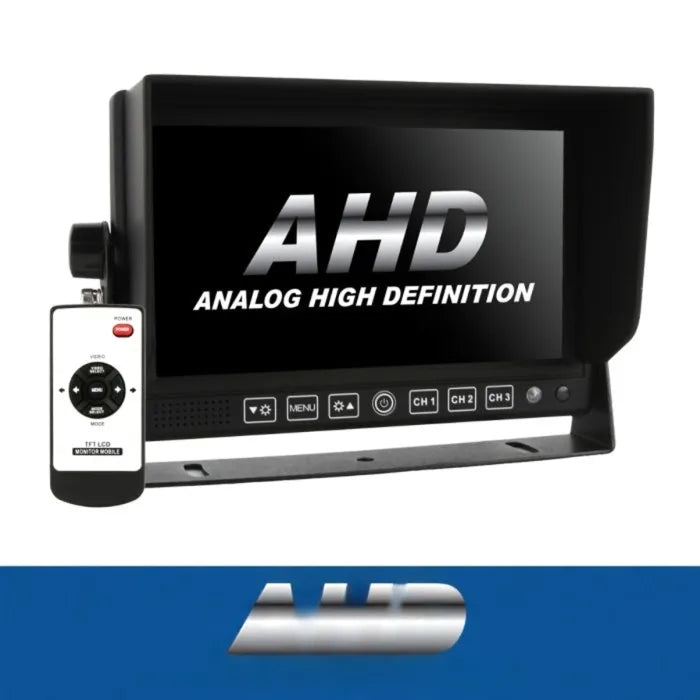

The unit is dash mountable via a U-shaped bracket and includes a removable sun visor, illuminated front panel touch buttons, and an IR remote. All three camera connections use 4-pin water-resistant lockable connectors. A 6-metre 4-pin to 4-pin extension cable is supplied for connection between the screen and camera. Operating voltage covers 12V to 24V DC, making it suitable across caravans, trucks, and buses.
Features and benefits
7-inch AHD display: A 1024 x 600 pixel 16:9 display provides a large and clear viewing area for multi-camera monitoring in caravan and truck applications.
3-channel camera input: Accepts up to three camera inputs with dedicated trigger inputs for each, allowing automatic switching to a specific camera view when a trigger signal is received.
AHD and CVBS camera compatibility: Supports both AHD cameras at 720P and 1080P resolution and standard non-AHD CVBS cameras, providing flexibility in camera selection and upgrade path.
6-metre extension cable included: A 6-metre 4-pin to 4-pin extension cable is supplied in the box for connection between the screen and camera, reducing the need for additional cable purchases.
4-pin water-resistant lockable connectors: All camera connections use 4-pin water-resistant lockable connectors for secure and reliable camera connections in commercial vehicle environments.
Dash mountable with U-shaped bracket: The included U-shaped bracket allows the monitor to be mounted on the dash for clear sightlines in the cabin.
Removable sun visor: A large removable sun visor reduces glare on the screen in bright conditions, improving visibility during daytime operation.
IR remote included: An IR remote control is supplied for convenient operation of the monitor without reaching the front panel controls.
12V to 24V DC operating voltage: Compatible with both 12V and 24V vehicle electrical systems, covering caravans, trucks, and buses.
Technical specs
| Specification |
Detail |
| SKU |
RV70-AHD |
| Brand |
DNA |
| Screen Size |
7 inches |
| Aspect Ratio |
16:9 |
| Resolution |
1024 (RGB) x 600 pixels |
| Video System |
AUTO PAL and NTSC |
| Camera Inputs |
3 x AHD with 3 triggered inputs |
| Supported Resolutions |
720P @ 25/30fps, 720P @ 50/60fps, 1080P @ 25/30fps |
| Camera Compatibility |
AHD and CVBS |
| Camera Connectors |
4-pin water-resistant lockable |
| Extension Cable Included |
6m 4-pin to 4-pin |
| Mount Type |
Dash mount with U-shaped bracket |
| Operating Voltage |
12V to 24V DC (±10%) |
| Current Consumption |
5W |
| Operating Temperature |
0°C to +60°C |
| Dimensions |
180mm W x 121mm H x 24mm D |
Frequently asked questions
Will the RV70-AHD work with my existing non-AHD cameras?
Yes. The RV70-AHD is compatible with both AHD and standard CVBS non-AHD cameras, so existing cameras can be used alongside or instead of AHD cameras without issue.
How many cameras can the RV70-AHD support?
The RV70-AHD accepts up to three camera inputs, each with a dedicated trigger input for automatic camera switching.
What is the difference between the RV70-AHD and the RV74AHD?
The RV70-AHD features 3 camera inputs while the RV74AHD features 4 camera inputs with 11 selectable image view configurations including quad split screen. The RV70-AHD also includes a 6-metre extension cable in the box. Contact us for further guidance on which model suits your specific installation.
Is the RV70-AHD suitable for 24V truck applications?
Yes. The RV70-AHD operates across a 12V to 24V DC input range, making it suitable for both 12V and 24V vehicle electrical systems including trucks and buses.
Does the RV70-AHD include a sun visor?
Yes. A large removable sun visor is included to reduce screen glare in bright conditions, improving visibility during daytime operation.
