Description
High Resolution 3CH TFT-LCD Monitor Is Ideal For Multiple Camera Applications For Full Screen Viewing

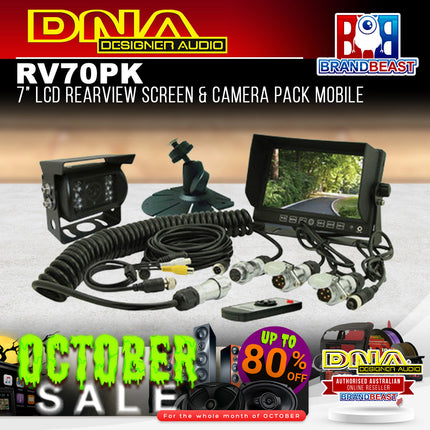

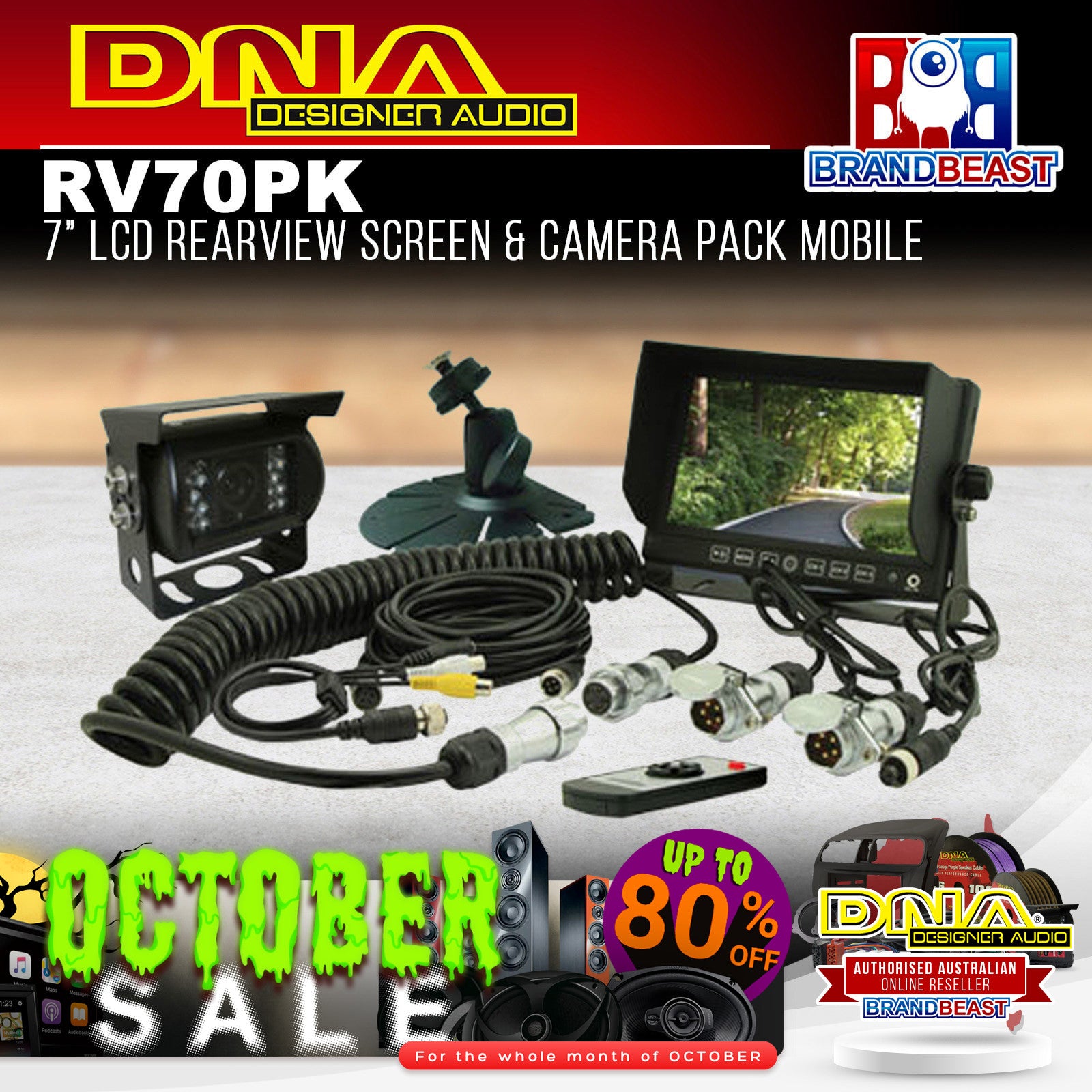

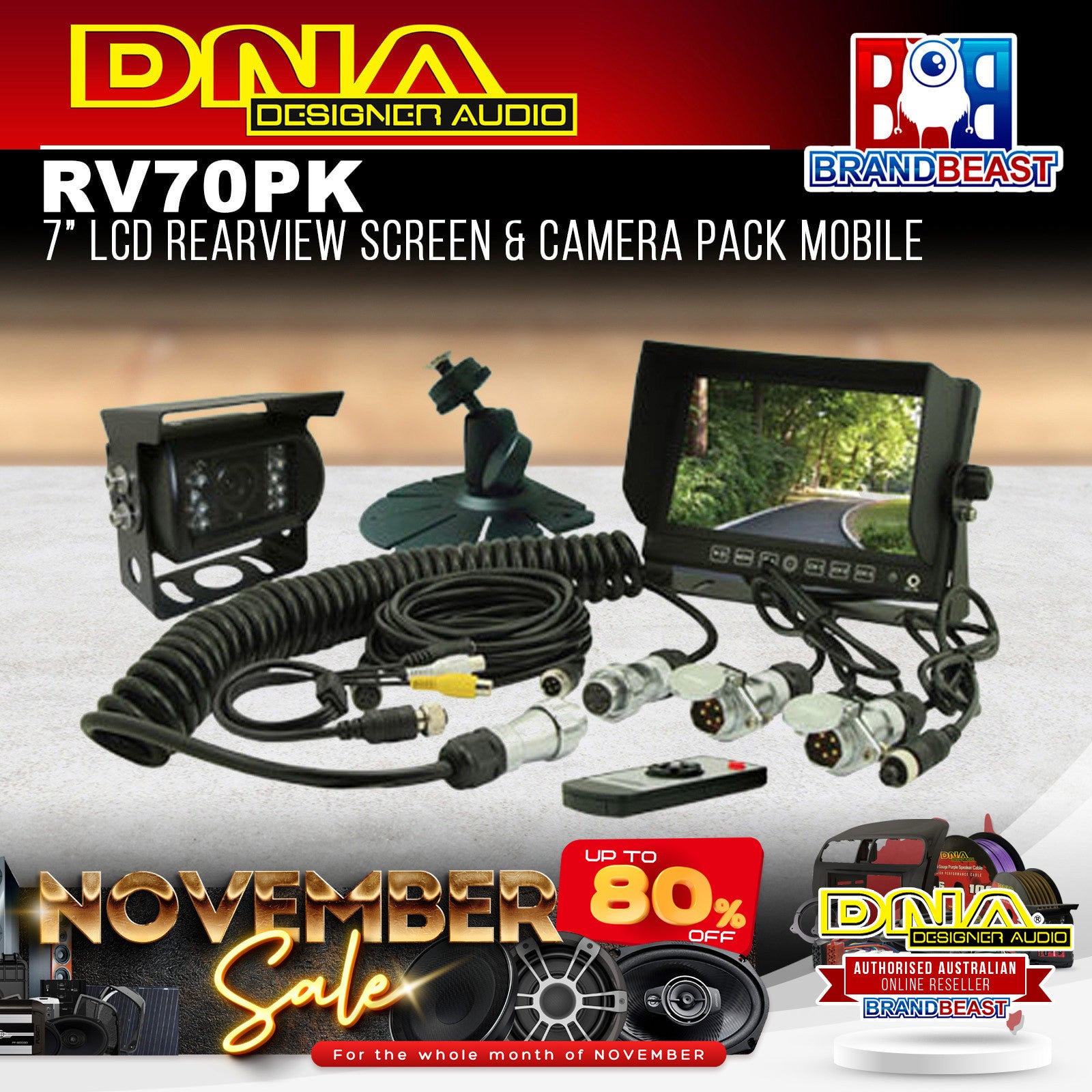

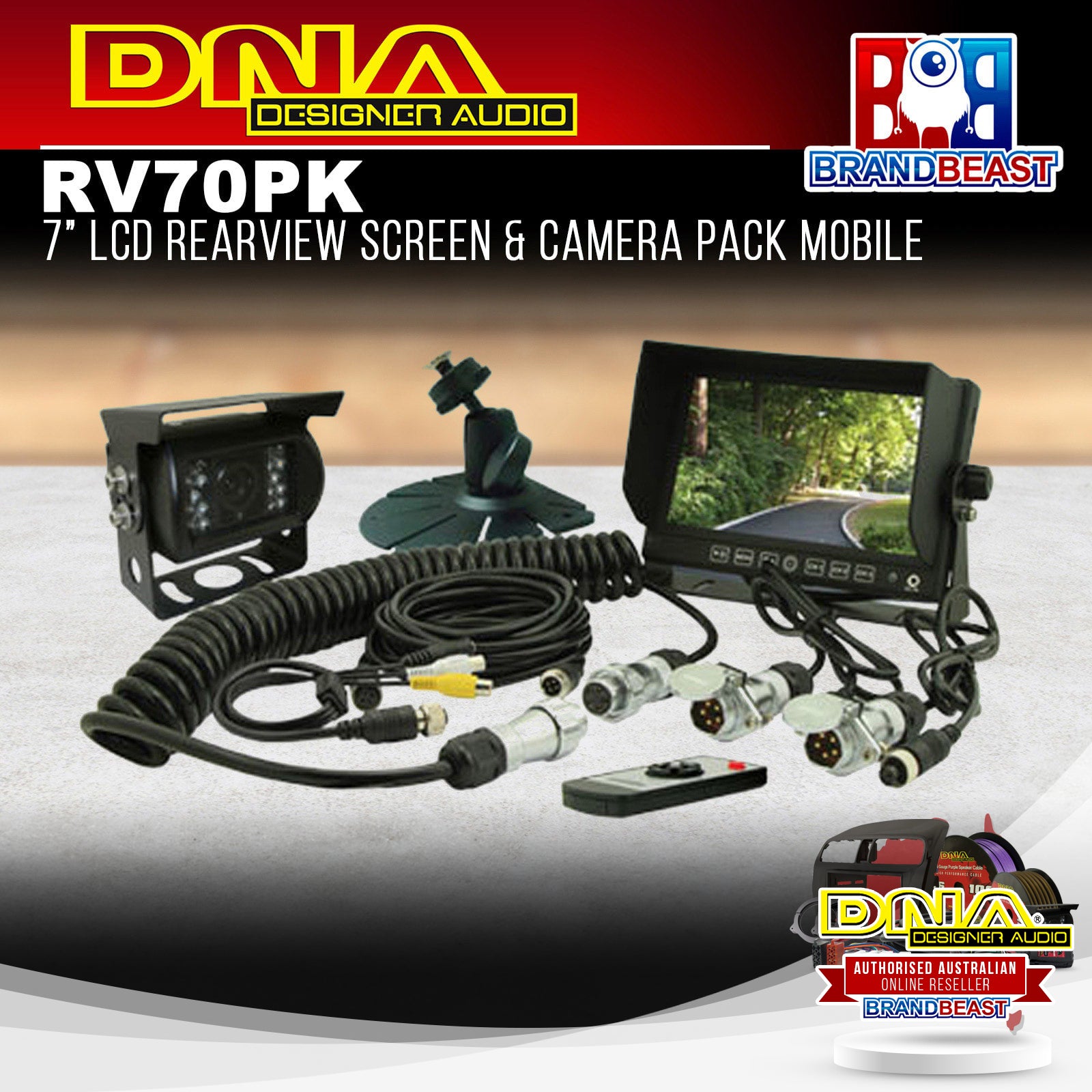

7″ LCD Rearview Screen 3 Channel, Includes front panel touch buttons with a large removable sun visor and is ideal for Caravans and Truck installations where a large viewing screen required.
Features: - Screen:
- 7″ TFT-LCD Display
- 3 Camera Inputs With 3 Triggered Inputs For Each Camera.
- 1 Camera AV Input On Front Panel (CH1)
- Dash Mountable With Either U Shape Bracket Or Round Shape Bracket.
- Screen Sun Visor
- In-Built Speaker
- Microphone Included
- Illuminated Touch Front Panel Buttons.
- 4 PIN Water-Resistant Lockable Camera Connections.
- IR Remote Included
- Supplied With 2 x L Brackets For Mounting 5 PIN Sockets To Vehicle.
- Camera:
- Heavy Duty PAL CCD Truck/Bus/Caravan Camera
- All Metal Waterproof Construction CCD Camera Is Ideal For Trucks/Buses Where Heavy Duty Application Is Required.
- Operates On 12V Or 24V Vehicles & Includes Built-In IR LED's For Excellent Night Visibility.
- ¼” Sharp PAL CCD Image Processor.
- 120° Horizontal Viewing Angle.
- 0 Lux Illumination (Night Mode)
- Sun Visor Included
- Waterproof Rating To IP68
- Supplied With 0.6m 4 PIN Water Resistant Lockable Connector.
Specifications: - Screen:
- Aspect Ratio: 16:9
- Video System: (AUTO) PAL & NTSC
- Resolution: 800 (RGB) x 480 Pixel
- Image Options: UP/Down & Left/Right (Mirror)
- Operating Temperature: -20°C /+70°C
- Operating Voltage: 12V – 24V DC (+/- 10%)
- Current Consumption: 5W
- Size: 180mm W x 121mm H x 23mm D
- Packaging: Display Box
- Camera:
- Material: Aluminium Alloy Shell
- S/N ratio: >48db
- Video Output: 1 VP-P 75 Ohm Composite
- Horizontal Resolution: 420TV Line
- Operating Voltage: 12V – 24V DC
- IR LED's: 18 IR LED
- Dimensions: 86.5mm W x 77mm H x 74.5mm D
- Packaging: Display Box
