Description

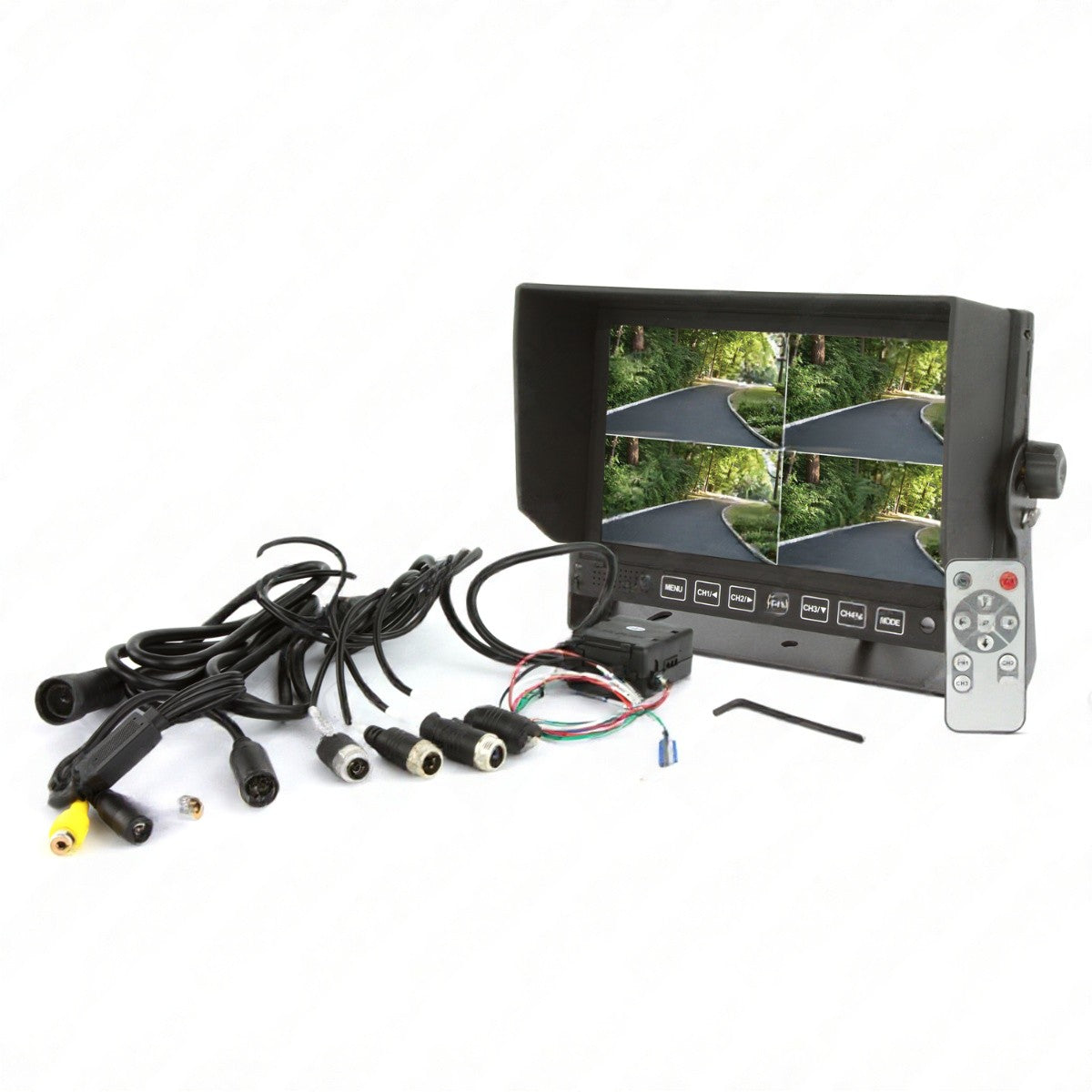

DNA RV74 7 Inch LCD 4 Channel Quad Rearview Screen
High-Resolution 7" Quad View TFT-LCD Monitor for Multi-Camera Setups
The DNA RV74 7 Inch LCD 4 Channel Quad Rearview Screen is designed for vehicles requiring multiple camera views and crystal-clear monitoring. Featuring a 7” high-resolution TFT-LCD display with 11 selectable image modes, this quad-view monitor allows seamless switching between full-screen, dual, and split-screen configurations. Perfect for caravans, trucks, buses, and RVs where multi-angle visibility is essential for safety and navigation.
With 4 independent camera inputs, triggered view switching, a detachable sun visor, and water-resistant lockable camera connections, the RV74 ensures superior reliability for both day and night driving conditions.
DNA RV74 Key Features & Benefits:
-
Quad-View Display: Supports up to 4 cameras simultaneously with 11 image layouts, including full-screen and split-screen modes.
-
High-Resolution TFT-LCD: 800 x 480 pixel clarity for sharp, vivid video monitoring.
-
Multiple Triggered Inputs: Automatically switches views based on front, rear, left, or right trigger signals.
-
Durable & Weather-Resistant: Features 4-pin lockable connections for enhanced reliability in all conditions.
-
Wide Compatibility: Suitable for caravans, trucks, RVs, and buses requiring large-screen monitoring.
-
Integrated Speaker: Built-in audio support for cameras with microphone capability.
-
Sun Visor & Remote Control: Provides clear daytime viewing and convenient IR remote operation.
Technical Specifications:
-
Model: DNA RV74
-
SKU: RV74
-
Type: 7" Quad View Rearview Screen
-
Display: 7” TFT-LCD
-
Aspect Ratio: 16:9
-
Resolution: 800 (RGB) × 480 Pixels
-
Video System: PAL & NTSC (Auto-Detect)
-
Camera Inputs: 4 with triggered switching for front, rear, left, and right cameras
-
Image Modes: 11 viewing configurations including full-screen, dual-view, and quad-view
-
Audio: Inbuilt speaker with volume control
-
Controls: Touch-sensitive front panel buttons with illumination
-
Connections: 4-pin water-resistant lockable connectors
-
Mounting: Dash mountable with U-shaped bracket
-
Power Input: 12V–24V DC ±10%
-
Power Consumption: 5W
-
Operating Temperature: -20°C to +70°C
-
Dimensions: 180mm W × 121mm H × 23mm D
-
Packaging: Display gift box
Installation Applications:
-
Caravans & Motorhomes: Enhance rear and side visibility for safer towing.
-
Trucks & Heavy Vehicles: Ideal for wide-angle blind spot monitoring in large transport vehicles.
-
Buses & Coaches: Perfect for multi-camera passenger safety monitoring setups.
-
4WD & Off-Road Vehicles: Multi-angle monitoring for extreme terrain navigation.
-
Fleet Management: A reliable solution for businesses needing advanced vehicle vision systems.
Frequently Asked Questions
-
How many cameras can I connect?
The RV74 supports up to 4 cameras with triggered switching options.
-
Does it support both PAL and NTSC formats?
Yes, it automatically detects and supports both video formats.
-
Can I customize the viewing layout?
Absolutely, it offers 11 different display configurations including quad, split, and full-screen views.
-
Is the monitor suitable for outdoor use?
Yes, the water-resistant lockable connectors make it highly reliable in outdoor environments.
-
Does the kit include a sun visor?
Yes, a detachable sun visor is included for improved visibility in bright conditions.
