Complete Vehicle Safety Package With 5" Screen & Reverse Camera!

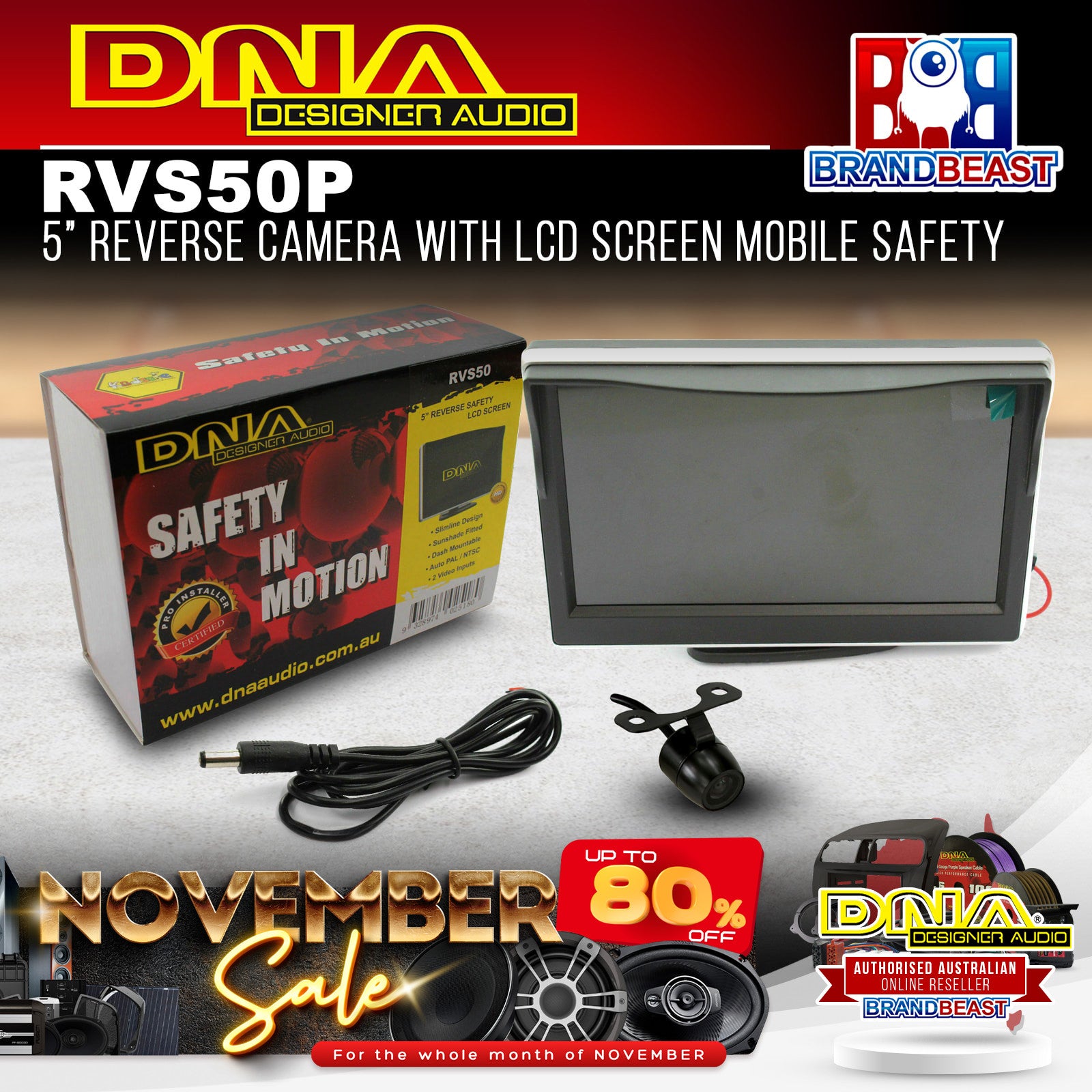

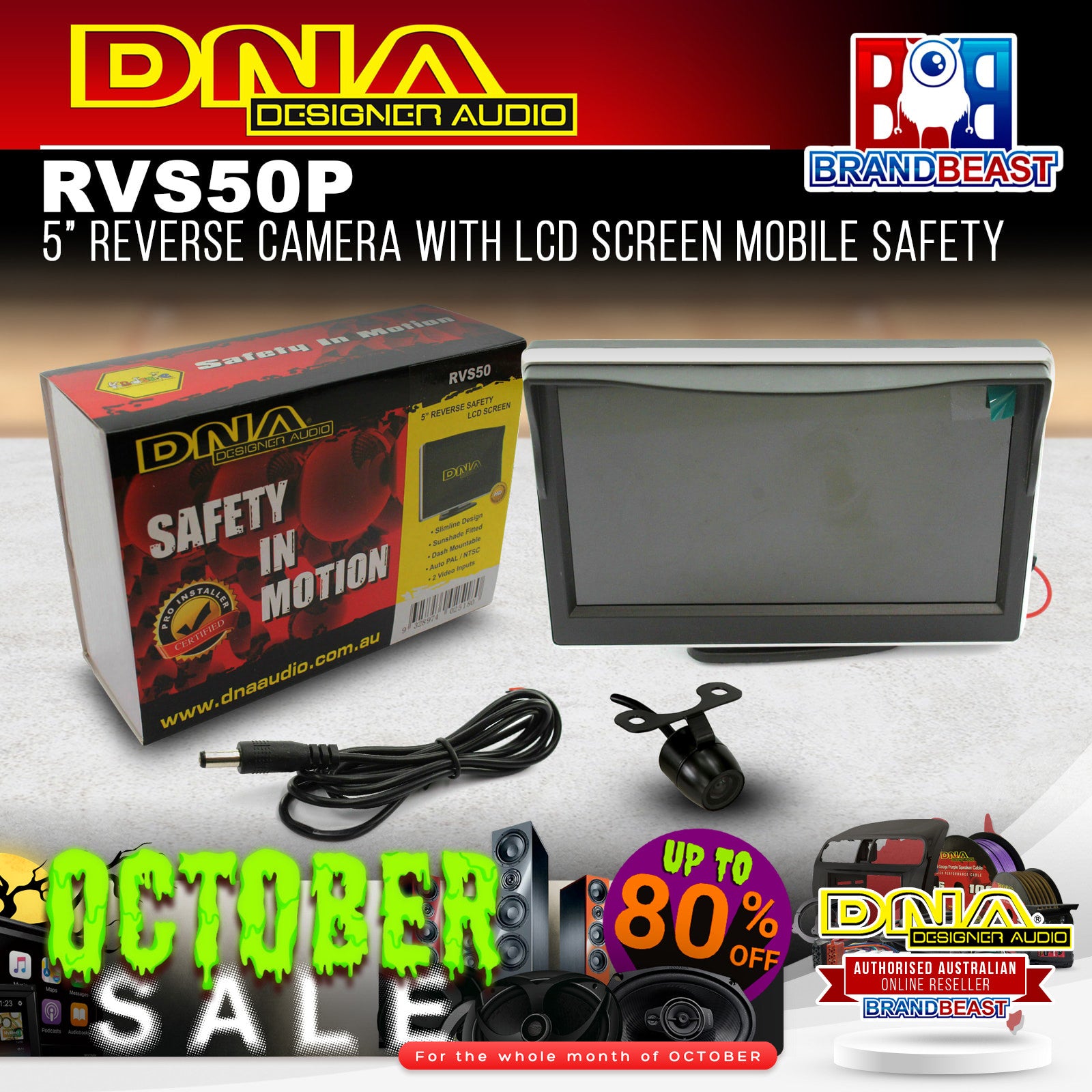

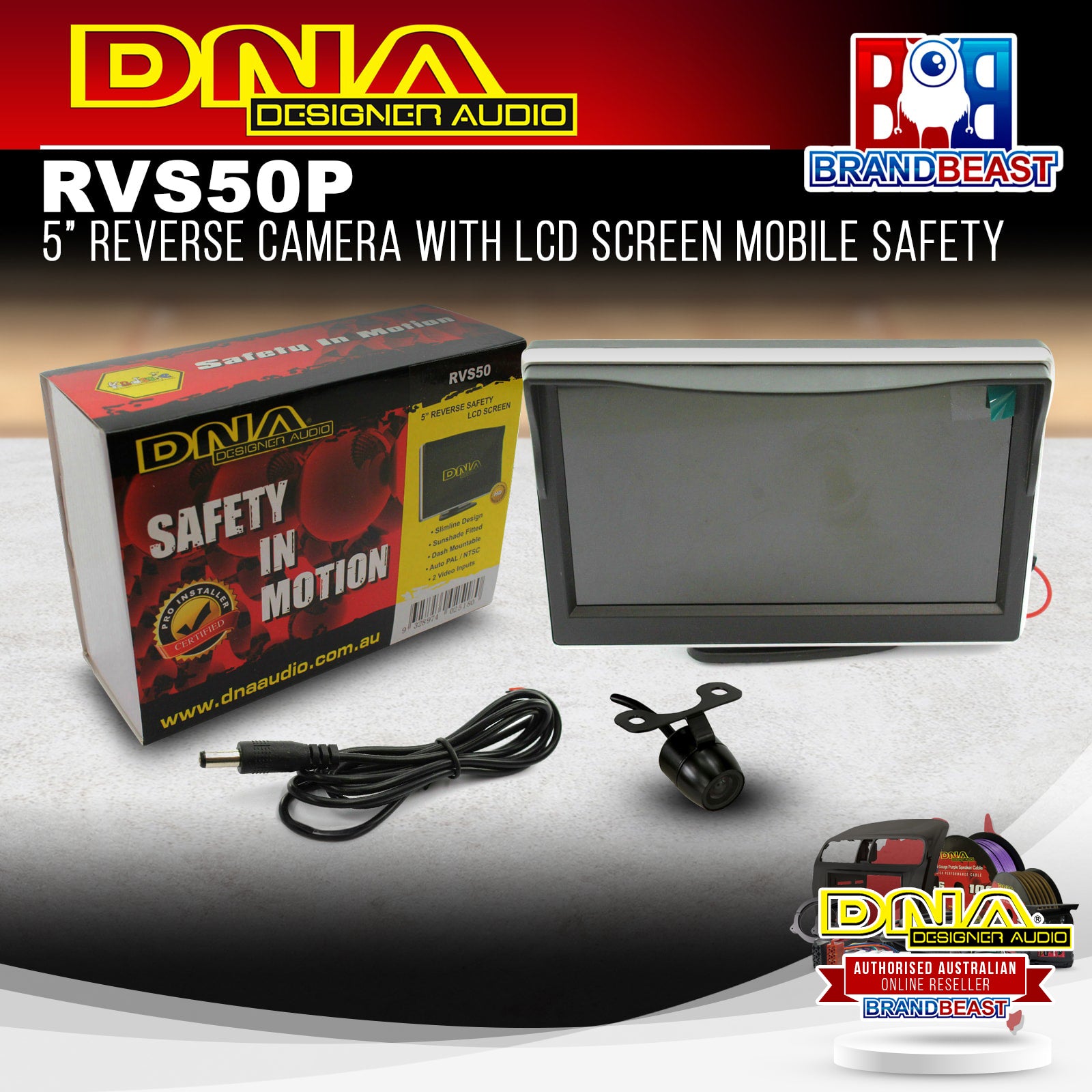

5" Rearview LCD Monitor With Butterfly/Flush Mount Camera (RCB170) This kit provides a complete safety package incorporating a 5-inch screen and reverse camera in a convenient pack.
- 5-inch Rearview LCD Monitor - (RVS50)
- This 5-inch screen is compatible with all our camera models and has a built-in sun visor.
- Fully adjustable ball joint bracket which is dash mountable with 3M adhesive tape.
- Has two video inputs and includes a 12V power cable.
RVS50 Screen Features: - High-Definition LCD Display
- 360 Degree Adjustable Mount
- 2 x RCA Video Inputs (AV2 (White) has priority over AV1 (Yellow)
RVS50 Screen Specifications: - Screen Size: 5" LCD Display
- Video System: PAL / NTSC
- Mode: 4:3 or 16:9
- Resolution: 800 (H) * 400 (V)
- Video Input: 1.0V±0.5Vp-p 75O
- Auto Switching: V1 & V2 (Priority)
- Operating Temperature: -10°C ~ +50°C
- Working Voltage: DC 12V (+/-10%)
- Consumption: 130mA±10%
CMOS Reverse Camera Butterfly Mount - (RCB170) This miniature butterfly/flush mount camera is a truly universal solution for multipurpose vehicle installations.
Model Strengths: - Universal
- Zinc Alloy Housing
- Miniature
- Side Mounting Option
- PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
- Parking Guide Lines*
- Mirror Image*
RCB170 Camera Features: - Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.
- The camera also includes a butterfly mount and flush mount and has a Waterproof IP68 rating.
- Ideal for a wide range of vehicles wanting a safety solution. Rear, front, or side mount applications.
RCB170 Camera Specifications: - Image Sensor: CMOS (PC3089)
- Video System: PAL or NTSC (Selectable)
- Scanning Area: 4.80mm * 3.73mm
- Resolution: 756 (H) * 504 (V)
- Horizontal Resolution: 600 TVL
- Electronic Shutter: 1s-1/10000(S)
- SNR: =46.5dB
- Min Illumination: 0.01LUX
- Video Output: 1.0V±0.5Vp-p 75O
- View Angle: 170°
- Working Voltage: DC 9V - 15V±0.5V
- Consumption: 100mA±10%
- Waterproof Rating: IP68
RVS50P Specs: - Packaging: DNA Gift Box With Sleeve
- Weight: 0.68kg
