Description
DNA RVS966-4K 9.66" 4K Rear-View DVR Mirror & Camera Pack
9.66” 4K Touch Screen Rear-View DVR Mirror with Dual Recording, Streaming & Reverse Camera Kit

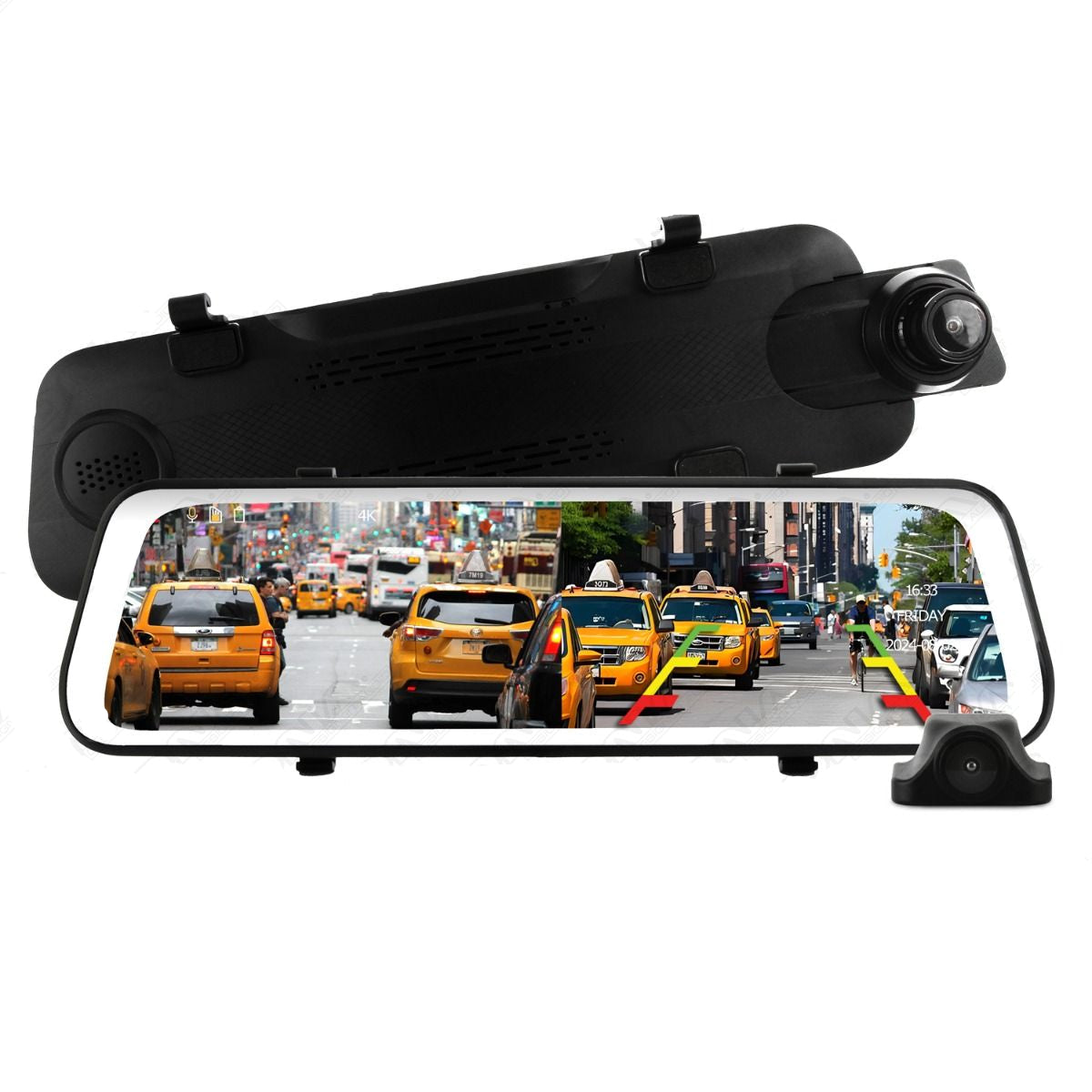

The DNA RVS966-4K 9.66” 4K Rear-View DVR Mirror & Camera Pack is the ultimate safety and monitoring solution for cars, SUVs, 4WDs, trucks, and RVs. Featuring an ultra-high-definition 4K front dash camera, 1080P rear camera, and a stunning 9.66-inch touch-screen AHD mirror display, this premium kit delivers unmatched recording quality, live streaming visibility, and superior reversing assistance.
With dual-channel 4K + 1080P recording, seamless loop recording, and a built-in G-Sensor, this DVR mirror ensures every moment is captured in crystal clarity. Its live streaming rear-view function makes it perfect for vehicles with limited rear visibility, while the integrated reverse trigger enables automatic parking gridlines when reversing.
DNA RVS966-4K Key Features & Benefits:
-
4K Ultra-HD Front Recording: Capture sharp, detailed footage at 3840×2160 @ 30FPS.
-
Dual-Channel DVR: Simultaneous front 4K recording and rear 1080P camera coverage for complete visibility.
-
9.66” AHD Touch Display: High-resolution 1920×480 LCD mirror display with seamless navigation.
-
Live Rear Vision Streaming: Real-time rear camera feed while driving — perfect for vehicles with restricted rear vision.
-
Wide 144° Viewing Angles: Both cameras provide expansive coverage to reduce blind spots.
-
G-Sensor Incident Lock: Automatically secures video files when impact or collision is detected.
-
Continuous Loop Recording: Records indefinitely by overwriting the oldest files with the newest footage.
-
Parking Assist Gridlines: Integrated reverse trigger shows guidelines when reversing.
-
Includes 32GB TF Card: Ready to use out of the box; supports up to 128GB Class 10 for extended storage.
-
Optional GPS & Hard-Wire Kit: Expand functionality with GPS tracking and fuse box wiring (sold separately).

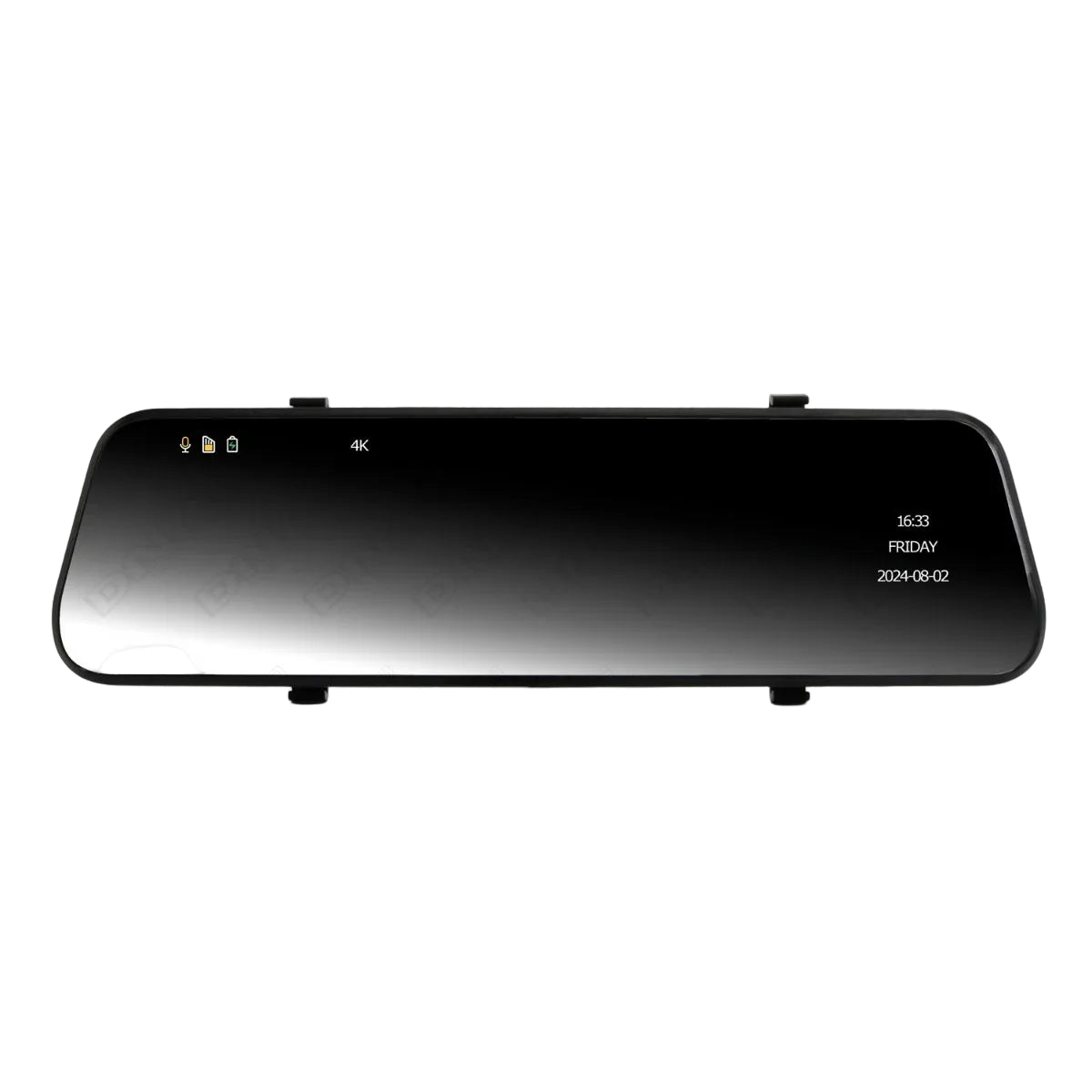

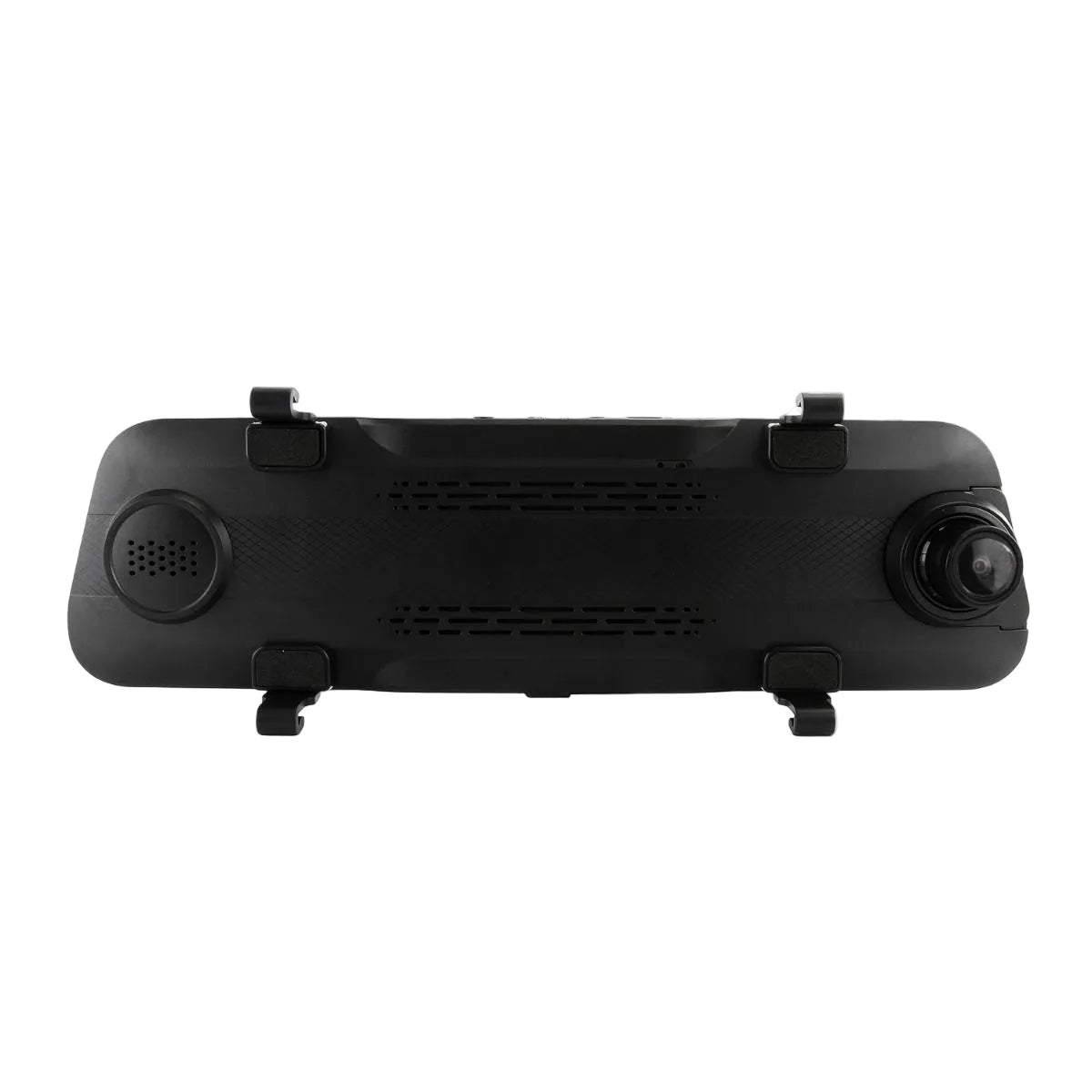

Mirror Monitor Specifications:
-
Display Size: 9.66 Inches
-
Resolution: 1920 × 480 pixels
-
Mounting Type: Clip-on rear-view mirror
-
Video Input: 1 × 2.5mm socket (reverse camera)
-
GPS Input: 1 × 3.5mm (GPS module sold separately)
-
Dimensions: 72mm (H) × 257mm (W) × 38mm (D)
-
Power Input: USB Type-C
-
Input Voltage: 5V 3A (12V/24V accessory adaptor included)
Dash Camera DVR Specifications:
-
Channels: 2 (Front & Rear)
-
Front Camera: 3840×2160 @ 30FPS (4K Ultra HD)
-
Rear Camera: 1920×1080 @ 25FPS
-
Viewing Angles: 144° (front and rear)
-
Battery: 800mAh built-in
-
Audio: Built-in microphone & speaker
-
Recording Formats: TS video, JPG image format
-
Compression: H.264 / H.265
-
Storage: 32GB TF card included, supports up to 128GB
-
Input Voltage: 5V 3A

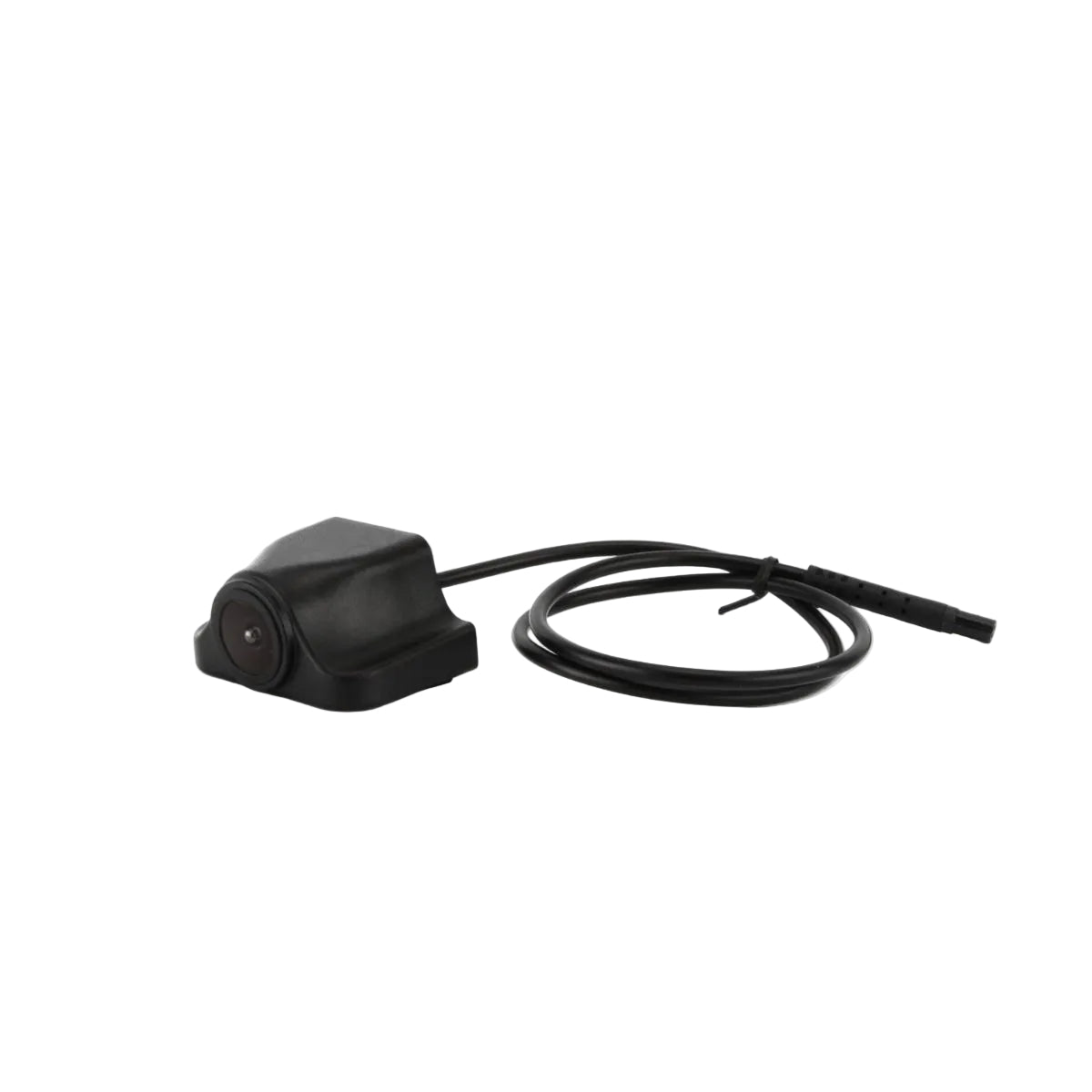

Rear Camera Specifications:
-
Resolution: 1080P AHD CMOS
-
Camera Angle: 144°
-
Mount Type: Surface mount with butterfly bracket
-
Input Voltage: 12V
-
Connection Type: 4-Pin
-
Cable Length: 8 metres
-
Parking Gridlines: Yes, enabled via reverse trigger
-
Camera Size: 26mm (H) × 45.5mm (W) × 40mm (D)

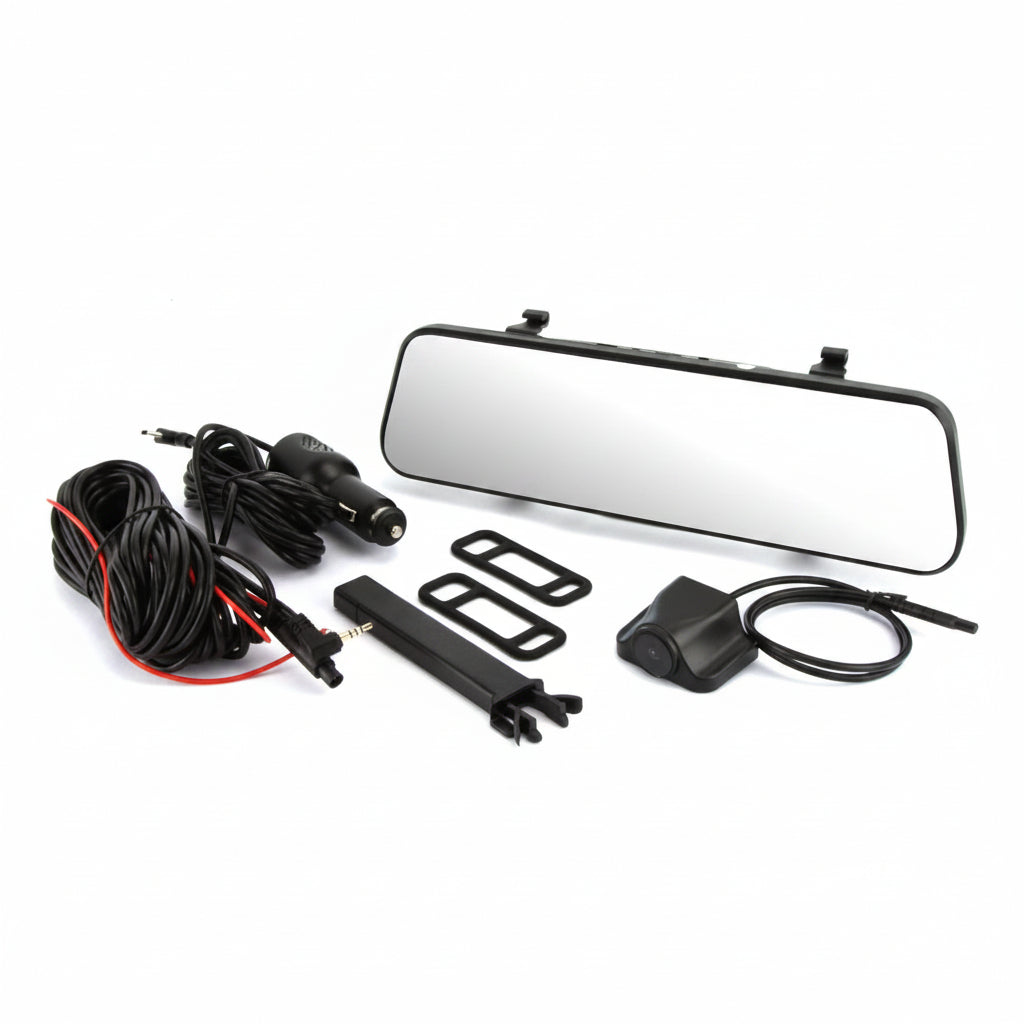

Kit Contents:
- 9.66” 4K Mirror Monitor with Integrated DVR
- AHD 1080P Reverse Camera with Mounting Screws & Tape
- 8m Camera Extension Cable with Trigger Wire
- 12V/24V Accessory Power Adaptor
- Rubber Mirror Mounting Clips & Protective Pads
- Includes 32GB TF Card
- Display Gift Box Packaging
Optional Accessories (Sold Separately):
-
RVS966-HW4 – Hard Wire Kit for Fuse Box Installations
-
GPS Module – For advanced route and speed tracking
-
Extension Cables: 7.5m and 15m options available
Frequently Asked Questions
-
Does this kit record in 4K?
Yes, the front dash camera records at 3840×2160 Ultra HD.
-
Can I hard-wire the kit?
Yes, the RVS966-HW4 Hard Wire Kit is compatible and sold separately.
-
Does this support GPS tracking?
Yes, a GPS module is available for optional purchase.
-
Are parking assist gridlines included?
Yes, reversing lines display automatically when reverse gear is engaged.
-
Is the rear camera weatherproof?
Yes, it’s built for outdoor and off-road use with rugged construction.
