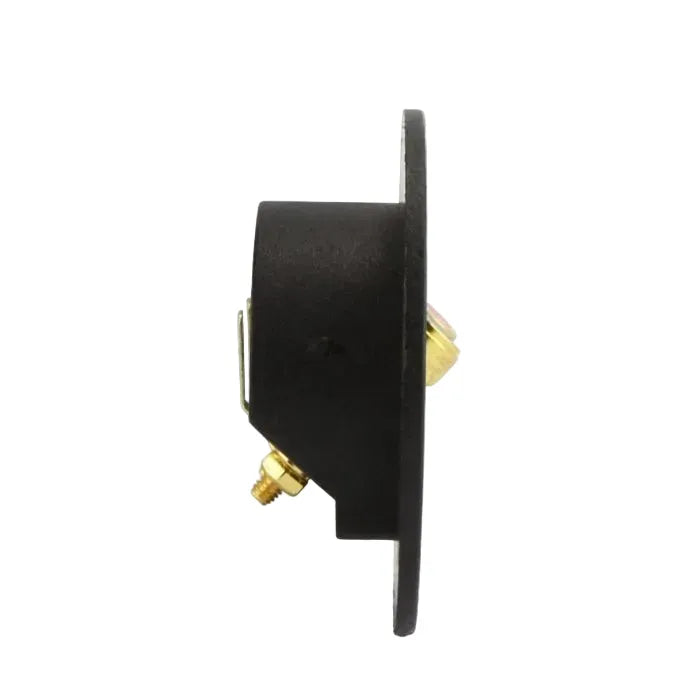

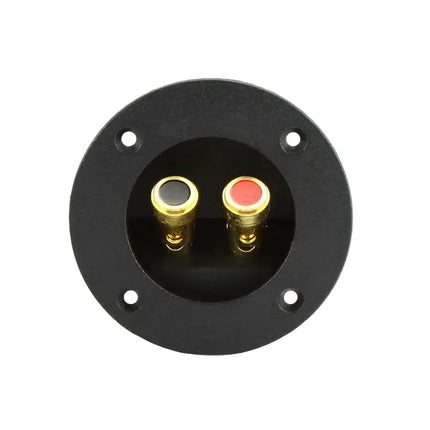

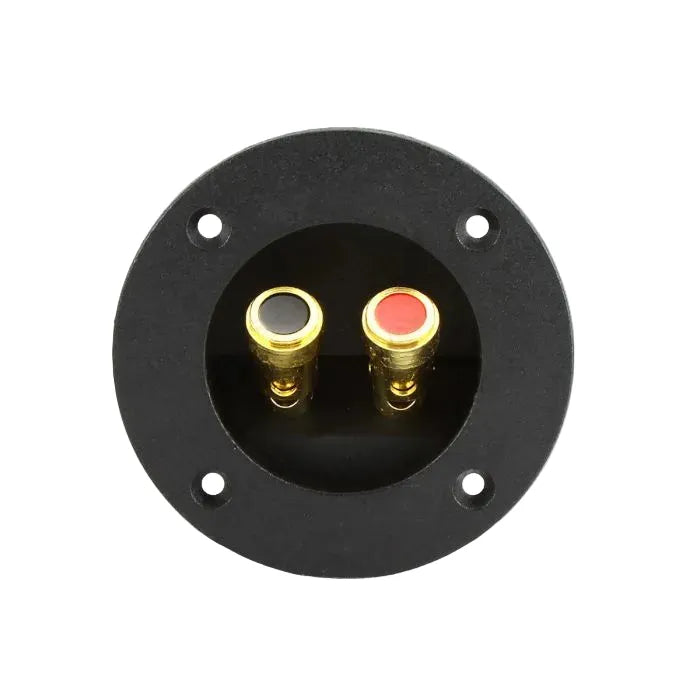

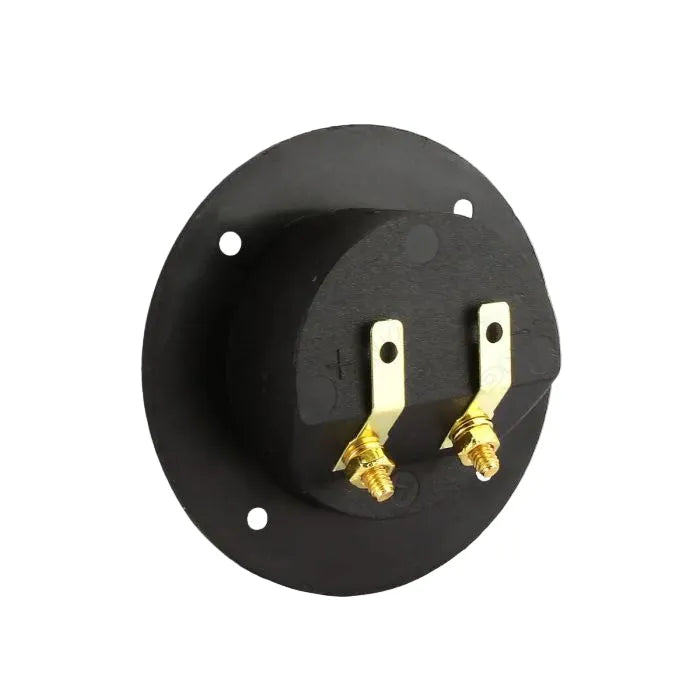

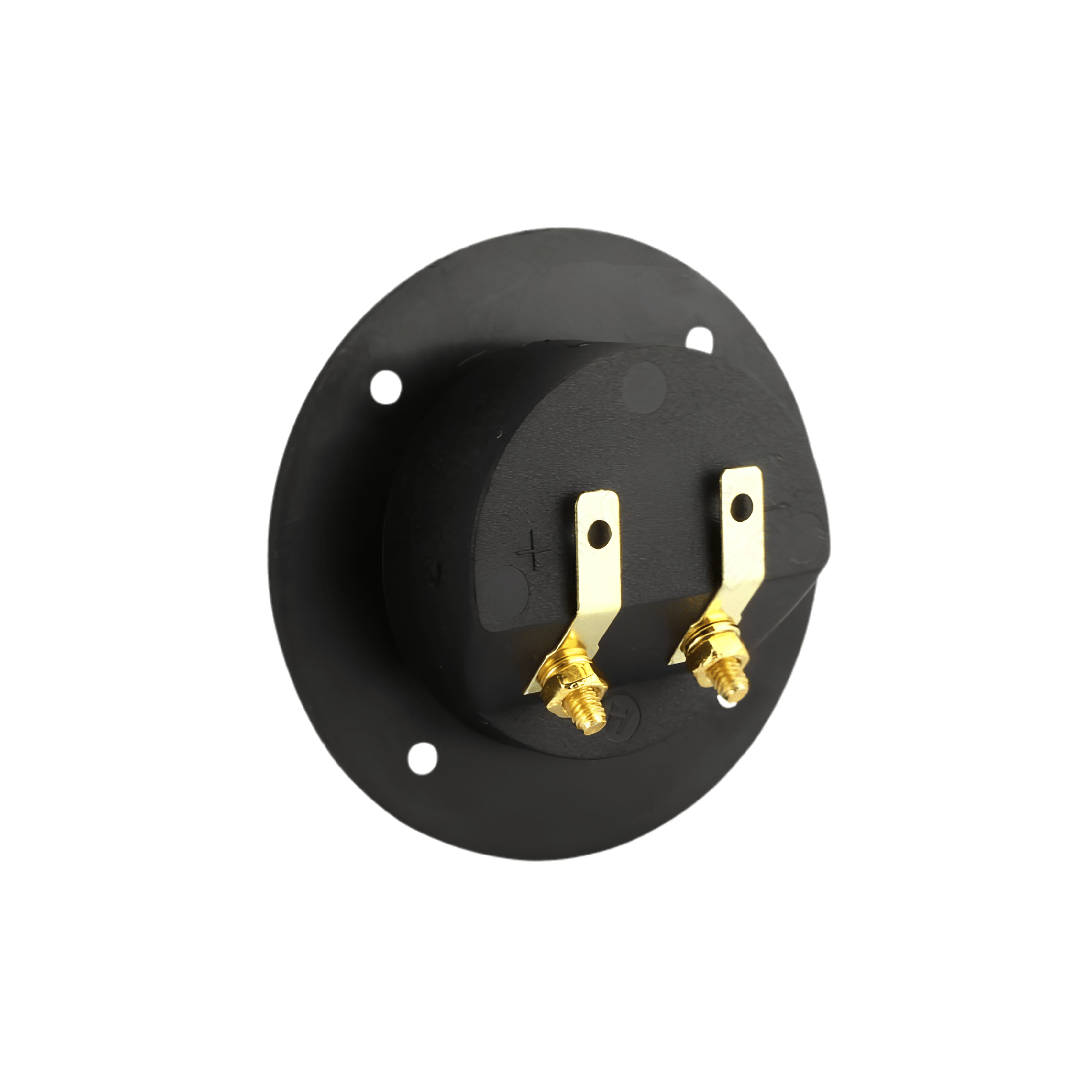

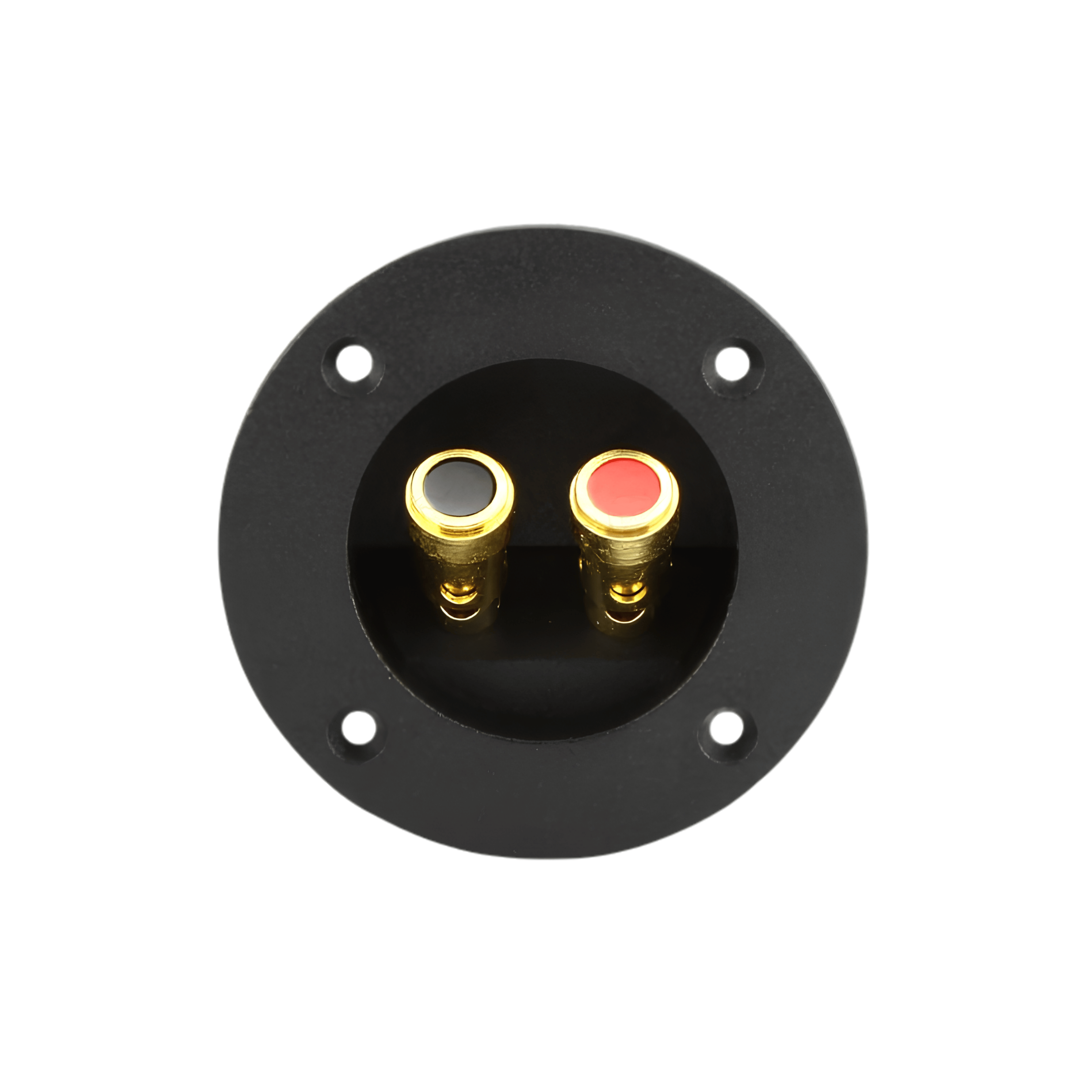

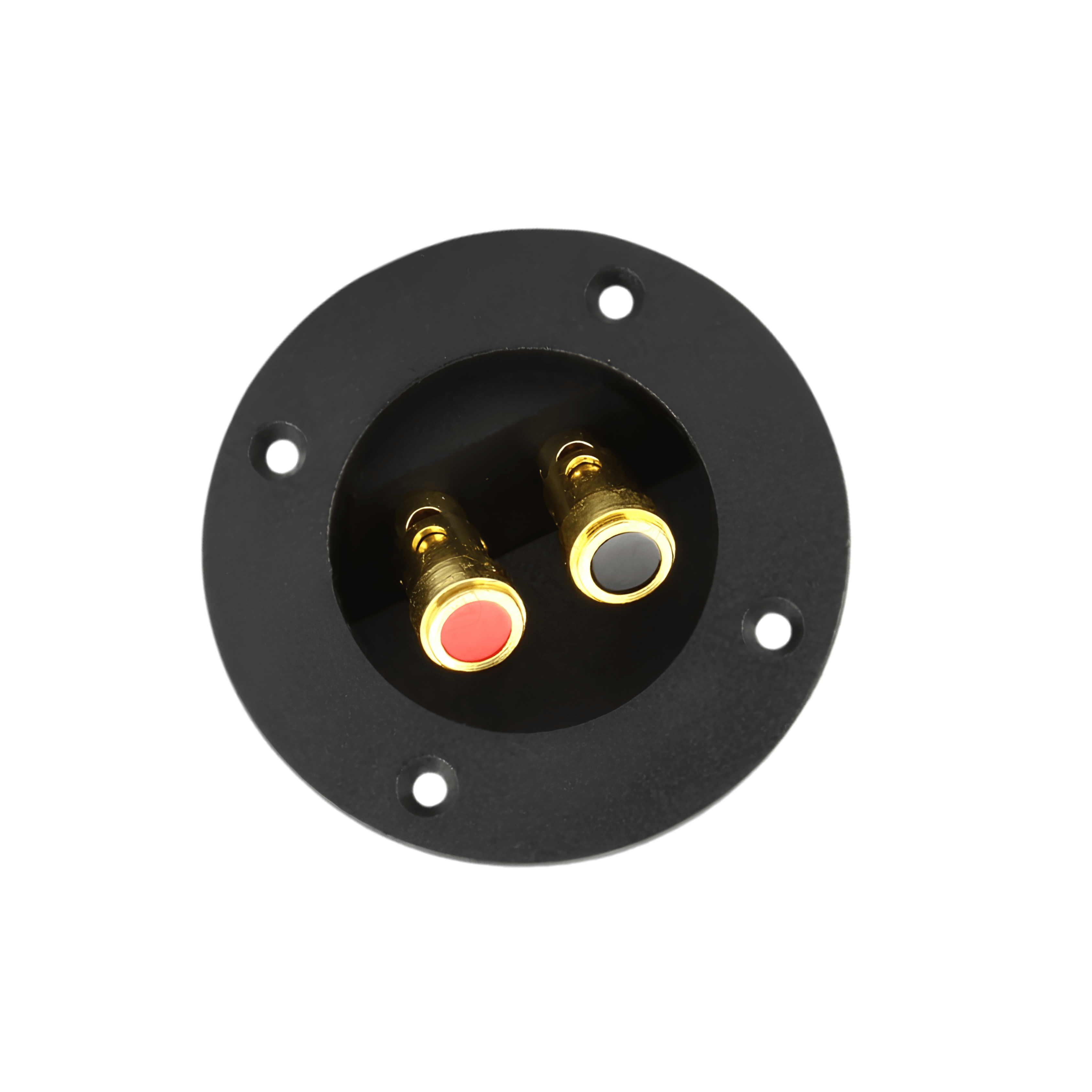

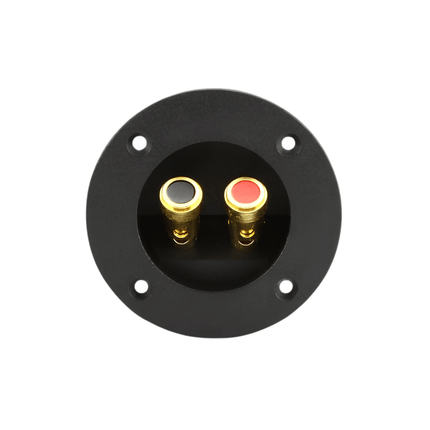

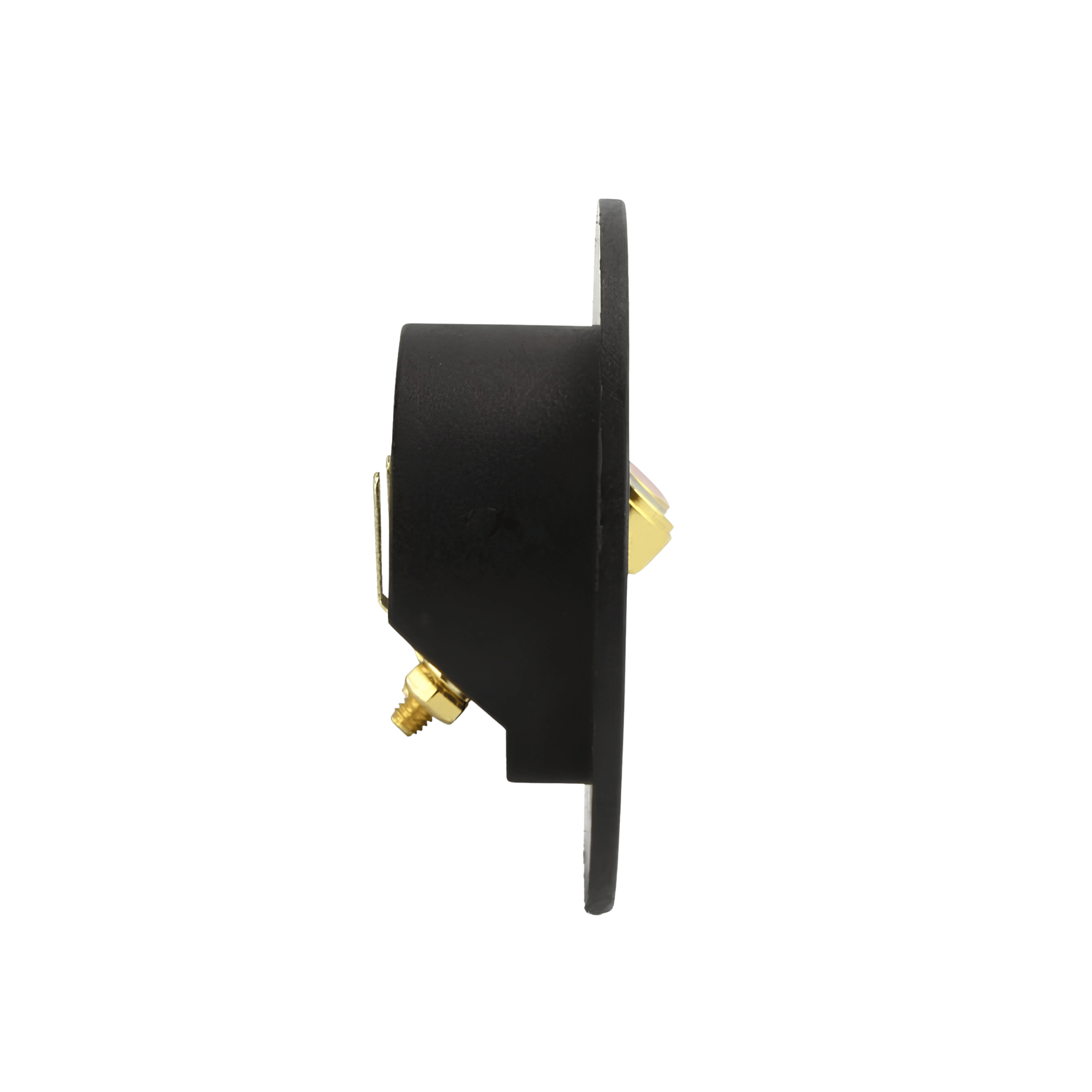

DNA WSC204 Round Panel Speaker Terminal Cup with Spring-Loaded Terminals
A round panel mount speaker terminal cup from DNA, the WSC204 features spring-loaded terminals accepting up to 10 AWG wire, a 75mm total diameter, and a 50mm cutout hole for flush panel installation in subwoofer enclosures, speaker boxes, and custom fabrications. Screws not included.
Product Overview
The DNA WSC204 is a round panel mount speaker terminal cup designed for clean and accessible wiring connections in subwoofer enclosures, speaker boxes, and custom audio fabrication panels. The spring-loaded terminal contacts accept wire up to 10 AWG for reliable connection without tools, providing a secure and vibration-resistant connection point for speaker cables at the enclosure wall. The 75mm total outer diameter and 50mm cutout hole suit standard round terminal cup cutout sizes commonly found in flat-panel and curved enclosure applications.
Note: screws are not included with the WSC204.
Features & Benefits
Spring-Loaded Terminals - Up to 10 AWG Input: Spring-loaded terminal contacts provide tool-free, secure wire connection for speaker cables up to 10 AWG, accommodating standard speaker wire gauges used in subwoofer and full-range enclosure builds.
75mm Total Diameter - 50mm Cutout: The 75mm total outer diameter and 50mm cutout hole provide compatibility with standard round terminal cup cutout dimensions in flat panel and enclosure applications.
Round Panel Mount Design: Flush panel-mount design for integration into subwoofer enclosures, speaker boxes, and custom fabrication panels with a clean finished appearance.
Screws Not Included: Note that mounting screws are not supplied with the WSC204 and must be sourced separately.
Technical Specs
| Specification |
Detail |
| SKU |
WSC204 |
| Brand |
DNA |
| Type |
Round Panel Speaker Terminal Cup |
| Terminal Type |
Spring-Loaded |
| Maximum Wire Gauge |
10 AWG |
| Total Diameter |
75mm |
| Cutout Hole Diameter |
50mm |
| Mount Type |
Round Panel Mount |
| Screws Included |
No |
Compatible With
The WSC204 is compatible with standard 50mm round cutout panel installations including subwoofer enclosures, speaker boxes, and custom audio fabrication panels. Confirm panel thickness and cutout size before purchase. Mounting screws are not included and must be sourced separately.
Frequently Asked Questions
Are screws included with the WSC204?
No. Mounting screws are not included with the WSC204 and must be sourced separately.
What is the maximum wire gauge the WSC204 accepts?
The WSC204 spring-loaded terminals accept wire up to 10 AWG.
What cutout size is required for the WSC204?
A 50mm diameter round cutout is required for panel installation of the WSC204. The total outer diameter of the cup is 75mm.
