Description

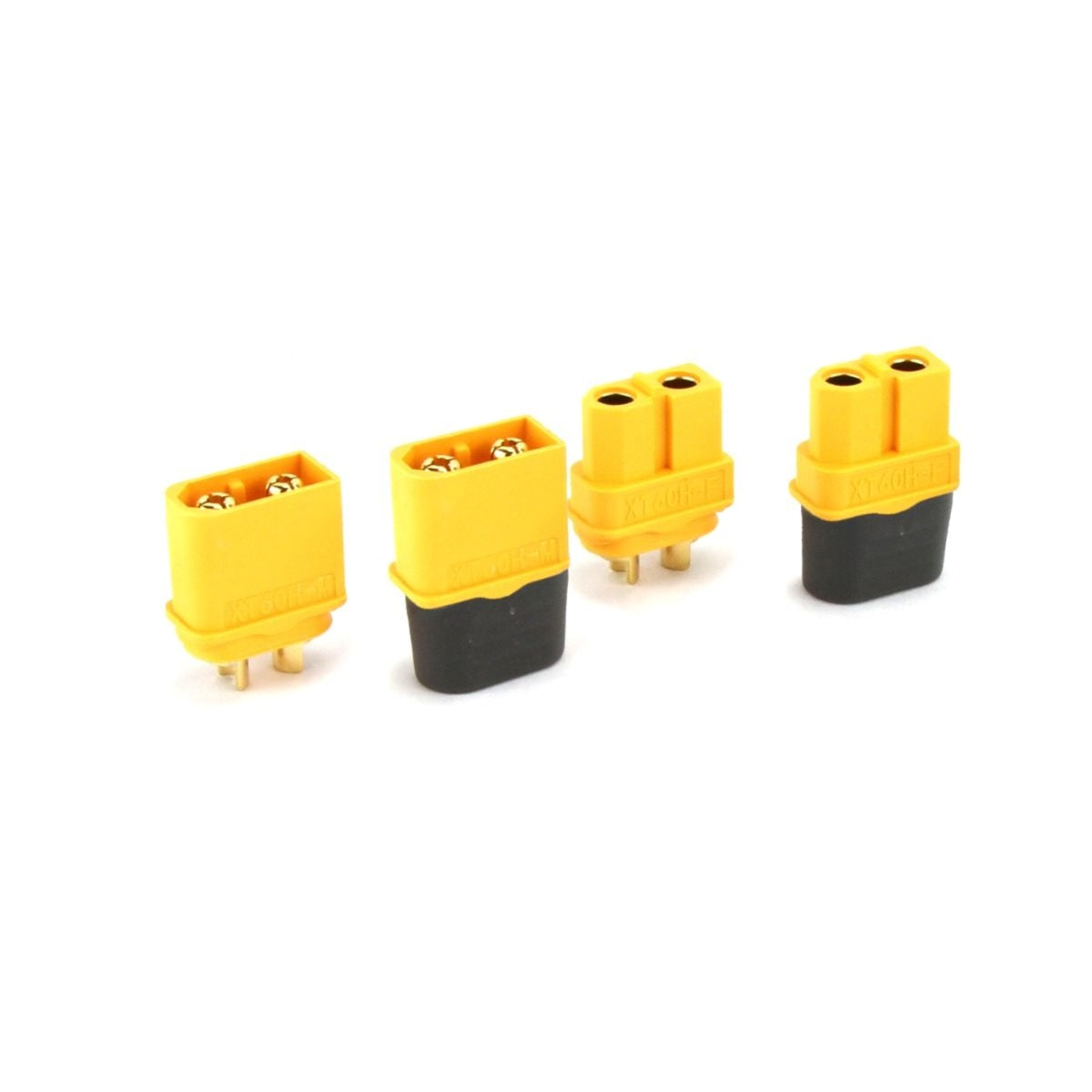

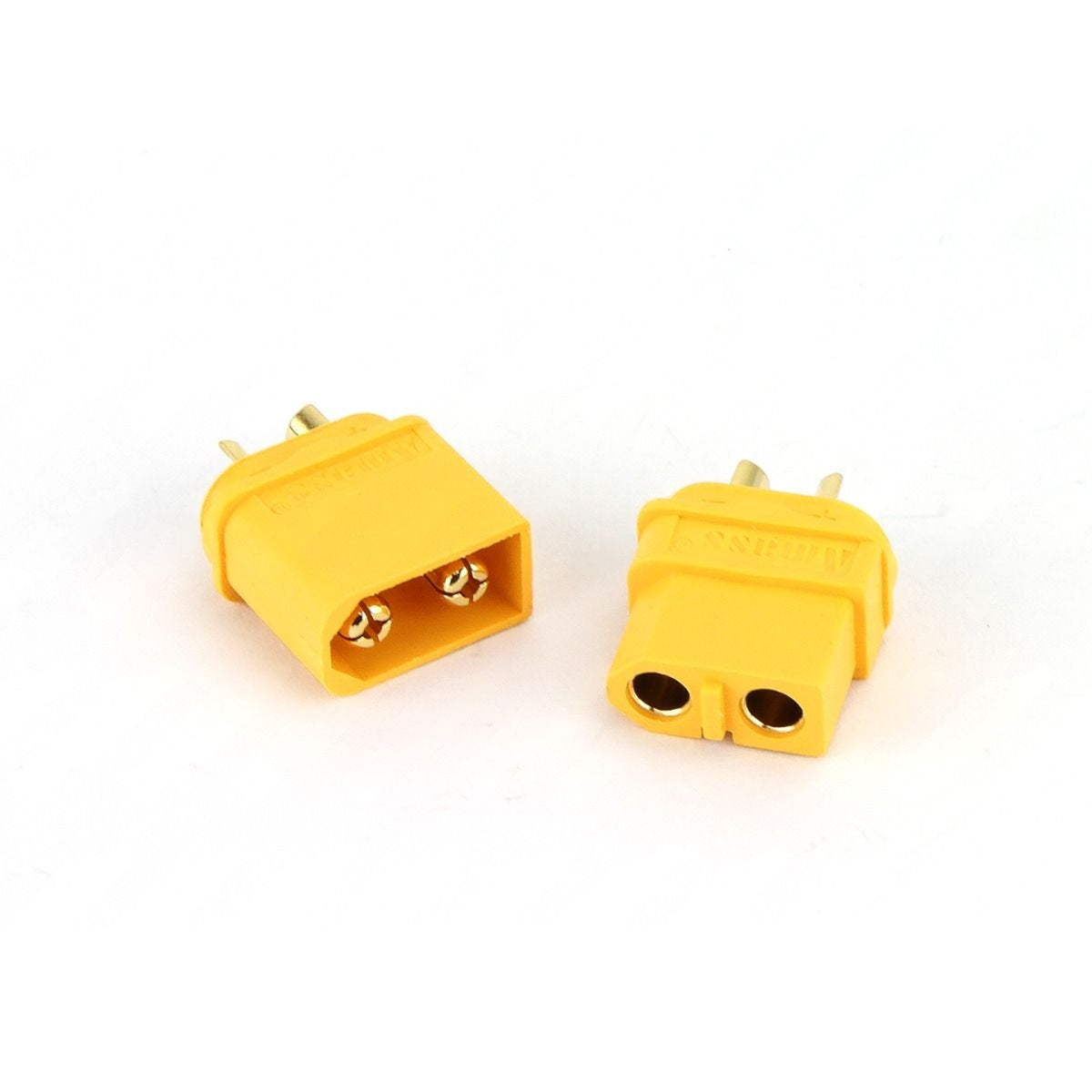

DNA WXT60H XT60H Solder Male And Female Connectors - 10 Pack
High-current 60-amp solder connectors with protective boots for professional audio installations
The DNA WXT60H XT60H Solder Connectors provide reliable high-current connections rated for up to 60 amps at 500VDC, making them ideal for speaker and subwoofer termination in professional car audio systems. This comprehensive 10-pack includes 10 male plugs, 10 female sockets, and 20 rear protective boots for complete connector solutions requiring permanent solder connections.
Designed for high-power audio applications where removable connections are needed without sacrificing current capacity, these connectors offer secure mating with gold-plated contacts for maximum conductivity. The included protective boots provide strain relief and environmental protection for long-term reliability in automotive installations.
DNA WXT60H Key Features & Benefits:
-
High Current Capacity: 60-amp rating handles high-power subwoofer and amplifier connections
-
Complete Kit: 10 male/female pairs with 20 protective boots for multiple installations
-
Solder Termination: Permanent connections ensure maximum conductivity and reliability
-
Professional Grade: 500VDC rating suitable for demanding car audio applications
-
Protective Boots: Included strain relief boots protect solder joints and provide professional appearance
-
Secure Mating: Positive connection prevents accidental disconnection during use
Technical Specifications:
-
Model: DNA WXT60H
-
SKU: WXT60H
-
Current Rating: 60 amps maximum
-
Voltage Rating: Up to 500VDC
-
Connection Type: Solder termination
-
Kit Contents: 10 male plugs, 10 female sockets, 20 rear boots
-
Contact Material: Gold-plated for maximum conductivity
-
Application: Speaker and subwoofer termination
-
Construction: High-temperature resistant materials
Kit Contents:
-
10x Male Plugs: For positive connections and power distribution
-
10x Female Sockets: For mating connections and equipment termination
-

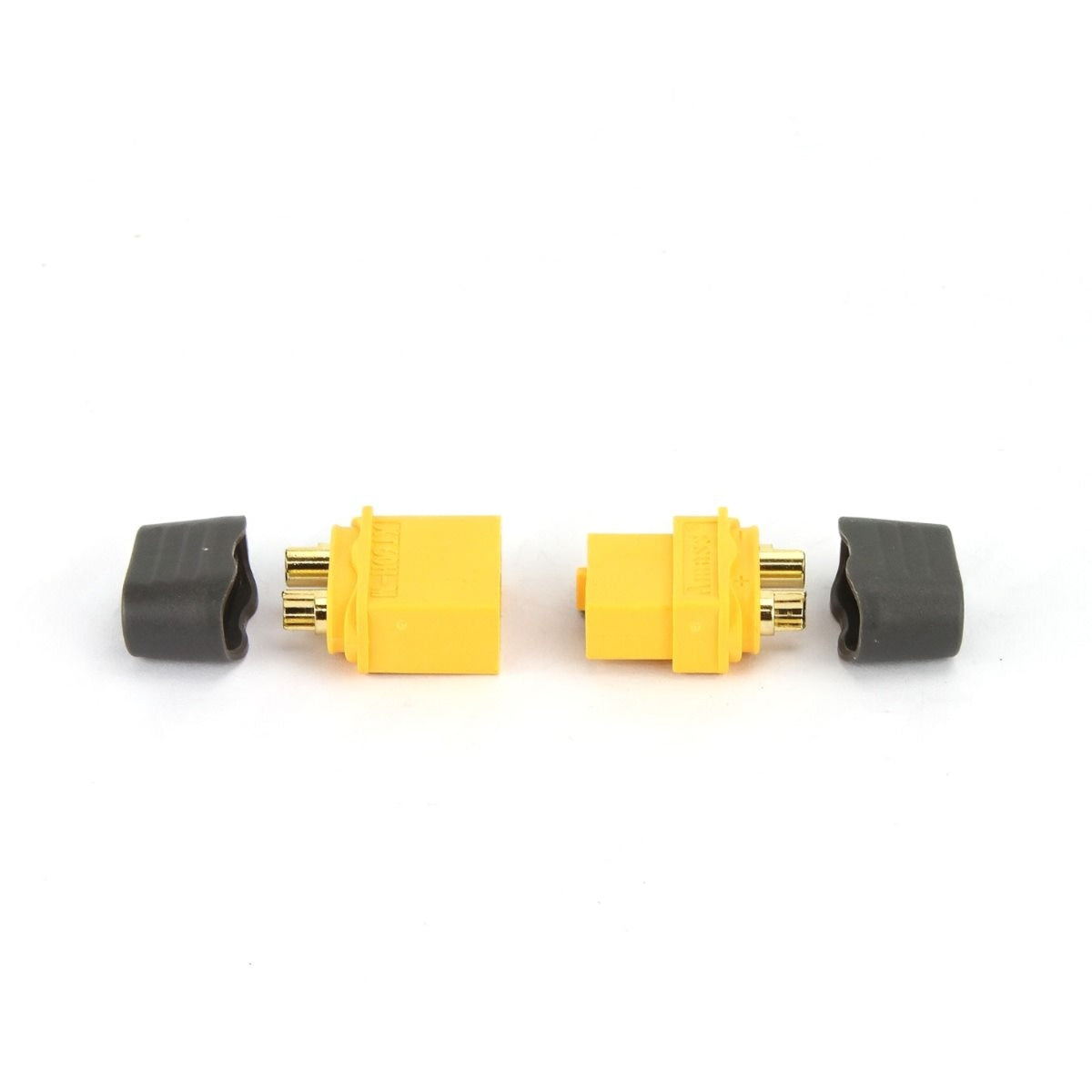

20x Rear Boots: Protective covers for strain relief and professional finish
Installation Applications:
-
Car Audio Systems: High-power subwoofer and amplifier connections requiring removable termination
-
Competition Audio: Professional installations where maximum current flow is critical
-
Marine Audio: Boat audio systems requiring reliable, corrosion-resistant connections
-
Home Audio: Custom speaker systems and subwoofer installations
-
Commercial Audio: Professional sound installations requiring modular connections
Frequently Asked Questions
What's the advantage over standard audio connectors? 60-amp capacity handles high-power applications that would overload standard audio connectors.
Can I reuse these connectors? Solder connections are permanent - connectors can be mated/unmated but require resoldering to change wires.
Are these suitable for 12V automotive systems? Yes, 500VDC rating far exceeds automotive requirements while providing high current capacity.
How do I ensure proper solder connection? Use proper soldering technique with adequate heat and rosin-core solder for reliable joints.
What gauge wire can these handle? 60-amp rating typically accommodates 4-8 AWG wire depending on installation requirements.
